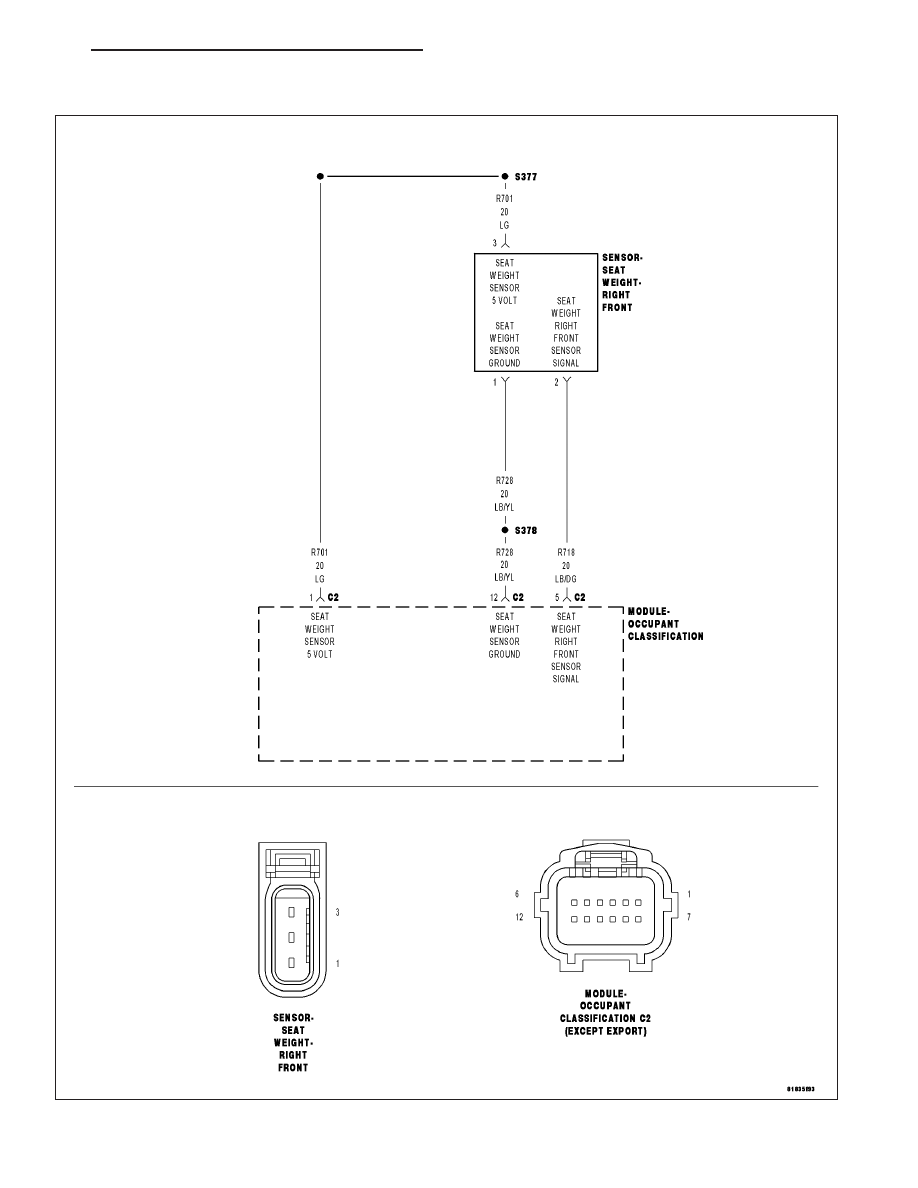

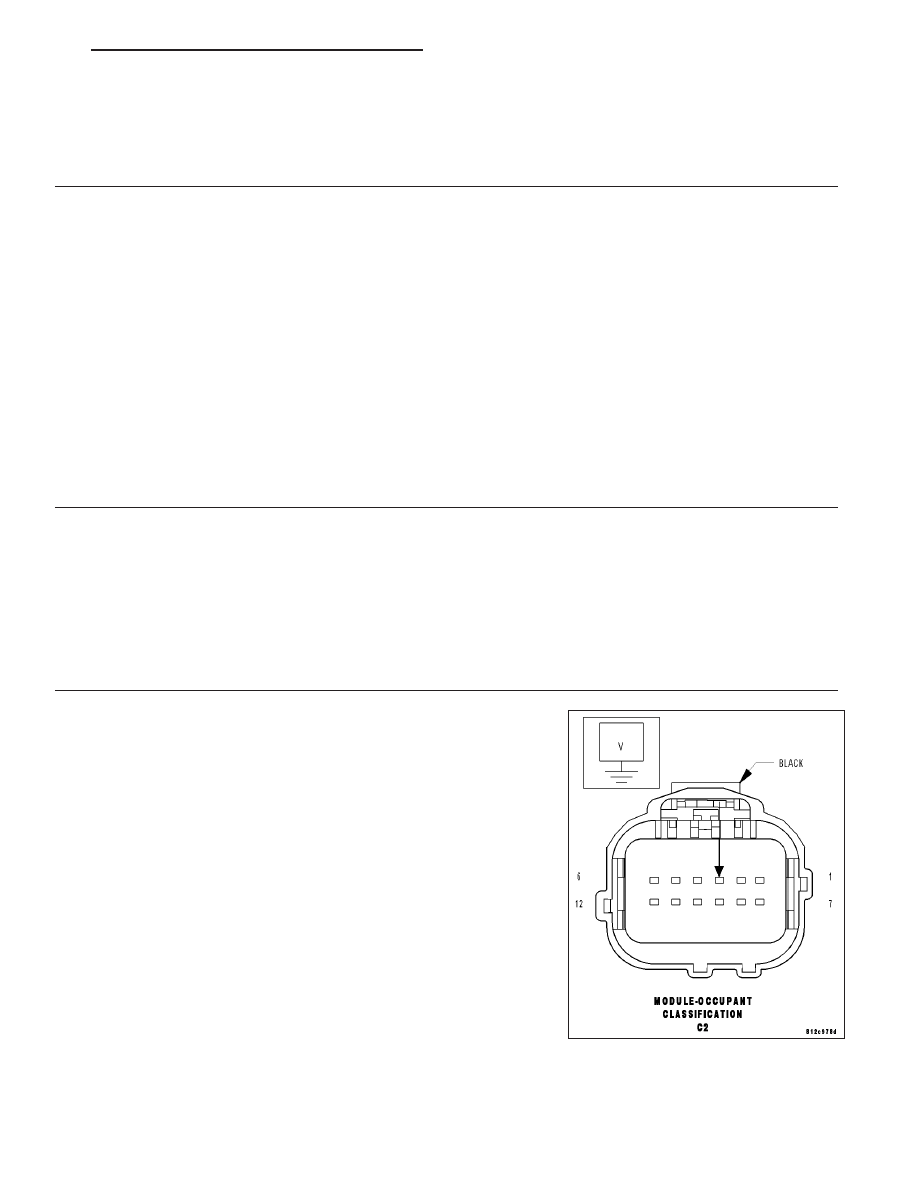

CIRCUIT HIGH? Yes >> Go To 3 No >> Go To 8 3. INSPECT PASSENGER SEAT HARNESS WIRES AND CONNECTORS WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min- Are any of these conditions present? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or Replace the Passenger Seat Harness in accordance with the Service Information. Perform OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST. Perform AIRBAG SYSTEM VERIFICATION TEST - VER 1. No >> Go To 4 4. VERIFY THAT PASSENGER SEAT HARNESS IS ROUTED CORRECTLY Verify that the Passenger Seat Harness is routed correctly. Is the Passenger Seat Harness routed correctly? Yes >> Go To 5 No >> Reroute the Passenger Seat Harness as necessary. Perform OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST. Perform AIRBAG SYSTEM VERIFICATION TEST - VER 1. 5. CHECK (R717) LT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE Disconnect the OCM C2 connector. Measure the voltage of the (R717) LT-FT Seat Weight Sensor Signal cir- Is the voltage above 0.2 volt? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Replace the Passenger Seat Harness in accordance with the Perform OCCUPANT CLASSIFICATION MODULE SYSTEM Perform AIRBAG SYSTEM VERIFICATION TEST - VER 1. No >> Go To 6 PM RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 157 |
