REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the
proper precautions could result in accidental airbag deployment and personal injury or death.

If there are no possible causes remaining, view repair.

Repair

Replace the Occupant Restraint Controller in accordance with Service Instructions.

Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

TEST FOR AN INTERMITTENT CONDITION

With the scan tool, record and erase all DTC’s from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or con-
taminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

>> Select appropriate symptom from Symptom List.

>> No problem found at this time. Erase all codes before returning vehicle to customer.

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 129

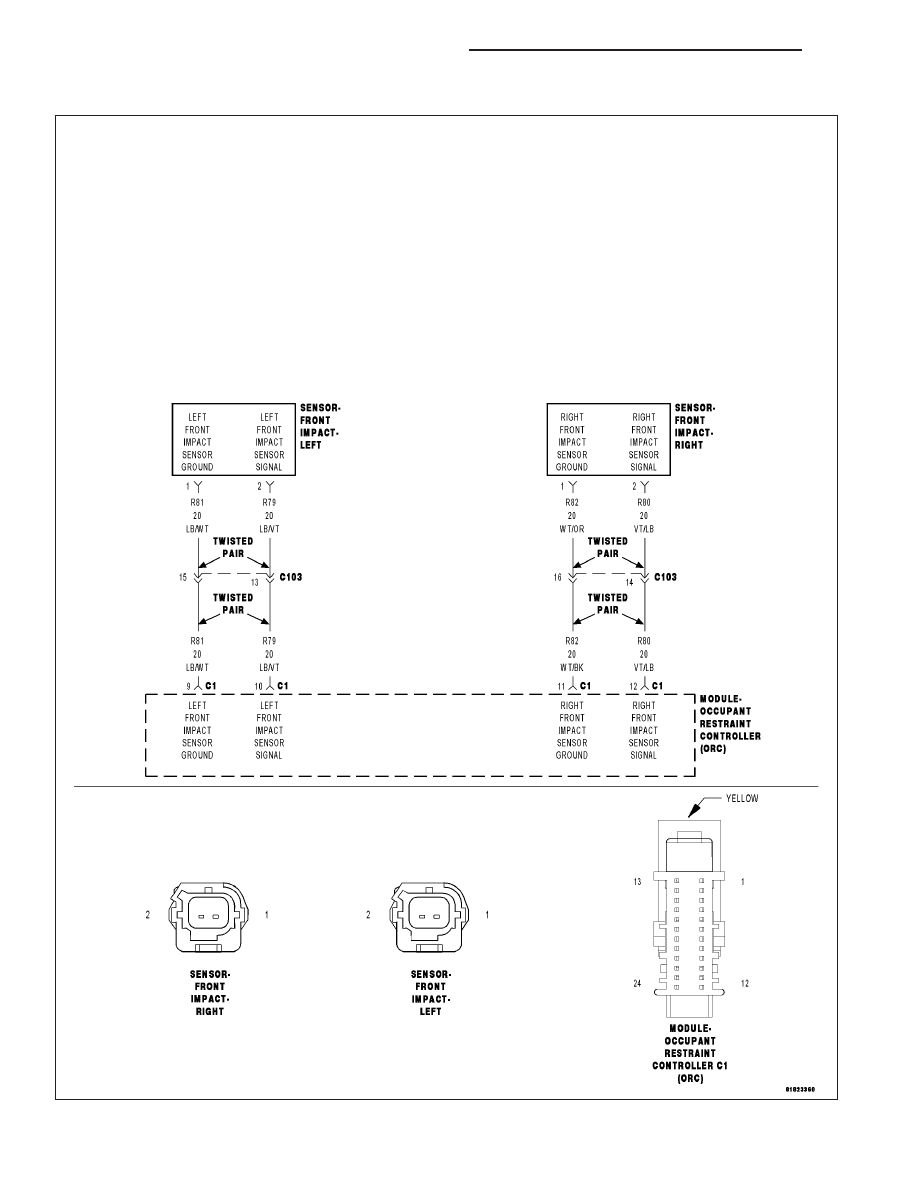

B1B71-UP-FRONT RIGHT SATELLITE ACCELERATION SENSOR INTERNAL

For a complete wiring diagram Refer to Section 8W.

8O - 130

RESTRAINTS - ELECTRICAL DIAGNOSTICS

•

When Monitored:
With the ignition on, the Front Right Impact Sensor is equipped with on board diagnostics to monitor to sen-
sor’s internal circuits. If a problem is identified, the sensor sends the Front Right Impact Sensor Internal mes-
sage to the Occupant Restraint Controller (ORC).

•

Set Condition:
This DTC will set if the ORC receives an internal DTC from the Front Right Impact Sensor.

Possible Causes

FRONT RIGHT IMPACT SENSOR

OCCUPANT RESTRAINT CONTROLLER (ORC)

Diagnostic Test

DETERMINE ACTIVE OR STORED FAULT CODE

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
Turn the ignition on.

Select the appropriate module and DTC type combination:

ORC - ACTIVE DTC

Go To 2

ORC - STORED DTC

Go To 4

VERIFY OPERATION OF THE FRONT RIGHT IMPACT SENSOR

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Replace the Front Right Impact Sensor.

Reconnect the vehicle wire harness to the sensor.

Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Bat-
tery.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
Use the scan tool and erase the stored codes in all airbag system modules.

Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.

Wait one minute, and read active codes.

Did the active Front Right Impact Sensor Internal DTC return?

Yes

>> Go To 3

>> Repair is complete.

Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 131
