POWER MIRRORS

DESCRIPTION

The mirrors are controlled by a single switch assembly located on the driver’s door trim panel. A three-position
rotary joystick switch selects the right or left power mirror for adjustment, or turns the power mirror system Off in the
center position. A momentary joystick directional switch allows the driver to adjust the selected power mirror in the
Up, Down, Right or Left directions.

The motors which operate the mirrors are part of the mirror assembly and cannot be replaced separately.

These vehicles may be equipped with power foldaway mirrors. This feature allows both the driver and passenger
side view mirrors to fold inward (retract) on demand. The vehicle has an additional switch located below the power
mirror switch that controls the folding function of the mirror assembly.

The foldaway side view mirror is attached to the vehicle’s door in the same manner as mirrors without the foldaway
option. The foldaway mirrors unique option is the internal motor which allows the mirrors to fold inward. The fold-
away mirror motor is not serviceable separately and if a motor is found to be inoperative, the entire side view mirror
must be replaced.

OPERATION

Use the mirror select switch, located on the driver’s door trim panel, to adjust the view obtained in the outside
mirrors. Rotate the joystick for Left or Right mirror selection. Use the center off position to guard against accidentally
moving a mirror position.

Select a mirror and press the joystick in one of the four positions that correspond with the direction that you want
the mirror to move.

DIAGNOSIS AND TESTING - POWER MIRRORS

WIRING VOLTAGE TEST (LHD)

The following wiring test determines whether or not voltage is continuous through the body harness to switch.

1. Remove the power mirror switch.

2. Disconnect wire connector from back of power mirror switch.

3. Connect the clip end of a 12 volt test light to Pin 7 in the harness connector at the mirror switch. Touch the test

light probe to Pin 3.

If the test light illuminates, the wiring circuit between the battery and switch is OK.

If the lamp does not illuminate, first check fuse 18 in the Junction Block (JB). If fuse 18 is OK, then check for a
broken wire.

Refer to the appropriate wiring information.

POWER MIRROR MOTOR TEST (LHD)

If the power mirror switch is receiving proper current and ground and mirrors do not operate, proceed with power
mirror motor test. Refer to the appropriate wiring information.

1. Disconnect wire harness connector to power mirror switch.

2. Using two jumper wires:

Connect one to a 12 volt source

Connect the other to a good body ground

Refer to the Mirror Motor Test Chart for proper wire connections at the switch connector.

MIRROR MOTOR TEST CHART

PM

POWER MIRRORS

8N - 57

12 VOLTS

GROUND

MIRROR REACTION

SWITCH CONNECTOR

RIGHT

LEFT

PIN 4

PIN 1

-

UP

PIN 8

PIN 1

-

LEFT

PIN 1

PIN 4

-

DOWN

PIN 1

PIN 8

-

RIGHT

PIN 9

PIN 10

UP

-

PIN 2

PIN 10

LEFT

-

PIN 10

PIN 9

DOWN

-

PIN 10

PIN 2

RIGHT

-

3. If results shown in table are not obtained, check for open or shorted circuit. Replace mirror assembly as nec-

essary.

8N - 58

POWER MIRRORS

PM

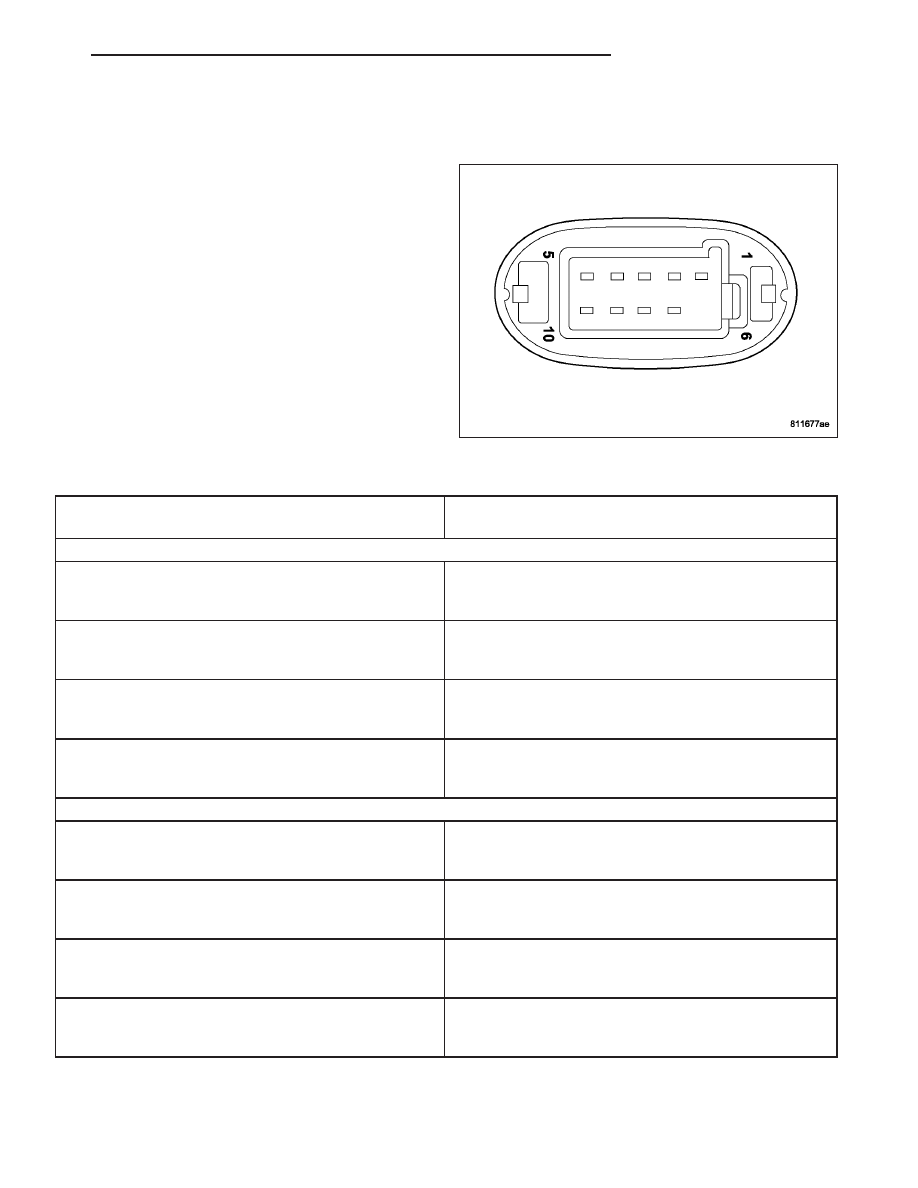

POWER MIRROR SWITCH - LHD

DIAGNOSIS AND TESTING - POWER MIRROR SWITCH - LHD

1. Disconnect and isolate the battery negative cable.

2. Remove power mirror switch (Refer to 8 - ELEC-

TRICAL/POWER

MIRRORS/POWER

MIRROR

SWITCH - REMOVAL).

3. Using an ohmmeter, test for continuity between the

terminals of the switch as shown in the Mirror
Switch Test table.

4. If test results are not obtained as shown in the Mir-

ror Switch Test table, replace the switch.

MIRROR SWITCH TEST TABLE

SWITCH POSITION

MOVE BUTTON

CONTINUITY BETWEEN

TERMINALS

MIRROR IN

9

L

9

POSITION

UP

PIN 2 TO 4
PIN 4 TO 7
PIN 8 TO 10

RIGHT

PIN 3 TO 8
PIN 8 TO 9
PIN 4 TO 10

DOWN

PIN 2 TO 8
PIN 7 TO 8
PIN 4 TO 10

LEFT

PIN 3 TO 4
PIN 4 TO 9
PIN 8 TO 10

MIRROR IN

9

R

9

POSITION

UP

PIN 2 TO 4
PIN 4 TO 7
PIN 1 TO 8

RIGHT

PIN 1 TO 4
PIN 3 TO 8
PIN 8 TO 9

DOWN

PIN 1 TO 4
PIN 2 TO 8
PIN 7 TO 8

LEFT

PIN 3 TO 4
PIN 1 TO 8
PIN 4 TO 9

PM

POWER MIRRORS

8N - 59

REMOVAL

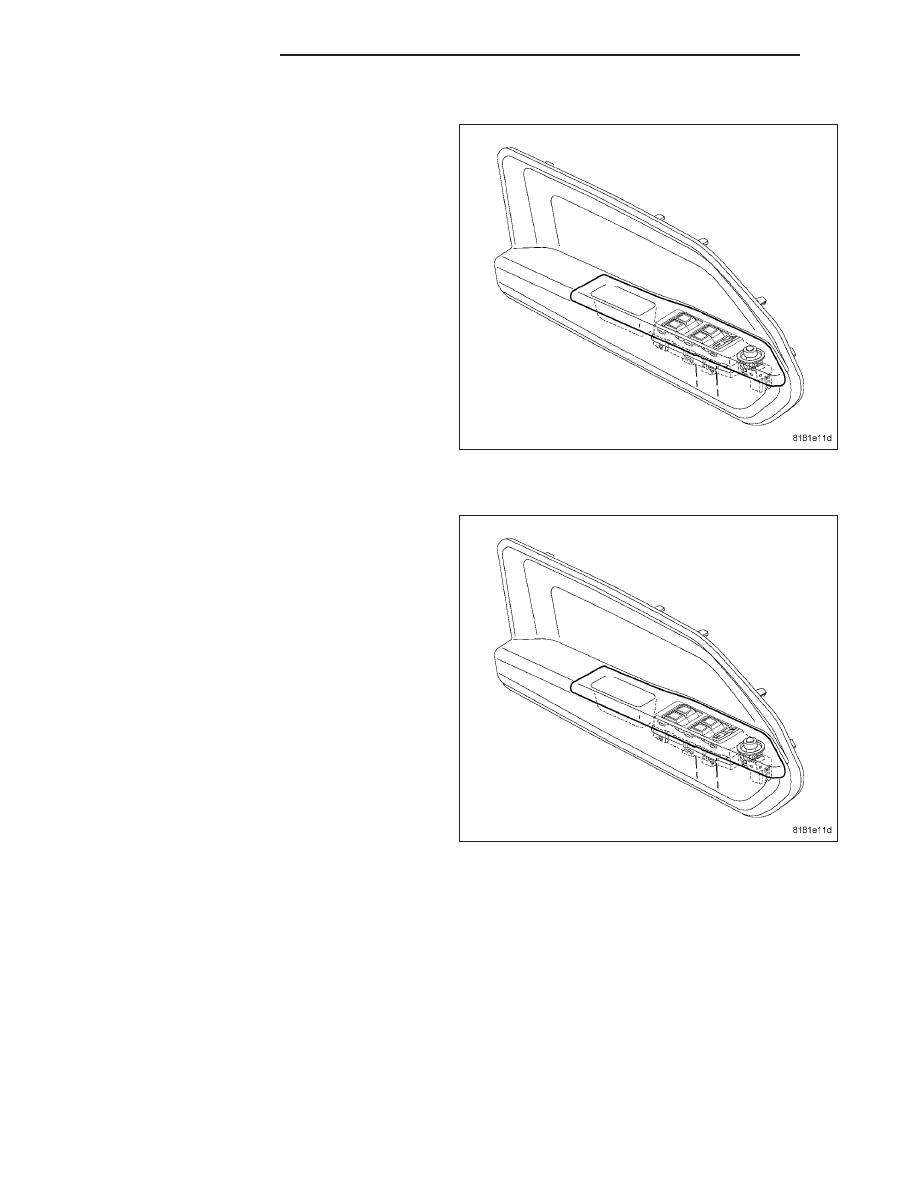

1. Disconnect and isolate the battery negative cable.

2. Remove the front door bolster. (Refer to 23 -

BODY/DOOR - FRONT/DOOR - REMOVAL).

3. Disconnect the electrical harness connectors.

4. With the bolster on the bench, gently pry in on the

tabs of the mirror switch and push through the front
of the cover and remove.

INSTALLATION

1. Place the mirror switch in bolster opening and

firmly snap into place.

2. Connect the electrical harness connectors.

3. Install the front door bolster. (Refer to 23 - BODY/

DOOR - FRONT/DOOR - INSTALLATION)

4. Connect the battery negative cable.
