POWER FOLDAWAY MIRROR SWITCH - RHD

DIAGNOSIS AND TESTING - POWER FOLDAWAY MIRROR SWITCH - RHD

The following test is designed to be used only on vehi-
cles equipped with power foldaway side view mirrors.

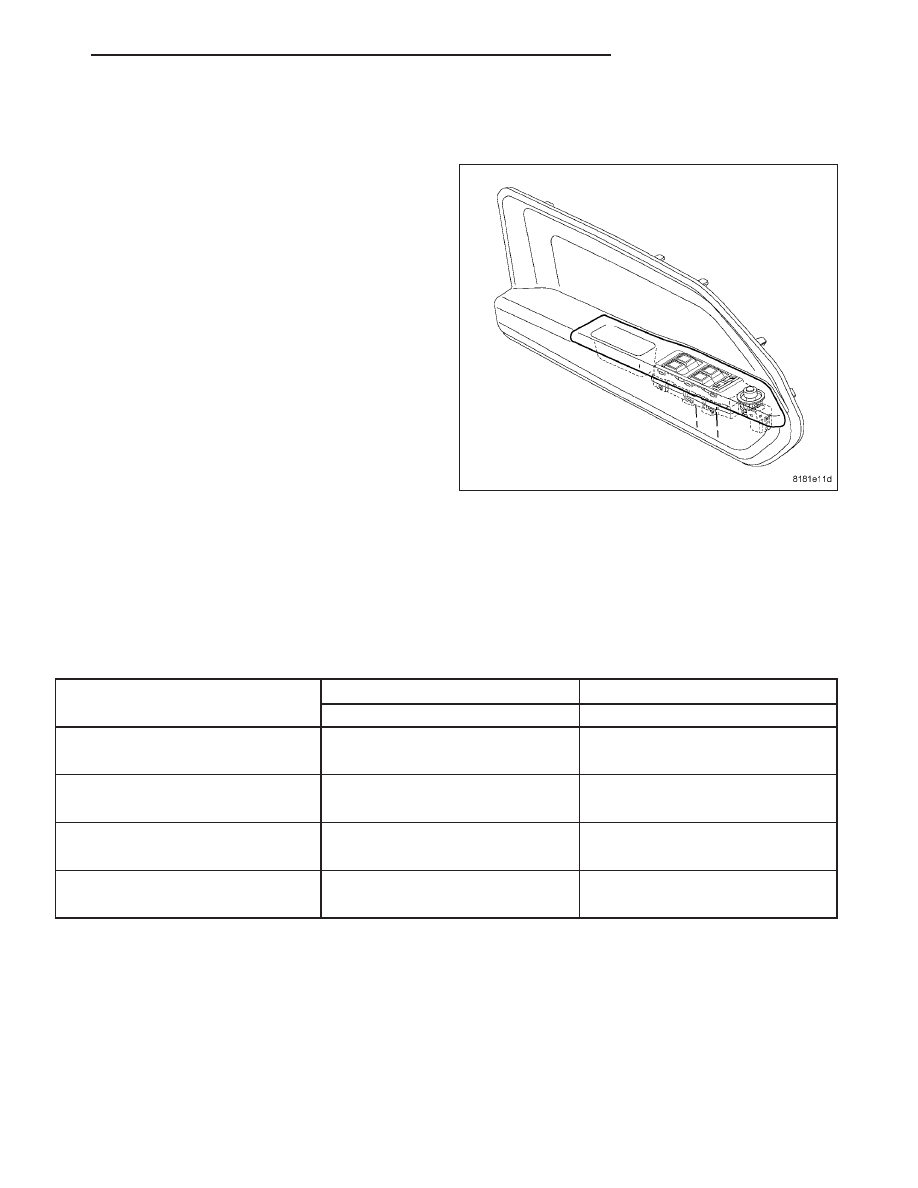

1. Remove power mirror switch from mounting posi-

tion (Refer to 8 - ELECTRICAL/POWER MIR-
RORS/POWER FOLDAWAY MIRROR SWITCH -
REMOVAL).

2. Using an ohmmeter, test for continuity between the

terminals of the switch as shown in the tables
below.

NOTE: When testing using the chart below be certain to read the chart correctly. Example - When testing
left mirror “DOWN

”, pins 1, 9, 10 will show continuity to each other but not with 3, 4, 5.

3. If test results are not obtained as shown in the tables below, replace the switch.

EXTENDED MIRROR SWITCH CIRCUIT TEST

NOTE: Mirror position switch must be in the “extended” position to use chart below.

WOBBLE PLATE POSITION

LEFT MIRROR SELECTED

RIGHT MIRROR SELECTED

CONTINUITY BETWEEN PINS

CONTINUITY BETWEEN PINS

DOWN

1, 9, 10

6, 9, 10

3, 4, 5

3, 4, 5

UP

1, 4, 5

6, 4, 5

3, 9, 10

3, 9, 10

RIGHT

2, 9, 10

7, 9, 10

3, 4, 5

3, 4, 5

LEFT

2, 4, 5

7, 4, 5

3, 9, 10

3, 9, 10

RETRACTED MIRROR SWITCH CIRCUIT TEST

NOTE: Mirror position switch must be in the “retracted” position to use chart below.

PM

POWER MIRRORS

8N - 61

WOBBLE PLATE POSITION

LEFT MIRROR SELECTED

RIGHT MIRROR SELECTED

CONTINUITY BETWEEN PINS

CONTINUITY BETWEEN PINS

DOWN

1, 3, 4, 9

3, 4, 6, 9

UP

1, 3, 4, 9

3, 4, 6, 9

RIGHT

2, 3, 4, 9

3, 4, 7, 9

LEFT

2, 3, 4, 9

3, 4, 7, 9

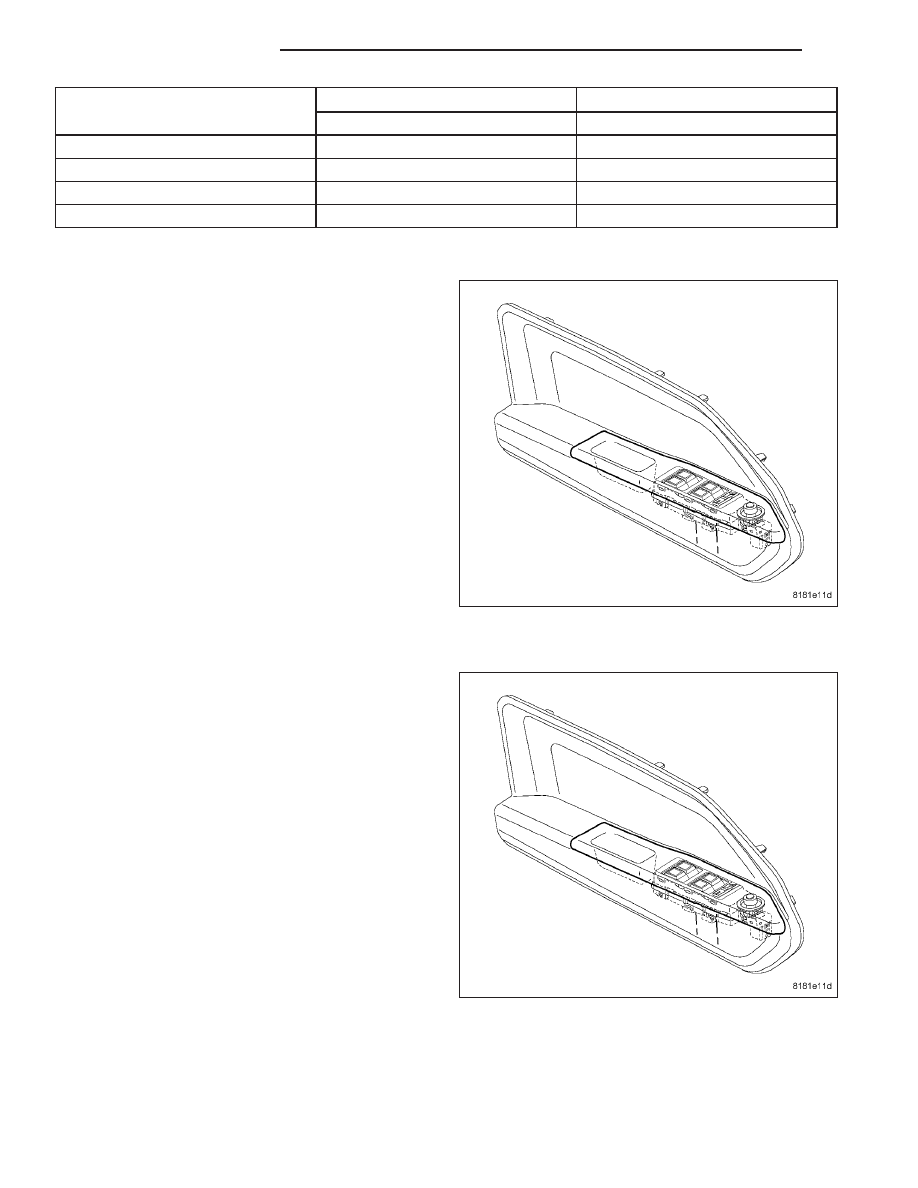

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the front door bolster. (Refer to 23 -

BODY/DOOR - FRONT/DOOR - REMOVAL).

3. Disconnect the electrical harness connectors.

4. With the bolster on the bench, gently pry in on the

tabs of the mirror switch and push through the front
of the cover and remove.

INSTALLATION

1. Place the mirror switch in bolster opening and

firmly snap into place.

2. Connect the electrical harness connectors.

3. Install the front door bolster. (Refer to 23 - BODY/

DOOR - FRONT/DOOR - INSTALLATION)

4. Connect the battery negative cable.

8N - 62

POWER MIRRORS

PM

POWER TOP - SUNROOF - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

POWER TOP - SUNROOF - SERVICE

INFORMATION
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
DIAGNOSIS AND TESTING

SUNROOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

MOTOR/MODULE - SUNROOF

DIAGNOSIS AND TESTING

MOTOR/MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

STANDARD PROCEDURE

POWER SUNROOF TIMING . . . . . . . . . . . . . . . . . 68

RE-INITIALIZATION . . . . . . . . . . . . . . . . . . . . . . . . . 69
INITIALIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

SWITCH-SUNROOF

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
DIAGNOSIS AND TESTING

SUNROOF SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . 71

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

PM

POWER TOP - SUNROOF - SERVICE INFORMATION

8N - 63

POWER TOP - SUNROOF - SERVICE INFORMATION

DESCRIPTION

WARNING: Keep fingers and other body parts out of sunroof opening at all times.

The power sunroof system allows the sunroof to be opened, closed or placed in the vent position electrically by
actuating a switch located in the headliner on the courtesy/reading lamp assembly. The sunroof system receives
battery feed through a 25 amp fuse in the Totally Integrated Power Module (TIPM). The sunroof system power is

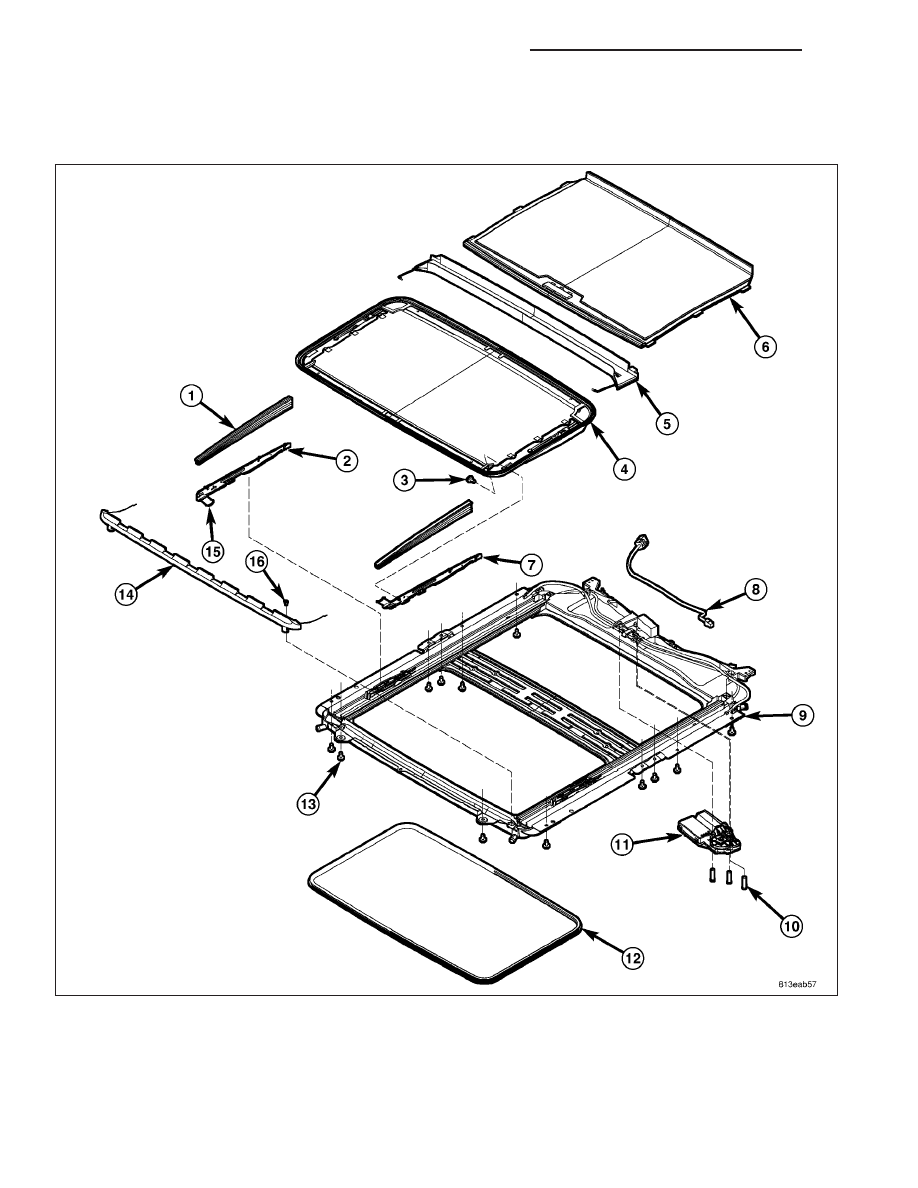

EXPLODED VIEW
