*ALL PASSENGER DOORS UNLOCK CONTROL CIRCUIT PERFORMANCE

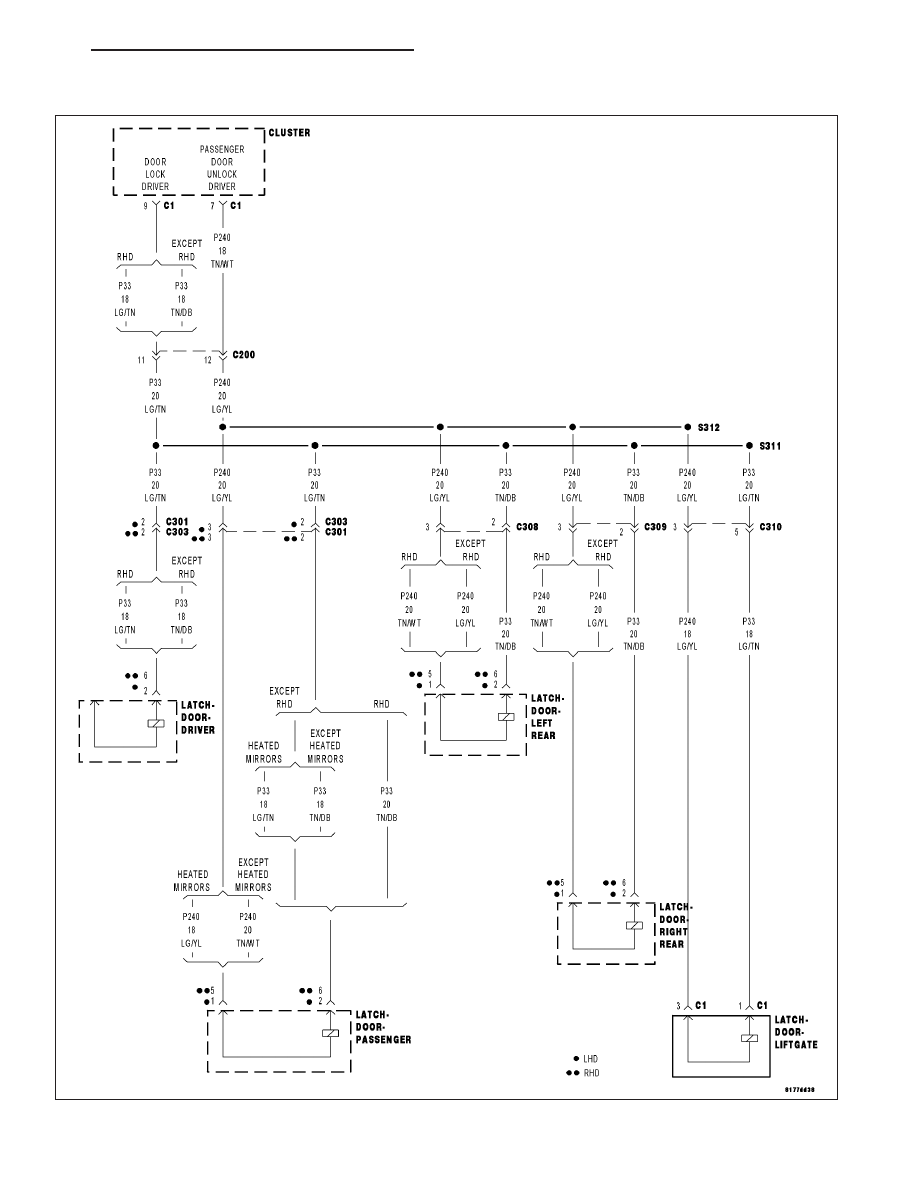

For a complete wiring diagram Refer to Section 8W.

PM

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 13

Possible Causes

(P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT SHORT TO GROUND

(P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT SHORT TO VOLTAGE

(P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT OPEN

(P33) DOOR LOCK DRIVER CIRCUIT SHORT TO THE (P240) PASSENGER DOORS UNLOCK DRIVER
CIRCUIT

INSTRUMENT CLUSTER

1.

(P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Instrument Cluster C1 connector.

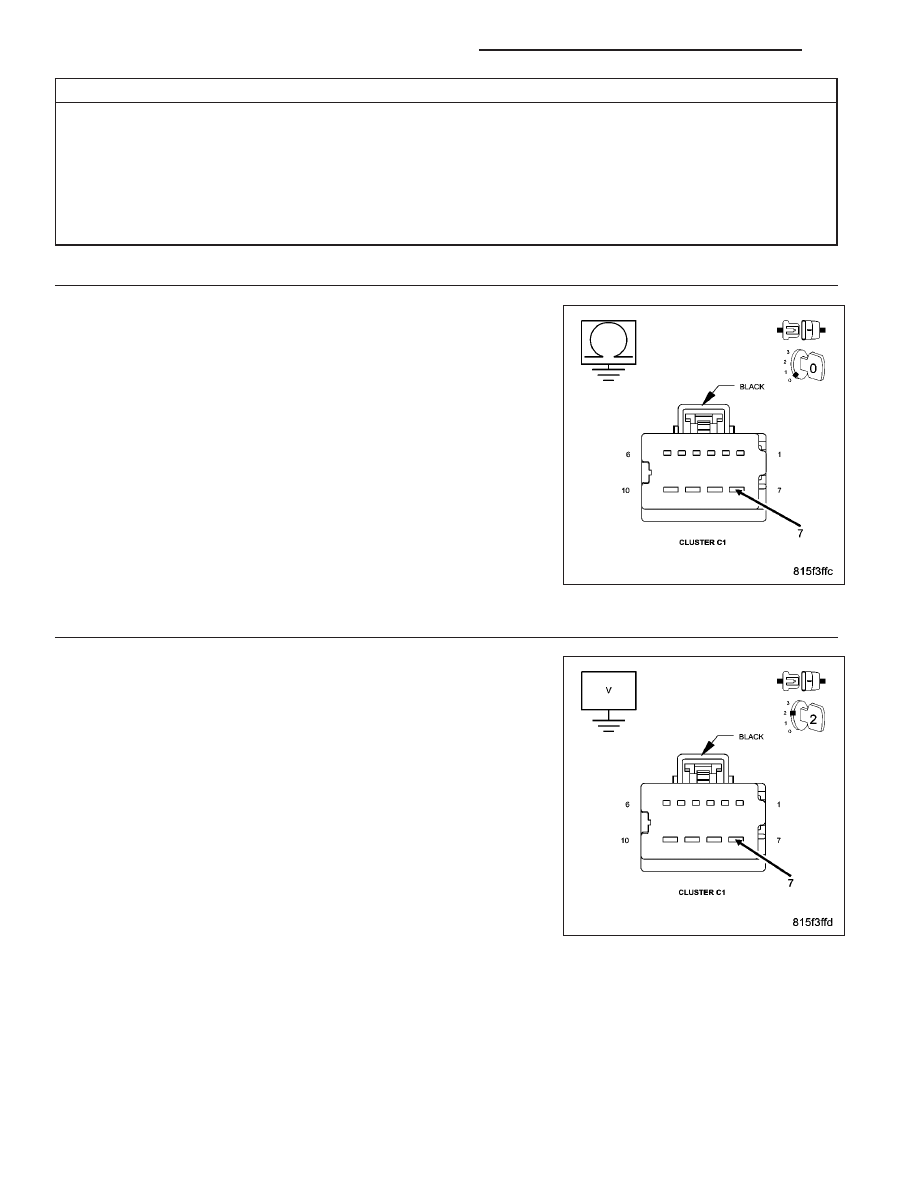

Measure the resistance between ground and the (P240) Passenger
Doors Unlock Driver circuit in the Cluster C1 connector.

Is the resistance below 1,000.0 ohms?

Yes

>> Repair the (P240) Passenger Doors Unlock Driver circuit for

a short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE) (Refer to 8 - ELECTRICAL/
ELECTRONIC CONTROL MODULES - STANDARD PRO-
CEDURE)

No

>> Go To 2

2.

(P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT SHORTED TO BATTERY

Turn the ignition on.

Measure the voltage between ground and the (P240) Passenger Doors
Unlock Driver circuit in the Cluster C1 connector.

Is there any voltage present?

Yes

>> Repair the (P240) Passenger Doors Unlock Driver circuit for

a short to voltage.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 3

8N - 14

POWER LOCKS - ELECTRICAL DIAGNOSTICS

PM

3.

(P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT OPEN

Turn the ignition off.

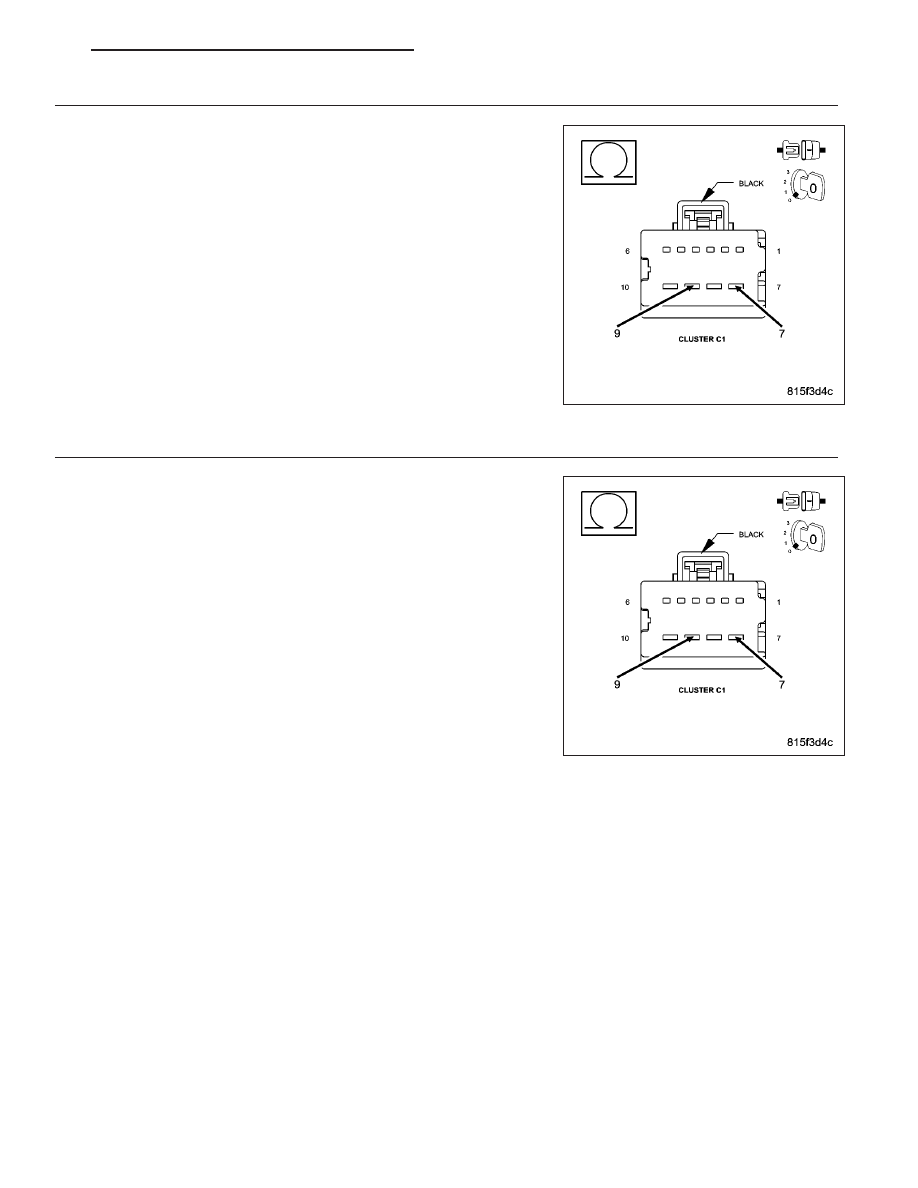

Measure the resistance between the (P33) Door Lock Driver circuit and
the (P240) Passenger Doors Unlock Driver circuit in the Cluster C1 con-
nector.

Is the resistance above 4.5 ohms?

Yes

>> Repair the (P33) Door Lock Driver or the (P240) Passenger

Doors Unlock Driver circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 4

4.

(P33) DOOR LOCK DRIVER SHORTED TO THE (P240) PASSENGER DOORS UNLOCK DRIVER CIRCUIT

Measure the resistance between the (P33) Door Lock Driver circuit and
the (P240) Passenger Doors Unlock Driver circuit in the Cluster C1 con-
nector.

Is the resistance below 2.0 ohms?

Yes

>> Repair the (P33) Door Lock Driver for a short to the (P240)

Passenger Doors Unlock Driver circuit.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Replace the Instrument Cluster in accordance with service

information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

PM

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 15

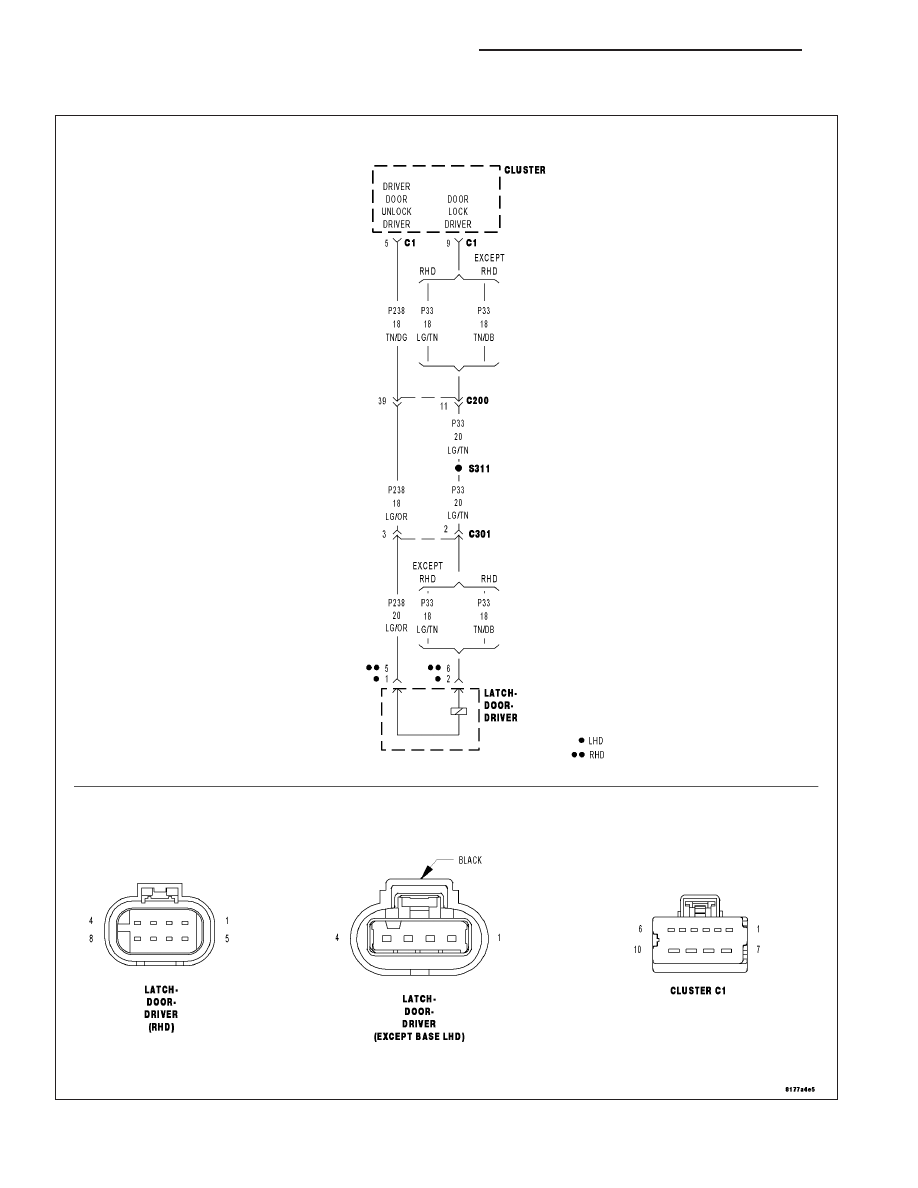

*DRIVER DOOR UNLOCK CONTROL CIRCUIT PERFORMANCE

For a complete wiring diagram Refer to Section 8W.

8N - 16

POWER LOCKS - ELECTRICAL DIAGNOSTICS

PM
