MESSAGE SYSTEMS

TABLE OF CONTENTS

page

page

MESSAGE CENTER

SPECIAL TOOLS

ELECTRONIC VEHICLE INFORMATION

CENTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

ELECTRONIC VEHICLE INFORMATION

CENTER
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DIAGNOSIS AND TESTING

ELECTRONIC VEHICLE INFORMATION

CENTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

STANDARD PROCEDURE

COMPASS CALIBRATION . . . . . . . . . . . . . . . . . . . . . 6
COMPASS DEMAGNETIZING . . . . . . . . . . . . . . . . . 8
COMPASS VARIANCE ADJUSTMENT . . . . . . . . . . 9

REMOVAL - REMOTE COMPASS MODULE . . . . . 10
INSTALLATION - REMOTE COMPASS

MODULE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

UNIVERSAL TRANSMITTER

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DIAGNOSIS AND TESTING

UNIVERSAL TRANSMITTER . . . . . . . . . . . . . . . . . 11

STANDARD PROCEDURE

ERASING TRANSMITTER CODES . . . . . . . . . . . . 12
PROGRAMMING TRANSMITTER CODES . . . . . 12
REPROGRAMMING TRANSMITTER CODES . . 13

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

SENSOR-AMBIENT TEMPERATURE

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DIAGNOSIS AND TESTING

AMBIENT TEMPERATURE SENSOR . . . . . . . . . . 17

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

PM

MESSAGE SYSTEMS

8M - 1

MESSAGE CENTER

SPECIAL TOOLS

ELECTRONIC VEHICLE INFORMATION CENTER

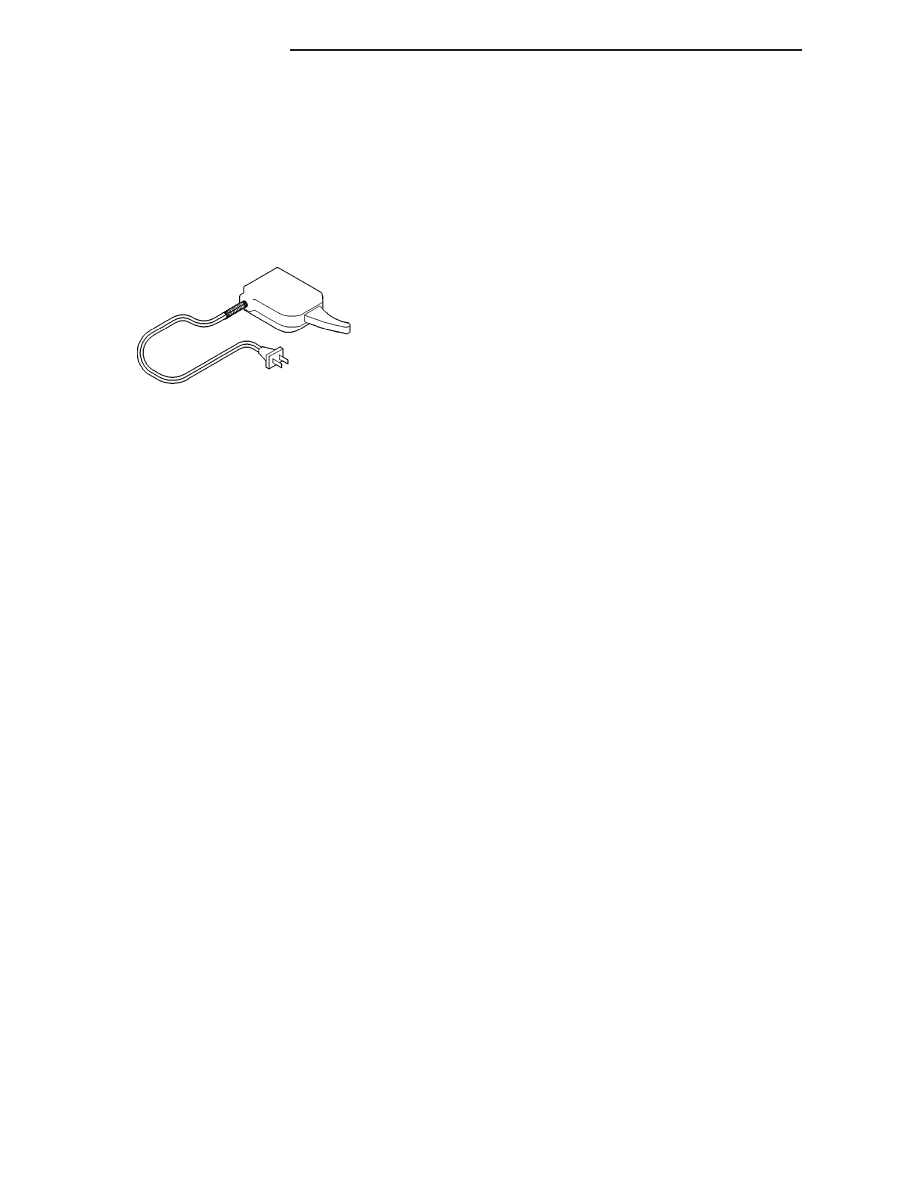

DEGAUSSING TOOL 6029

8M - 2

MESSAGE SYSTEMS

PM

ELECTRONIC VEHICLE INFORMATION CENTER

DESCRIPTION

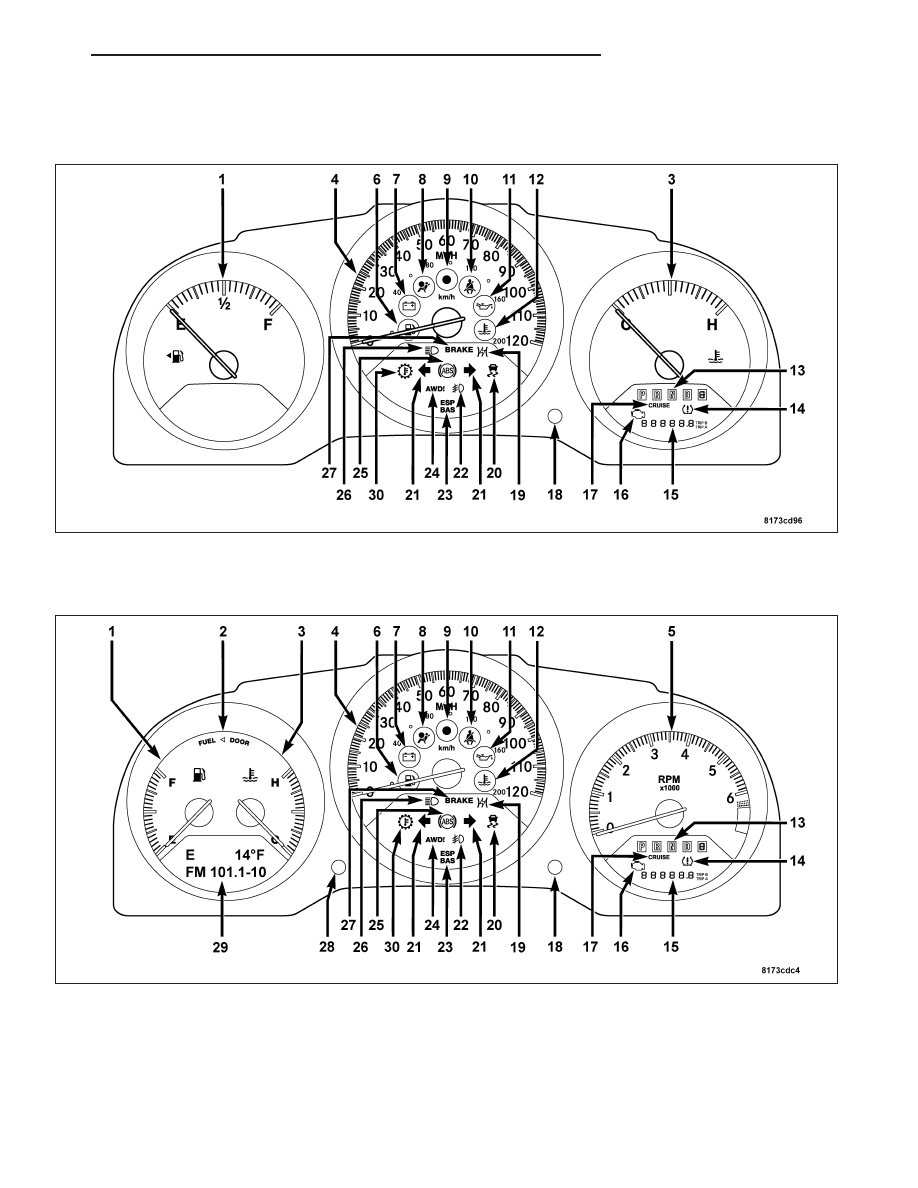

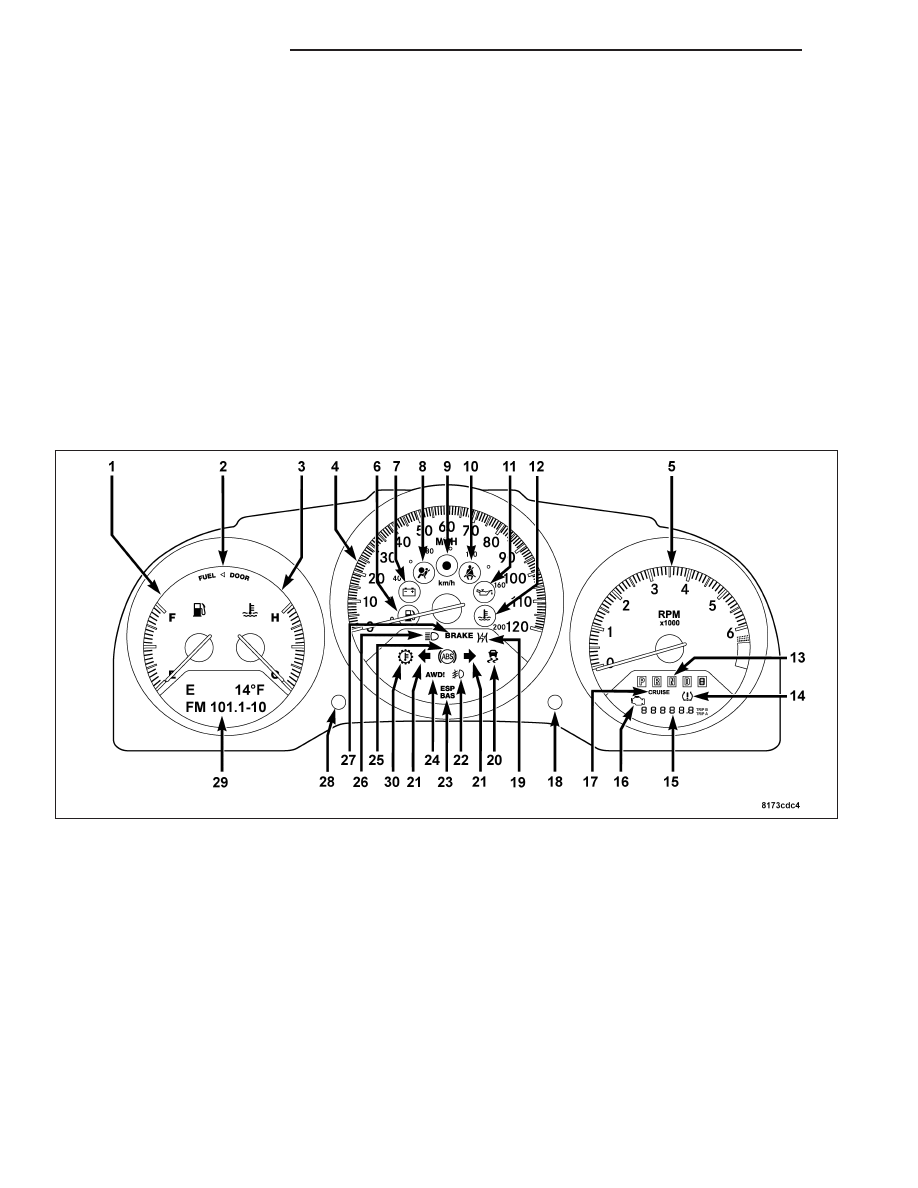

The base instrument cluster can be identified by the single TRIP SHAFT button (18) located to the left of the Tem-
perature Gauge (3). The odometer display (15) doubles as the outside air temperature display when selected by
toggling through the odometer menu using the TRIP SHAFT button.

The Electronic Vehicle Information Center (EVIC) features a driver-interactive display (29). The display is located in
the lower left part of the instrument cluster below the fuel and engine temperature gauges (1 and 3). This system
conveniently allows the driver to select a variety of useful information by pressing the STEP button (28) to the right
of the EVIC display. The EVIC displays information related to the following:

System Status

Vehicle information warning message displays

Personal Settings (customer programmable features)

Compass display

PM

MESSAGE SYSTEMS

8M - 3

Outside temperature display

Trip computer functions

UConnect™ hands-free communication system displays - If Equipped

Navigation system screens - If Equipped

Audio mode display

The EVIC system is comprised of several different components. Those components are:

Instrument Cluster

EVIC STEP Button

Ambient Temperature Sensor

Remote Compass Module (RCM)

Controller Area Network (CAN) Data Bus

Local Interface Network (LIN) Data Bus

The EVIC display and STEP button are part of the Instrument Cluster assembly and cannot be serviced as separate
components. If the display or button are inoperative the complete Instrument Cluster assembly must be replaced,
(Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER - REMOVAL).

OPERATION

The Electronic Vehicle Information Center (EVIC) uses both non-switched and ignition switched sources of battery
current so that some of its features remain operational at any time, while others may only operate with the ignition
switch in the On position. When the ignition switch is turned to the On position, the EVIC display (29) will return to
the last function being displayed before the ignition was turned to the Off position.

The EVIC system is comprised of several different components that communicate over the Controller Area Network
(CAN) and Local Interface Network (LIN) Data Buses. If the system is inoperative a scan tool and the appropriate
diagnostic information must be used to diagnose the system and related data buses.

The instrument cluster STEP button (28) is used to operate the different functions of the EVIC system. Pressing and
releasing the STEP button will scroll through the following displays:

Compass/Temperature/Audio

Average Fuel Economy

Distance to Empty

Elapsed Time

Personal Settings

Once a particular system is displayed, short and long presses of the STEP button will move the EVIC through the
system menu. Pressing and holding the STEP button once will clear the resettable function currently being dis-

8M - 4

MESSAGE SYSTEMS

PM
