When Monitored:
•
With the Stop Lamps Activated.
•
Set Condition:
•
When the TIPM detects a HIGH condition.
Possible Causes

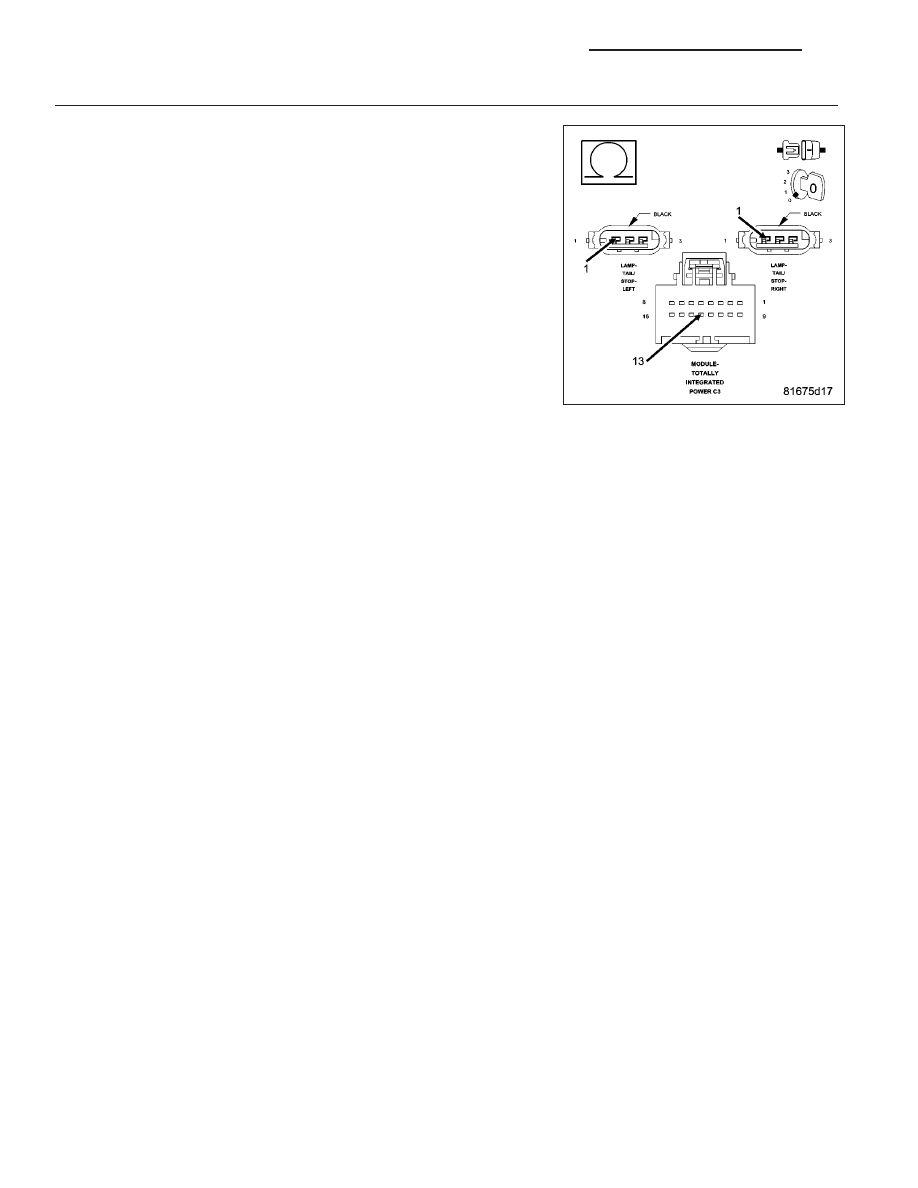

(L55) STOP LAMP CONTROL CIRCUIT OPEN
LEFT AND/OR RIGHT STOP LAMP BULBS
TOTALLY INTEGRATED POWER MODULE
Diagnostic Test
1.
INTERMITTENT CONDITION
Turn the ignition on.
With the Scan Tool, clear all TIPM DTC’s.
Turn the Stop Lamps on.
With the Scan Tool read the DTC information.
Does the Scan Tool read: B1786-STOP LAMP CONTROL CIRCUIT OPEN?
Yes
>> Go To 2
No
>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible
intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)
2.
STOP LAMP BULBS
Turn the ignition off.
Inspect the Left and Right Stop Lamp Bulb Assemblies.
Are the inoperative bulbs OK?
Yes
>> Go To 3
No
>> Replace the Inoperative bulb or bulbs in accordance with the service information.
Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)
