B1785-STOP LAMP CONTROL CIRCUIT HIGH

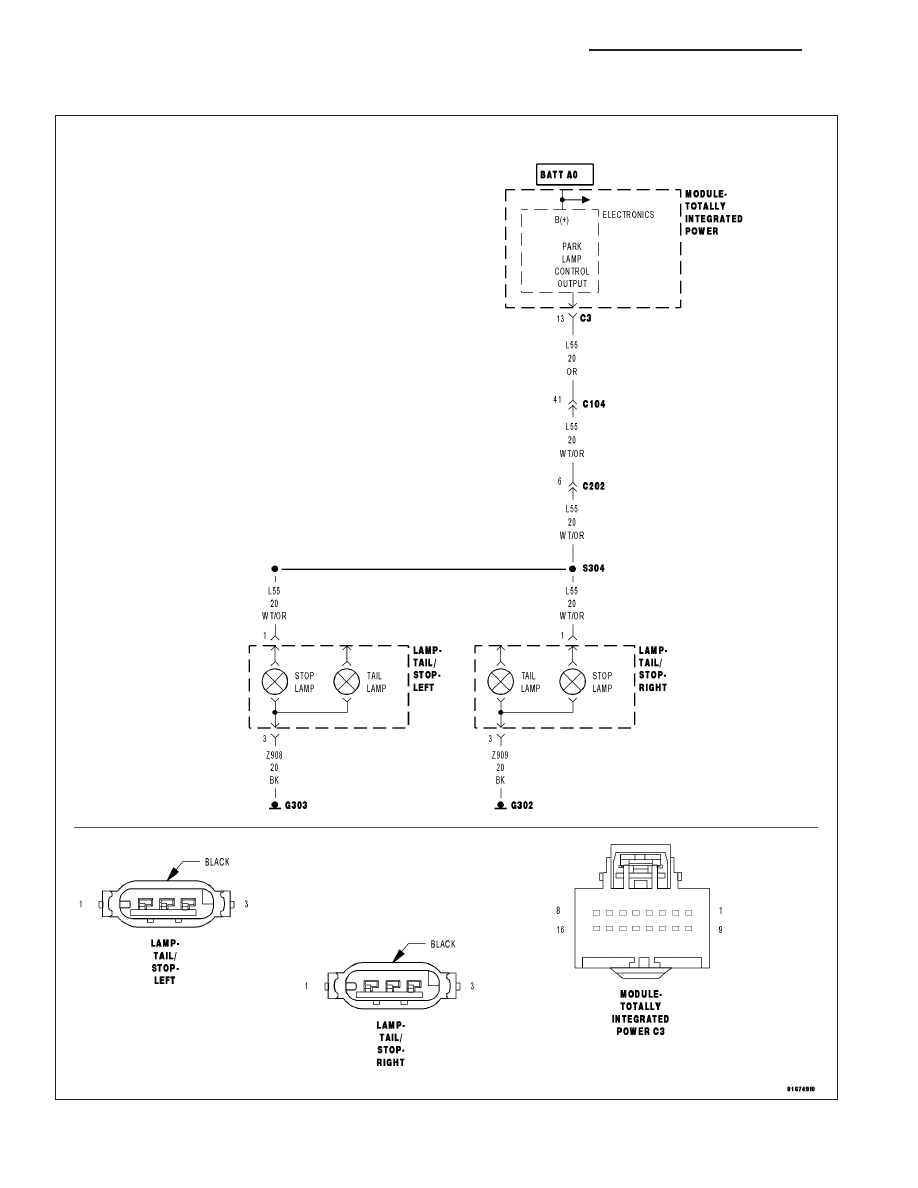

For a complete wiring diagram Refer to Section 8W.

PM

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 65

When Monitored:

With the Stop Lamps Activated.

Set Condition:

When the TIPM detects a HIGH condition.

Possible Causes

(L55) STOP LAMP CONTROL CIRCUIT OPEN

(L55) STOP LAMP CONTROL CIRCUIT SHORTED TO VOLTAGE

LEFT AND/OR RIGHT STOP LAMP BULBS

TOTALLY INTEGRATED POWER MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all TIPM DTC’s.

Turn the Stop Lamps on.

With the Scan Tool read the DTC information.

Does the Scan Tool read: B1785-STOP LAMP CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

2.

STOP LAMP BULBS

Turn the ignition off.

Inspect the Left and Right Stop Lamp Bulb Assemblies.

Are the inoperative bulbs OK?

Yes

>> Go To 3

No

>> Replace the Inoperative bulb or bulbs in accordance with the service information.

Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

8L - 66

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

PM

3.

(L55) STOP LAMP CONTROL CIRCUIT OPEN

Turn the ignition off.

Disconnect the TIPM C3 harness connector.

Disconnect the Left and Right Stop Lamp harness connectors.

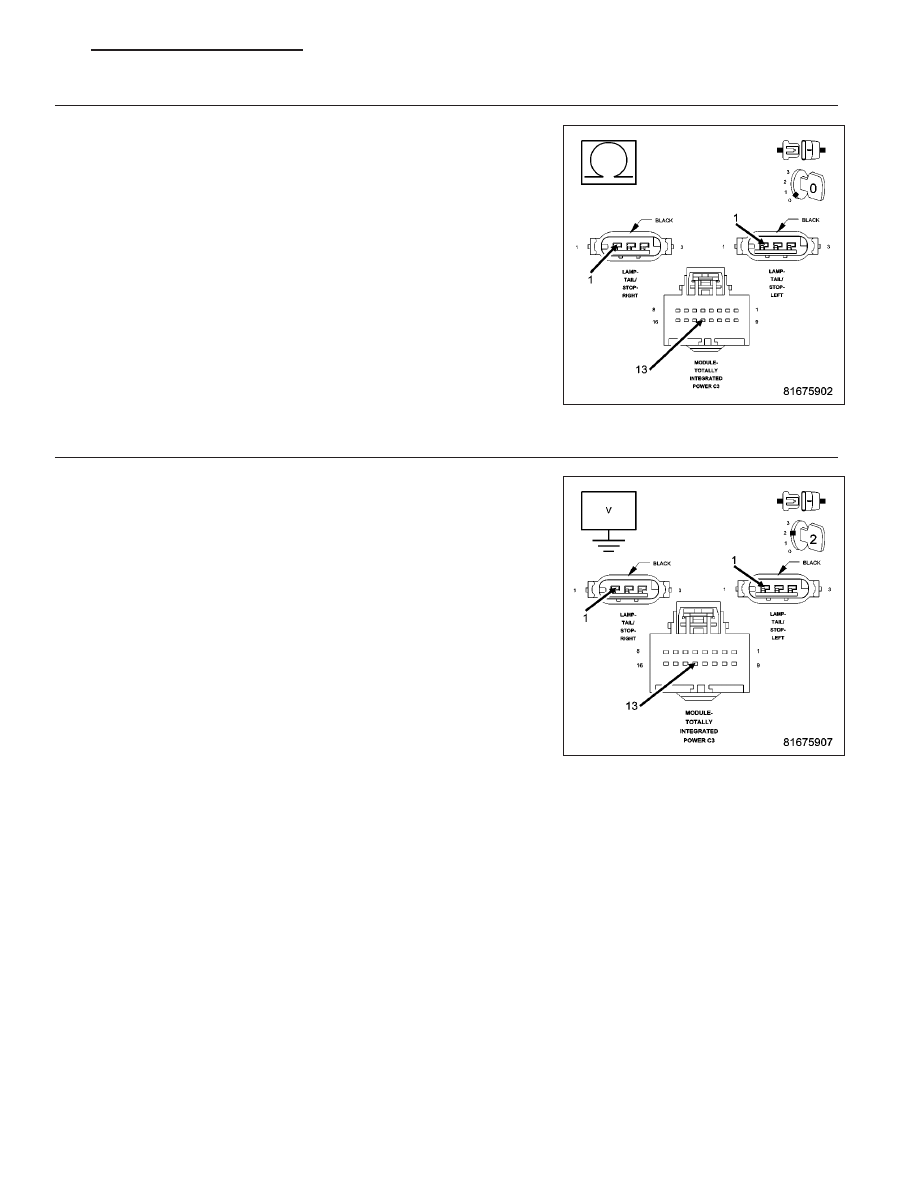

Measure the resistance of the (L55) Stop Lamp Control circuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (L55) Stop Lamp Control circuit for an open con-

dition.

Perform the BODY VERIFICATION TEST - VER 1. (Refer to
8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Go To 4

4.

(L55) STOP LAMP CONTROL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the TIPM C3 harness connector.

Disconnect the Left and Right Stop Lamp harness connectors.

Turn the ignition on.

Measure for voltage on the (L55) Stop Lamp Control circuit.

Is the voltage above 10.0 volts?

Yes

>> Repair the (L55) Stop Lamp Control circuit for a short to

voltage condition.

Perform the BODY VERIFICATION TEST - VER 1. (Refer to
8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Replace the Totally Integrated Power Module (TIPM) in

accordance with the service information.

Perform the BODY VERIFICATION TEST - VER 1. (Refer to
8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

PM

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 67

B1786-STOP LAMP CONTROL CIRCUIT OPEN

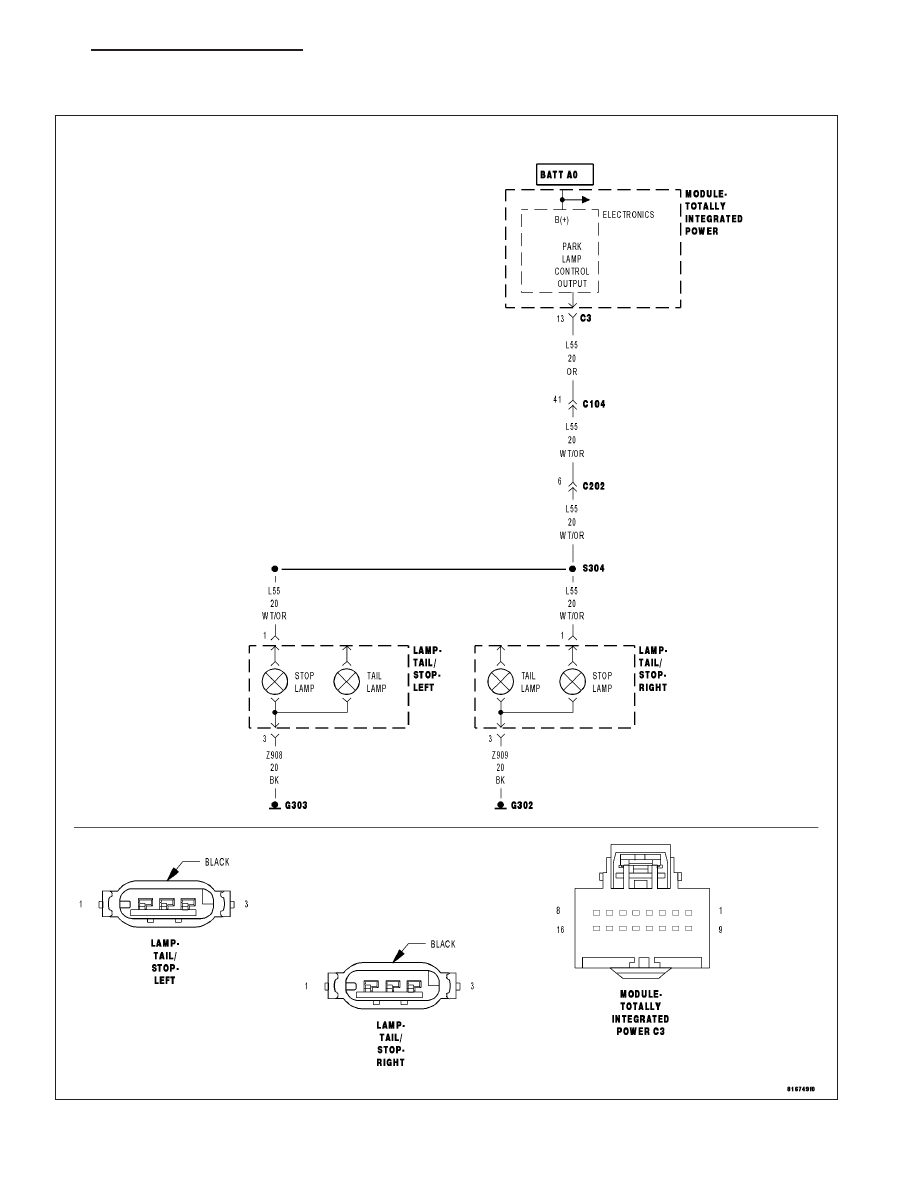

For a complete wiring diagram Refer to Section 8W.
