3.

(X21)/(X22) HORN CONTROL OUTPUT CIRCUIT OPEN

NOTE: Cavity 8 at the C11 TIPM harness connector is for export
vehicles only.
Turn the ignition off

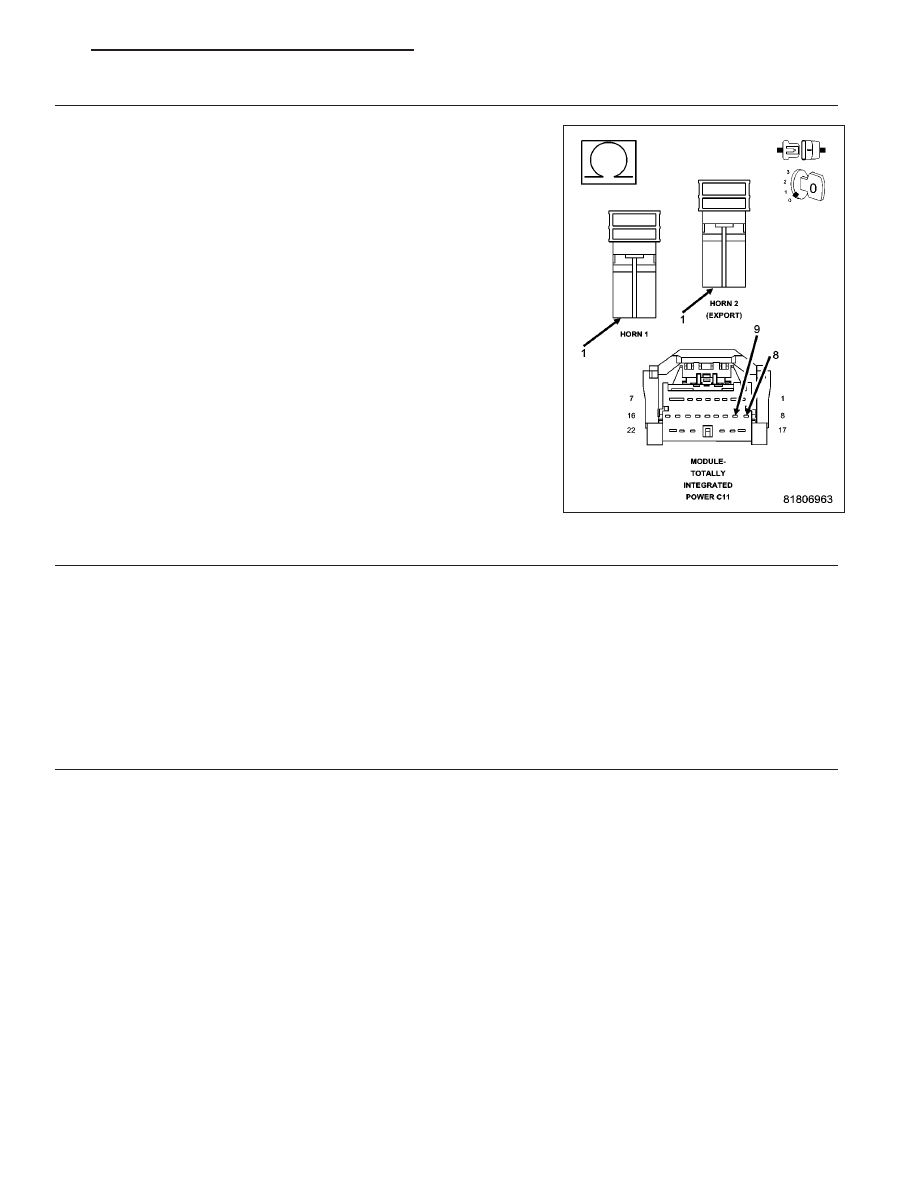

Measure the resistance of the (X21)/(X22) Horn Control Output circuit
between the C11 TIPM harness connector and the Horn connector(s).

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (X21)/(X22) Horn Control Output circuit for an

open.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE).

4.

CHECKING HORN OPERATION

Turn the ignition off.

Disconnect the horn(s) connector(s) if not disconnected.

Momentarily jumper 12-volts to the horn(s).

Did the horn(s) operate properly?

Yes

>> Go To 6

No

>> Go To 5

5.

CASE GROUND CIRCUIT OPEN

Using a 12-volt test light connected to 12-volts, check for a good case ground at the horn(s) case.

Does the test light illuminate brightly?

Yes

>> Replace the Horn(s) as necessary.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

No

>> Repair the open or excessive resistance at the horn(s) case ground.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

PM

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

8H - 11

6.

TOTALLY INTEGRATED POWER MODULE

NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors.

Pay particular attention to all Power and Ground circuits.

Were any problems found?

Yes

>> Repair as necessary.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

No

>> Replace the Totally Integrated Power Module per Service Information.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

8H - 12

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

PM

B2339 - HORN SWITCH STUCK – CCN

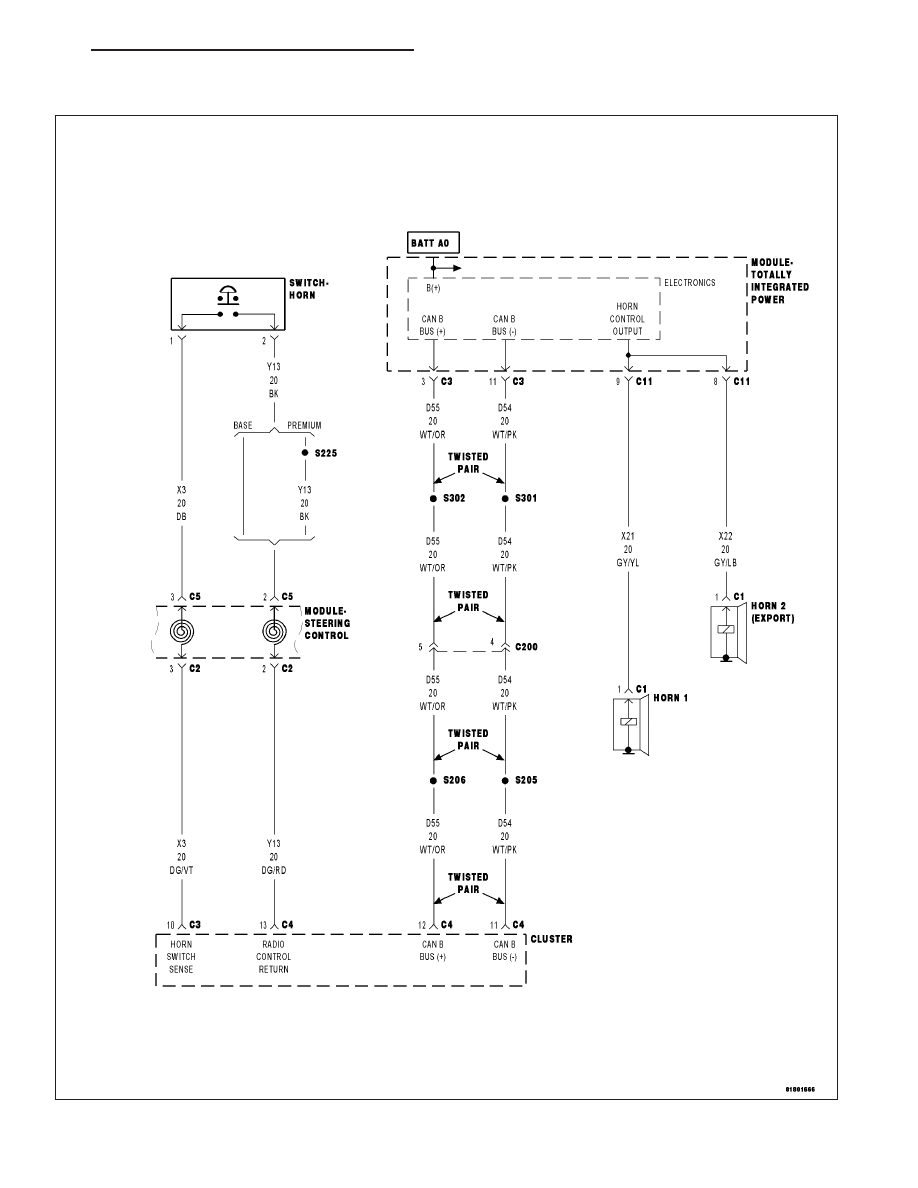

For a complete wiring diagram Refer to Section 8W.

PM

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

8H - 13

When Monitored:
Continuously.

Set Condition:
The Cluster senses that the Horn switch is in the Set position for greater than 50 seconds.

Possible Causes

HORN SWITCH

CLOCKSPRING

(X3) HORN SWITCH SENSE CIRCUIT SHORTED TO GROUND

CLUSTER

Diagnostic Test

1.

VERIFY DTC B2339 – HORN SWITCH STUCK IS ACTIVE

With the scan tool, erase CCN DTCs.

Operate the Horn Switch several times.

Wait 1 minute.

With the scan tool, read CCN DTCs.

Does the scan tool display active DTC B2339 - HORN SWITCH STUCK?

Yes

>> Go To 2

No

>> Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched,

and partially broken wires. Also, inspect the related connectors for broken, bent, corroded, or contami-
nated terminals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

2.

HORN SWITCH

WARNING: Turn the ignition off, disconnect the battery and wait
two minutes before proceeding.

WARNING: Do not place an intact undeployed airbag face down on
a hard surface, the airbag will propel into the air if accidentally
deployed, and could results in serious or fatal injury.
Remove the Driver Airbag in accordance with the Service information.

Disconnect the Steering Control Module C5 connector.

NOTE: Before proceeding, thoroughly inspect the wiring harness
and connectors between the Horn Switch for a short to ground or
to any other circuit.

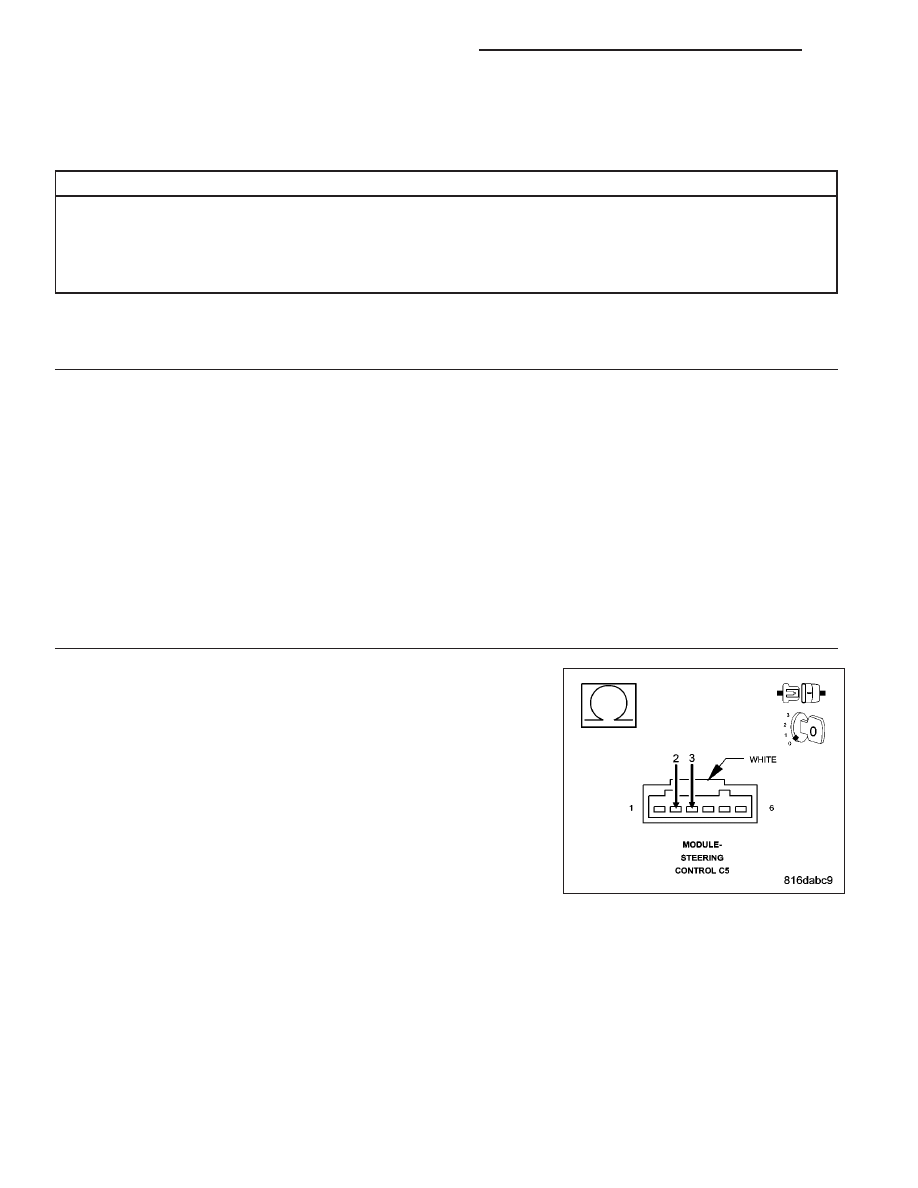

Measure the resistance between the (X3) Horn Switch Sense circuit at
the C5 connector to the Radio Control Return.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Horn Switch in accordance with the Service Information.

No

>> Go to 3

8H - 14

HORN SYSTEM - ELECTRICAL DIAGNOSTICS

PM
