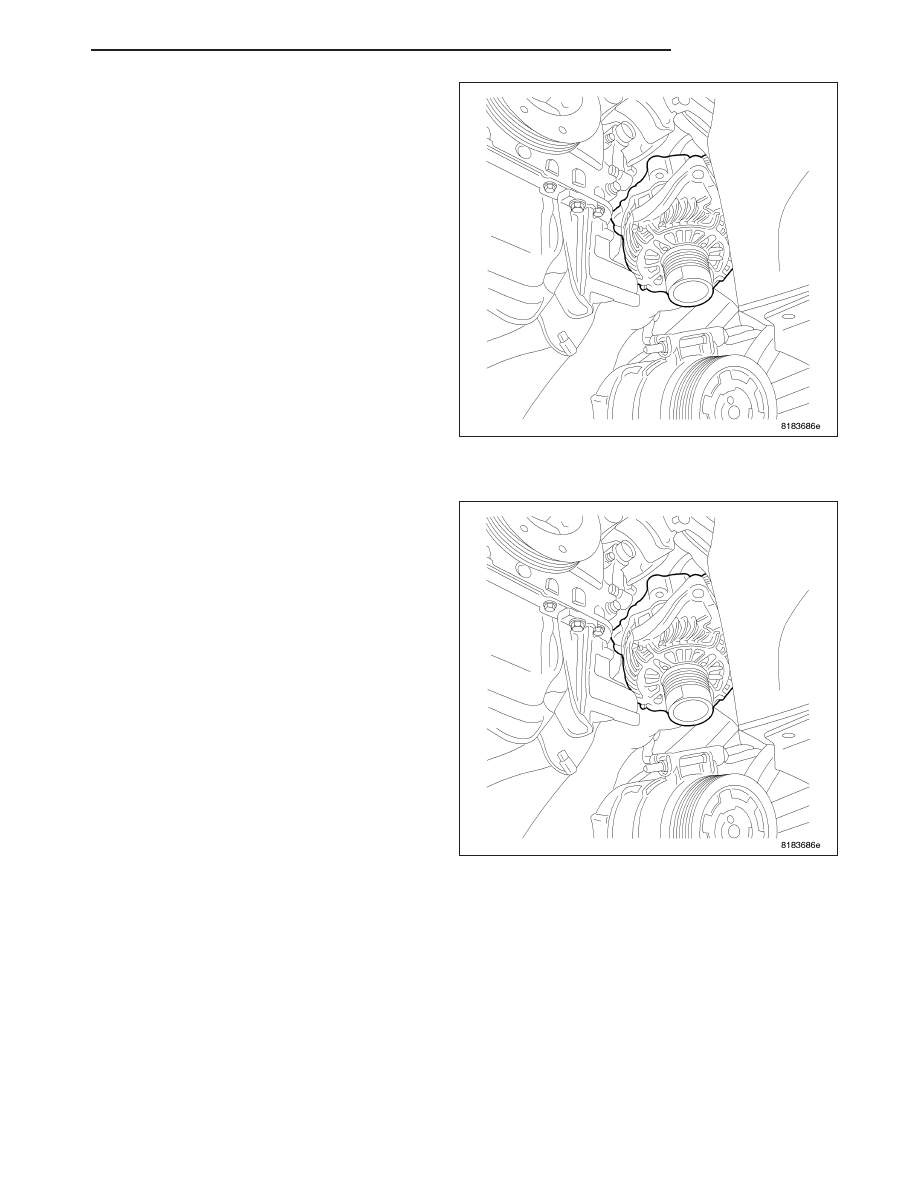

15. Slide generator down and out of vehicle.

INSTALLATION

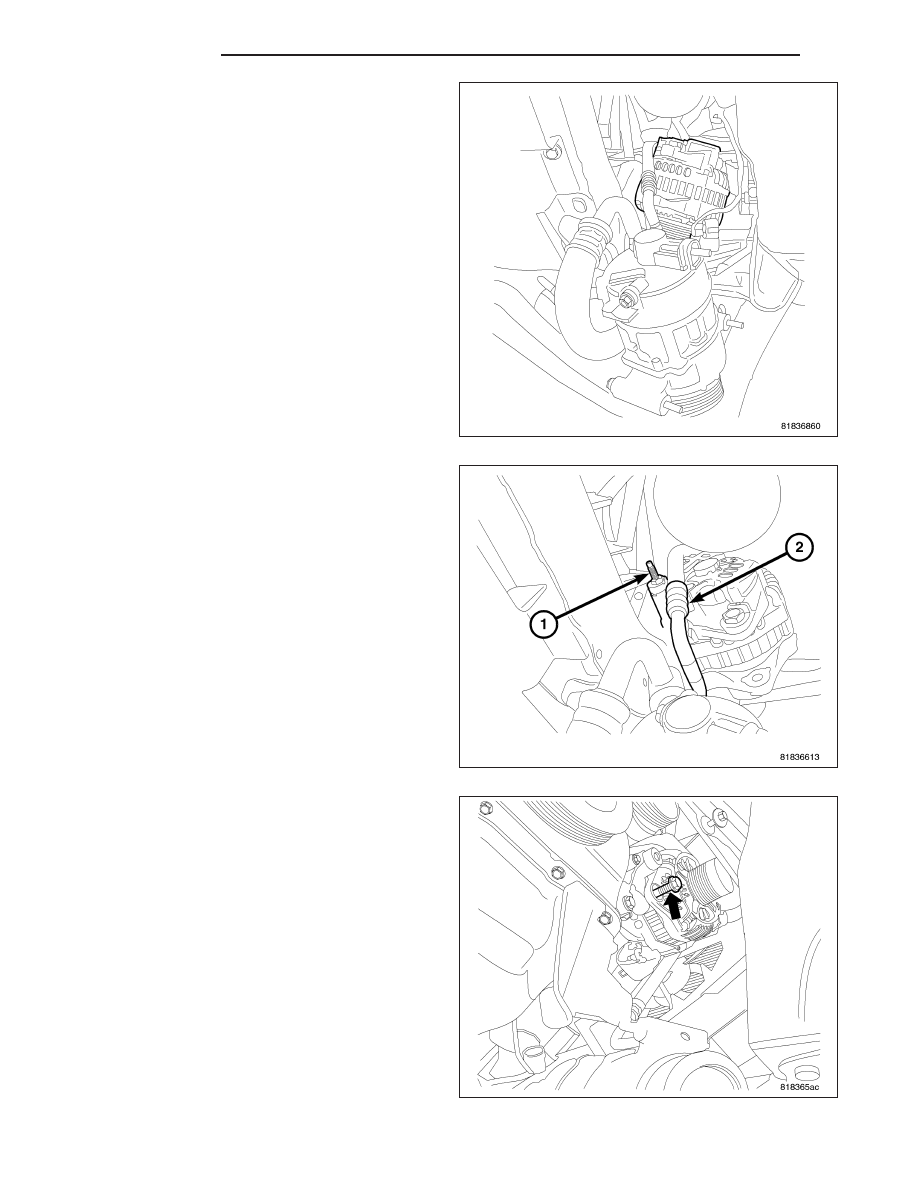

1. Move A/C

compressor

to

the

side

to

install

generator.

PM

CHARGING

8F - 41

2. Rotate generator and set in place.

Make sure battery terminal (1) is in front of A/C line
(2).

3. Loose install lower mounting bolt.

8F - 42

CHARGING

PM

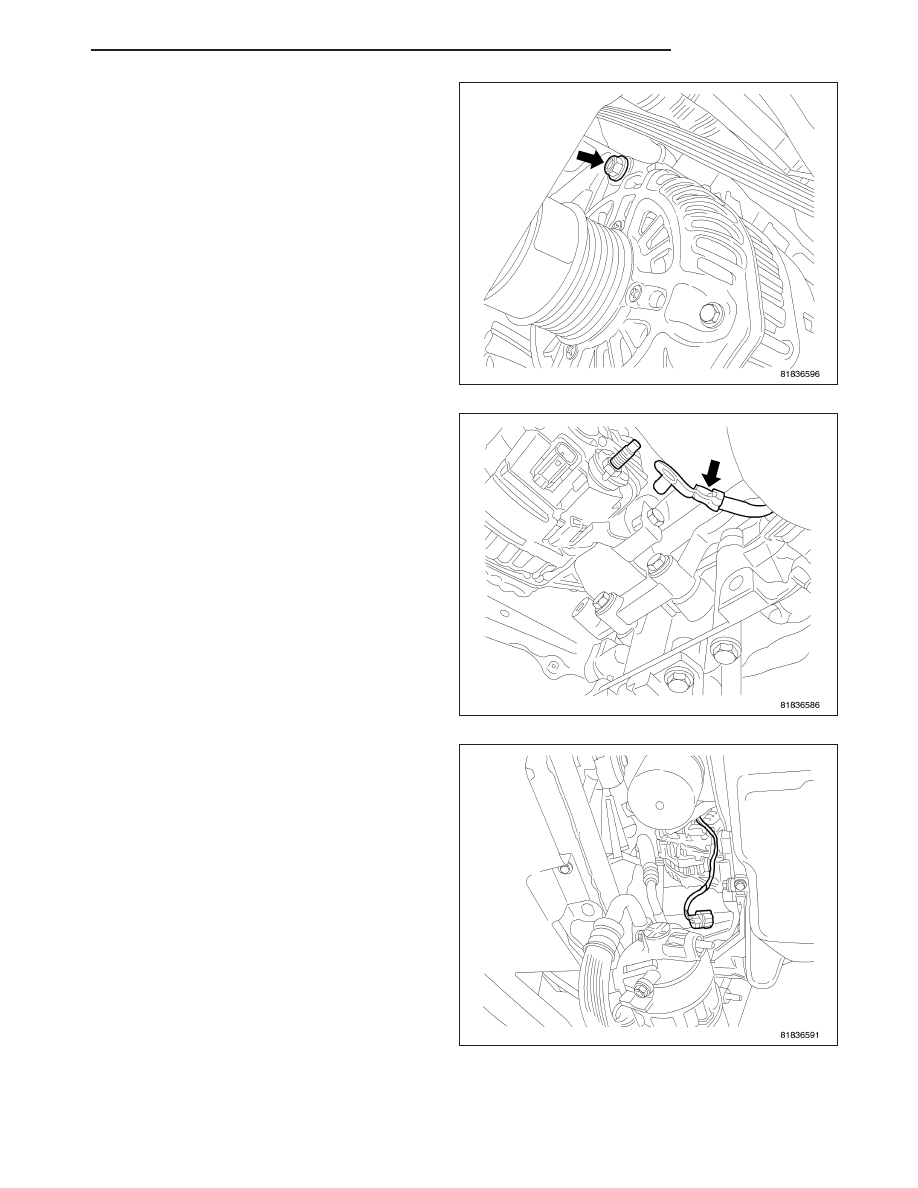

4. Loose install upper mounting bolt.

5. Tighten bolts to 61 N·m (45 ft. lbs.).

6. Install the B+ terminal nut and wire and tighten to

11.3 N·m (100 ins. lbs.).

7. Plug in the field circuit to the generator.

PM

CHARGING

8F - 43

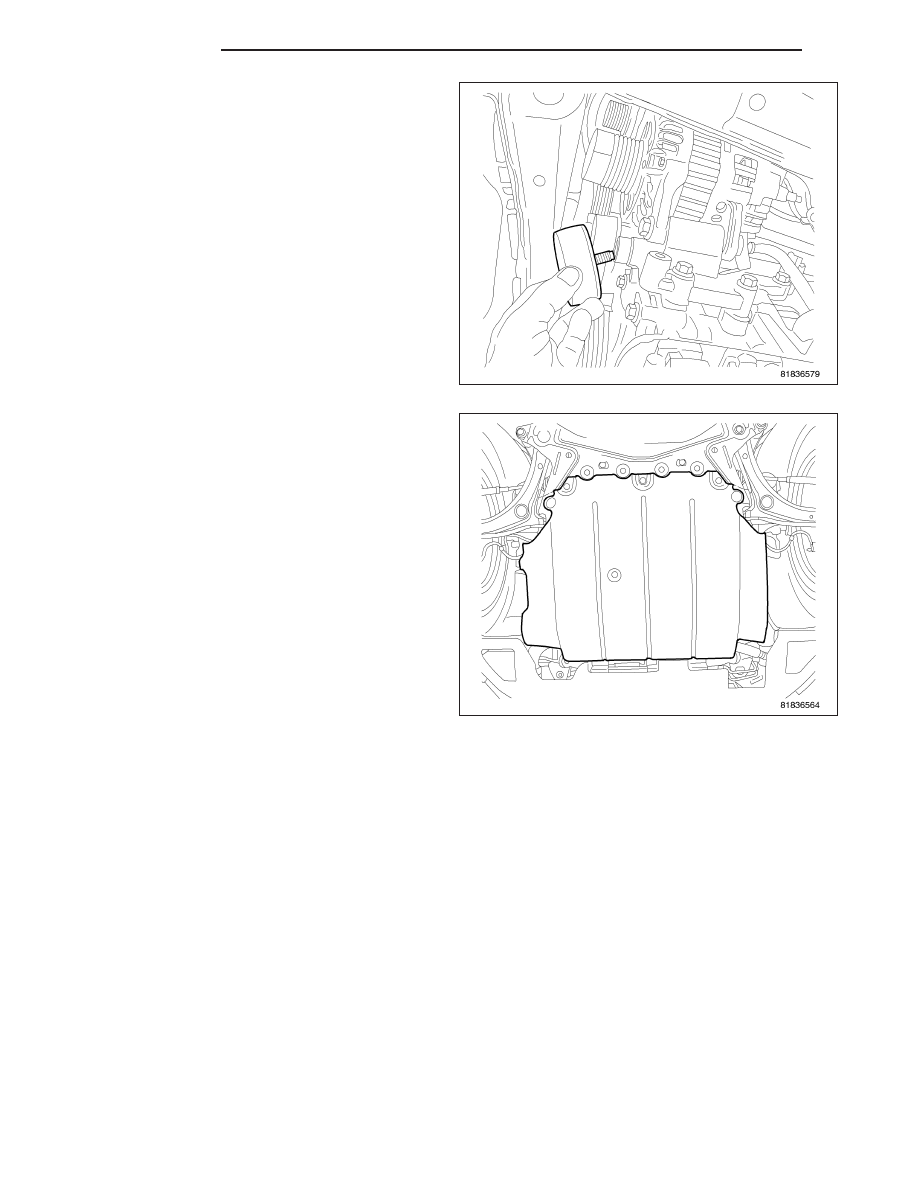

8. Install idler pulley and tighten bolt.

9. Install the accessory drive belt.

10. Install splash shield.

11. Install lower air dam.

12. Lower vehicle.

13. Connect the negative battery cable.

8F - 44

CHARGING

PM
