REMOTE SWITCHES

DESCRIPTION

Two rocker-type switches (if equipped) are mounted on the back (instrument panel side) of the steering wheel
spokes. The switch on the left spoke is the seek switch and has seek up, seek down, and preset station advance
functions. The switch on the right spoke is the volume control switch and has volume up, and volume down func-
tions. The switch on the right spoke also includes a “mode” control that allows the driver to sequentially select AM
radio, FM radio, cassette player, CD player or CD changer (if equipped).

OPERATION

These switches are resistor multiplexed units that are hard-wired to the Body Control Module (BCM) through the
clockspring. The BCM sends the proper messages on the Programmable Communications Interface (PCI) data bus
network to the radio receiver. For diagnosis of the BCM or the PCI data bus, the use of a scan tool and the proper
Diagnostic Procedures manual are recommended. For more information on the operation of the remote radio switch
controls, refer to the owner’s manual in the vehicle glove box.

DIAGNOSIS AND TESTING - REMOTE SWITCHES

WARNING: On vehicles equipped with airbags, refer to electrical, restraints before attempting any steering
wheel, steering column, or instrument panel component diagnosis or service. Failure to take the proper pre-
cautions could result in accidental airbag deployment and possible personal injury.

Any diagnosis of the Audio system should begin with the use of the DRB III

T

diagnostic tool. For informa-

tion on the use of the DRB III

T

, refer to the appropriate Diagnostic Service Manual.

For complete circuit diagrams, refer to the appropriate wiring information.

1. Disconnect and isolate the battery negative cable.

2. Remove the remote radio switch(es) from the steering wheel. (Refer to 8 - ELECTRICAL/AUDIO/REMOTE

SWITCHES - REMOVAL).

3. Use an ohmmeter to check the switch resistance as shown in the Remote Radio Switch Test table

REMOTE RADIO SWITCH TEST

Switch

Switch Position

Resistance

Right

(White)

Volume Up

1.210 Kilohms

Right

(White)

Volume Down

3.010 Kilohms

Right

(White)

Mode Advance

0.0511 Kilohms

Left

(Black)

Seek Up

0.261 Kilohms

Left

(Black)

Seek Down

0.681 Kilohms

Left

(Black)

Pre-Set Station

Advance

0.162 Kilohms

NOTE: The right remote radio switch back is white in color. The left switch back is black in color. The right/
left remote radio switch orientation is with the steering wheel installed, and driver in driver’s seat.

4. If the switch resistance checks OK, go to Step 5. If not OK, replace the faulty switch.

5. Check for continuity between the ground circuit cavity of the switch wire harness connector and a good ground.

There should be continuity. If OK, go to Step 6. If not OK, repair the open circuit as required.

PM

AUDIO

8A - 149

6. Unplug the 24-way white wire harness connector from the Body Control Module (BCM). Check for continuity

between the radio control circuit cavity of the remote radio switch wire harness connector and a good ground.
There should be no continuity. If OK, go to Step 7. If not OK, repair the short circuit as required.

7. Check for continuity between the radio control circuit cavities of the remote radio switch wire harness connector

and the BCM wire harness connector. There should be continuity. If OK, refer to the proper Diagnostic Proce-
dures manual to test the BCM and the PCI data bus. If not OK, repair the open circuit as required.

REMOVAL

WARNING: On vehicles equipped with airbags, refer to electrical, restraints before attempting any steering
wheel, steering column, or instrument panel component diagnosis or service. Failure to take the proper pre-
cautions could result in accidental airbag deployment and possible personal injury.

1. Disconnect and isolate the battery negative cable.

2. Remove the driver side airbag (Refer to 8 - ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL).

3. Remove the steering wheel (Refer to 19 - STEERING/COLUMN/STEERING WHEEL - REMOVAL).

4. Unplug the wire harness connector from the remote radio switch.

5. Remove steering wheel rear cover.

6. Remove the remote radio switch from the steering wheel by depressing tabs on each side of each switch.

NOTE: The right remote radio switch back is white in color. The left switch back is black in color. The right/
left remote radio switch orientation is with the steering wheel installed, and driver in driver’s seat.

INSTALLATION

WARNING: On vehicles equipped with airbags, refer to electrical, restraints before attempting any steering
wheel, steering column, or instrument panel component diagnosis or service. Failure to take the proper pre-
cautions could result in accidental airbag deployment and possible personal injury.

1. Install remote radio switch to the steering wheel.

2. Install steering wheel rear cover.

3. Connect the wire harness to the remote radio switch.

4. Install the steering wheel (Refer to 19 - STEERING/COLUMN/STEERING WHEEL - INSTALLATION).

5. Install the driver side airbag (Refer to 8 - ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION).

6. Connect the battery negative cable.

8A - 150

AUDIO

PM

SPEAKER

REMOVAL

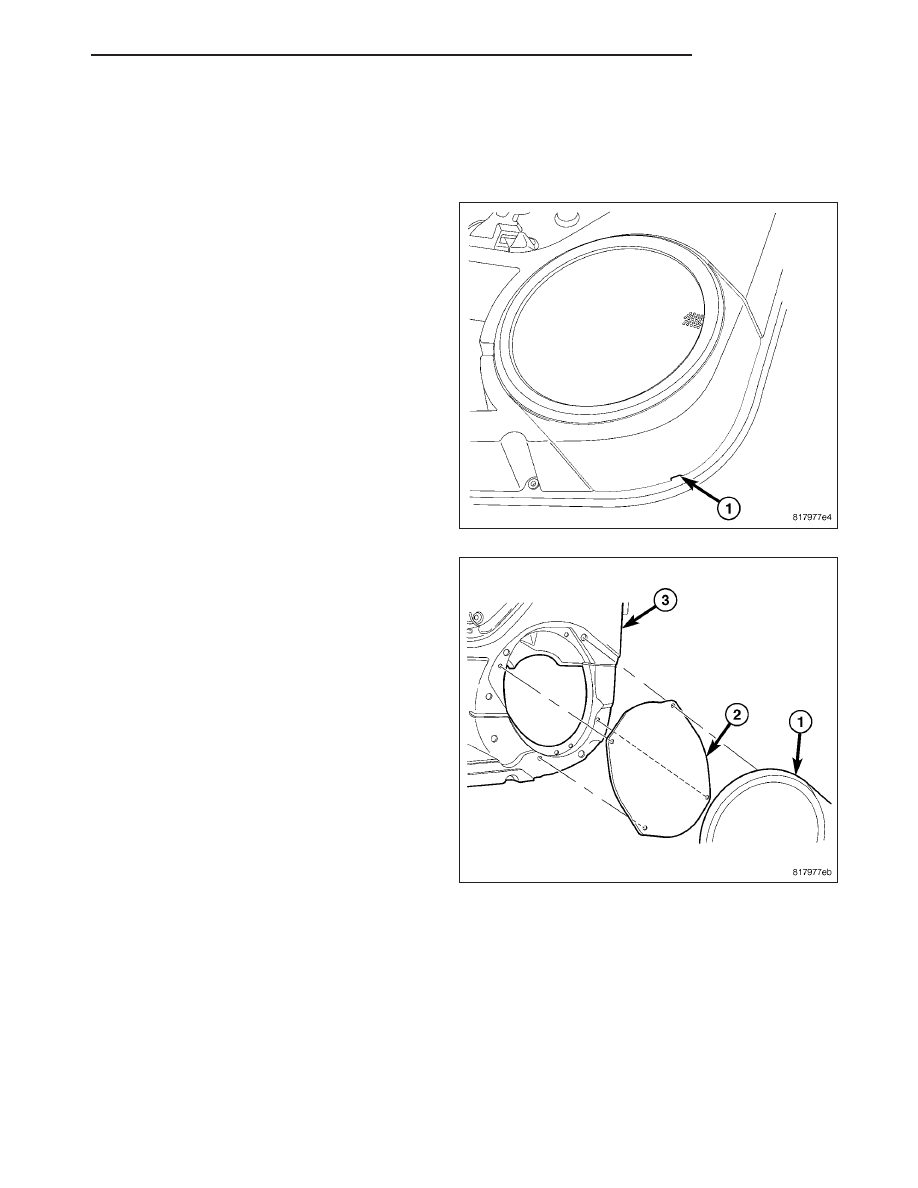

DOOR SPEAKERS

1. Using an approved flat blade tool find the service

notch located at the bottom of speaker grille and
pry up speaker grille.

2. Remove the four screws attaching the speaker (2)

to door panel (3).

3. Disconnect the electrical connector and remove the

speaker.

PM

AUDIO

8A - 151

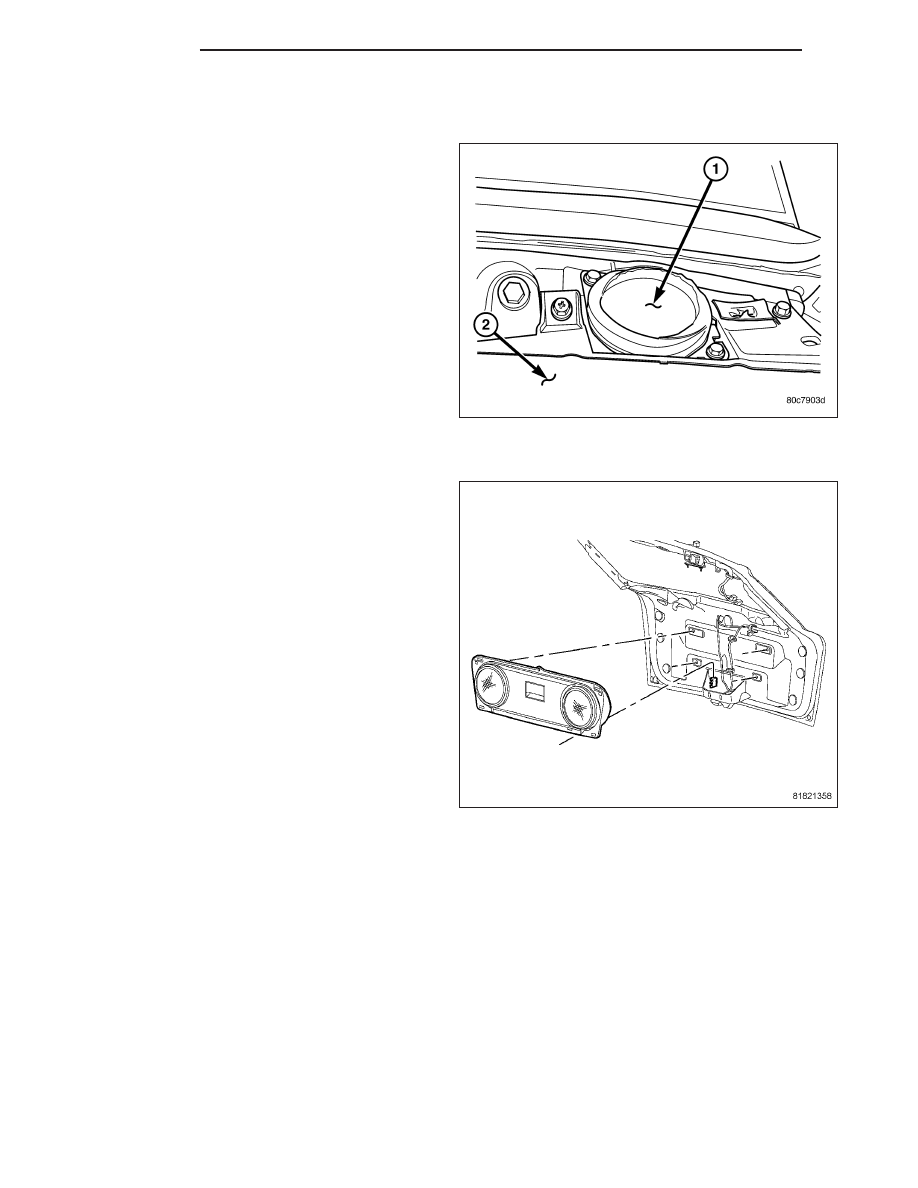

INSTRUMENT PANEL SPEAKER

1. Disconnect and isolate the battery negative cable.

2. Remove instrument panel (2) top cover (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL TOP COVER - REMOVAL).

3. Remove speaker retaining screws.

4. Remove speaker (1) and disconnect wire harness

connector.

REAR SPEAKER - LIFTGATE

1. Disconnect and isolate the battery negative cable.

2. Remove the speaker enclosure fasteners.

3. Remove speaker and disconnect the electrical har-

ness connector.

8A - 152
