Dodge Caliber. Manual - part 180

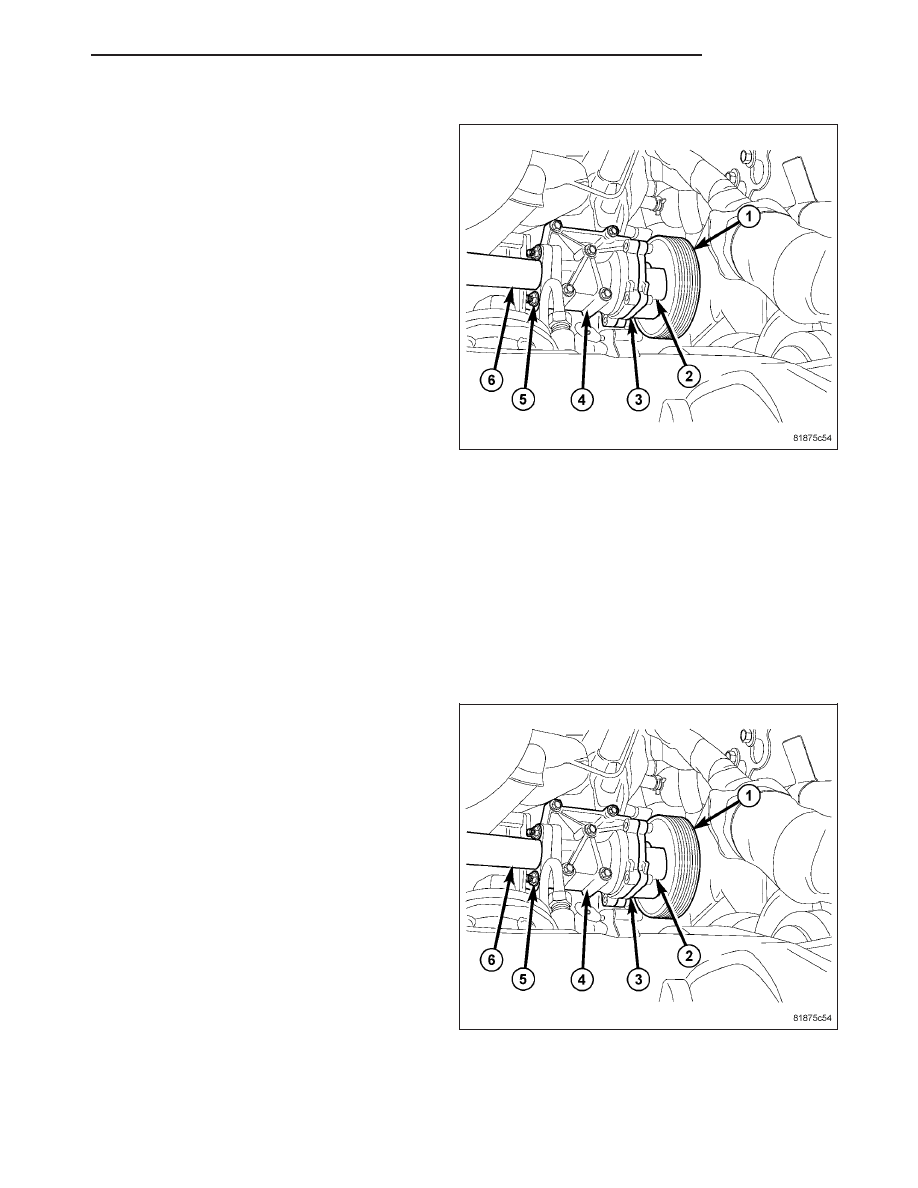

REMOVAL - WORLD ENGINE

1. Remove the accessory drive belt (Refer to 7 -

COOLING/ACCESSORY

DRIVE/DRIVE

BELT

-

REMOVAL).

2. Drain engine coolant (Refer to 7 - COOLING/EN-

GINE - STANDARD PROCEDURE - DRAIN COOL-
ING SYSTEM).

3. Raise vehicle (Refer to LUBRICATION & MAINTE-

NANCE/HOISTING - STANDARD PROCEDURE).

4. Remove accessory drive belt splash shield.

5. Drain cooling system (Refer to 7 - COOLING/EN-

GINE - STANDARD PROCEDURE).

6. Remove screws attaching water pump pulley (1).

Remove pulley (1).

7. Remove water pump mounting bolts (2).

8.

Remove water pump (3).

INSPECTION

Replace water pump body assembly if it has any of these defects:

Cracks or damage on the body.

Coolant leaks from the shaft seal, evident by wet coolant traces on the pump body.

Loose or rough turning bearing.

Impeller rubs either the pump body or the engine block.

Impeller loose or damaged.

Sprocket or sprocket flange loose or damaged.

INSTALLATION - WORLD ENGINE

1. Position water pump assembly (3) into water pump

housing (4).

2. Install mounting bolts (2). Tighten bolts to 12 N·m

(105 in. lbs.).

3. Install water pump pulley (1). Tighten bolts to 28

N·m (21 ft. lbs.).

4. Install drive belt splash shield.

5. Lower vehicle.

6. Install accessory drive belt (Refer to 7 - COOLING/

ACCESSORY DRIVE/DRIVE BELT - INSTALLA-
TION).

7. Connect battery negative terminal.

8. Fill cooling system (Refer to 7 - COOLING - STAN-

DARD

PROCEDURE

-

FILLING

COOLING

SYSTEM).

PM

ENGINE

7 - 45

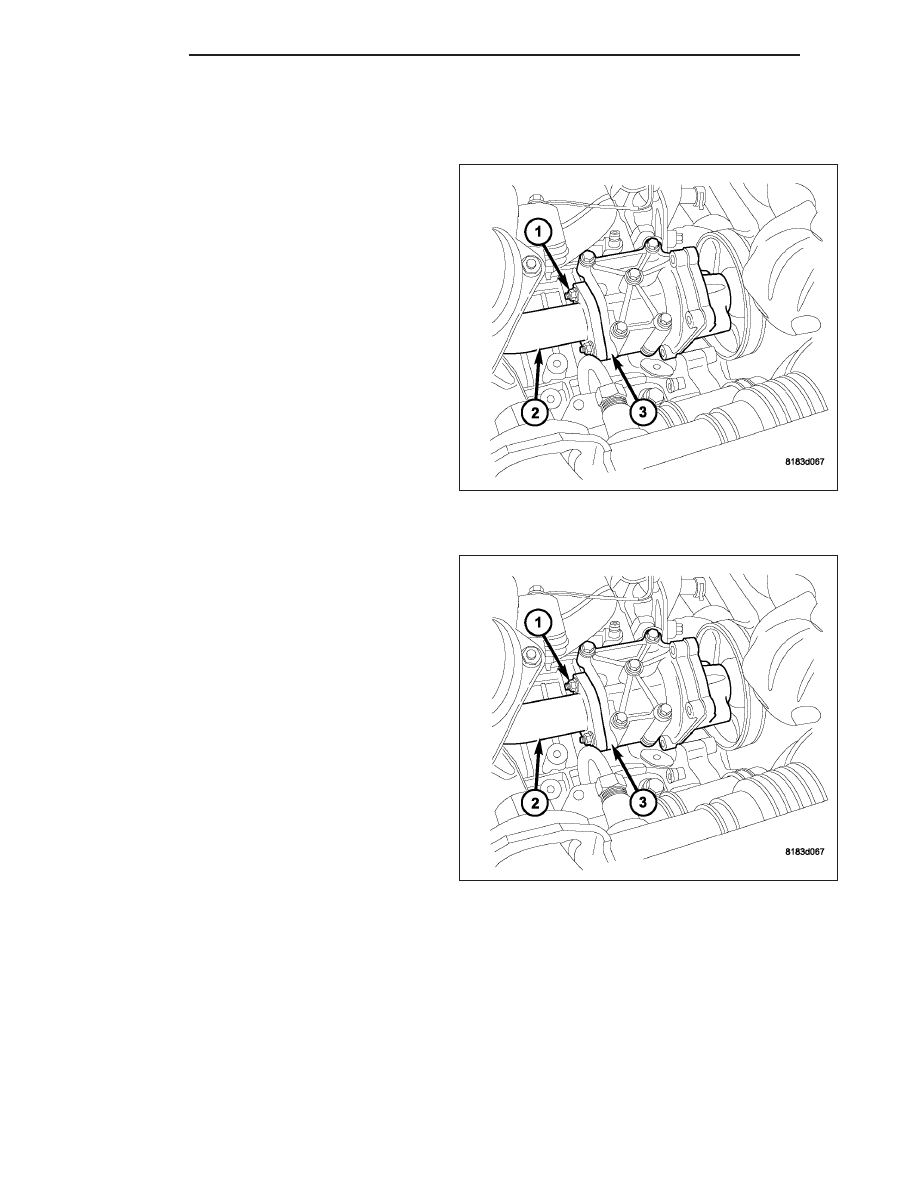

INLET TUBEWATER PUMP-WORLD ENGINE

REMOVAL

The water pump inlet tube (3) connects the water
pump to the coolant adapter. This tube is sealed by an
O-ring and held in place by fasteners to the water
pump housing.

1. Drain cooling system (Refer to 7 - COOLING/EN-

GINE - STANDARD PROCEDURE).

2. Remove the coolant adapter and secondary ther-

mostat (Refer to 7 - COOLING/ENGINE/ENGINE
COOLANT THERMOSTAT - REMOVAL).

3. Raise and support vehicle.

4. Remove inlet tube mounting nuts (1).

5. Remove inlet tube (3).

INSTALLATION

1. Inspect the O-ring for damage before installing the

tube. Replace O-ring as necessary.

2. Lubricate O-rings with soapy water.

3. Install new water inlet gasket between tube and

water pump housing (2).

4. Position water pump inlet tube (3) on water pump

housing (2). Hand tighten nuts to aide in tube align-
ment.

5. Install secondary thermostat and coolant adapter

(Refer to 7 - COOLING/ENGINE/ENGINE COOL-
ANT THERMOSTAT - INSTALLATION).

6.

Tighten coolant tube nuts (1) to 24 N·m (212 in.

lbs.).

7. Fill cooling system (Refer to 7 - COOLING/ENGINE

- STANDARD PROCEDURE).

7 - 46

ENGINE

PM

TRANSMISSION

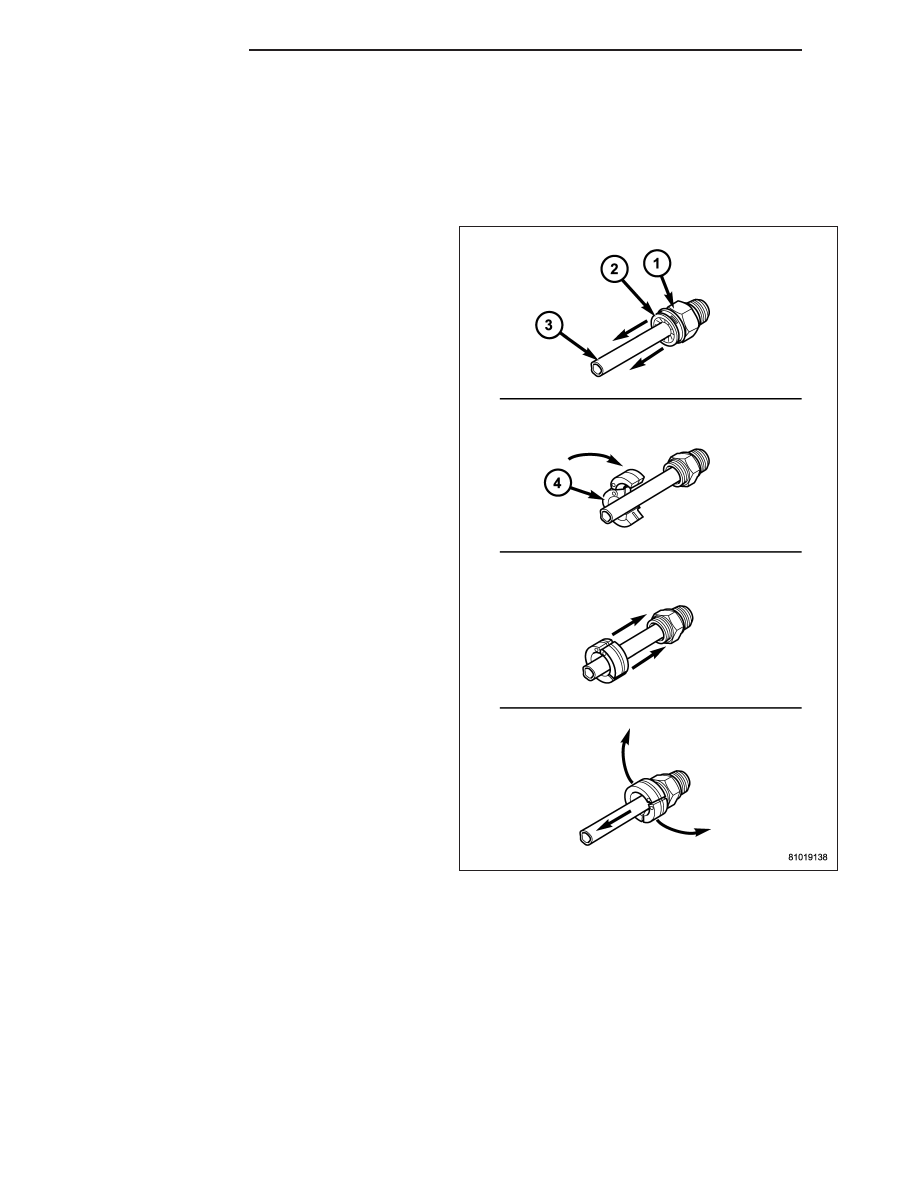

STANDARD PROCEDURE - TRANSMISSION COOLER LINE QUICK CONNECT
FITTING DISASSEMBLY/ASSEMBLY

DISCONNECT

1. Remove dust cap by pulling it straight back off of

quick connect fitting (1).

2. Place disconnect tool Release Tool 8875A (4) onto

transmission cooler line with the fingers of the tool
facing the quick connect fitting.

3. Slide disconnect tool down the transmission line

and engage the fingers of the tool into the retaining
clip. When properly engaged in the clip, the tool
will fit flush against the quick connect fitting.

4. Rotate the disconnect tool 60° to expand the

retaining clip.

5. While holding the disconnect tool against the quick

connect fitting, pull back on the transmission cooler
line to remove.

7 - 48

TRANSMISSION

PM
