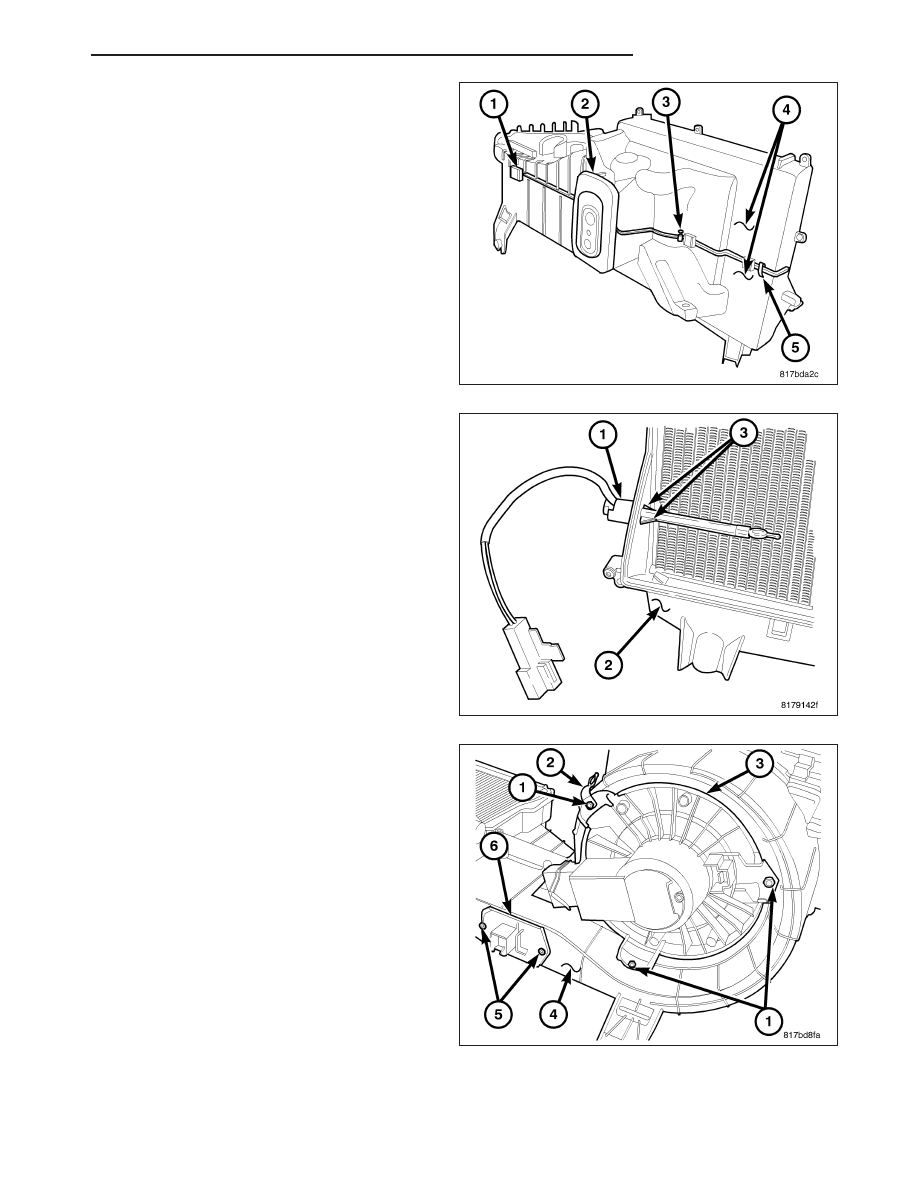

3. Install the two halves of the HVAC housing (4)

together and engage the nine plastic retaining tabs
(1). Make sure the retaining tabs are fully engaged.

4. Install the nine screws (3) and three metal clips (5)

that secure the two halves of the HVAC housing
together. Tighten the screws to 1.2 N·m (10 in lbs.).
Make sure the metal clips are fully engaged to the
housing halves.

5. Install the foam seal (2) onto the front of the two

HVAC housing halves.

6. Install the evaporator temperature sensor (1) into

the driver side of the HVAC housing (2). Make sure
the retaining tabs (3) are fully engaged to the
housing.

7. Position the blower motor (3) into the bottom of the

HVAC housing (4).

8. Install the wire lead bracket (2) and the three

screws (1) that secure the blower motor to the
HVAC housing. Tighten the screws to 1.2 N·m (10
in. lbs.).

9. Position the blower motor resistor (6) into the

HVAC housing.

10. Install the two screws (5) that secure the blower

motor resistor to the HVAC housing. Tighten the
screws to 1.2 N·m (10 in. lbs.).

PM

DISTRIBUTION

24 - 101

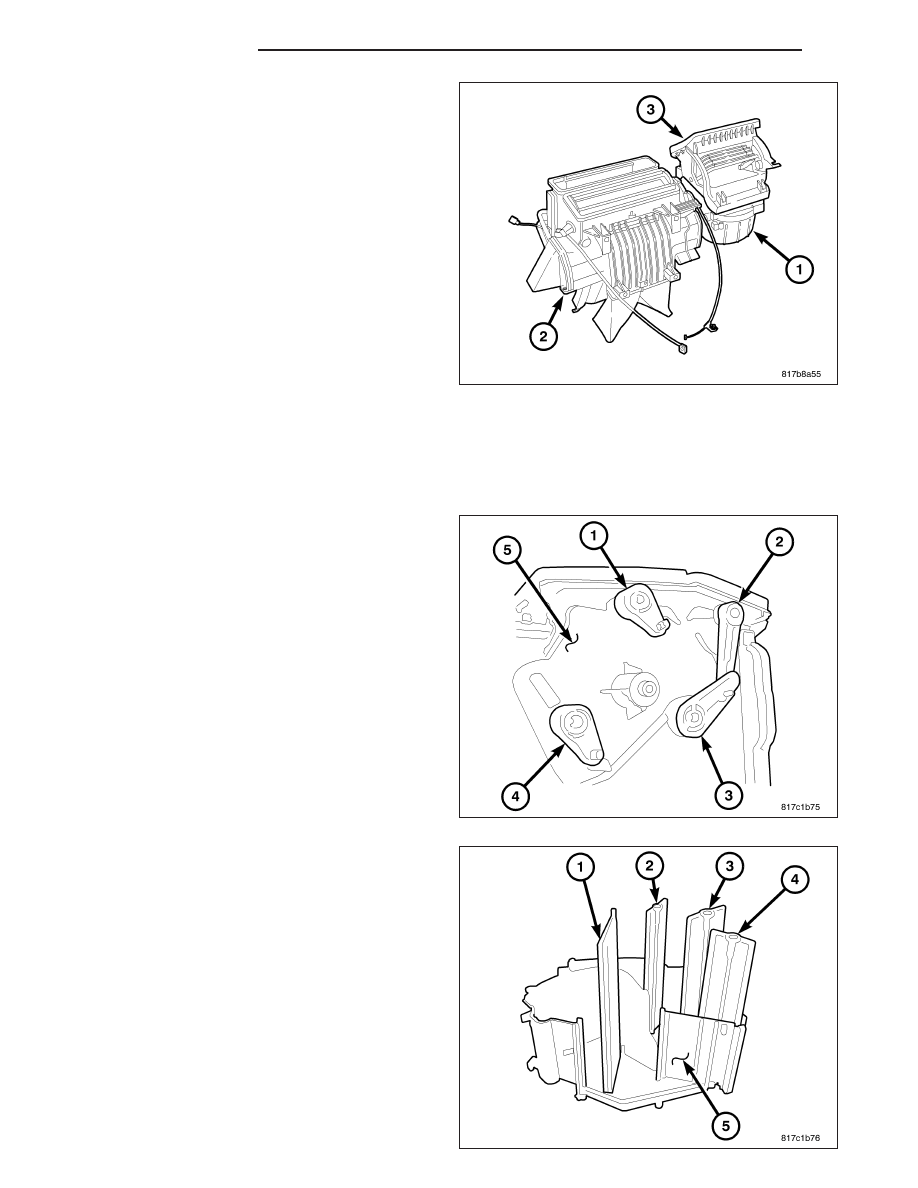

11. Install the air inlet housing (3) onto the HVAC

housing (1) (refer to 24 - HEATING & AIR CON-
DITIONING/DISTRIBUTION/HOUSING-HVAC

-

HOUSING- AIR INLET - INSTALLATION).

12. Install the air distribution housing (2) onto the

HVAC housing (refer to 24 - HEATING & AIR
CONDITIONING/DISTRIBUTION/HOUSING-
HVAC - HOUSING-AIR DISTRIBUTION - INSTAL-
LATION).

NOTE: If the heater core is being replaced, flush
the cooling system (refer to 7 - COOLING - STAN-
DARD PROCEDURE - COOLING SYSTEM CLEAN-
ING/REVERSE FLUSHING).

13. Install the HVAC housing assembly (refer to 24 -

HEATING & AIR CONDITIONING/DISTRIBUTION/
HOUSING-HVAC - HOUSING-HVAC ASSEMBLY -
INSTALLATION).

HOUSING-AIR DISTRIBUTION

NOTE: LHD model with A/C shown in illustrations. RHD and heater-only models similar.

1. Install the four mode door levers (1, 2, 3 and 4)

onto the right side of the air distribution housing (5)
Make sure the lever retaining tabs are fully
engaged to the housing.

NOTE: Properly position the air doors within the
air distribution housing by first aligning the four
mode door levers to the scribe lines located on
the right outer side of the air distribution housing.
Then, install the air doors onto the mode door
levers with the UP mark on each air door facing
toward the top of the housing.

NOTE: If a seal on an air door is deformed or dam-
aged, the air door must be replaced.

2. Align the four mode door levers to the scribe lines

on the right outer side of the air distribution hous-
ing (5) and install the air door(s) (1, 2, 3 and 4)

24 - 102

DISTRIBUTION

PM

onto the mode door levers with the UP mark on each air door facing toward the top of the housing.

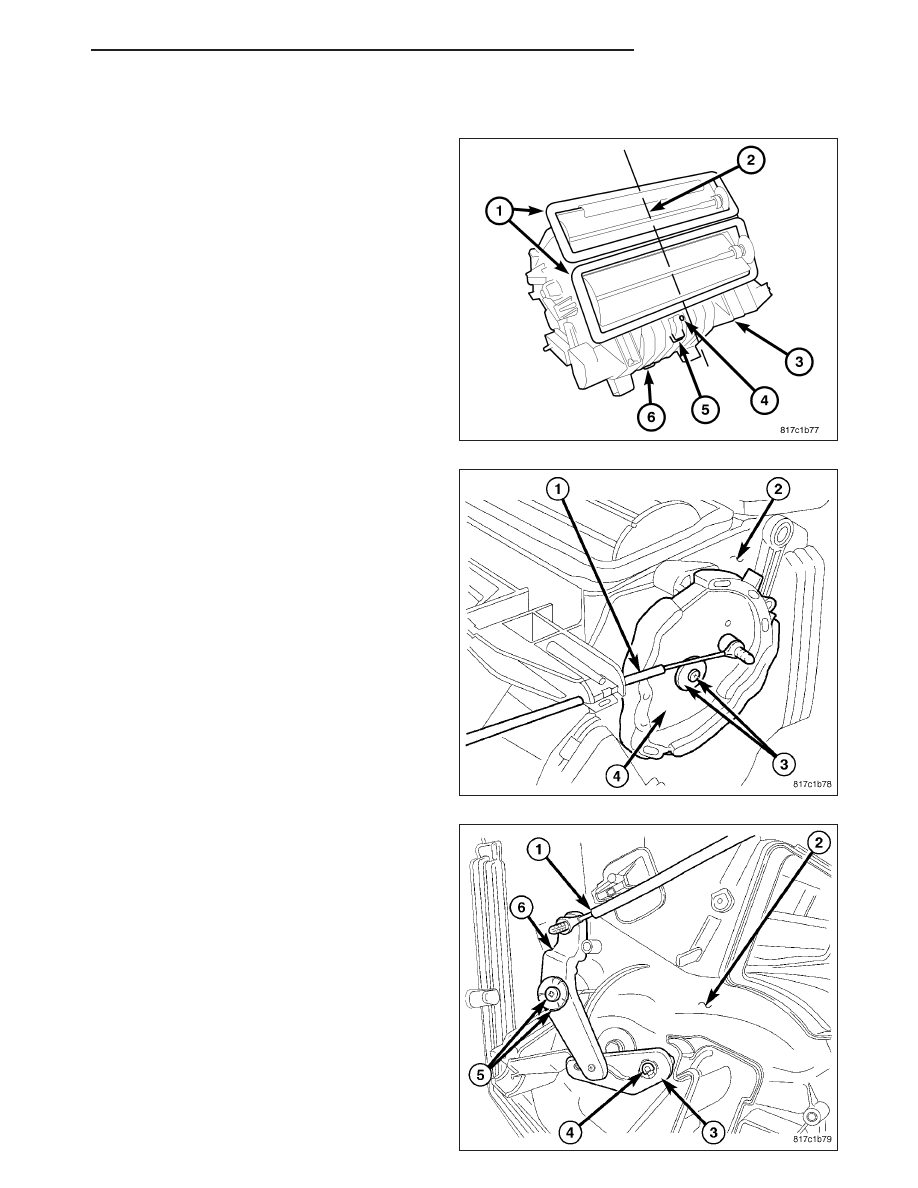

3. Align the air door(s) with the pivot shaft hole(s) in

the air distribution housing (3) and install the two
halves of the housing together. Make sure the
three plastic retaining tabs (6) are fully engaged.

4. Install the five screws (4) and one metal clip (5)

that secure the two halves of the air distribution
housing together. Tighten the screws to 2.2 N·m
(20 in lbs.). Make sure the metal clip is fully
engaged to the housing halves.

NOTE: If any foam seal on the air distribution
housing outlets is deformed or damaged, the seal
must be replaced.

5. Inspect the foam seals (1), especially at the parting

line (2). If a foam seal is deformed or damaged, it
must be replaced.

NOTE: Align the pins on the mode door levers
with the grooves in the back of the mode door
cam prior to installation of the cam.

6. Align the mode door levers on the right side of the

air distribution housing (2) to the mode door cam
(4) and install the cam onto the housing. Make
sure the levers are correctly engaged to the cam.

7. Install the screw and washer (3) that secure the

mode door cam to the air distribution housing.
Tighten the screw to 0.6 N·m (5 in. lbs.).

8. Install the mode door cable (1) (refer to 24 - HEAT-

ING & AIR CONDITIONING/CONTROLS/CABLE-
MODE DOOR - INSTALLATION).

9. Install the blend door pivot lever (3) onto the end of

the blend door pivot shaft (4) located on the left
side of the air distribution housing (2). Make sure
the lever retaining tab is fully engaged to the pivot
shaft.

NOTE: Align the pin on the blend door lever with
the groove in the pivot lever prior to installation of
the blend door lever.

10. Install the blend door lever (6) onto the air distri-

bution housing. Make sure the levers are correctly
aligned to each other.

11. Install the screw and washer (5) that secure the

blend door lever to the air distribution housing.
Tighten the screw to 0.6 N·m (5 in. lbs.).

12. Install the temperature control cable (1) (refer to

24 - HEATING & AIR CONDITIONING/CON-

PM

DISTRIBUTION

24 - 103

TROLS/CABLE-TEMPERATURE CONTROL - INSTALLATION).

13. If equipped with the 2.0L diesel engine, install the

electric positive temperature coefficient (PTC)
heater unit into the air distribution housing (refer
to 24 - HEATING & AIR CONDITIONING/CABIN
HEATER/HEATER UNIT - INSTALLATION).

14. Install the heater core into the air distribution

housing (2) (Refer to 24 - HEATING & AIR CON-
DITIONING/PLUMBING/CORE

HEATER

-

INSTALLATION).

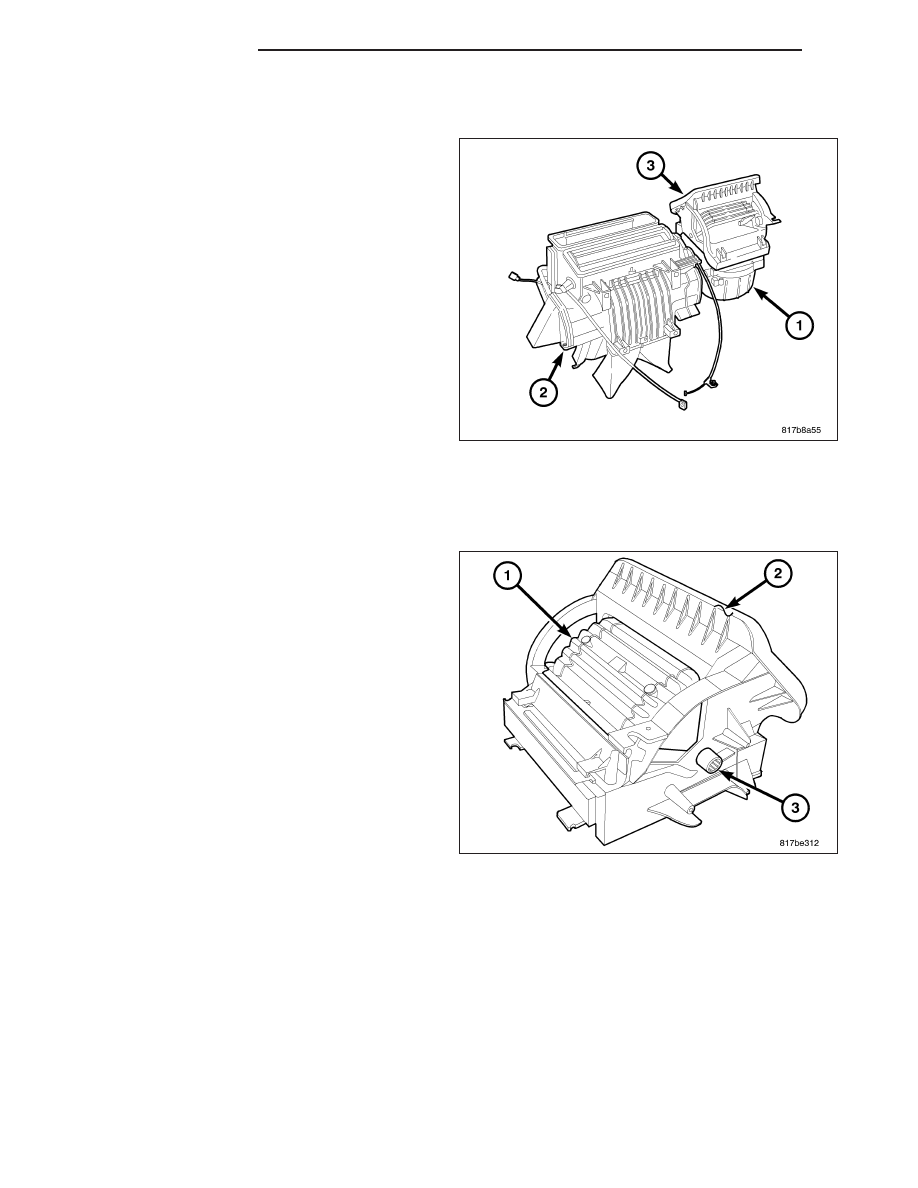

15. Install the air distribution housing onto the HVAC

housing (1) (refer to 24 - HEATING & AIR CON-
DITIONING/DISTRIBUTION/HOUSING-HVAC

-

HOUSING-AIR DISTRIBUTION - INSTALLATION).

16. Install the HVAC housing assembly (refer to 24 -

HEATING & AIR CONDITIONING/DISTRIBUTION/
HOUSING-HVAC - HOUSING-HVAC ASSEMBLY -
INSTALLATION).

HOUSING-AIR INLET

NOTE: LHD model with A/C shown in illustrations. RHD and heater-only models similar.

1. Carefully install the recirculation-air door (1) into

the air inlet housing (2) by pinching the two ends of
the air-door together and aligning the pivot shafts
of the air-door to the pivot shaft holes in the air
inlet housing.

NOTE: Install the recirculation door pivot shaft
adapter by carefully pushing it straight into the
end of the recirculation door pivot shaft.

2. Install the recirculation door pivot shaft adapter (3)

into the right side pivot shaft of the recirculation air-
door. Make sure the adapter is fully engaged to the
pivot shaft.

24 - 104

DISTRIBUTION

PM
