REMOVAL

1. Remove the seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - REAR - REMOVAL)

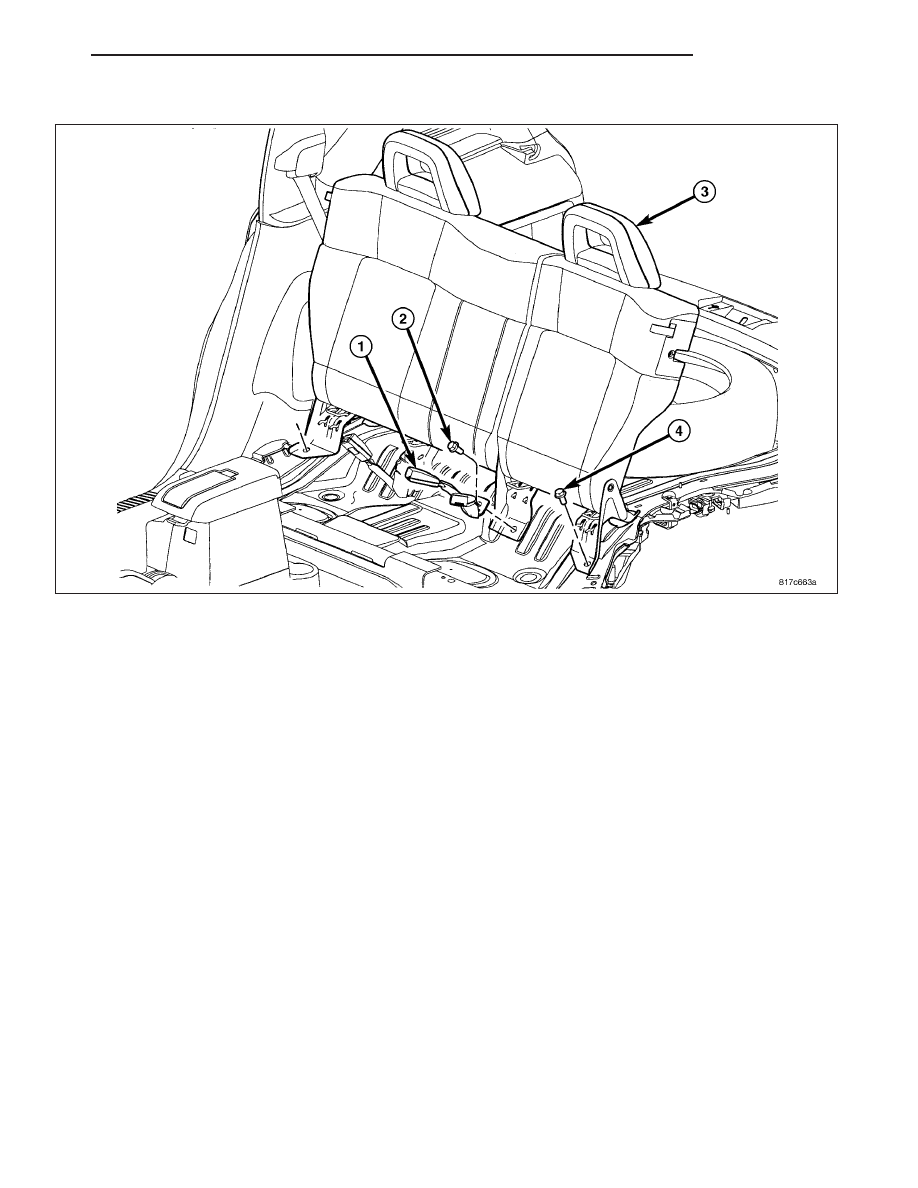

2. Remove the belt buckle bolt (2) and the buckle (1).

3. Remove the floor bracket or recliner bolts (4).

PM

SEATS

23 - 165

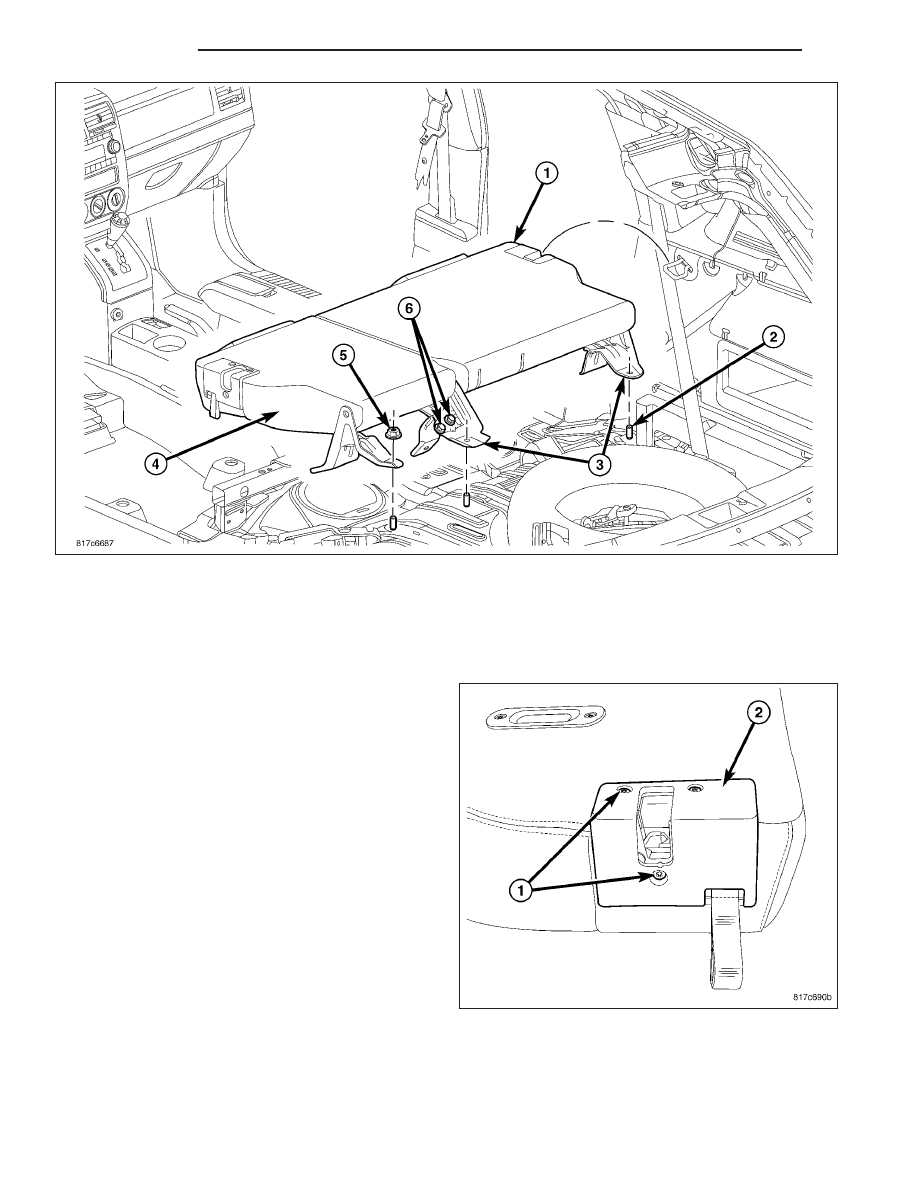

4. Fold the seats forward.

5. Remove the nut (5) and bolts (6) and remove the 40% seat back (4).

6. Remove the nuts from the studs (2) and remove the 60% seat back.

DISASSEMBLY

1. Remove the screws (1) and remove the latch bezel

(2).

23 - 166

SEATS

PM

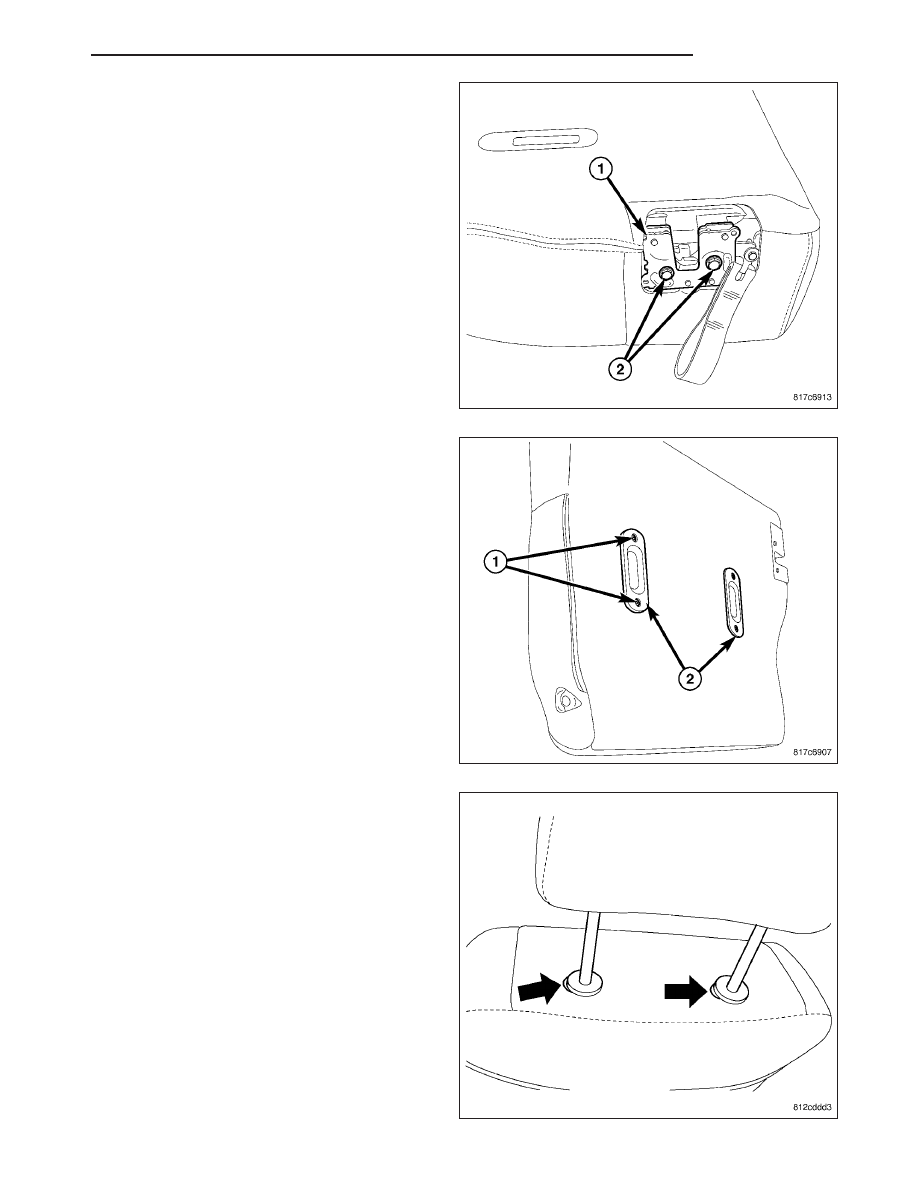

2. Remove the bolts (2) and remove the latch (1).

3. Remove the screws (1) and remove the tether trim

bezels (2).

4. Remove the headrest.

PM

SEATS

23 - 167

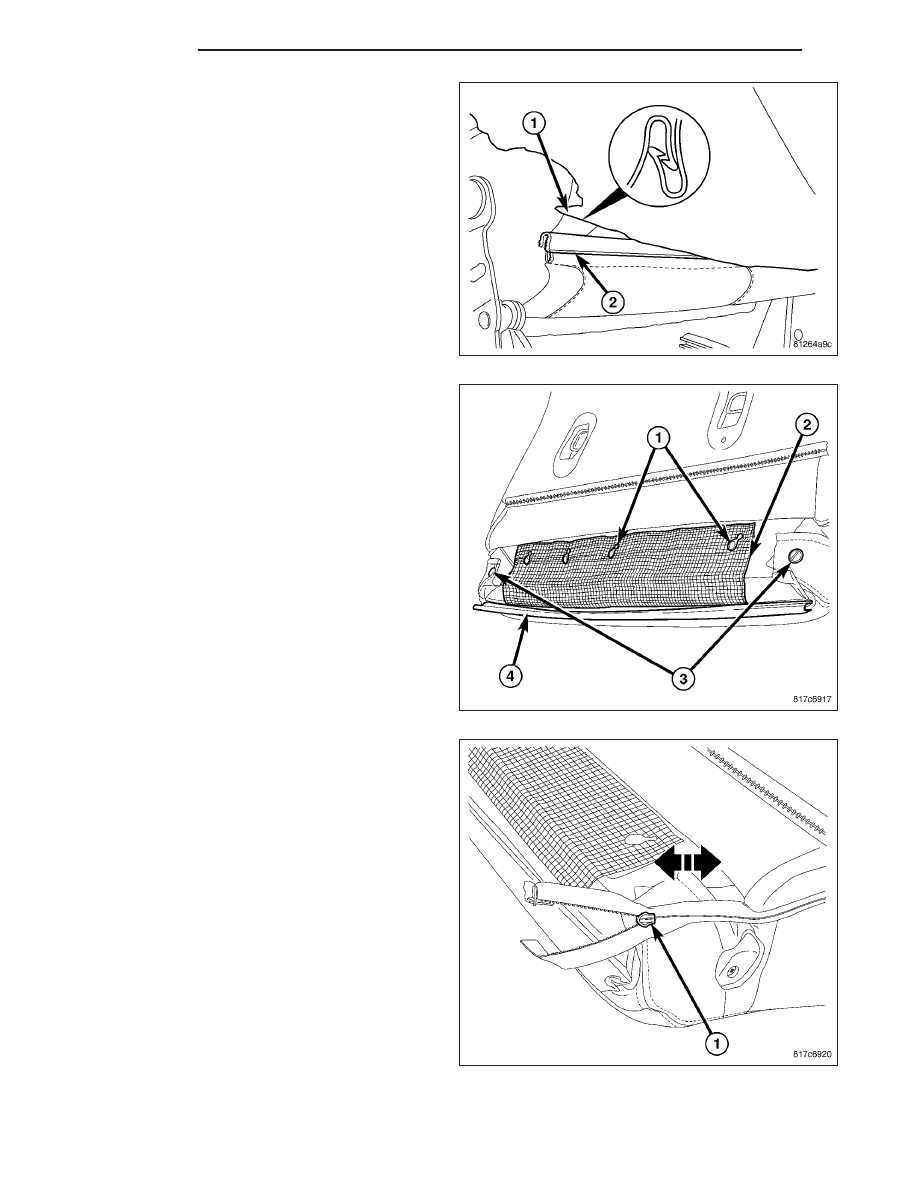

5. Separate the zip strips (1 and 2).

6. Remove the push pin fasteners (3).

7. Separate the inner cover (2) from the hooks (1).

8. Unzip the cover (1).

23 - 168

SEATS

PM
