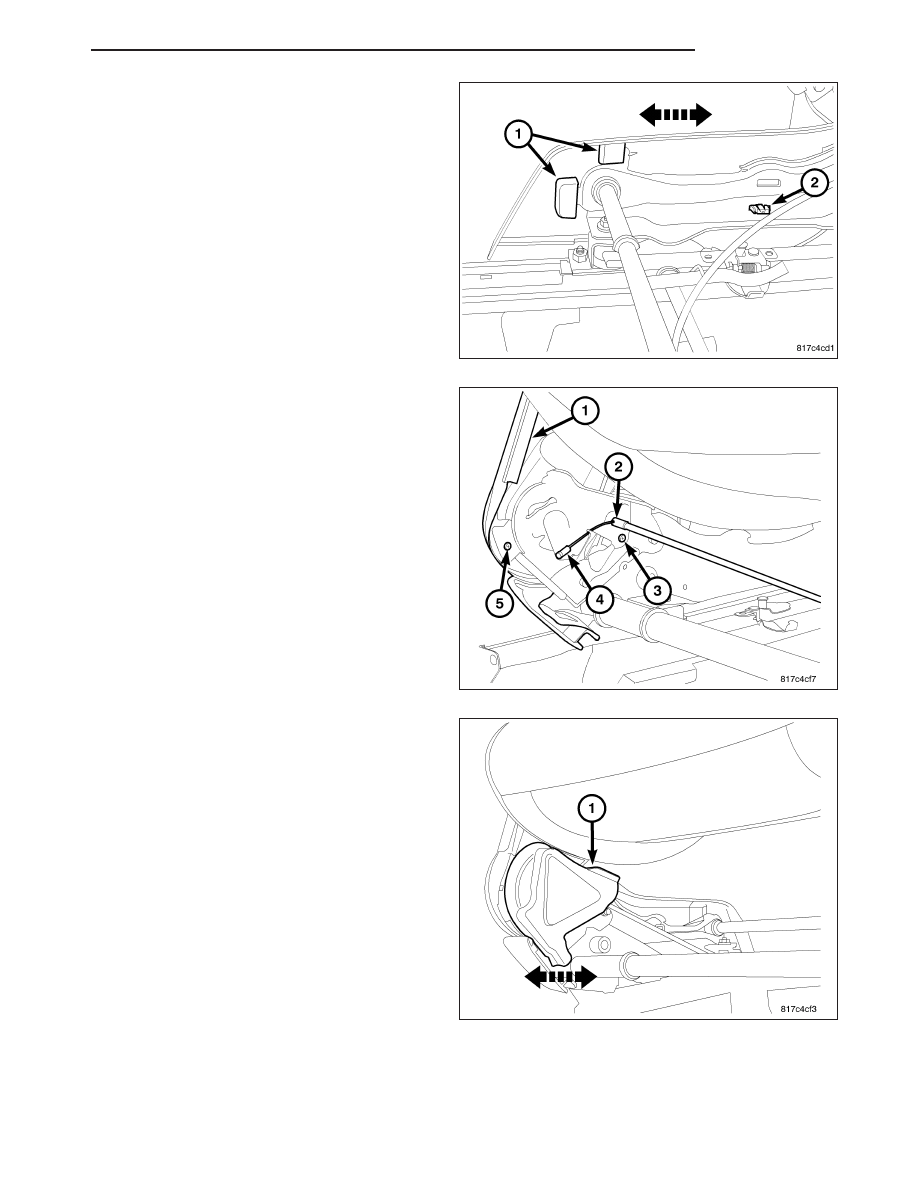

3. Position the side shields onto the seat adjuster

tabs (1) and seat the clip (2) fully.

4. Install the screws (3) attaching the inboard and out-

board side shields to the seat frame.

5. Install the recliner shields (1) and install the screws

(5).

6. Connect the recliner cable ends (4) and fasten the

cable housing (2) to the seat back frame.

7. Install both of the inner side shields (1).

PM

SEATS

23 - 161

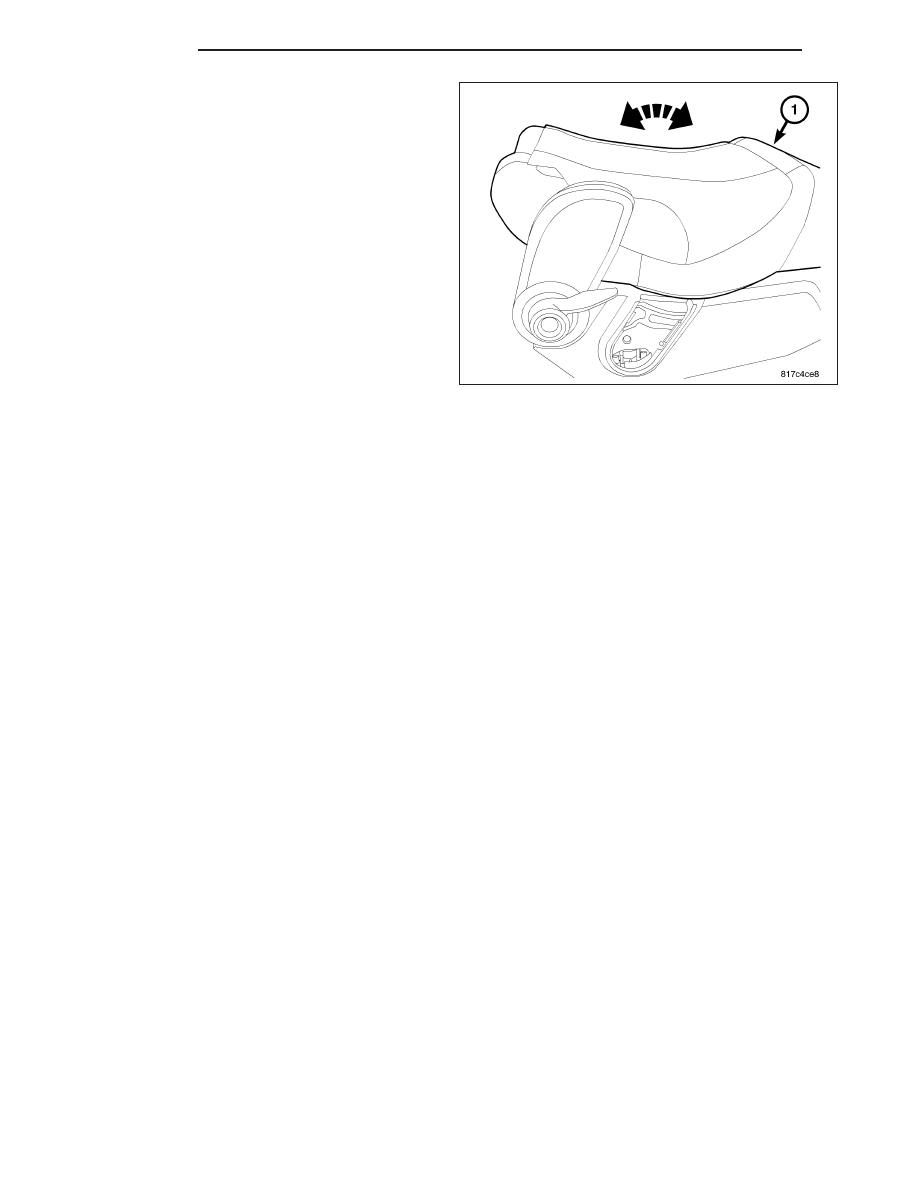

8. Position the seat back (1) into the upright position.

9. Install the seat cushion, (Refer to 23 - BODY/

SEATS/SEAT

CUSHION

-

FRONT

-

INSTALLATION).

23 - 162

SEATS

PM

SEAT BACK - REAR

DESCRIPTION

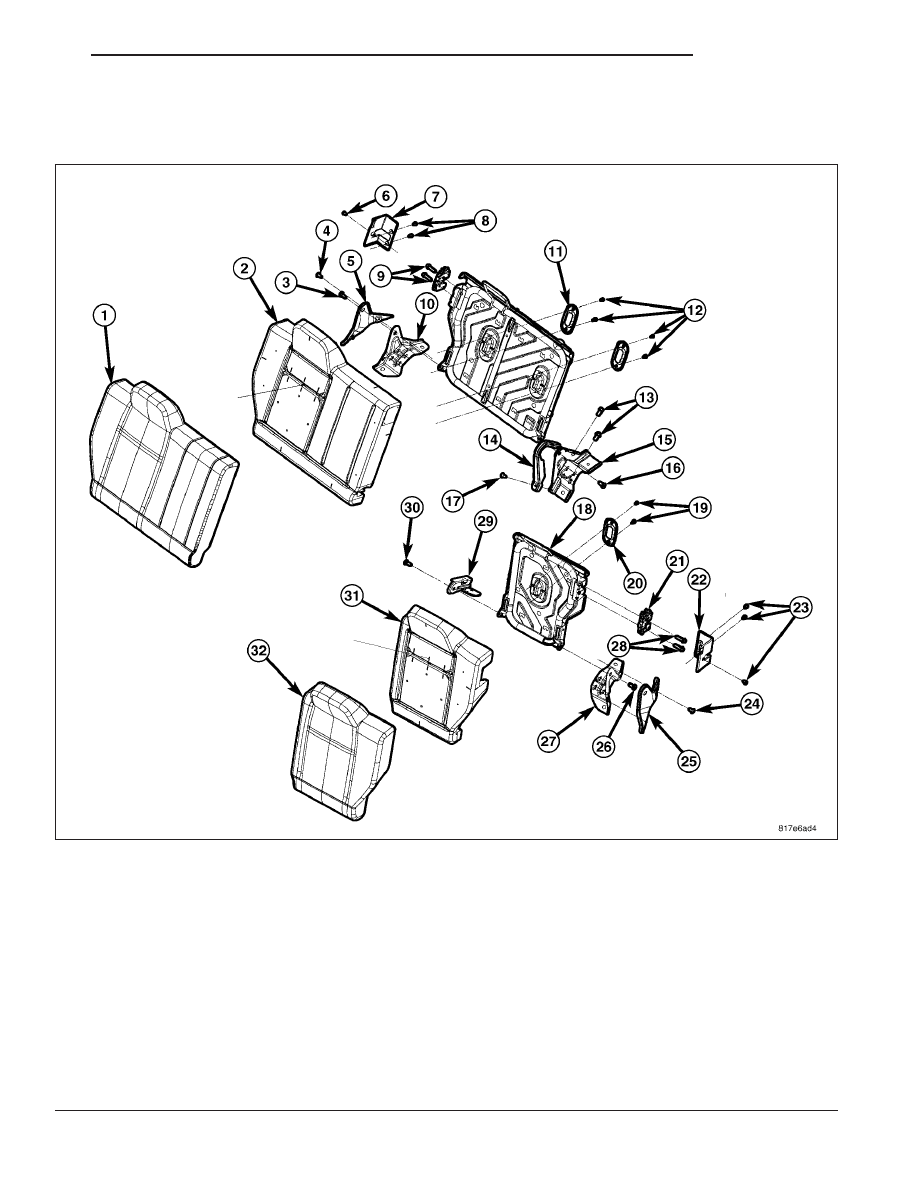

REAR SEAT BACK - W/O RECLINER OPTION

REAR SEAT BACK - W/O RECLINER OPTION

1 - 60% SEAT BACK COVER

17 - PUSH PIN FASTENER

2 - 60% SEAT BACK FOAM CUSHION

18 - SEAT BACK FRAME ASSEMBLY 40%

3 - PIVOT BOLT 32 N·m (24 ft. lbs.)

19 - CHILD TETHER BEZEL SCREWS

4 - PIN

20 - CHILD TETHER BEZEL

5 - FLOOR BRACKET

21 - LATCHES (2)

6 - LATCH BEZEL SCREW

22 - LATCH BEZEL

7 - LATCH BEZEL

23 - LATCH BEZEL SCREWS

8 - LATCH BEZEL SCREWS

24 - PUSH PIN FASTENER

9 - LATCH BOLTS 28 N·m (21 ft. lbs.)

25 - SHIELD

10 - FLOOR BRACKET

26 - PIVOT BOLT 32 N·m (24 ft. lbs.)

11 - CHILD TETHER BEZELS

27 - FLOOR BRACKET

12 - CHILD TETHER BEZEL SCREWS

28 - LATCH BOLTS 28 N·m (21 ft. lbs.)

13 - BOLTS 7 N·m (5 ft. lbs.)

29 - FLOOR BRACKET

14 - CENTER SHIELD

30 - PIVOT BOLT 32 N·m (24 ft. lbs.)

15 - FLOOR BRACKET

31 - SEAT BACK FOAM CUSHION 40%

16 - PIVOT BOLT 45 N·m (33 ft. lbs.)

32 - SEAT BACK CUSHION COVER 40%

PM

SEATS

23 - 163

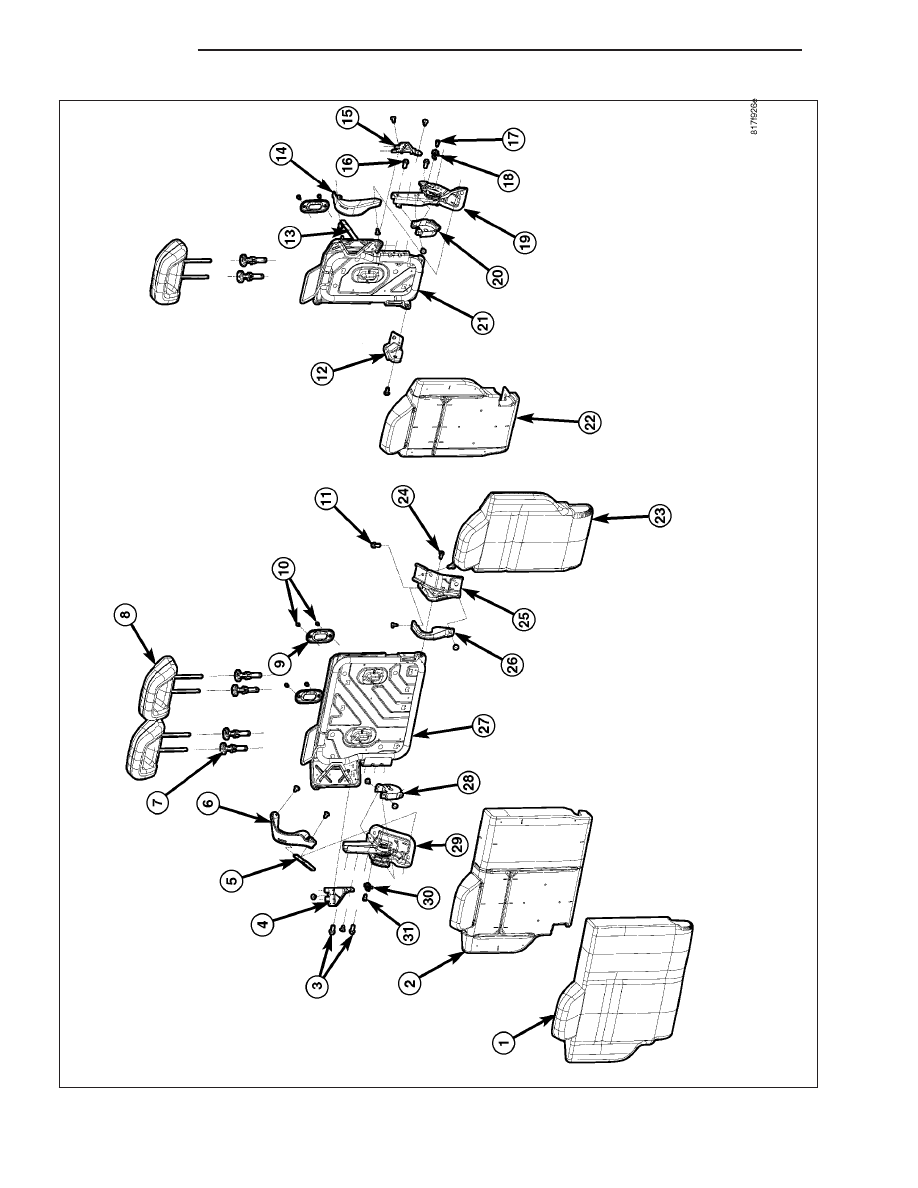

REAR

SEA

T

BACK

-

RECLINER

23 - 164

SEATS

PM
