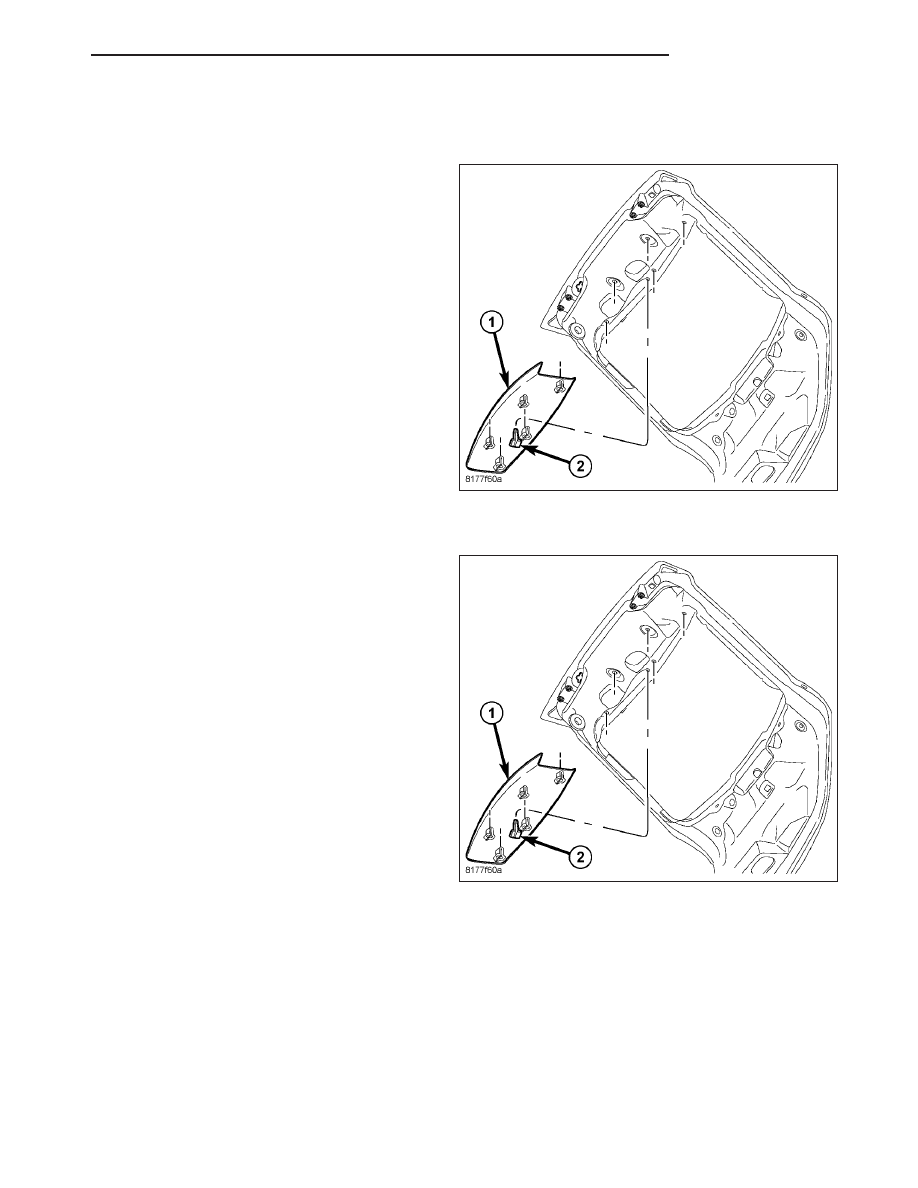

SCUFF PLATE-LIFTGATE SILL

REMOVAL

1. Using trim stick C-4755 or equivalent, pry up on

each scuff plate clip location hole (2).

2. Remove scuff plate (1).

INSTALLATION

1. Locate trim clips and align metal clips to liftgate

inner.

2. Tap on panel at each trim clip location (2) until

properly seated.

PM

INTERIOR

23 - 105

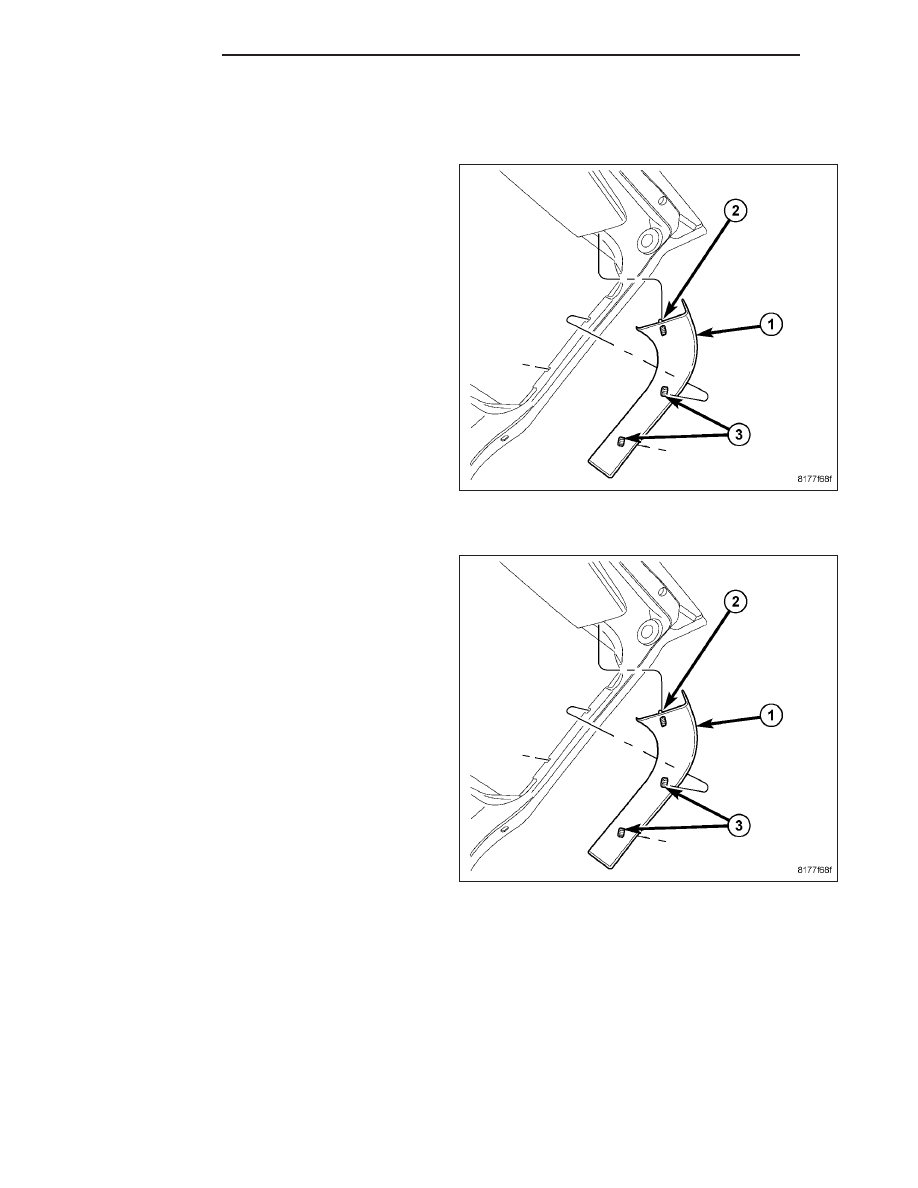

LIFTGATE UPPER SIDE MOLDING

REMOVAL

1. Using trim stick C4755 or equivalent, pry up at

each clip location.

2. Remove upper side trim.

INSTALLATION

1. Locate and align metal clips to holes in liftgate

inner.

2. Start at top clip (2) and work downward to bottom

clips (3).

3. Tap on panel at each clip location until side trim (1)

is properly seated.

23 - 106

INTERIOR

PM

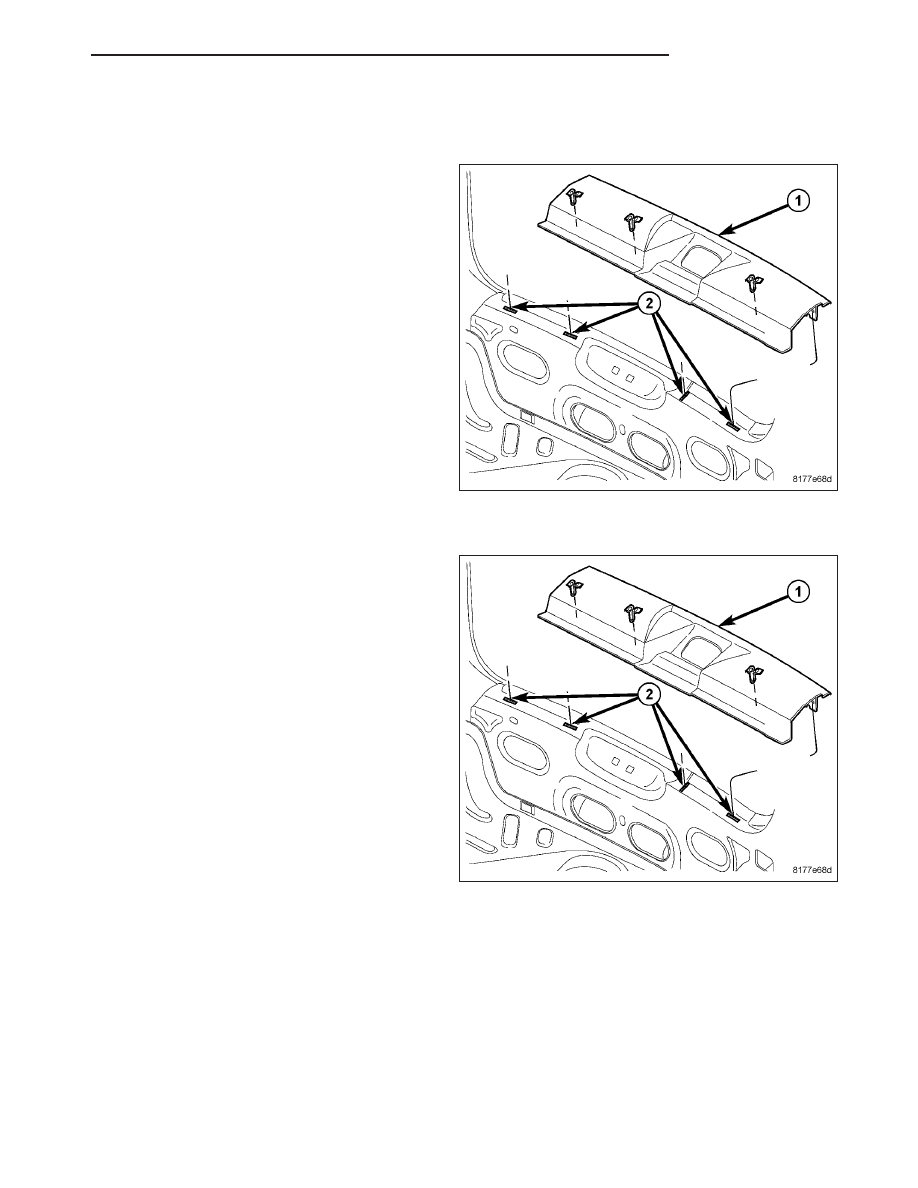

LIFTGATE UPPER MOLDING

REMOVAL

1. Using trim stick C-4755 or equivalent, pry up on

upper trim(1) ensuring trim tabs disengage.

2. Remove from vehicle.

INSTALLATION

1. Align molding tabs (2) with holes in liftgate.

2. Hand tap trim (1) onto liftgate holes at clip

locations.

PM

INTERIOR

23 - 107

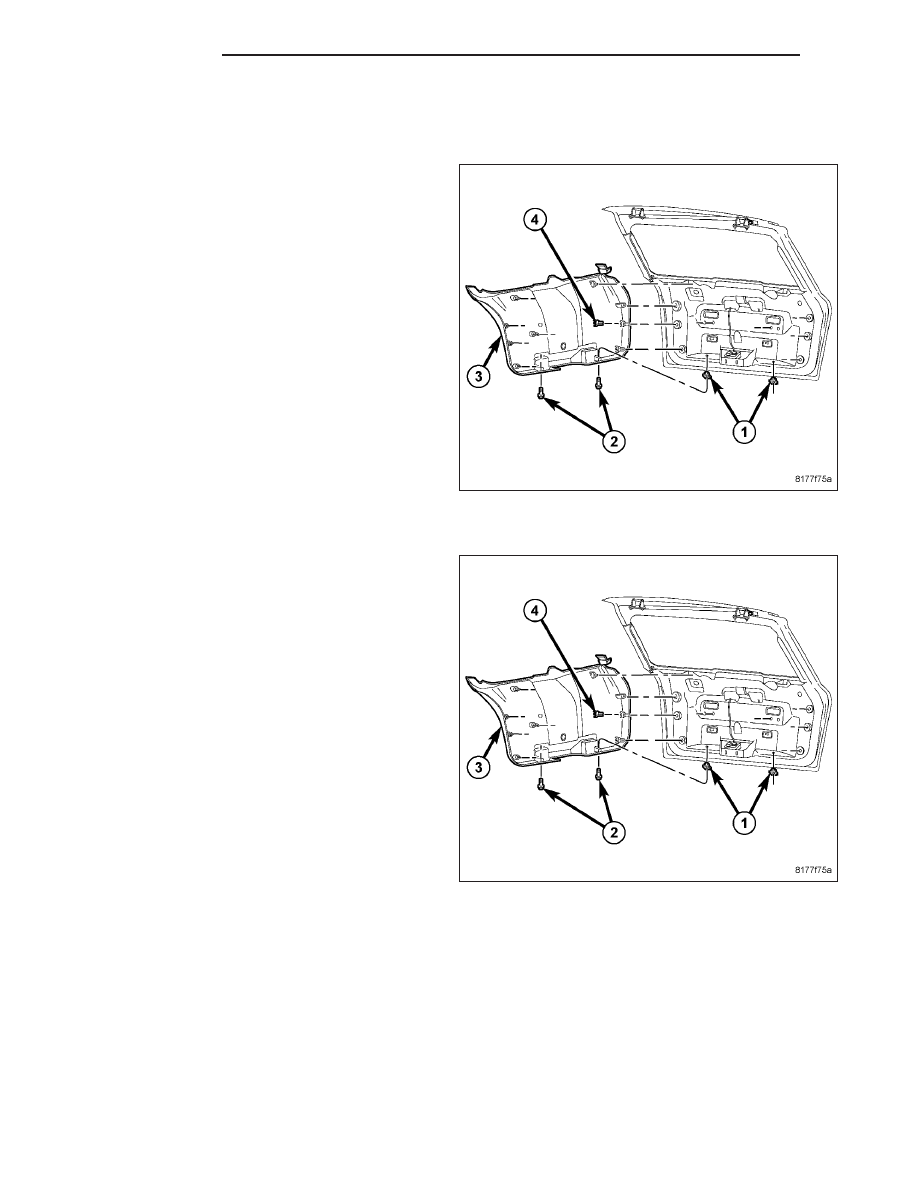

LOWER LIFTGATE TRIM W/OUT SPEAKER

REMOVAL

1. Remove upper liftgate molding. (Refer to 23 -

BODY/INTERIOR/LIFTGATE UPPER MOLDING -
REMOVAL)

2. Remove liftgate upper side molding. (Refer to 23 -

BODY/INTERIOR/LGATE UPPER SIDE MOLDING
- REMOVAL)

3. Remove liftgate screws (2) from liftgate nuts (1).

4. Using special tool C-4755, pry up liftgate trim tabs

(4) from liftgate.

5. Remove lower liftgate trim (3) from vehicle.

INSTALLATION

1. Align lower liftgate trim tabs (4) with liftgate holes.

2. Hand tap liftgate panel ensuring liftgate tabs are

properly seated.

3. Install liftgate screws (2) into liftgate nuts (1).

4. Install upper side molding. (Refer to 23 - BODY/IN-

TERIOR/LGATE

UPPER

SIDE

MOLDING

-

INSTALLATION)

5. Install upper liftgate molding. (Refer to 23 - BODY/

INTERIOR/LIFTGATE

UPPER

MOLDING

-

INSTALLATION)

23 - 108

INTERIOR
