HINGE

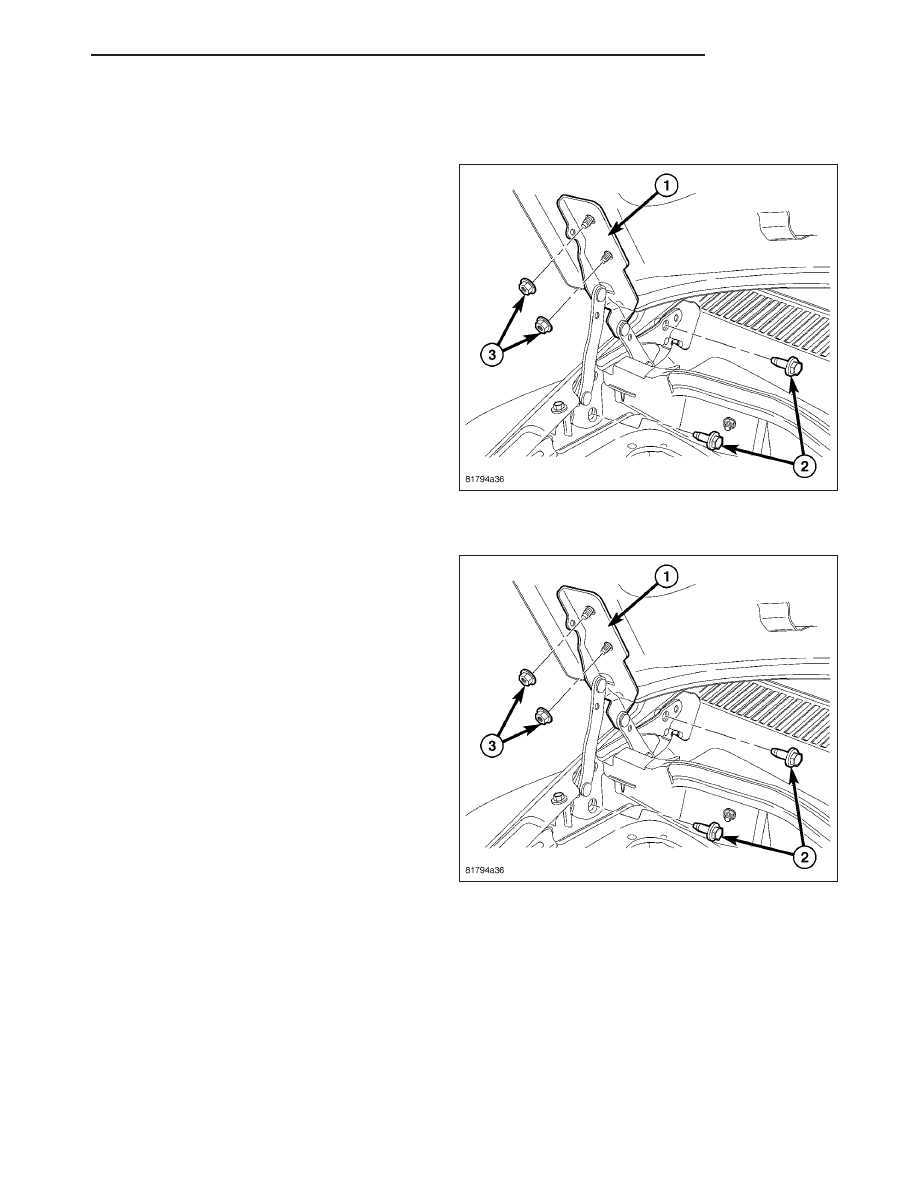

REMOVAL

1. With the help of an assistant, have the assistant

hold the opposite side of hood that is being worked
on.

2. Remove fasteners (2) from hinge (1).

3. Remove hood from hinge (1). (Refer to 23 - BODY/

HOOD/HOOD - REMOVAL)

4. Repeat step if necessary.

INSTALLATION

1. Align hood hinge with fastener holes.

2. Install fasteners (2) in to hinge holes.

3. Tighten nuts (3) to 20 N·m (15 ft.lbs.).

4. Install hood to hinge. (Refer to 23 - BODY/HOOD/

HOOD - INSTALLATION)

PM

HOOD

23 - 61

HOOD

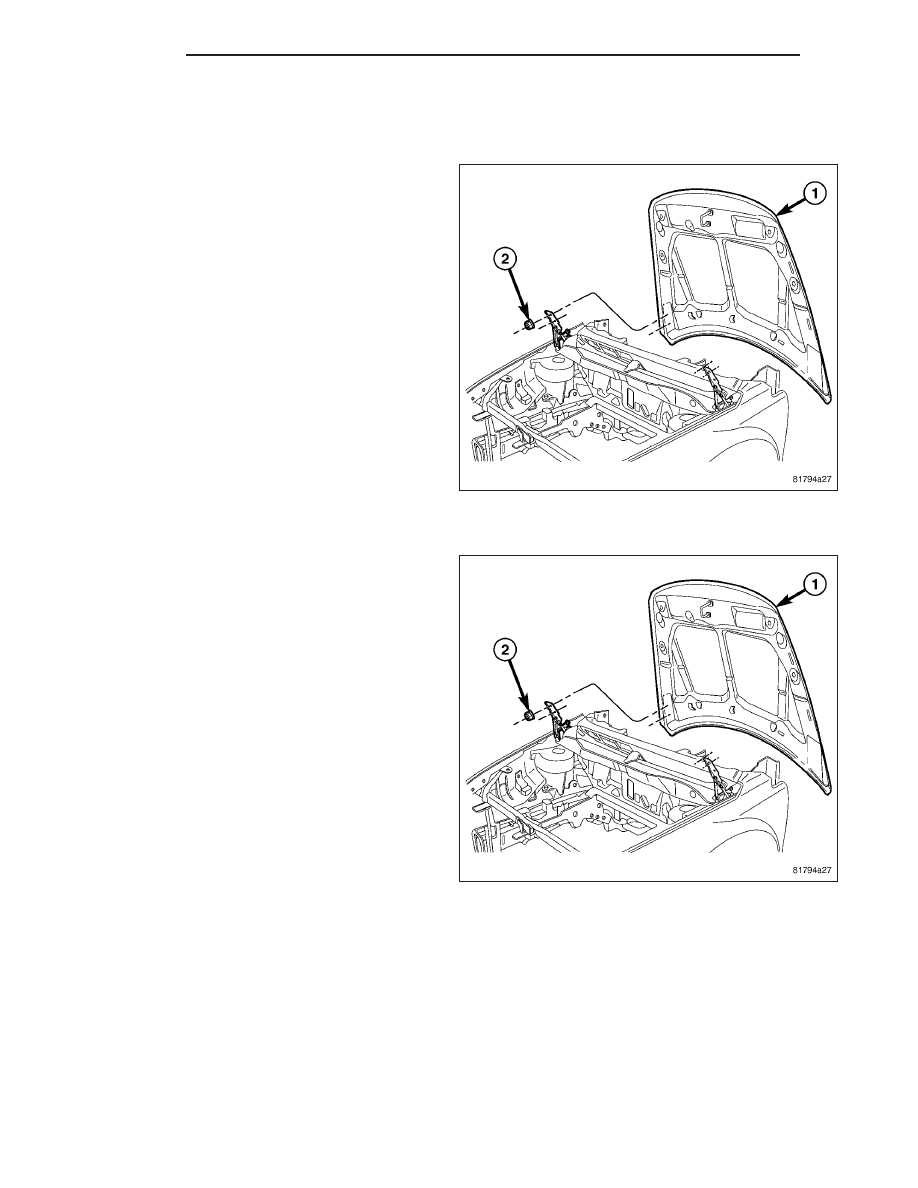

REMOVAL

1. Disconnect wire connector if equipped.

2. Mark nut locations with a grease pencil or scribe to

provide reference marks for installation.

3. With the help of an assistant, have the assistant

hold the opposite side of the hood while removing
nuts (2) from hinge.

4. Move to opposite side of hood (1) and repeat step.

5. Remove hood.

INSTALLATION

1. With the help of an assistant, align hood with hinge

holes.

2. Align nuts with scribed marks and install nuts on

studs.

3. Tighten nuts to 20 N·m ( 15 ft. lbs.).

4. Connect wire connector if necessary.

23 - 62

HOOD

PM

LATCH

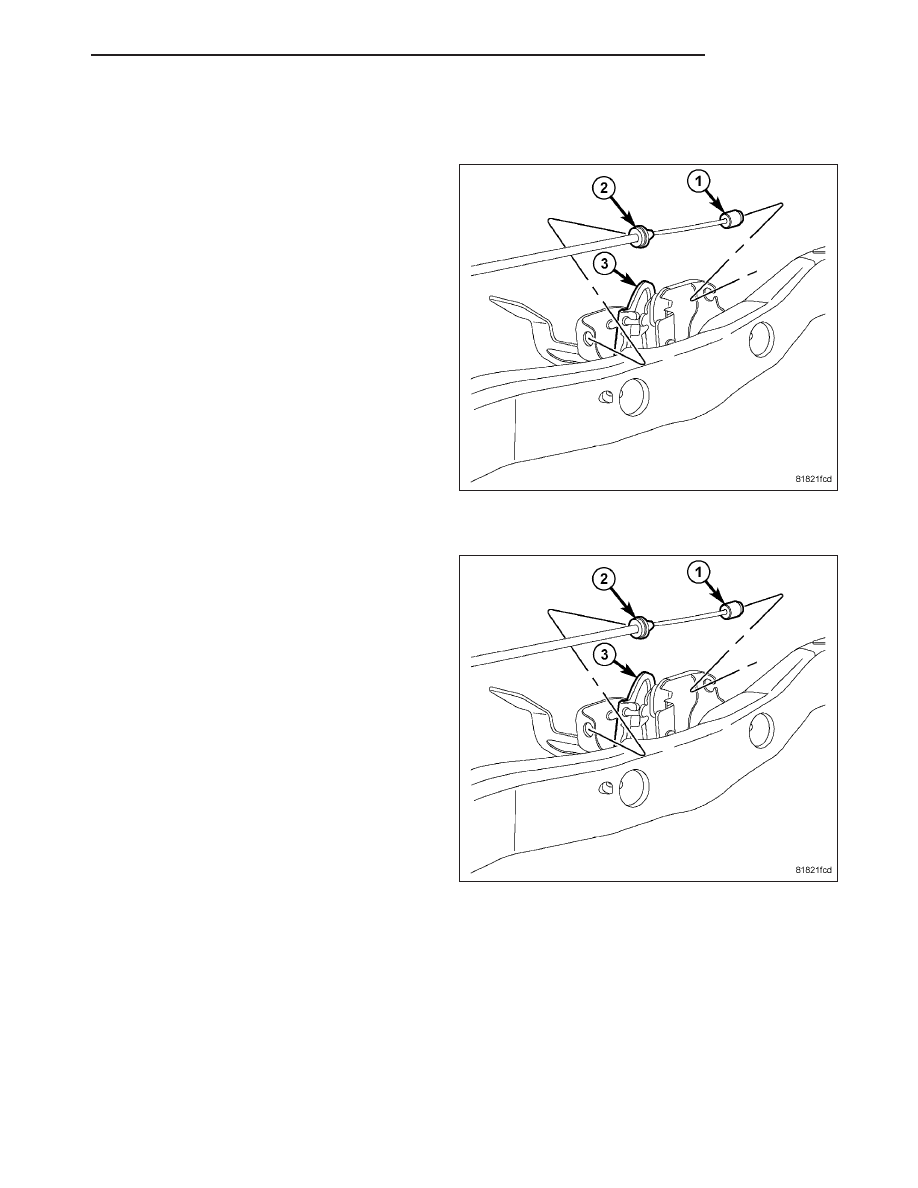

REMOVAL

1. Press down latch release (3) and remove cable (2)

from grommet.

2. Remove cable from latch (3).

3. Remove fasteners.

INSTALLATION

1. Install cable (2) into latch (3) and route end of

cable (1). Pull cable into latch (3) ensuring proper
seat.

PM

HOOD

23 - 63

INSULATION - HOOD

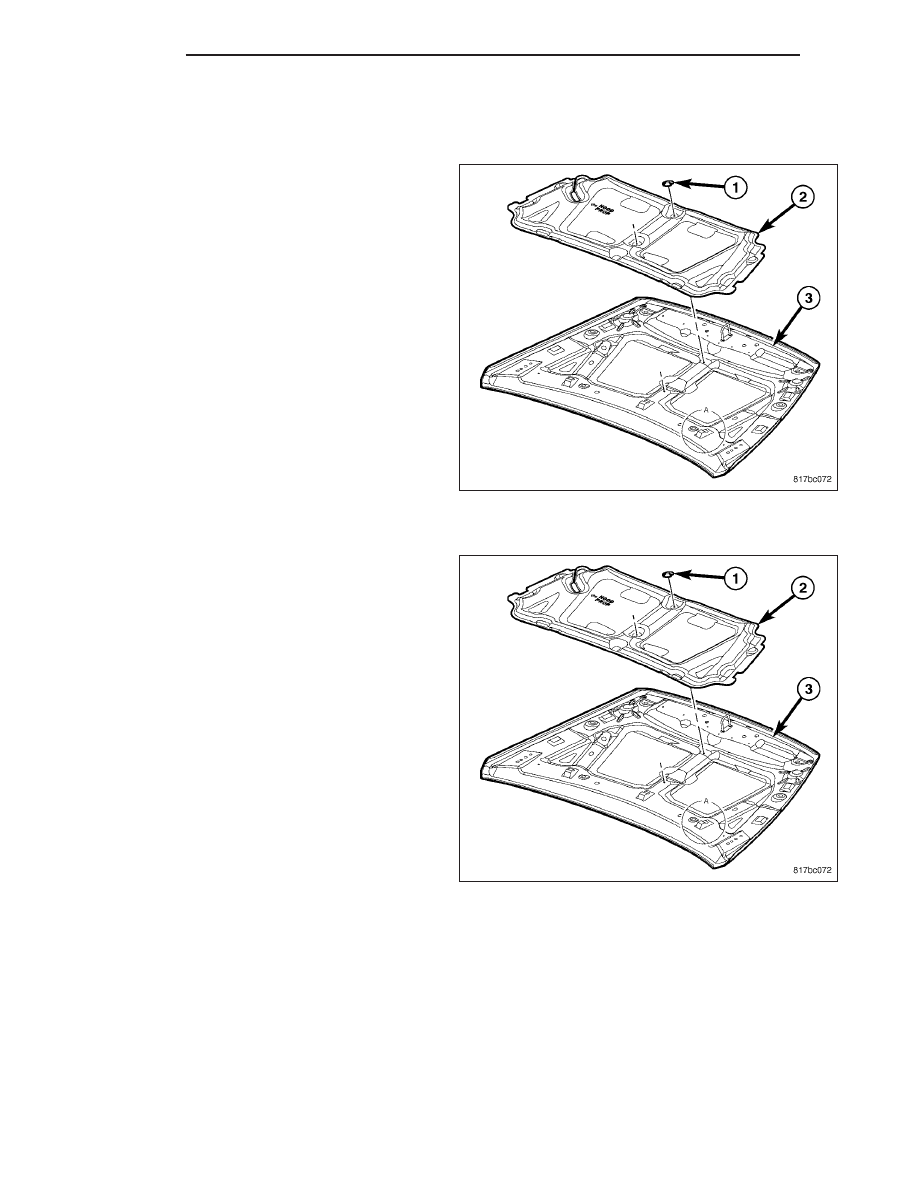

REMOVAL

1. Remove two push pins (1) fastening hood insula-

tion (2) to hood (3).

2. Remove insulation from hood by pulling insulation

outward from hood tabs.

INSTALLATION

1. Insert hood insulation (2) into hood tabs.

2. Insert push two pins (1).

23 - 64
