Dodge Caliber. Manual - part 1323





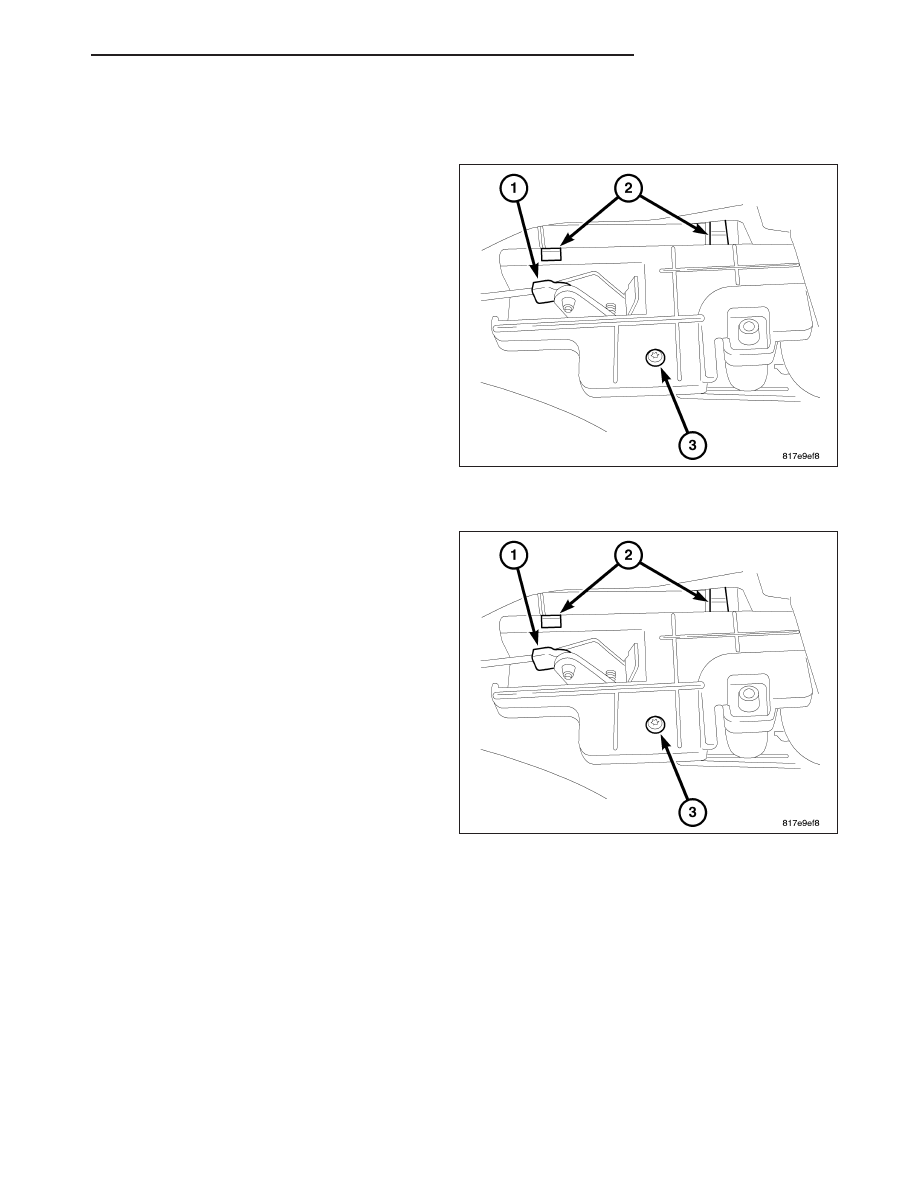

FRONT DOOR INSIDE HANDLE

REMOVAL

1. Unsnap link rod to latch (1).

2. Remove screw (3) attaching plate to panel.

3. Unsnap housing snaps from (2) belt line ribs on

trim panel.

4. Pull up on trim panel belt line to aid in unsnapping

of housing.

INSTALLATION

1. Snap inside handle to belt line ribs (2) on trim

panel.

2. Install screw (3) attaching handle to panel.

3. Snap link rod to latch.

PM

DOOR - FRONT

23 - 29

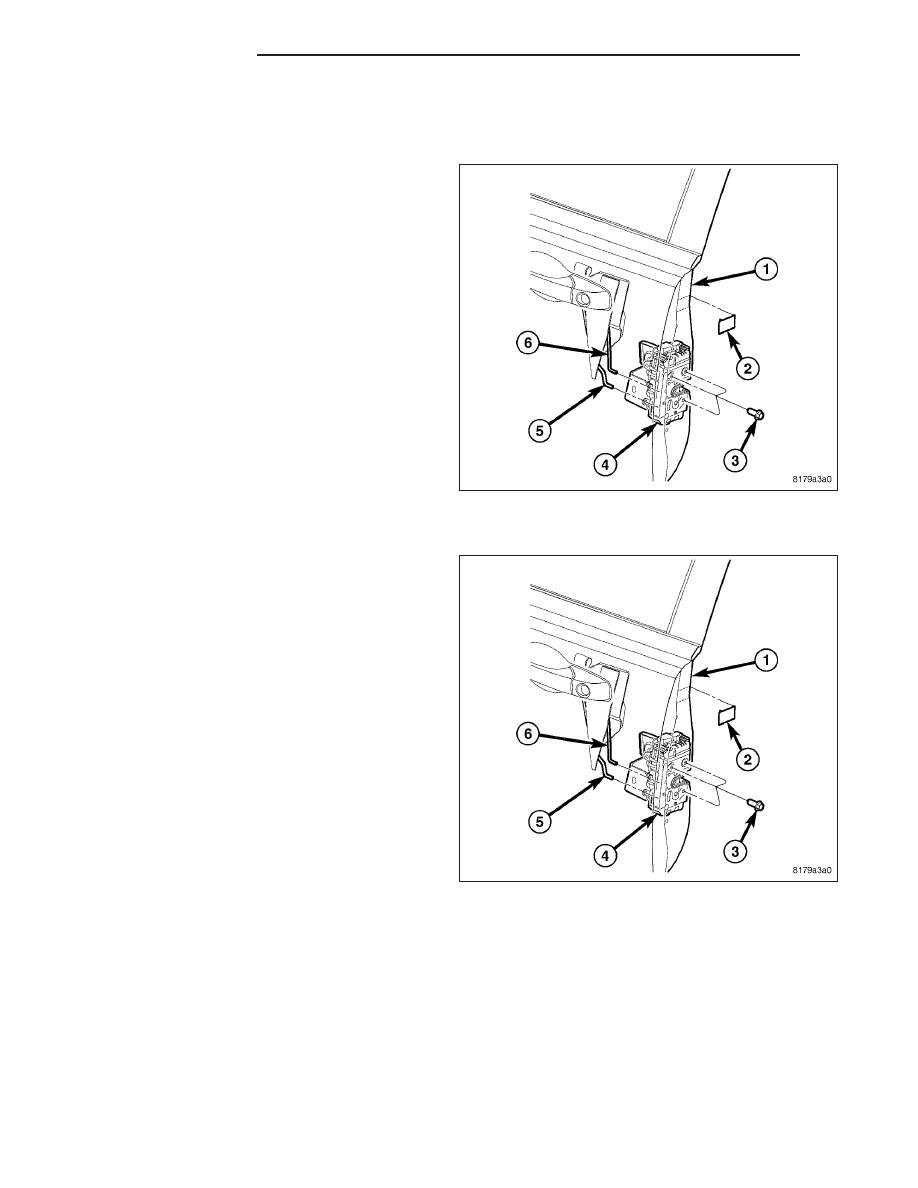

FRONT DOOR LATCH

REMOVAL

1. If equipped, disconnect wire harness from Latch.

2. Disconnect inside hand link (5) and lock rod (6)

from latch (4).

3. Unscrew latch presenter or unsnap latch from

presenter.

INSTALLATION

1. Move glass to the full up position.

2. Install latch assembly into door face (1).

3. Connect hand link (5) and lock rod (6) into latch.

4. Install fasteners and torque to 9 N·m (7 ft. lbs.)

ADJUSTMENTS

FRONT DOOR LATCH ADJUSTMENT

1. Insert a Torx

T

-wrench through the elongated hole in the door end frame near the latch striker opening.

2. Loosen Torx

T

head screw on the side of the latch linkage.

3. Push button on outside door handle and release it.

4. Tighten Torx

T

head screw on latch.

5. Verify latch operation.

23 - 30

DOOR - FRONT

PM

FRONT DOOR WINDOW REGULATOR

REMOVAL

1. Remove bolster. (Refer to 23 - BODY/DOOR -

FRONT/DOOR - REMOVAL)

2. Remove door plugs. (Refer to 23 - BODY/DOOR -

FRONT/DOOR - REMOVAL)

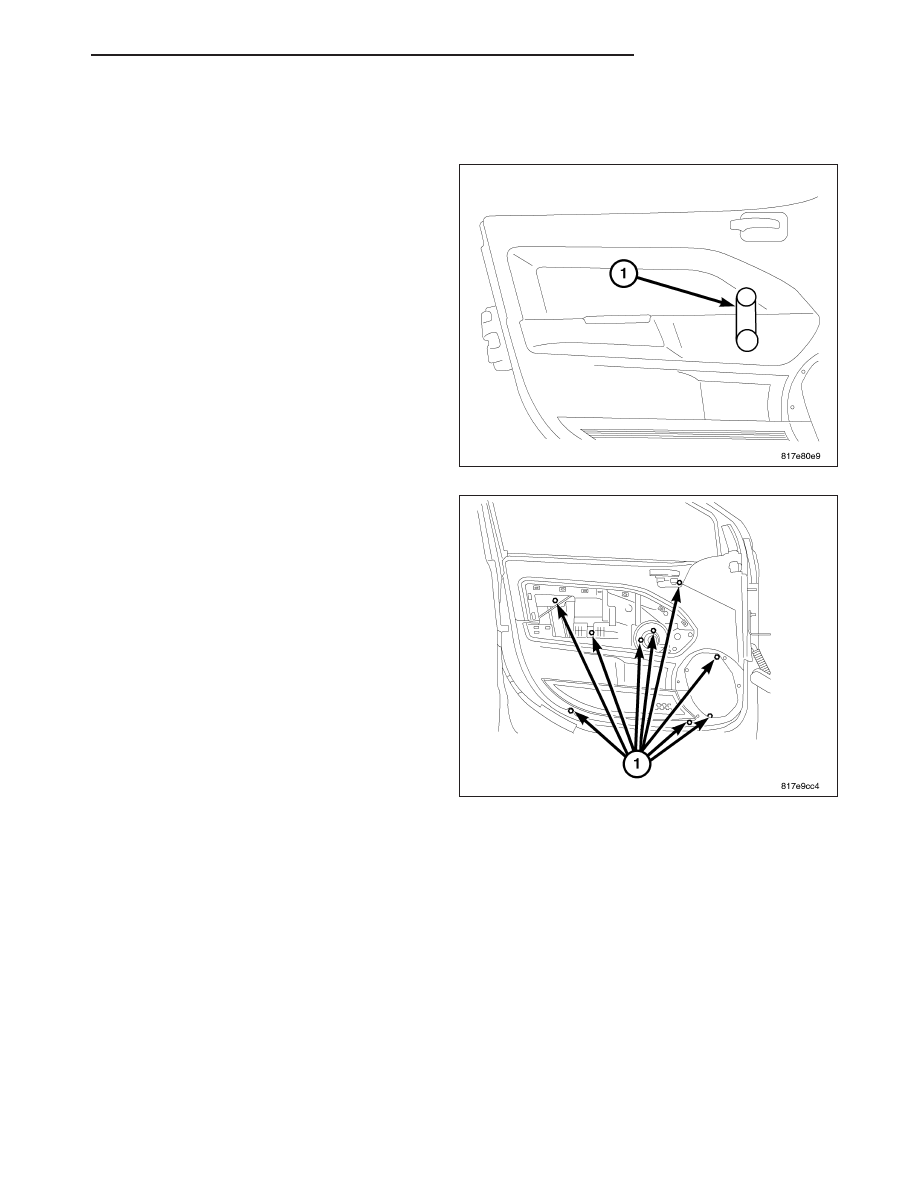

3. If equipped, remove window crank (1).

4. Remove glass. (Refer to 23 - BODY/DOOR -

FRONT/DOOR GLASS - REMOVAL)

5. Remove power motor attachment screws (1) from

front side of trim panel. (For manual windows only,
unsnap manual drive from drum housing).

PM

DOOR - FRONT

23 - 31

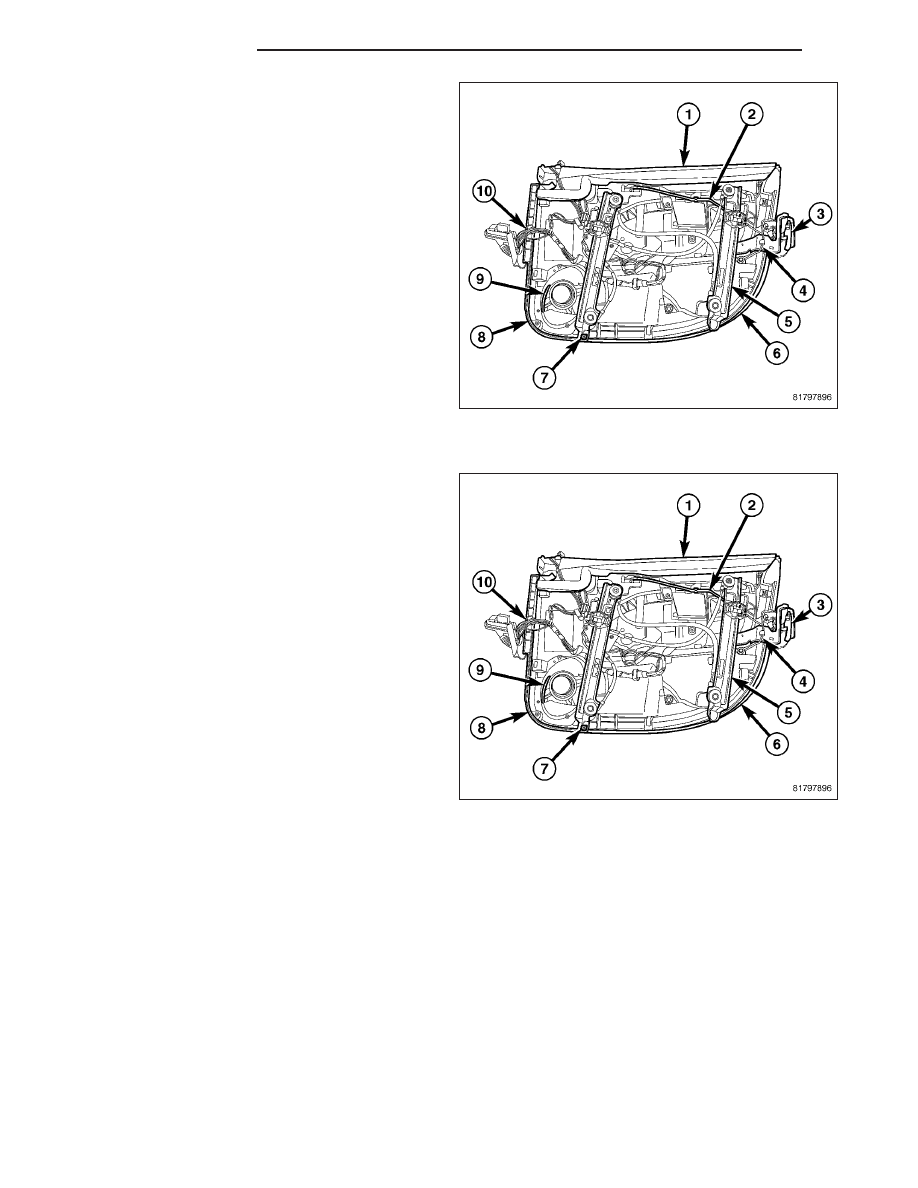

6. Remove lower attachment bolts through front side

of trim panel for Window Regulator rails (7).

7. Disconnect wire harness (10) from power motor on

back of trim panel.

8. Remove rails for towers on back side of trim panel.

9. Remove window regulator (5) from trim panel.

INSTALLATION

1. Install window regulator (5) to door module (6).

2. Install rails (5) back to trim panel.

3. Connect wire harness (10).

23 - 32

DOOR - FRONT

PM
