DIAGNOSIS AND TESTING

TEST PORTS

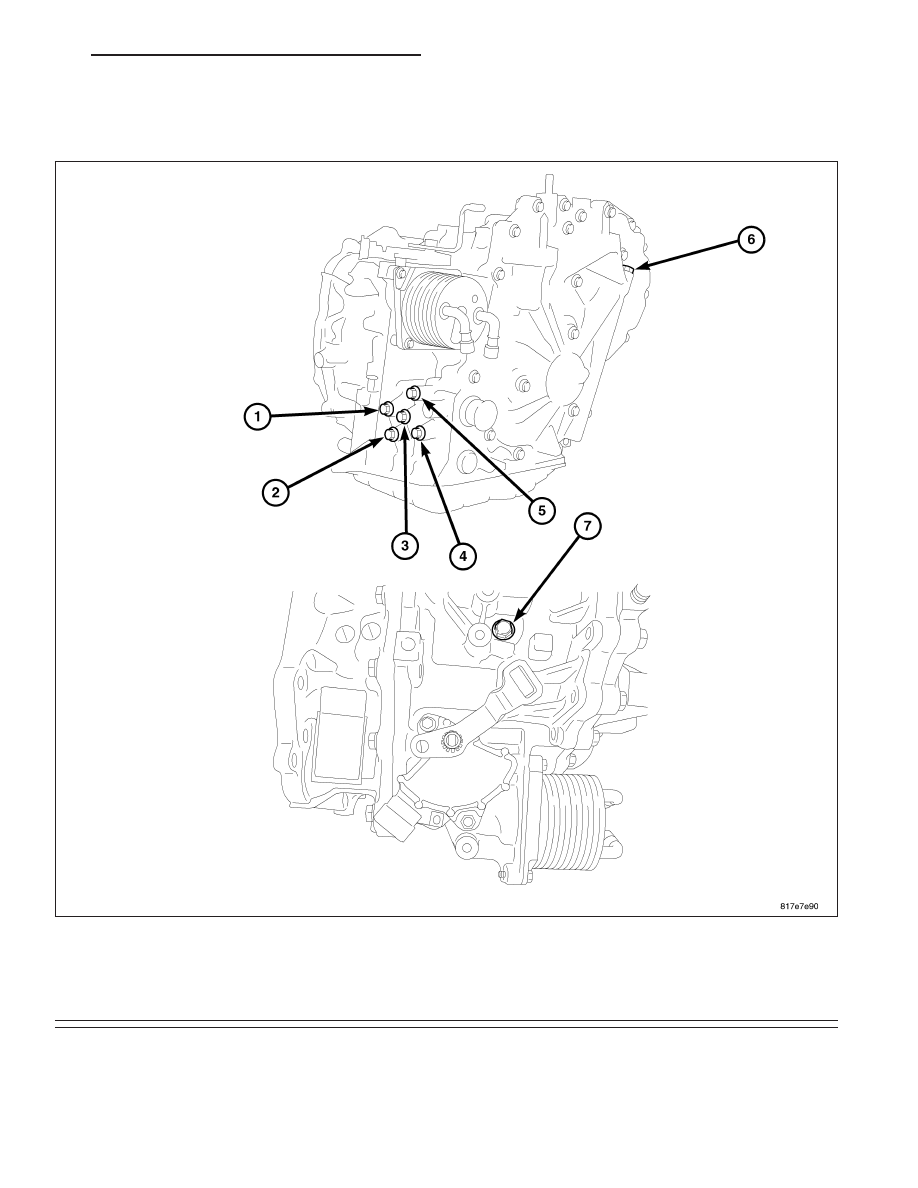

Fig. 12 TEST PORTS

1 - Line Pressure

5 - Torque Converter Release Pressure

2 - Forward Clutch Pressure

6 - Secondary Pressure

3 - Primary Pressure

7 - Reverse Brake Pressure

4 - Torque Converter Apply Pressure

PM

AUTOMATIC - CVT-SERVICE INFORMATION

21 - 299

REMOVAL

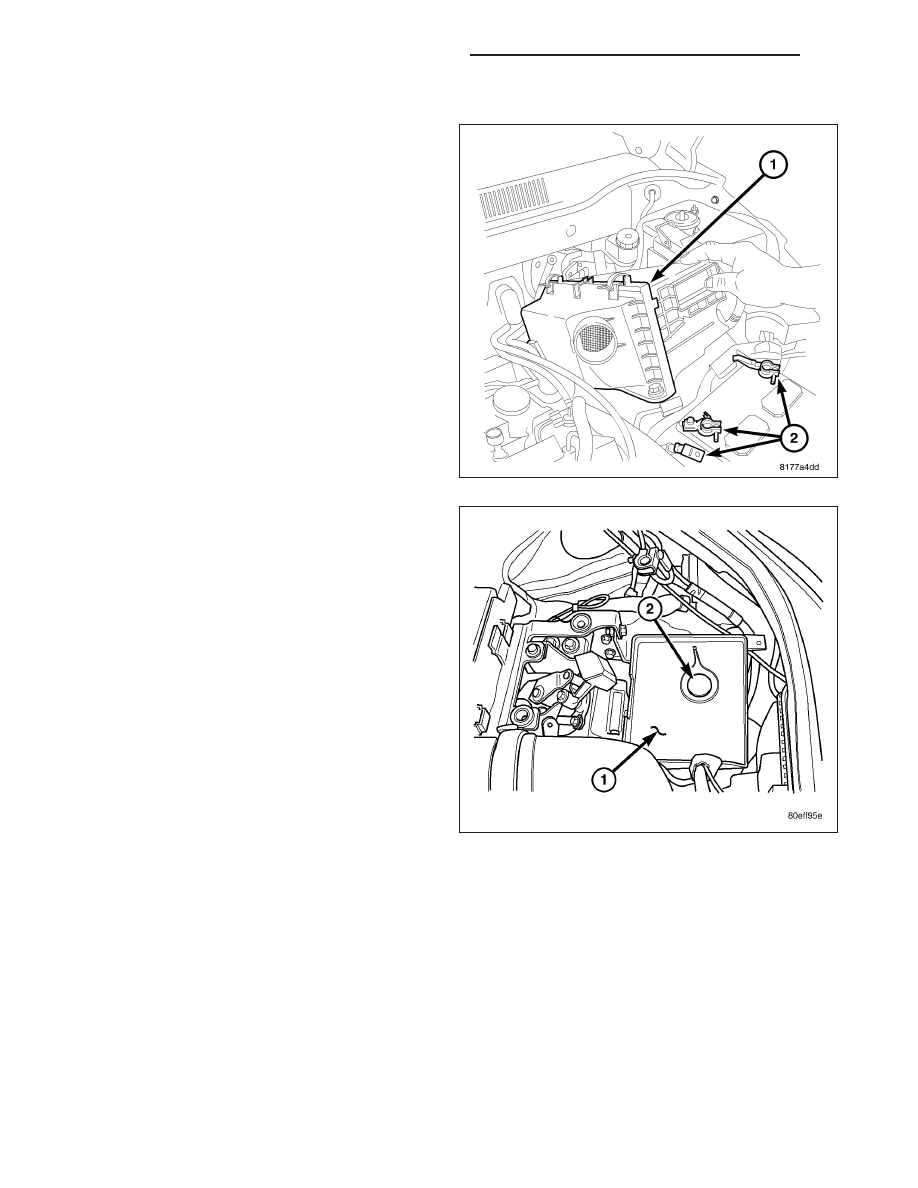

1. Disconnect battery cables (2).

2. Remove air cleaner assembly (1).

3. Remove battery.

4. Remove battery tray (1).

5. Drain coolant. (Refer to 7 - COOLING - STAN-

DARD PROCEDURE)

21 - 300

AUTOMATIC - CVT-SERVICE INFORMATION

PM

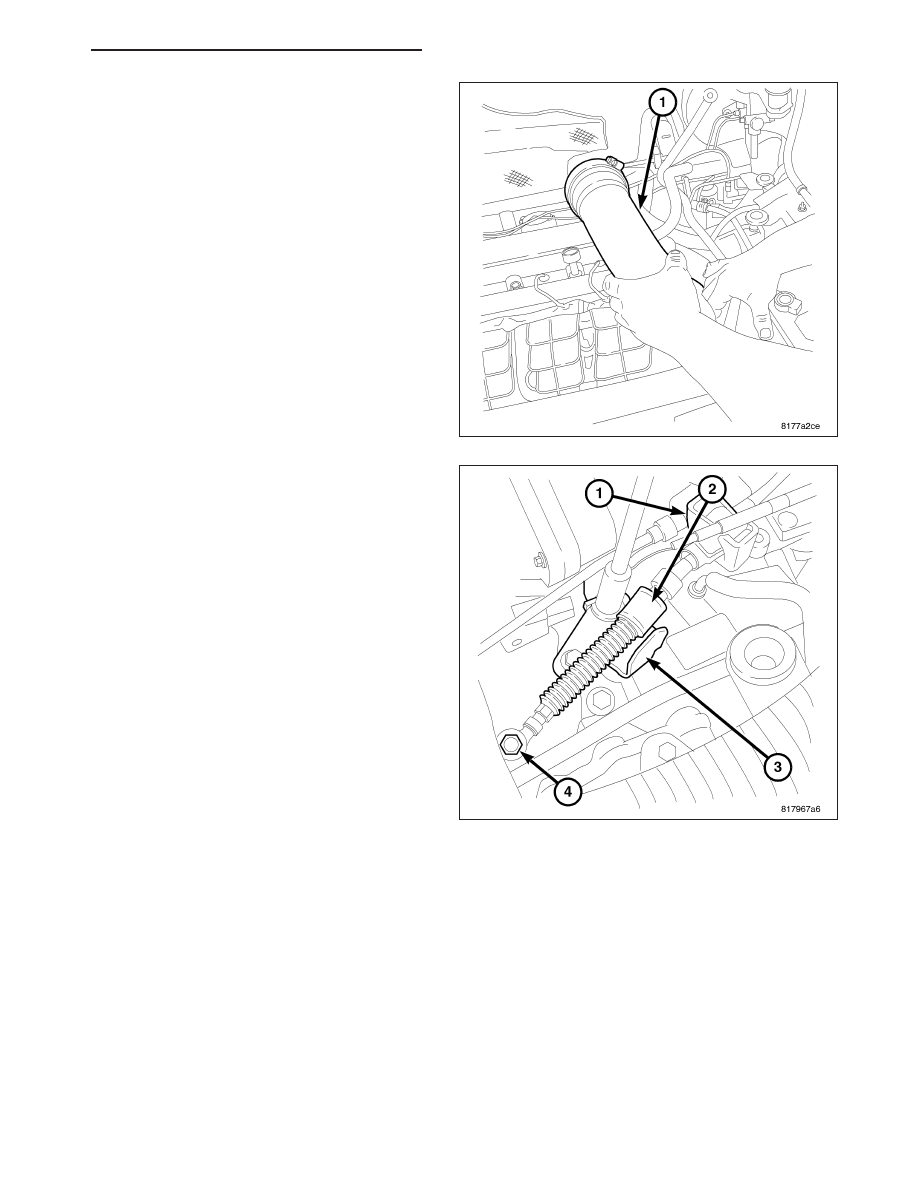

6. Remove inlet air tube (1).

7. Remove vacuum supply lines.

8. Remove the shiftier cable (2) and bracket (3).

PM

AUTOMATIC - CVT-SERVICE INFORMATION

21 - 301

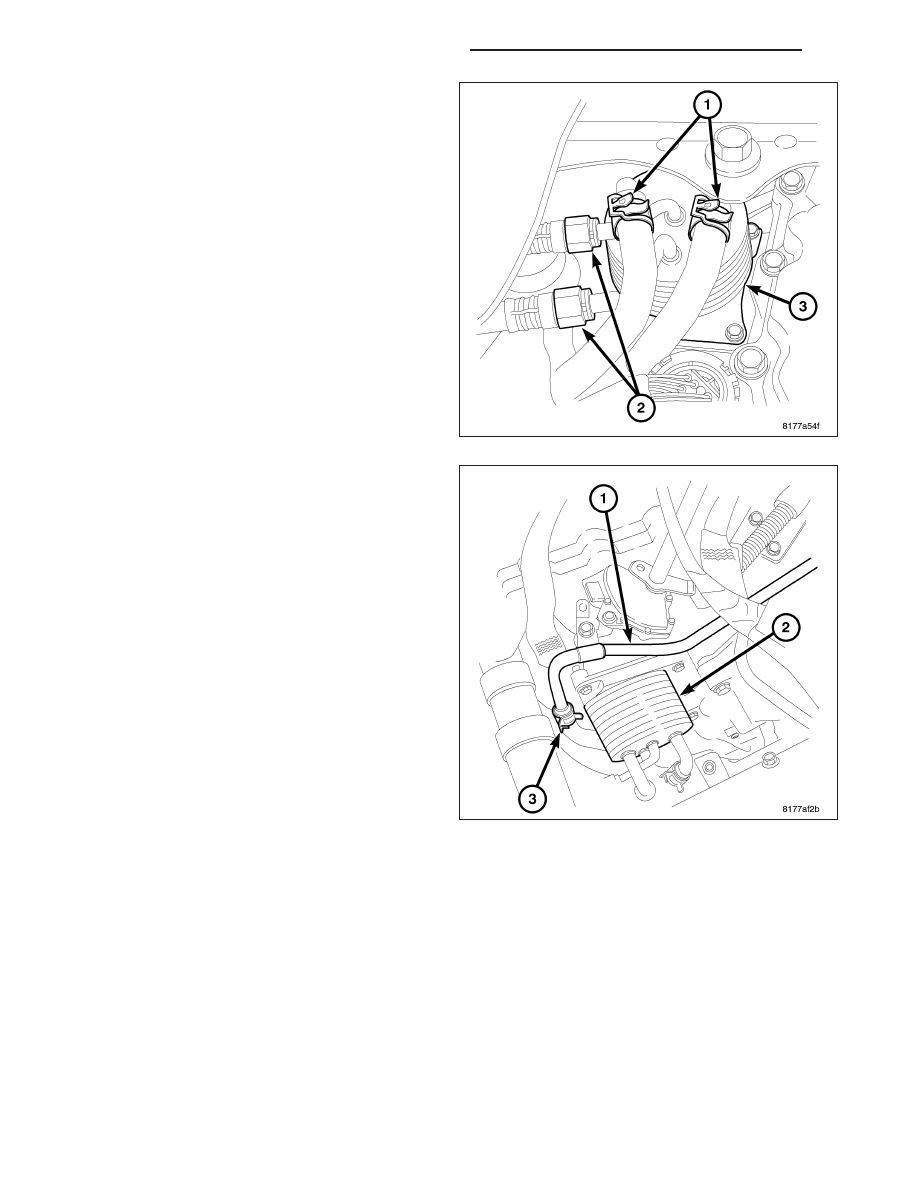

9. Remove coolant lines (1) at CVT fluid cooler.

10. Remove heater hose (3) at CVT fluid cooler.

21 - 302

AUTOMATIC - CVT-SERVICE INFORMATION

PM
