Dodge Caliber. Manual - part 1194

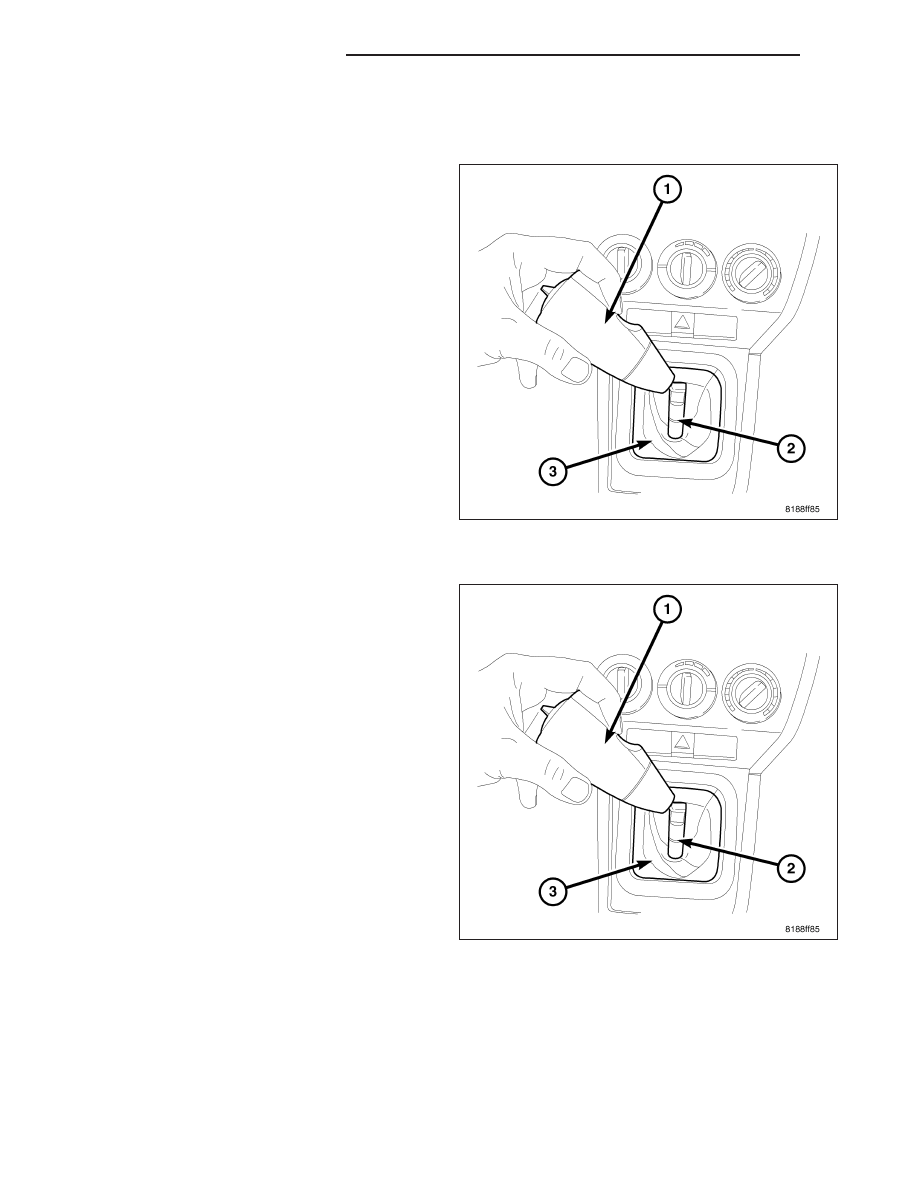

BOOT-GEAR SHIFT

REMOVAL

1. Pull up on gearshift knob (1) with moderate force to

remove from gearshift mechanism.

2. Remove shifter boot/bezel (3) assembly from con-

sole by lifting up at mounting ring area.

INSTALLATION

1. Position gearshift boot (3) over the operating lever

(2) and apply hand pressure to engage and snap
console into place.

2. Position gearshift knob (1) hole over the gearshift

mechanism and align the shift pattern.

3. Verify that shift pattern is aligned properly.

4. Strike knob (1) with rubber mallet to engage knob

to mechanism.

PM

T355 MANUAL TRANSAXLE

21 - 75

CABLE-GEAR SHIFT

REMOVAL

1. Remove the shifter (Refer to 21 - TRANSMISSION/

TRANSAXLE/MANUAL/SHIFT

MECHANISM

-

REMOVAL).

2. Raise hood.

3. Remove the resonator.

4. Remove engine cover.

5. Remove air cleaner assembly.

6. Disconnect both battery cables. (Refer to 8 -

ELECTRICAL/BATTERY

SYSTEM/BATTERY

-

REMOVAL)

7. Remove battery hold down clamp and bolt, and

remove battery.

8. Remove battery tray. (Refer to 8 - ELECTRICAL/

BATTERY SYSTEM/TRAY - REMOVAL)

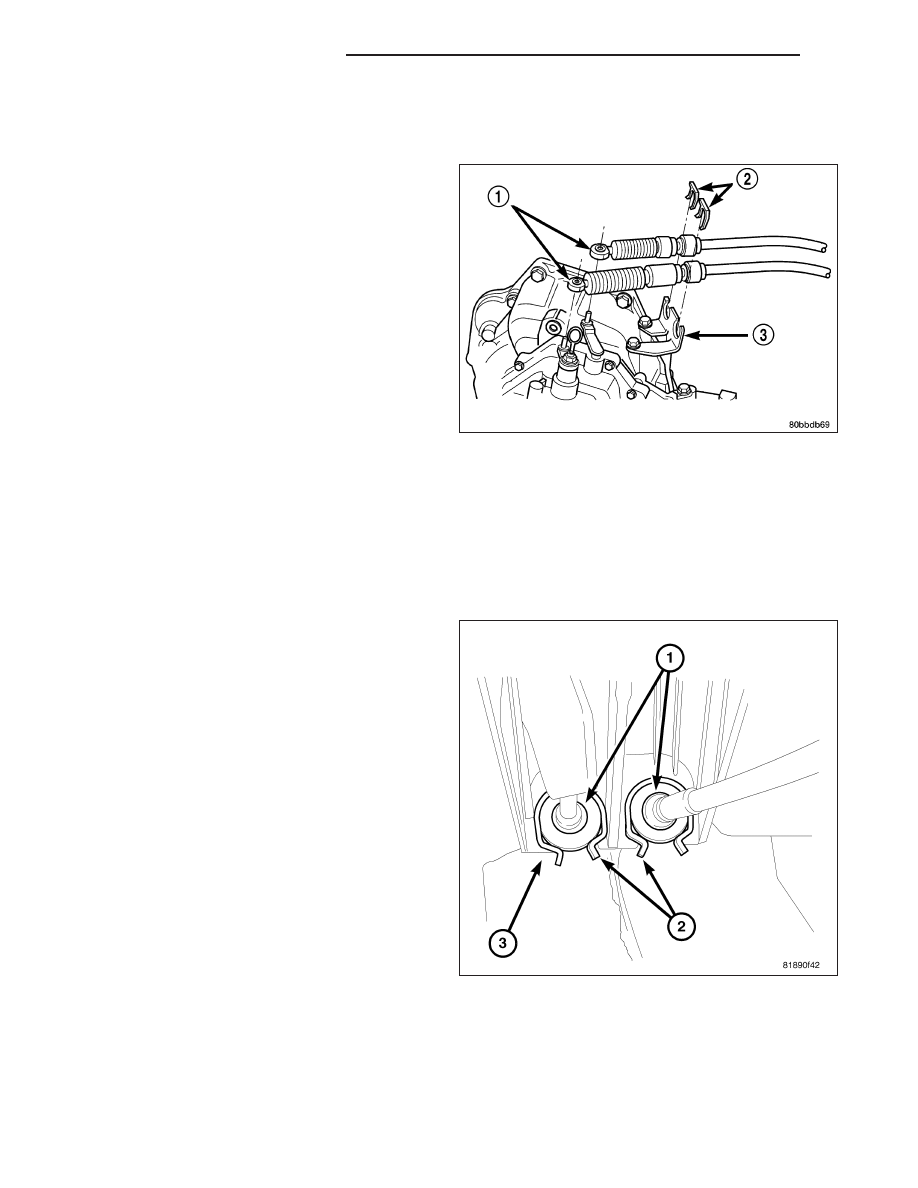

9. Disconnect cables (1) from the shift levers at the

transaxle.

CAUTION: Pry up with equal force on both sides of shifter cable isolator bushings to avoid damaging cable
isolator bushings.

10. Remove cable retaining clips (2) and remove cables (1) from bracket (3).

11. Remove the Occupant Restraint Controller (ORC) (Refer to 21 - TRANSMISSION/TRANSAXLE/MANUAL/SHIFT

MECHANISM - REMOVAL).

12. Remove cable clips at floor pan.

13. Remove cable assembly (1) from vehicle.

21 - 76

T355 MANUAL TRANSAXLE

PM

INSTALLATION

CAUTION: Gearshift cable bushings must not be
lubricated or the bushings will swell and split.

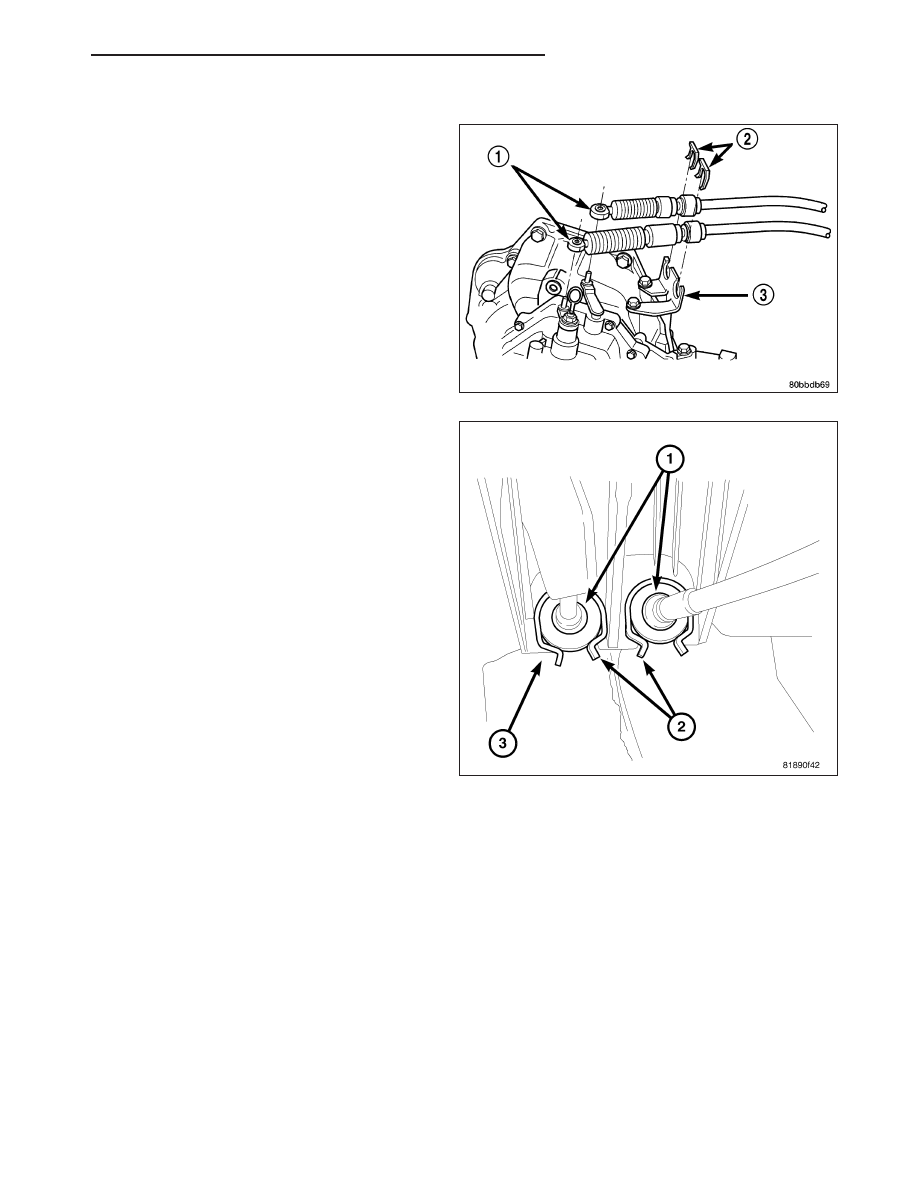

1. Install cable assembly through floor pan opening

and secure to floor pan with grommet plate. Make
sure the

2. Route transaxle end of cable assembly into engine

compartment and over transaxle assembly.

3. Connect cables (1) to the shift levers (3) at the

transaxle.

4. Install cables (1) and NEW retaining clips to

bracket.

5. Install gearshift cables to mounting bracket and

fasten with NEW clips (2). Make sure clips are
installed flush to bracket.

6. Install

ORC

(Refer

to

8

-

ELECTRICAL/RE-

STRAINTS/OCCUPANT RESTRAINT CONTROL-
LER - INSTALLATION).

7. Install shifter (Refer to 21 - TRANSMISSION/

TRANSAXLE/MANUAL/SHIFT

MECHANISM

-

INSTALLATION).

8. Install battery tray.

9. Install battery and hold-down clamp.

10. Install the air cleaner assembly.

11. Connect battery cables.

PM

T355 MANUAL TRANSAXLE

21 - 77

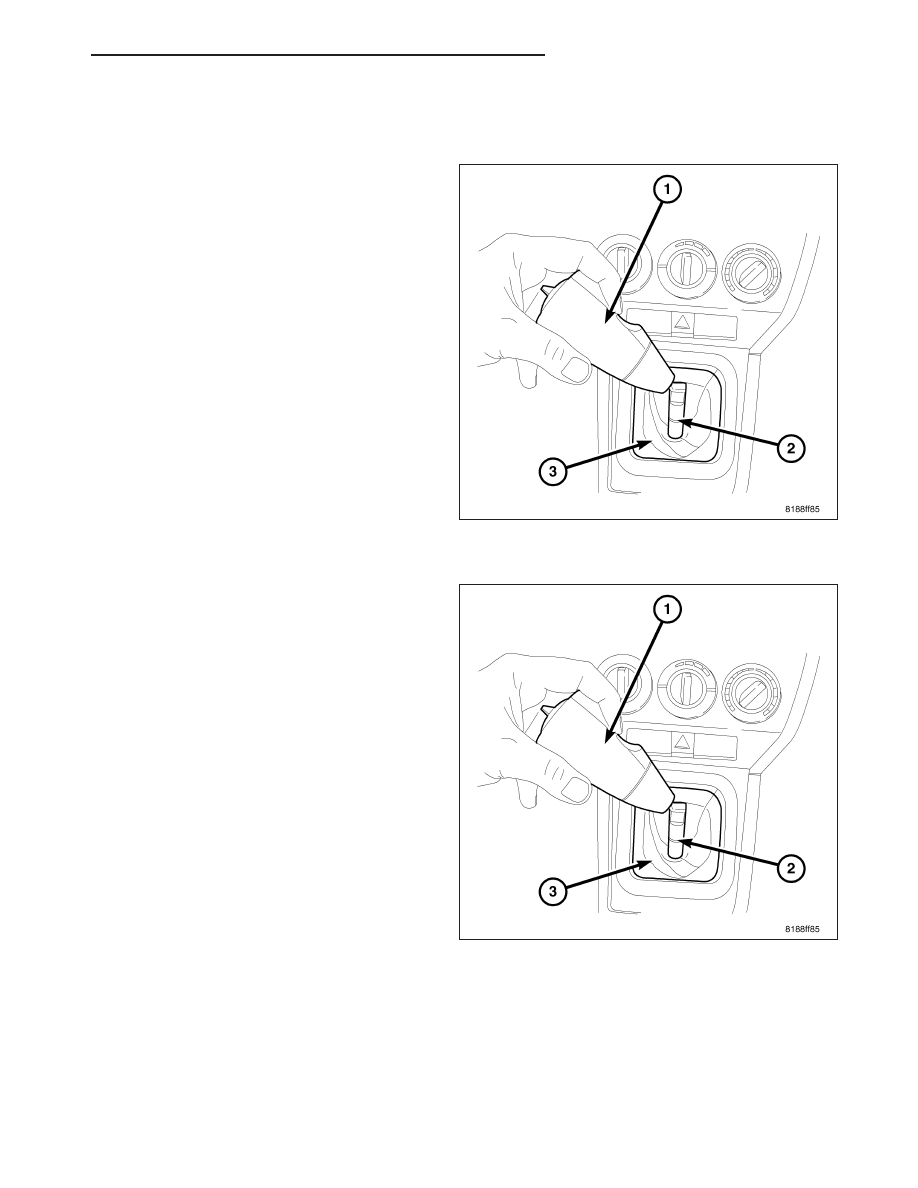

KNOB-GEAR SHIFT

REMOVAL

1. Pull up on gearshift knob (1) with moderate force to

remove from gearshift mechanism.

INSTALLATION

1. Position knob hole (1) over the gearshift mecha-

nism and align the shift pattern.

2. Verify that shift pattern is aligned properly.

3. Strike knob (1 ) with rubber mallet to engage knob

to mechanism.

21 - 78

T355 MANUAL TRANSAXLE

PM
