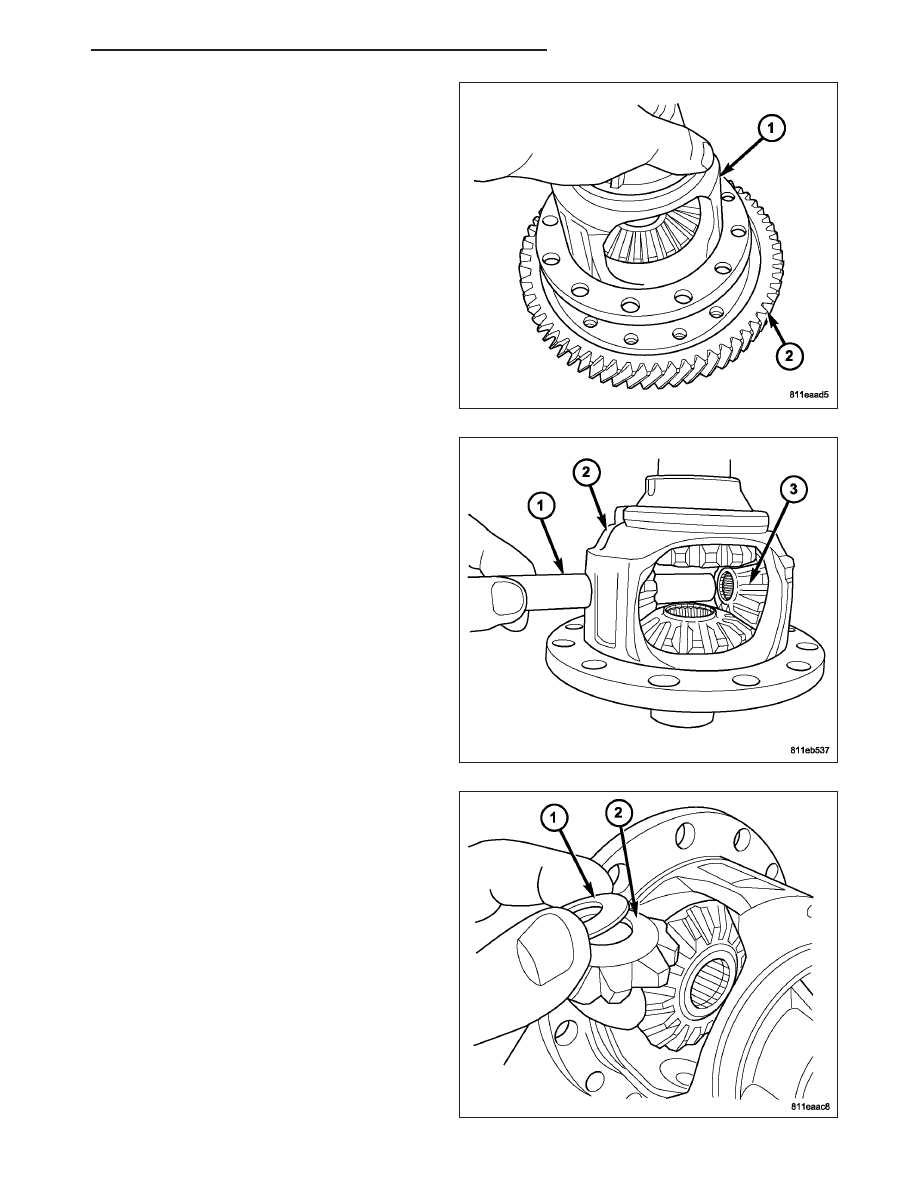

3. If servicing ring gear (2) as well, remove remaining

ring gear-to-case bolts and remove ring gear (2)
from case (1).

4. Remove pinion shaft (1).

5. Remove pinion gear (2) and thrust washers (1).

PM

T355 MANUAL TRANSAXLE

21 - 67

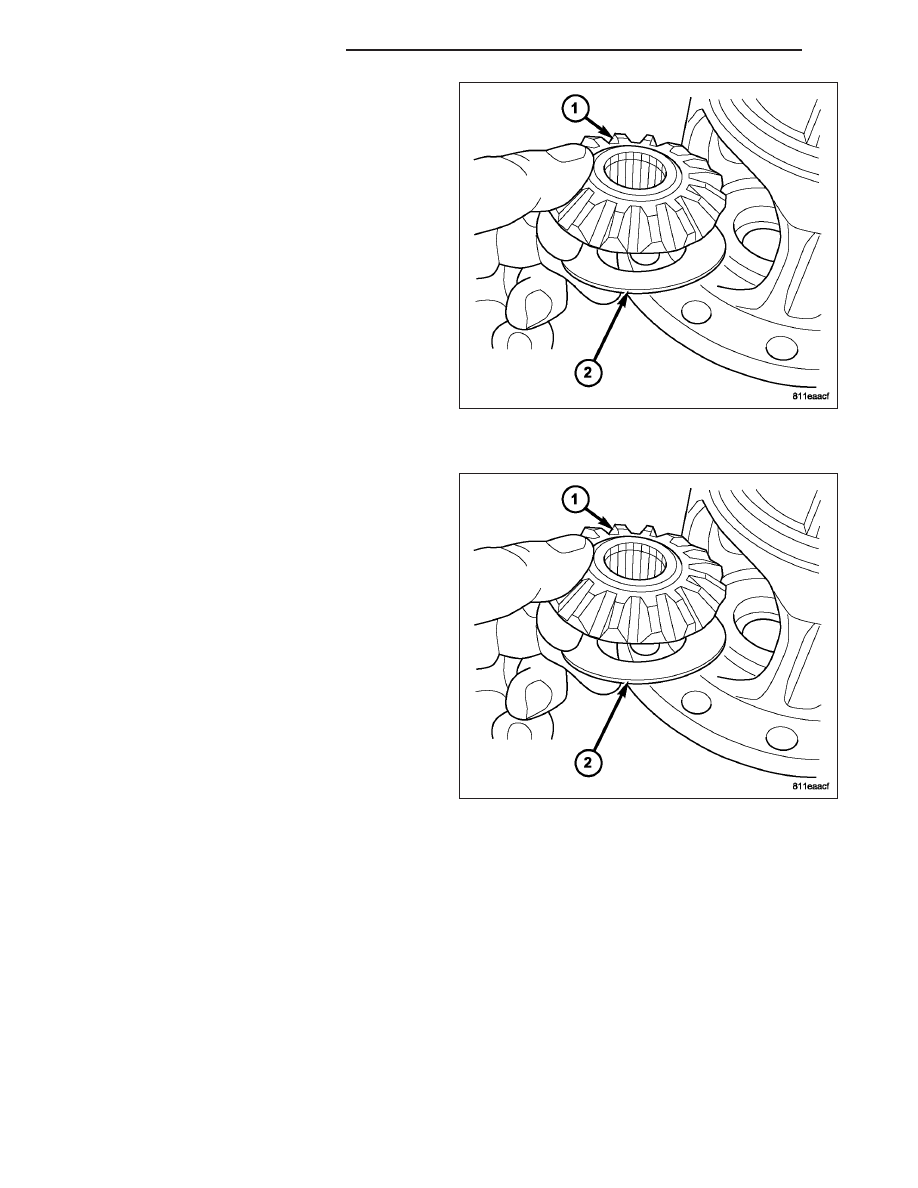

6. Remove side gears (1) and thrust washers.

ASSEMBLY

1. Install side gears (1) and thrust washers (2) into

case through opening and rotating into position.

21 - 68

T355 MANUAL TRANSAXLE

PM

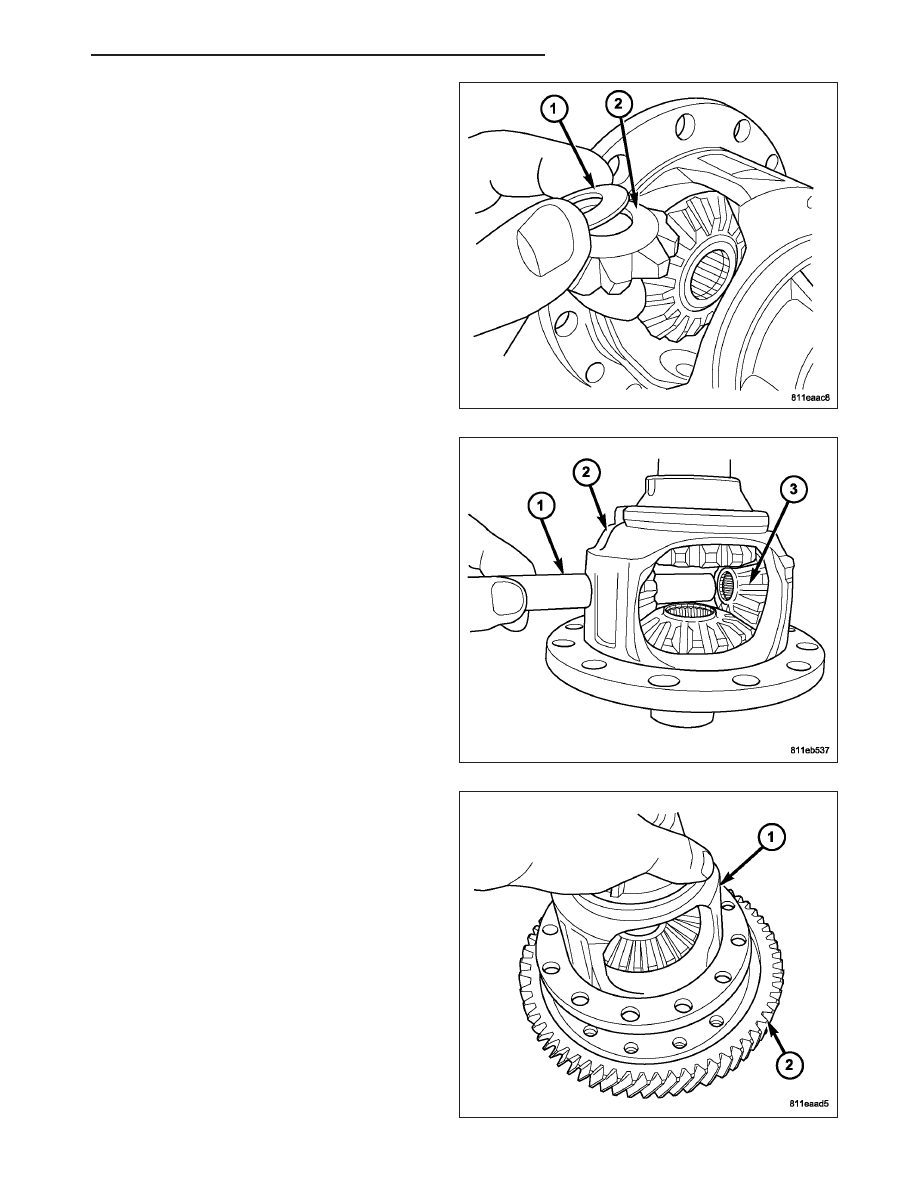

2. Install pinion gears (2) and thrust washers (1) into

case through opening and rotating into position.

3. Install pinion shaft (1).

4. If previously removed, install ring gear to differential

case (1).

PM

T355 MANUAL TRANSAXLE

21 - 69

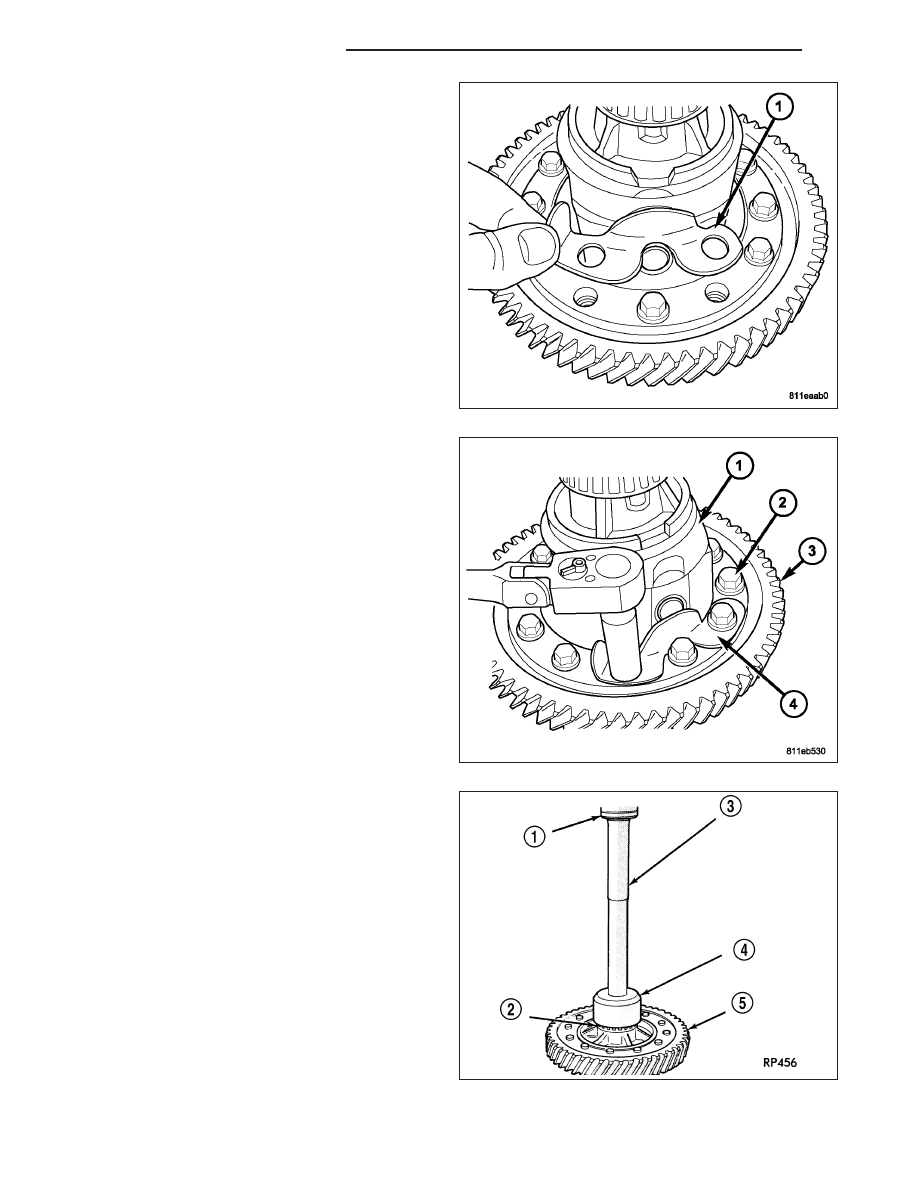

5. Install pinion shaft retainer (1).

6. Install NEW ring gear-to-case bolts (2) and torque

to 81 N·m (60 ft. lbs.) torque.

7. Using an arbor press (1), Handle C-4171(3), and

Installer L-4410 (4), install differential side bearings
to ring gear side.

21 - 70

T355 MANUAL TRANSAXLE

PM
