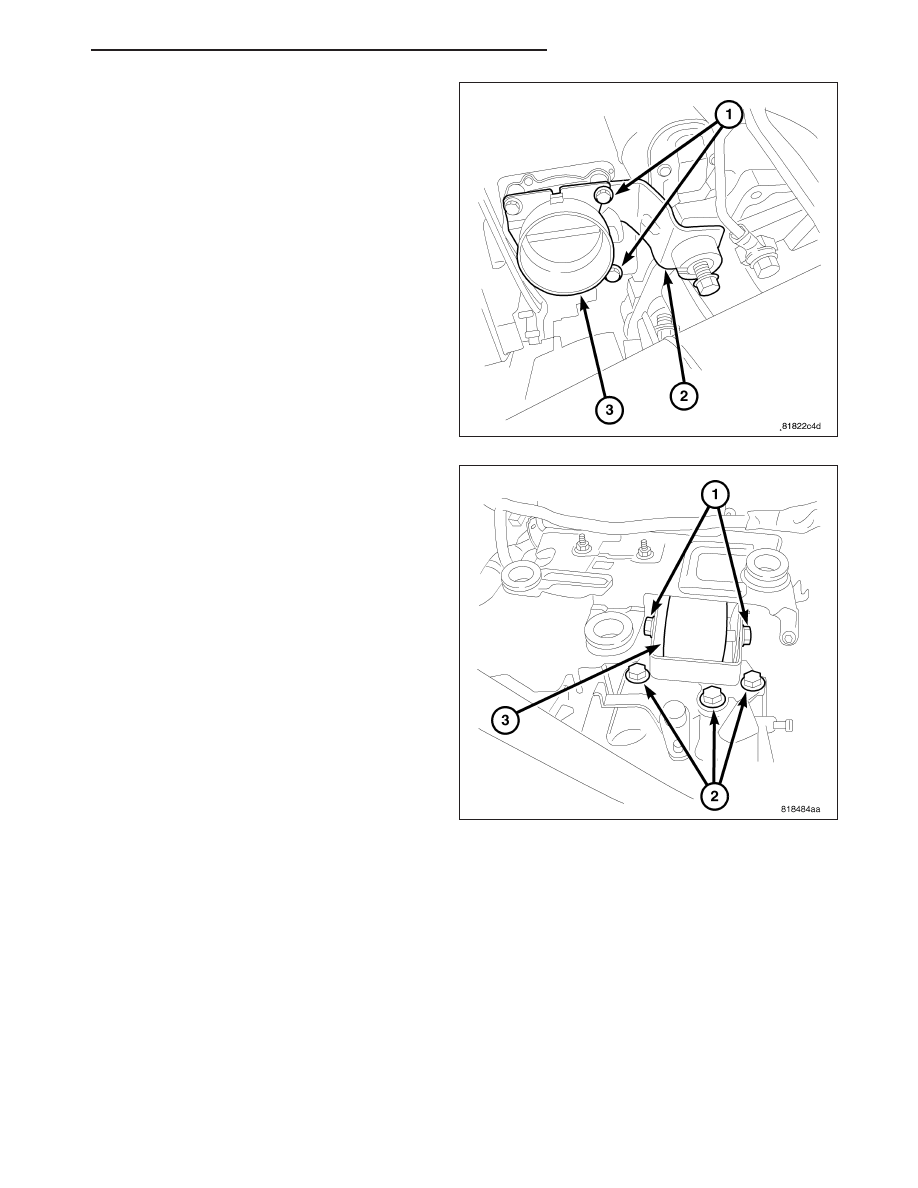

14. Remove the throttle body support bracket bolts

(1).

15. Remove the throttle body support bracket (2).

16. Remove upper bell housing bolts.

17. Remove the starter bolts and slide the starter

back. (Refer to 8 - ELECTRICAL/STARTING/
STARTER MOTOR - REMOVAL)

18. Support transmission and remove the upper trans-

mission mount through bolt (1).

19. Raise vehicle on hoist.

20. Unplug the backup switch electrical connector (2).

21. Remove transaxle oil drain plug (3) and drain oil

into a suitable container. Reinstall drain plug and
torque to 14 N·m (120 in. lbs.) torque.

22. Remove both axle halfshafts (Refer to 3 - DIF-

FERENTIAL

&

DRIVELINE/HALF

SHAFT

-

REMOVAL).

PM

T355 MANUAL TRANSAXLE

21 - 51

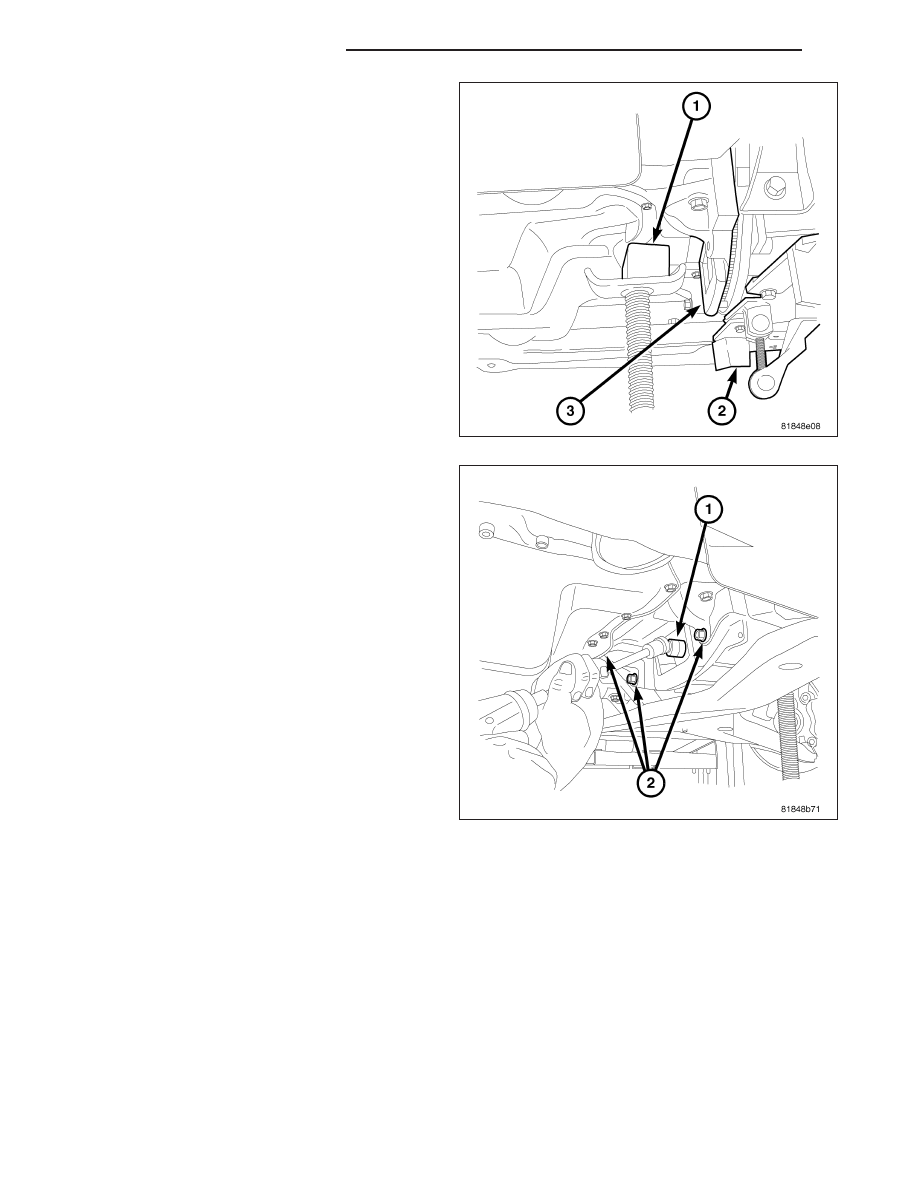

23. Support the engine with a screw jack (1).

24. Remove bell housing dust cover (3).

25. Remove four modular clutch-to-drive plate bolts

(1). While removing bolts, one tight-tolerance
(slotted) drive plate hole will be encountered.
When this bolt is removed, mark drive plate and
modular clutch assembly at this location, and be
sure to align marks upon reassembly.

21 - 52

T355 MANUAL TRANSAXLE

PM

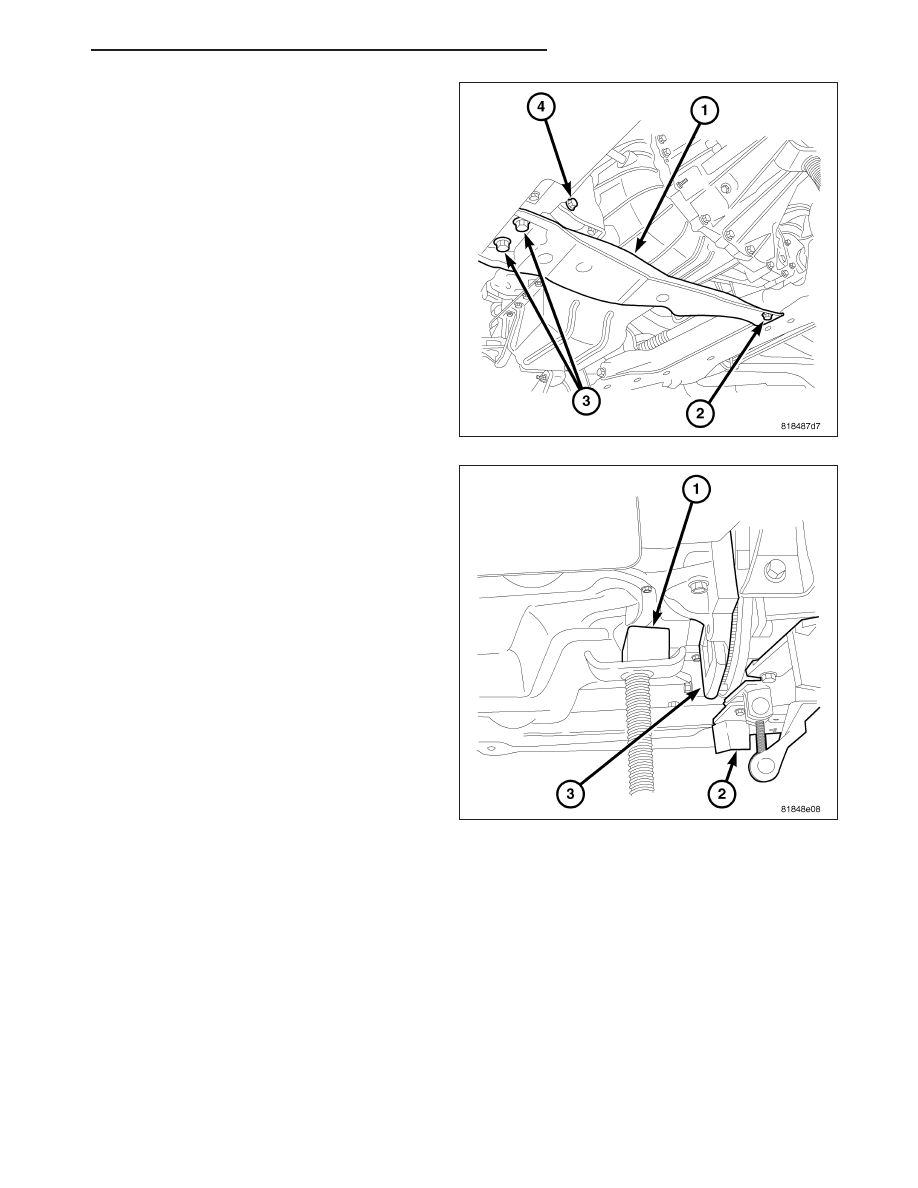

26. Remove the front transmission mount through bolt

(4).

27. Remove the transmission cross member mounting

bolts (2, 3).

28. Remove the transmission cross member (1).

29. Install a transmission jack (2).

PM

T355 MANUAL TRANSAXLE

21 - 53

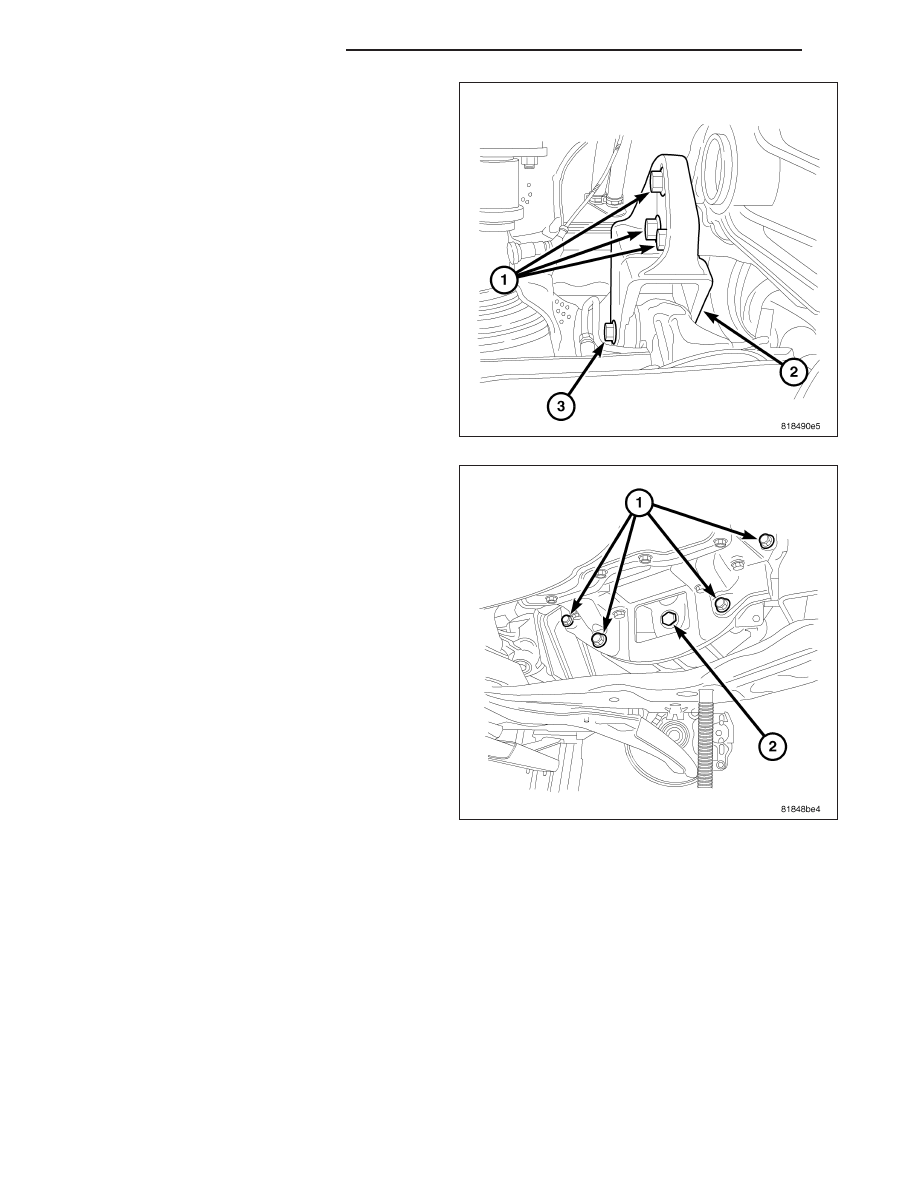

30. Remove the rear transmission through bolt (3).

31. Remove the rear transmission mount bolts (1) and

mount (2).

32. Remove the remaining transmission bell housing

bolts (1).

33. Carefully lower engine and transaxle on screw

jack and transmission jack until proper removal
clearance is obtained.

34. Obtain a helper to assist in holding transaxle

while

removing

transaxle-to-engine

mounting

bolts.

35. Remove transaxle from vehicle.

21 - 54

T355 MANUAL TRANSAXLE

PM
