15. Remove seal from tank. Discard seal.

16. Remove plastic cover.

17. Clean top of tank to remove loose dirt and debris.

18. Disconnect electrical line from module.

PM

FUEL DELIVERY

14 - 13

19. Note the fuel level unit location on the top of

the fuel tank (1).

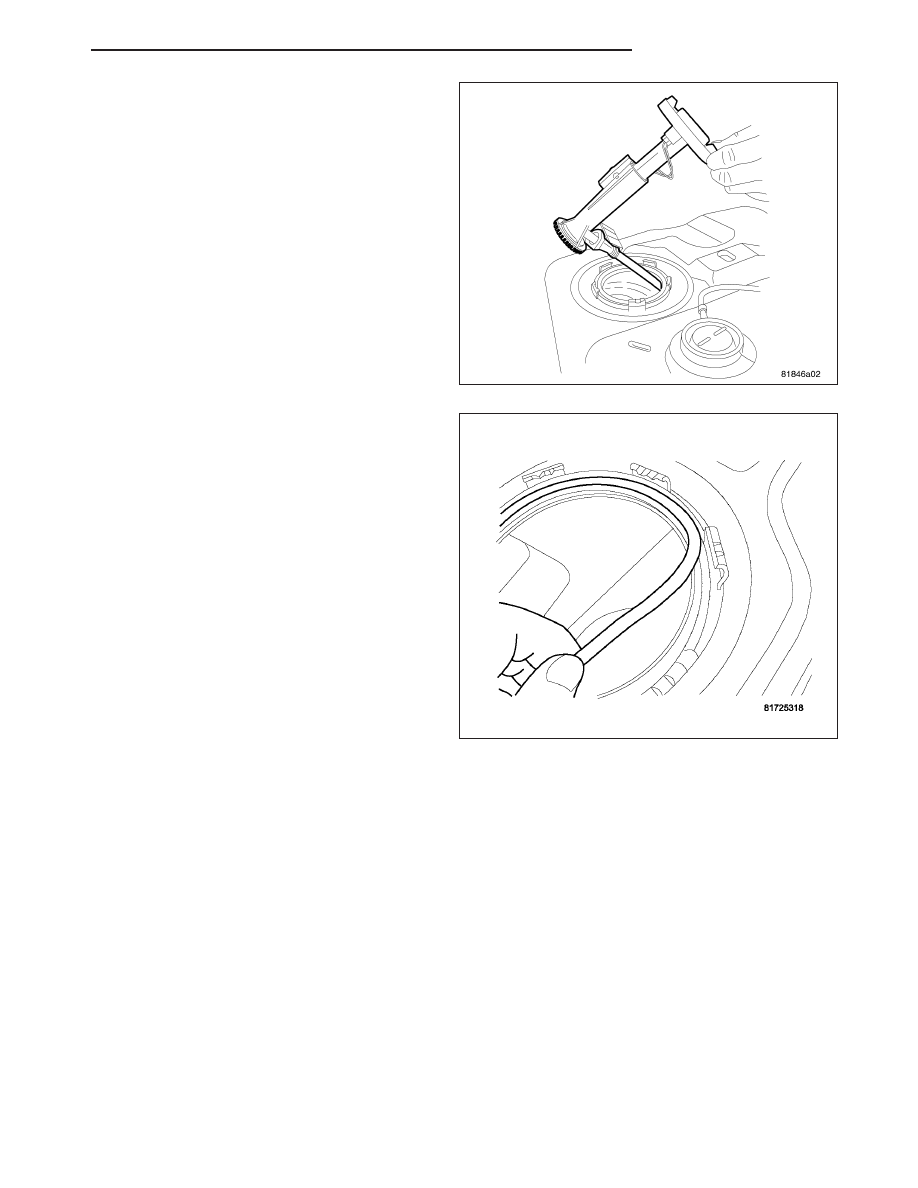

NOTE: The fuel level unit has to be properly
located to the tank for the fuel gauge to work
properly.

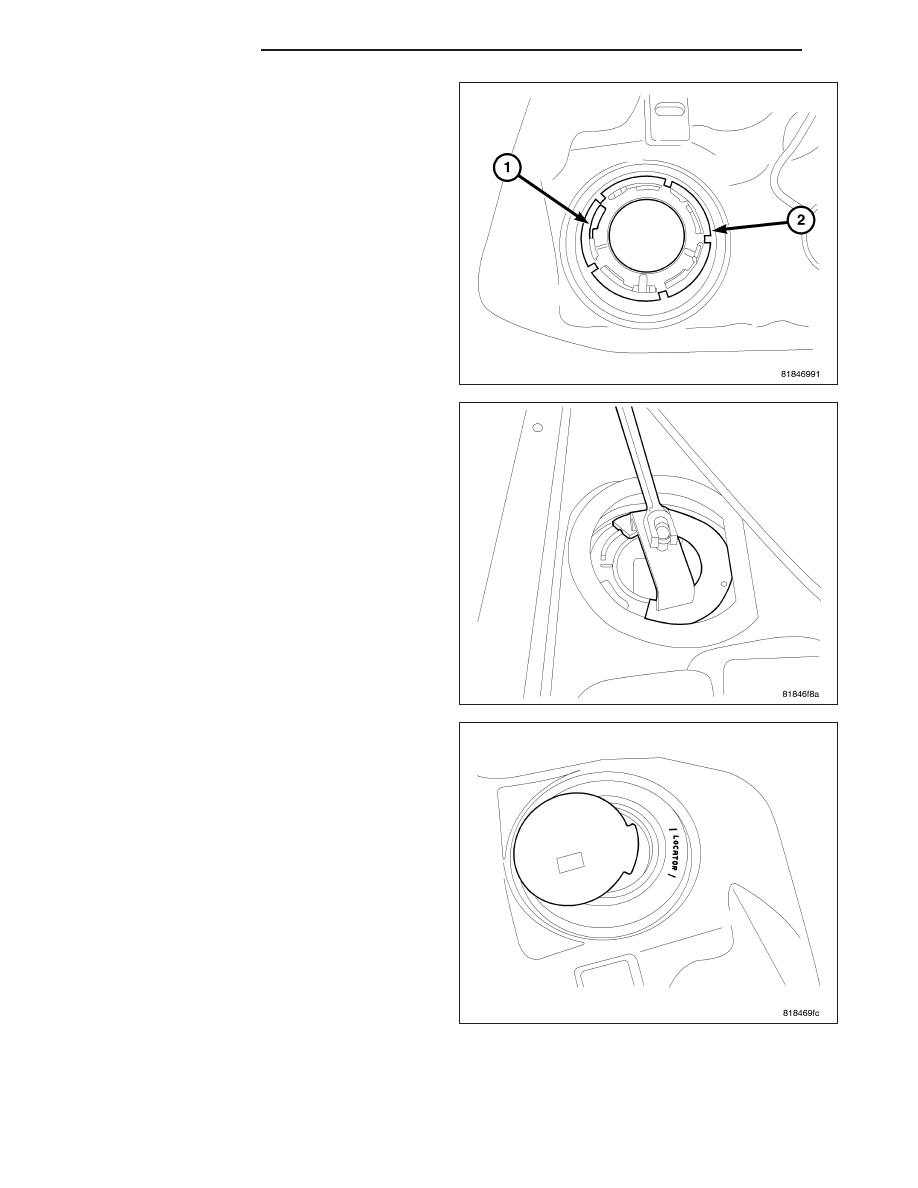

20. Using Special Tool #9318 remove lock ring (2) to

release fuel level unit.

21. Note the fuel level unit location on the top of

the fuel tank.

NOTE: The fuel level unit has to be properly
located to the tank for the fuel gauge to work
properly.

14 - 14

FUEL DELIVERY

PM

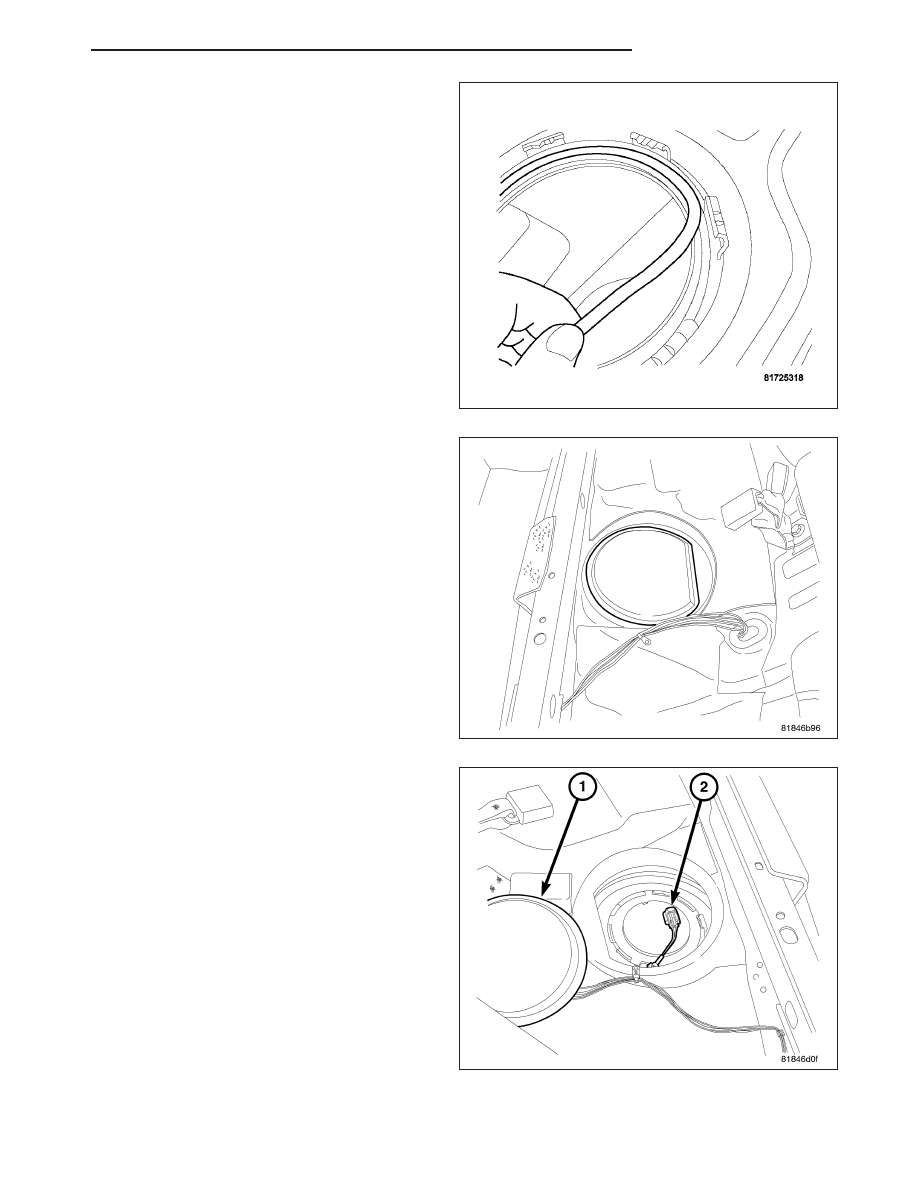

22. Remove fuel level unit module and disconnect

line.

23. Remove module and seal from tank. Discard seal.

FRONT WHEEL DRIVE

WARNING: Release fuel system pressure before servicing fuel system components. Service vehicles in well
ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle. This may result in
personal injury or death.

1. Perform Fuel System Pressure Release procedure.

2. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.

3. Remove the negative battery cable.

PM

FUEL DELIVERY

14 - 15

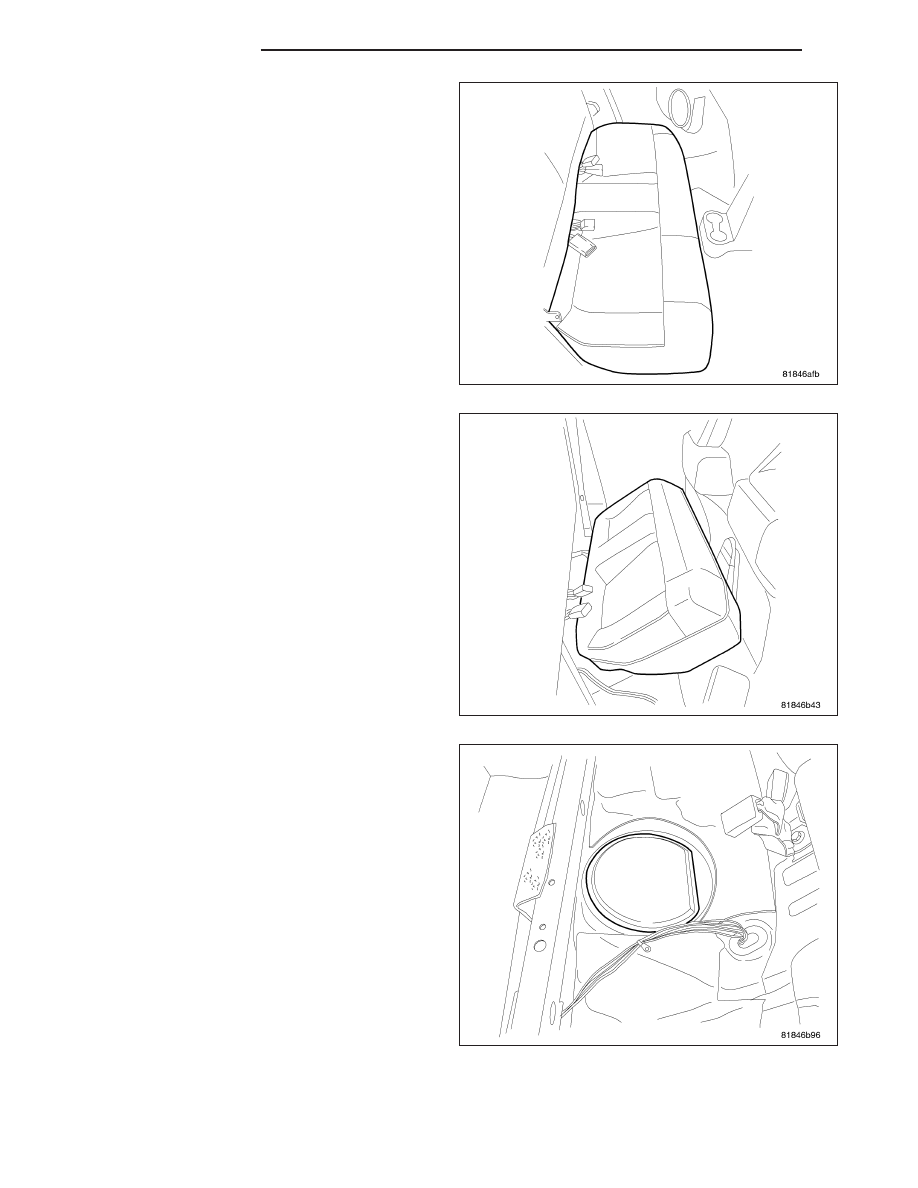

4. Remove the rear seat cushion.

5. Rear seat cushion loose.

6. Remove plastic cover.

14 - 16

FUEL DELIVERY

PM
