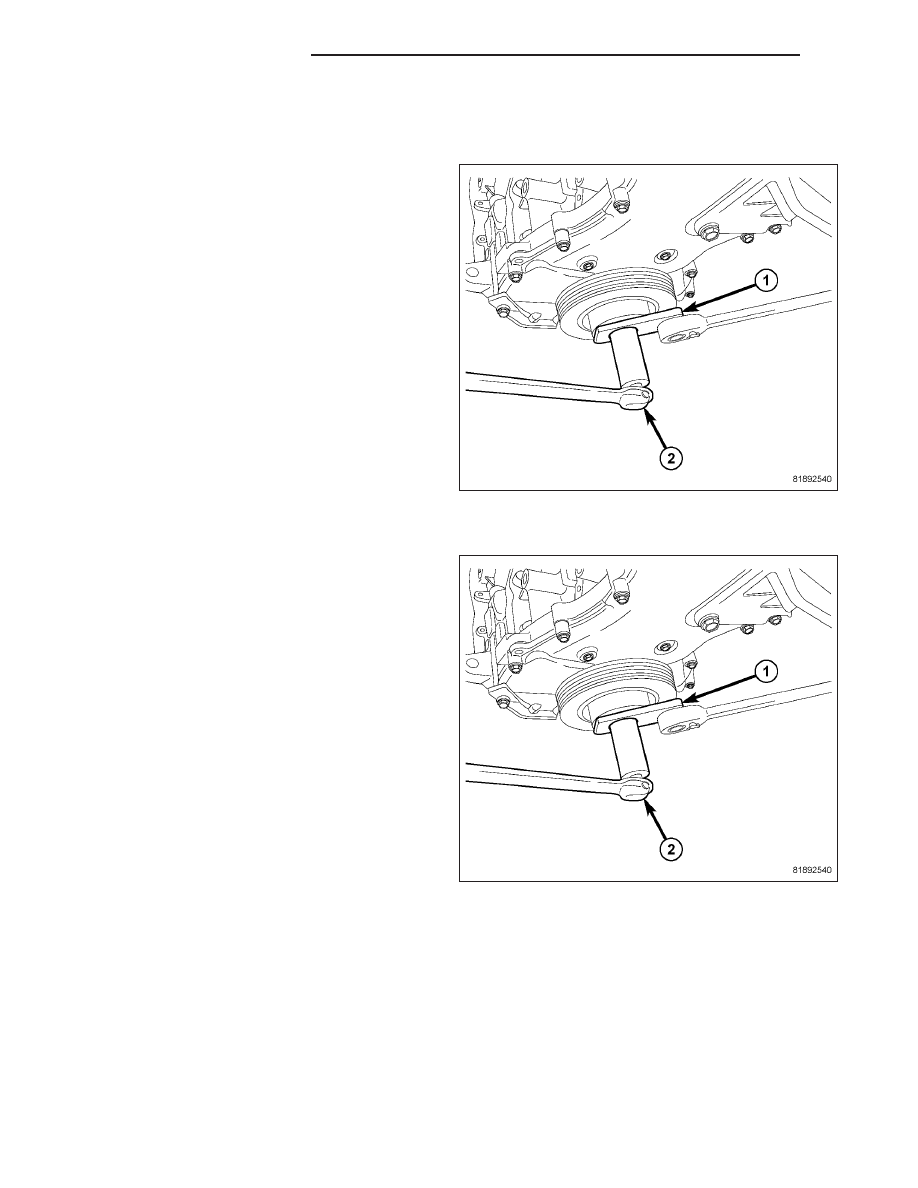

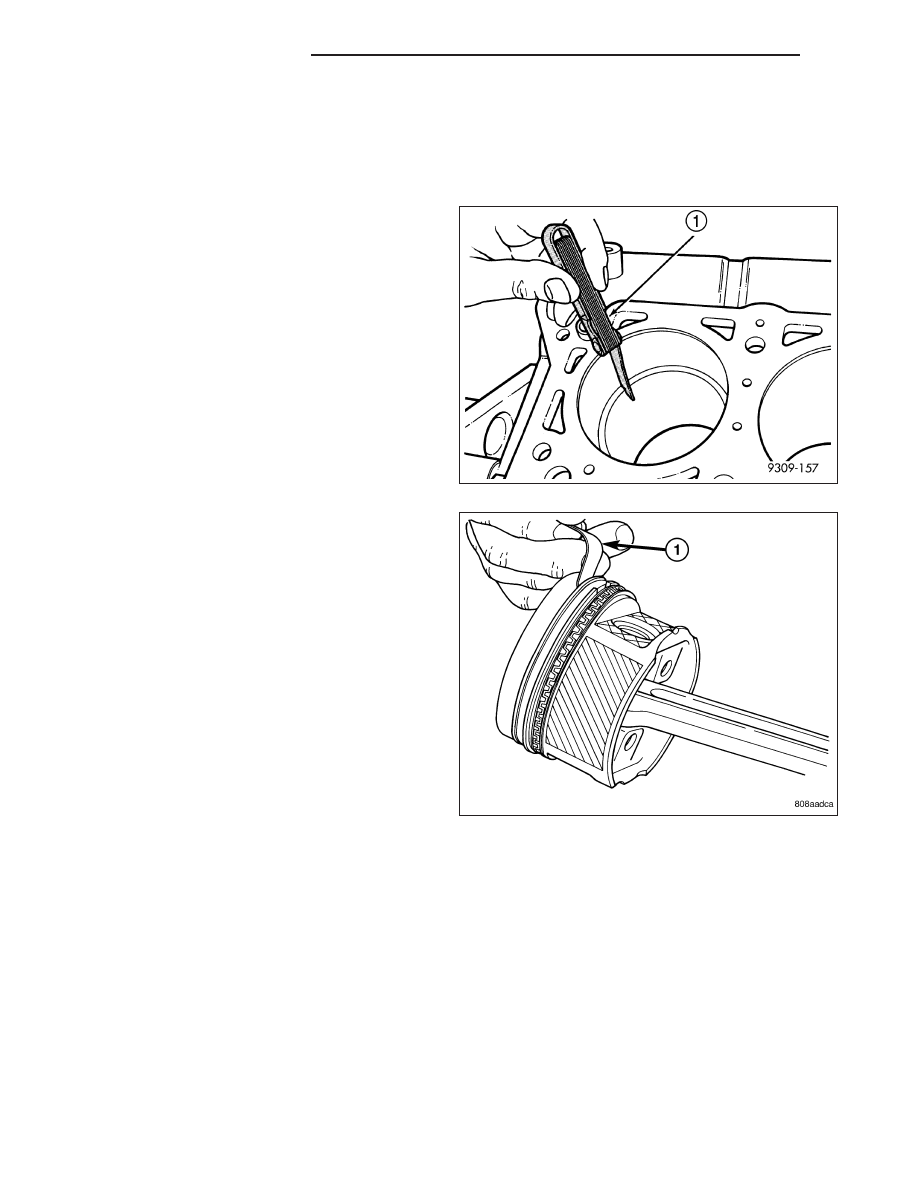

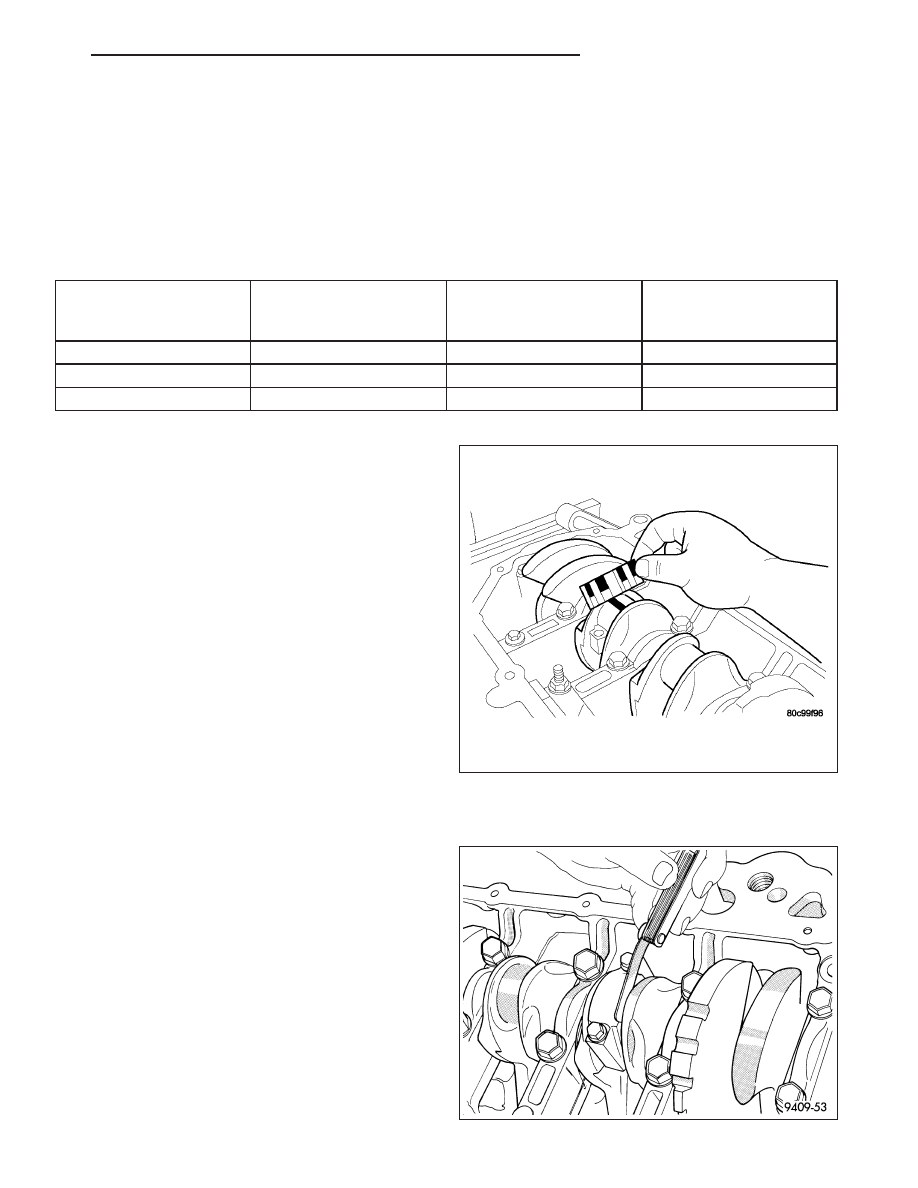

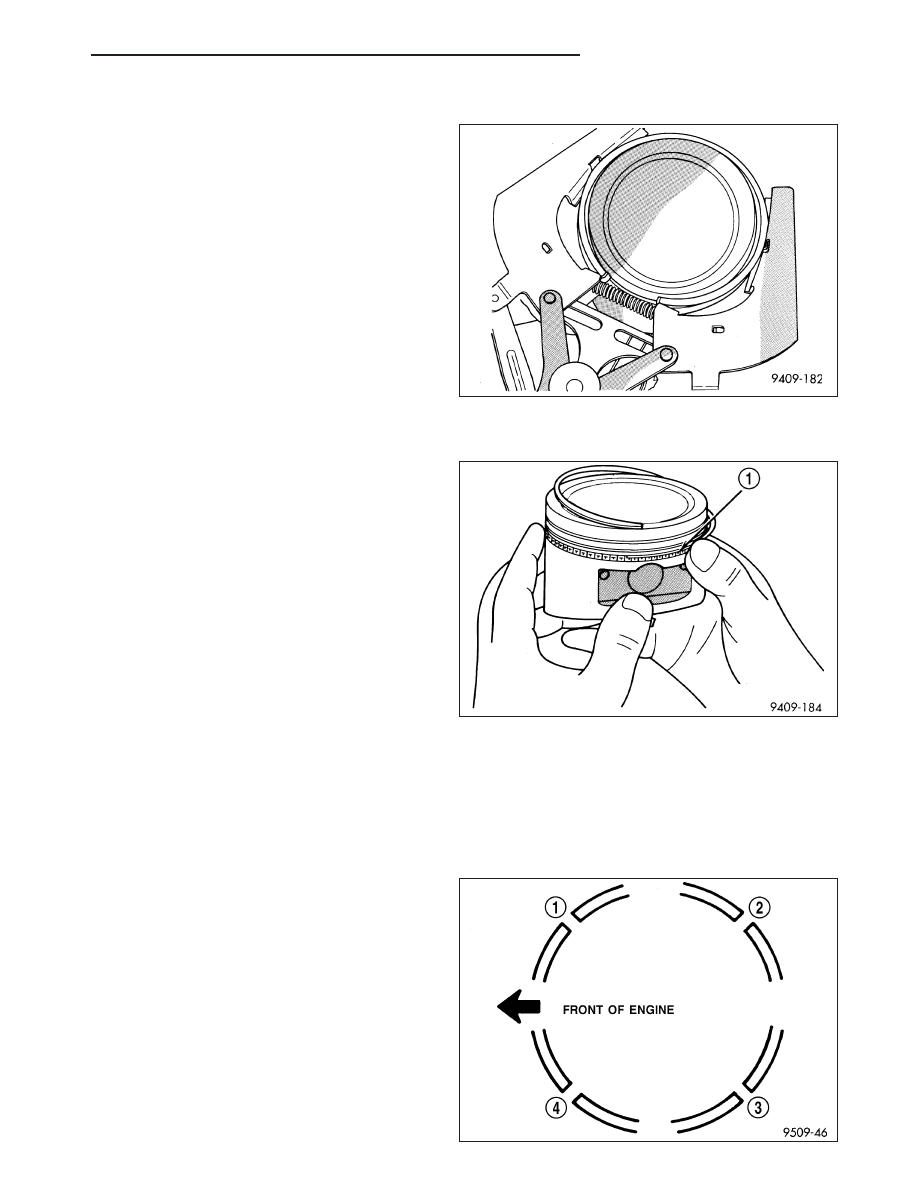

BEARINGS-CONNECTING ROD STANDARD PROCEDURE CONNECTING ROD - FITTING There are three different sizes of rod bearings available. Connecting rod bearing identification can be found on the CONNECTING ROD BEARING SELECTION CRANKSHAFT PIN DIAMETER GRADE DIMENSION CONNECTING ROD BEARING CLASSIFICATION CONNECTING ROD BEARING DIMENSION 1 48 mm 1 (Black) 1.5 mm 2 48 mm 2 (No Color) 1.5 mm 3 48 mm 3 (Green) 1.5 mm 1. For measuring connecting rod bearing clearance procedure and use of Plastigage (Refer to 9 - NOTE: The rod bolts should not be reused. 2. Before installing the NEW rod bolts the threads and under the bolt head should be oiled with clean 3. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly. 4. Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the fol- CAUTION: Do not use a torque wrench for the sec- 1. Tighten the bolts to 27 N·m (20 ft. lbs.). 2. Tighten the connecting rod bolts an additional 90°. 5. Using a feeler gauge, check connecting rod side clearance. Refer to clearance specifications (Refer PM ENGINE 1.8L WORLD 9 - 1507 |
