SEAL-CRANKSHAFT OIL FRONT

REMOVAL

1. Remove the crankshaft vibration damper (Refer to

9

-

ENGINE/ENGINE

BLOCK/VIBRATION

DAMPER - REMOVAL).

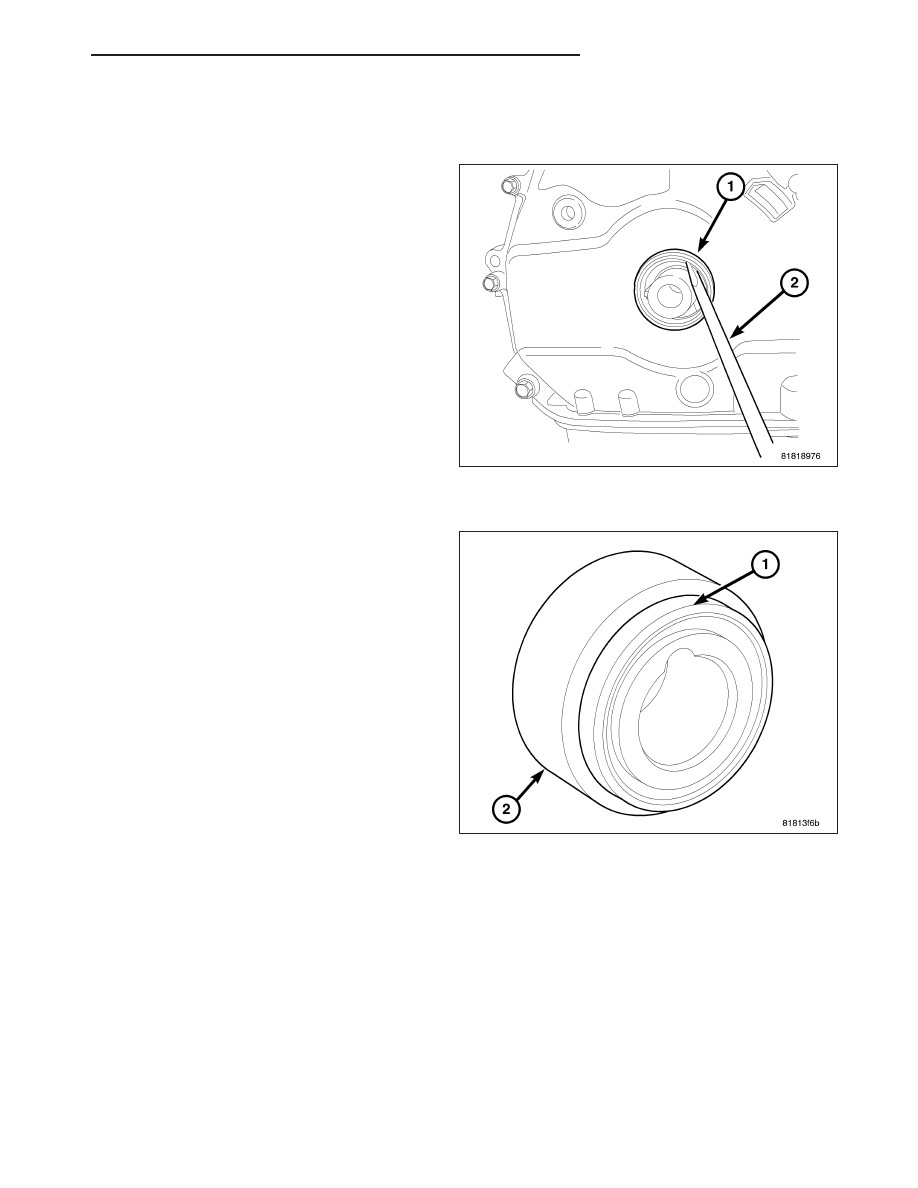

2. Remove front crankshaft oil seal (1) by prying out

with a screw driver (2). Be careful not to damage
the cover seal surface.

INSTALLATION

1. Place seal (1) onto Seal installer 9506 (2) with seal

spring towards the inside of engine.

PM

ENGINE 1.8L WORLD

9 - 1499

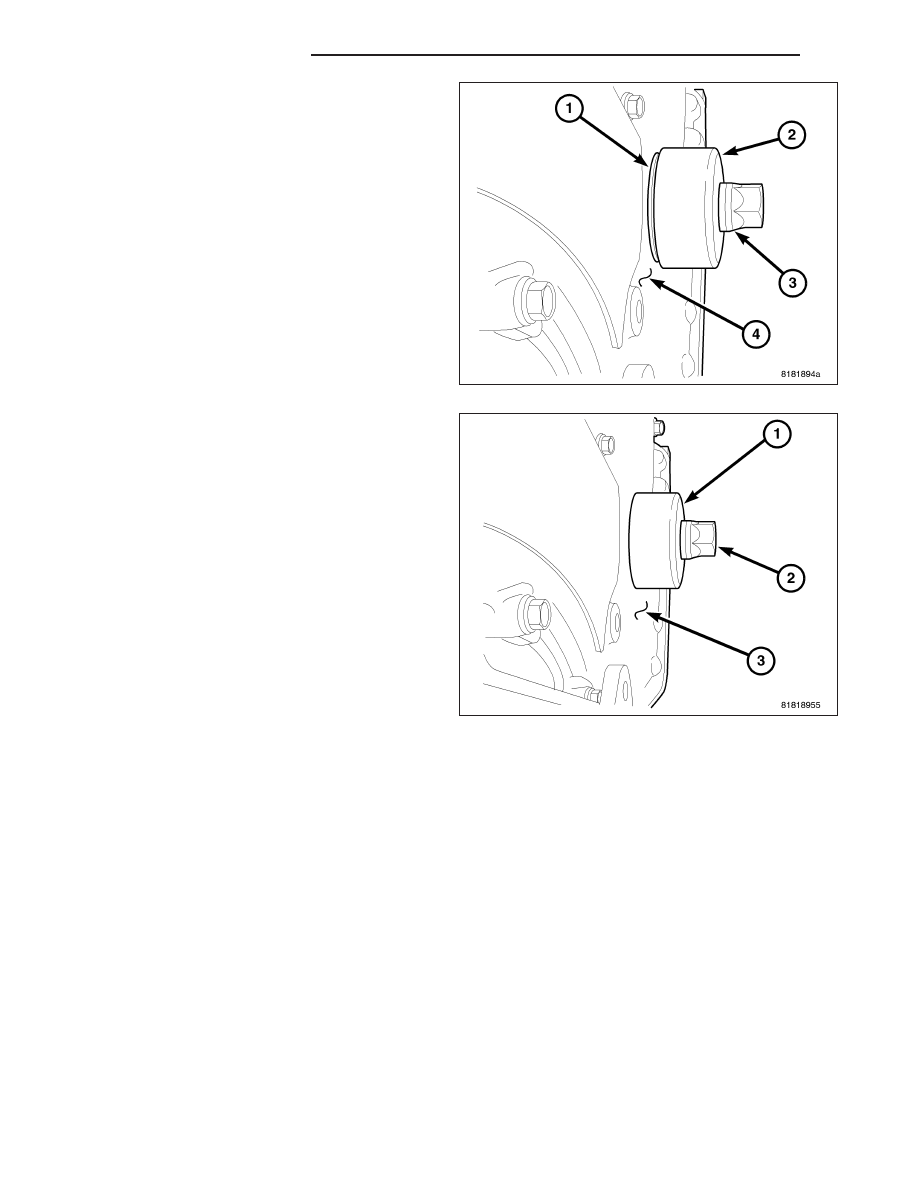

2. Install new seal (1) by using Seal installer 9506 (2)

and crankshaft damper bolt (3).

3. Press seal into front cover until Seal Installer 9506

(1) seats against timing chain cover (3).

4. Remove seal installer 9506 (1).

5. Install crankshaft vibration damper (Refer to 9 -

ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
INSTALLATION.

9 - 1500

ENGINE 1.8L WORLD

PM

SEAL-CRANKSHAFT OIL REAR

REMOVAL

1. Remove transaxle

2. Remove flex plate bolts and discard.

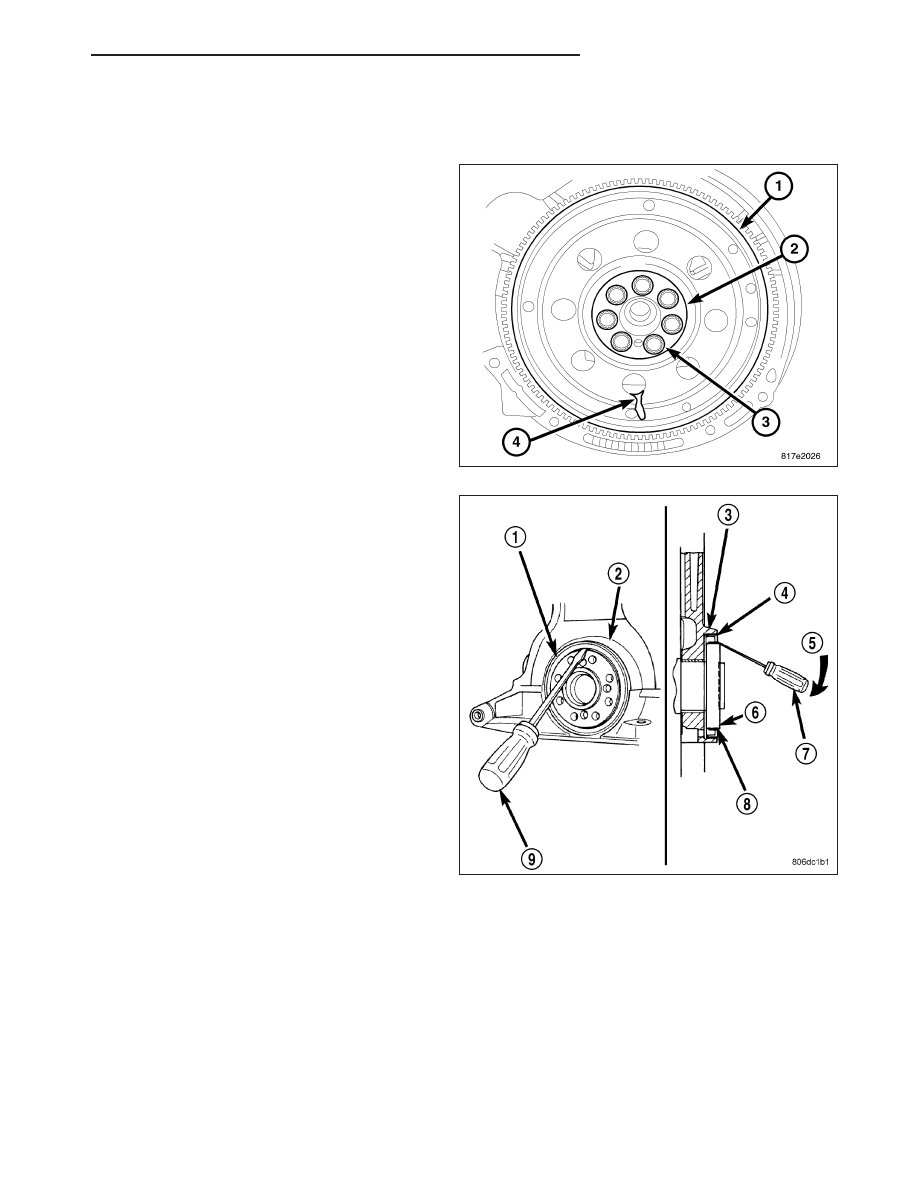

3. Remove flex plate (1).

4. Insert a 3/16 flat bladed screwdriver (7) between

the dust lip (8) and the metal case (4) of the crank-
shaft seal (1). Angle the screwdriver through the
dust lip against metal case of the seal. Pry out
seal.

CAUTION: Do not permit the screwdriver blade to
contact crankshaft seal surface. Contact of the
screwdriver blade against crankshaft edge (cham-
fer) is permitted.

PM

ENGINE 1.8L WORLD

9 - 1501

INSTALLATION

CAUTION: If a burr or scratch is present on the
crankshaft edge (chamfer), cleanup with 400 grit
sand paper to prevent seal damage during instal-
lation of new seal.

NOTE: When installing seal, no lube on seal is
needed.

1. Place Special Tool 9509 (3) Seal Guide on crank-

shaft.

2. Position seal (2) over guide tool. Guide tool should

remain on crankshaft during installation of seal.
Ensure that the lip of the seal is facing towards the
crankcase during installation.

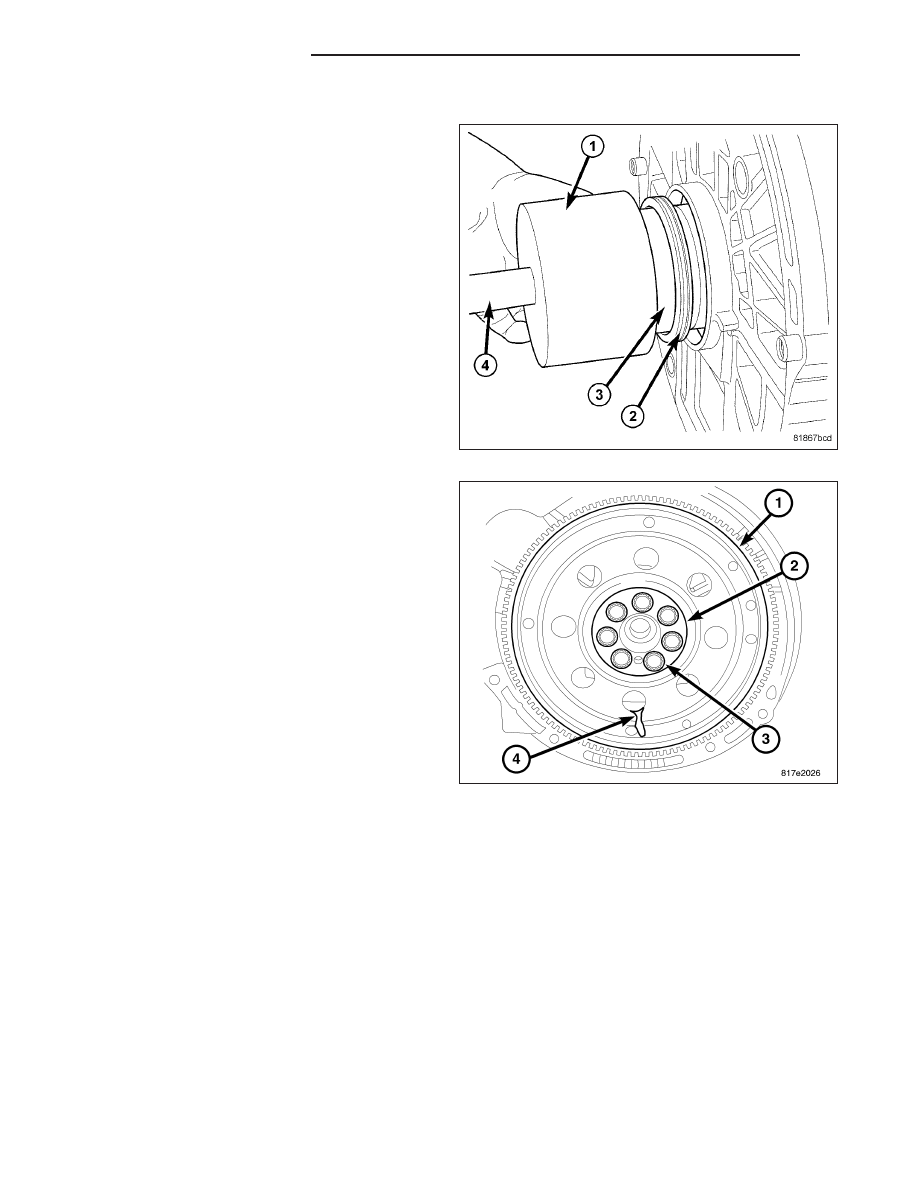

3. Drive the seal into the block using Special Tool

9706 (1) and handle C-4171 (4) until the tool bot-
toms out against the block.

4. Install flex plate (1). Install new flex plate bolts and

torque to 95 N·m (70 ft. lbs.).

5. Install transaxle. Refer to TRANSMISSION/TRANS-

AXLE - INSTALLATION for procedure.

9 - 1502

ENGINE 1.8L WORLD

PM
