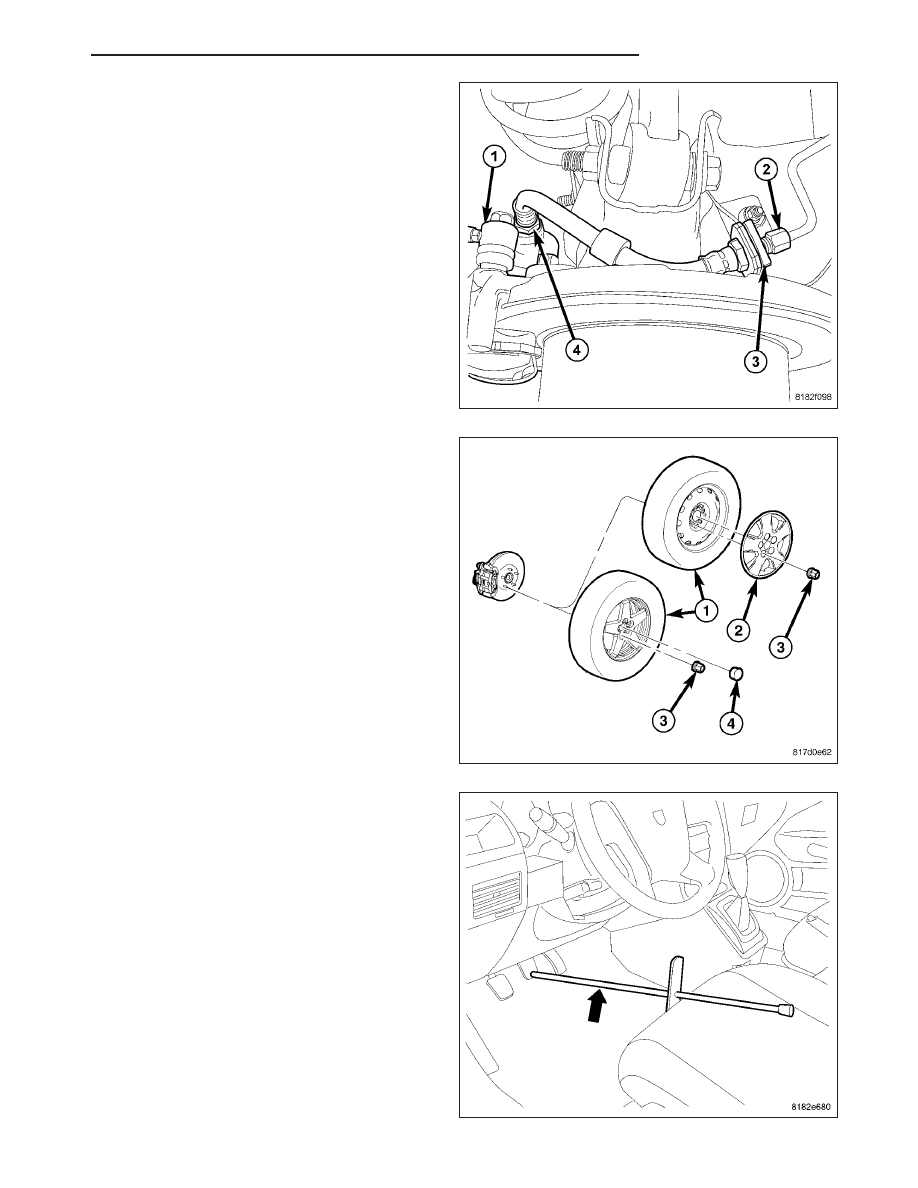

5. Thread the rear brake flex hose (4) into the brake

caliper (1). Tighten the flex hose fitting at the cali-
per to 15 N·m (133 in. lbs.).

6. Route and install the brake flex hose into the trail-

ing link mounted bracket. Install the clip (3) secur-
ing the flex hose to the bracket.

7. Thread the brake tube nut (2) into brake flex hose.

Tighten the brake tube nut to 17 N·m (150 in. lbs.).

8. Install tire and wheel assembly (1) (Refer to 22 -

TIRES/WHEELS - INSTALLATION). Install and
tighten the wheel mounting nuts (3) to 135 N·m
(100 ft. lbs.).

9. Lower the vehicle.

10. Remove the brake pedal holding tool.

PM

BRAKES - BASE

5 - 49

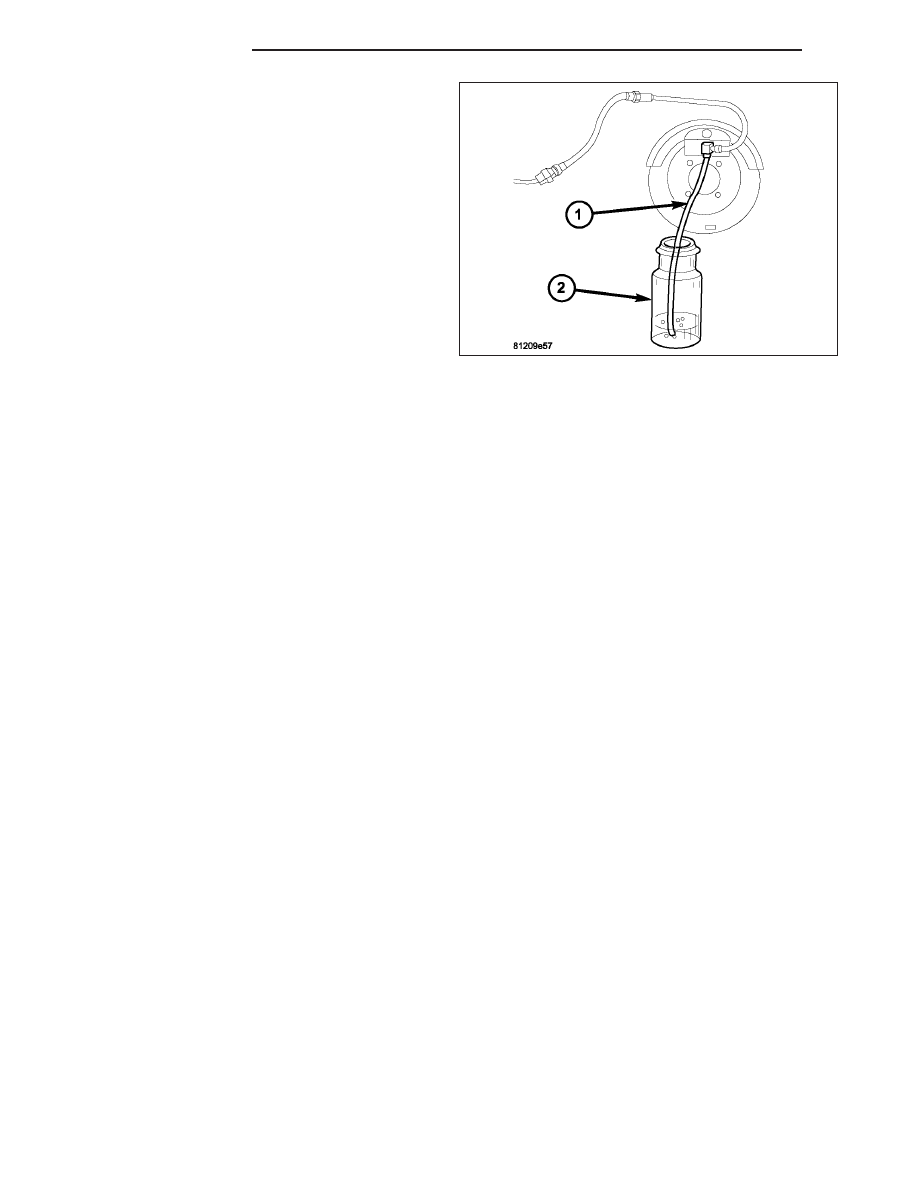

11. Bleed the caliper as necessary. (Refer to 5 -

BRAKES - STANDARD PROCEDURE)

12. Road test the vehicle and make several stops to

wear off any foreign material on the brakes and to
seat the brake shoes.

5 - 50

BRAKES - BASE

PM

DRUM

DIAGNOSIS AND TESTING

BRAKE DRUM

With the drum off the vehicle, measure the drum for diameter variation (oval shape). The diameter variation of the
drum braking surface must not exceed specifications listed in the following table.

Measure brake drum runout. Brake drum runout should be checked with the drum mounted on a brake lathe. Brake
drum runout should not exceed specifications listed in the following table.

If either of these measurements are not within specification, reface or replace the drum. (Refer to 5 - BRAKES/
HYDRAULIC/MECHANICAL/DRUM - STANDARD PROCEDURE).

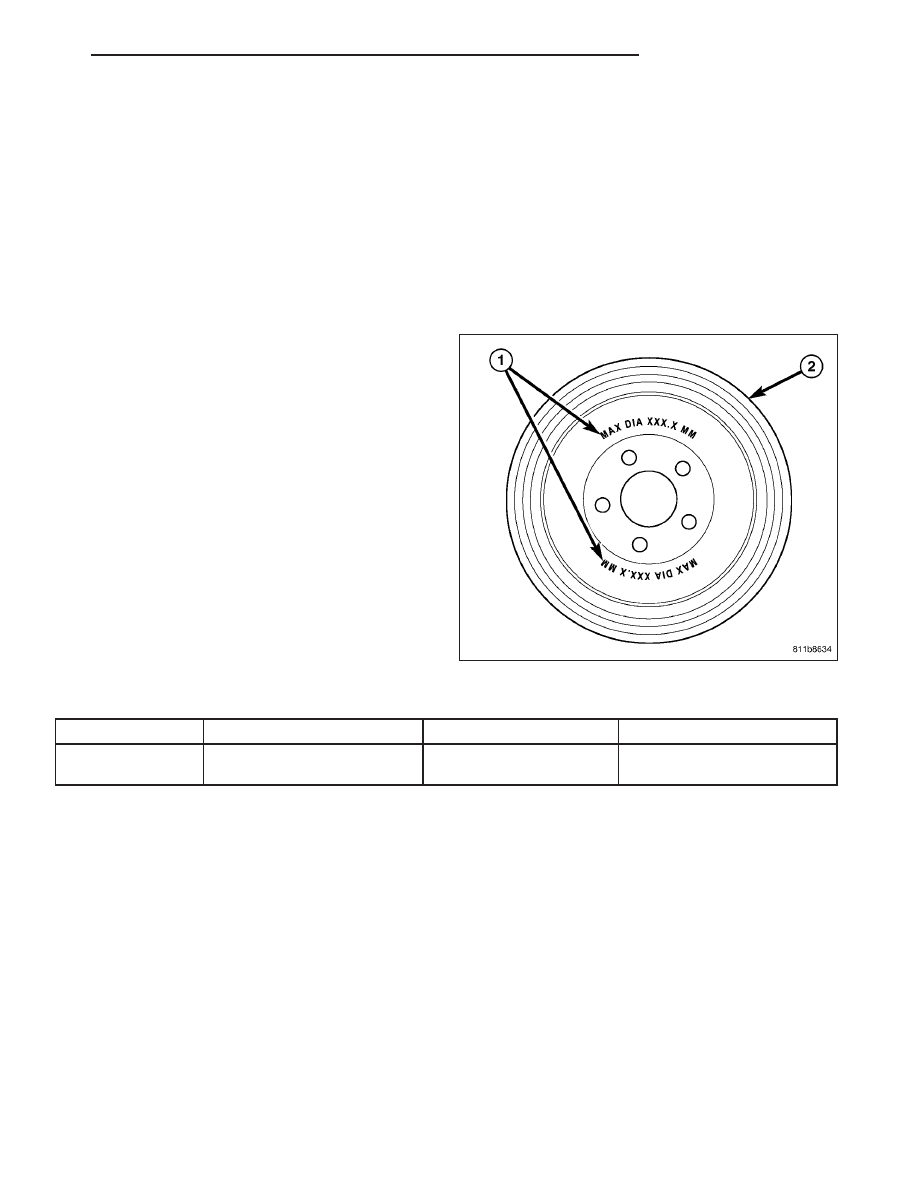

Always replace the drum if machining will cause the
diameter to exceed drum maximum diameter. All brake
drums (2) are marked on the inside with the maximum
allowable brake drum diameter (1). Maximum brake
drum diameter can also be found in the following
table.

BRAKE DRUM LIMITS

SALES CODE

DIAMETER VARIATION

RUNOUT

MAXIMUM DIAMETER

ALL

0.20 mm

0.008 in.

0.06 mm

0.002 in.

230.60 mm

9.079 in.

STANDARD PROCEDURE

BRAKE DRUM MACHINING

If a brake drum is deeply scored or warped, it can be machined on a brake lathe equipped to machine brake drums.
Follow the manufacturers instructions on the machining procedure.

Measure the brake drum diameter before machining. If machining the drum will cause the drum to exceed maximum
allowable diameter, do not machine the brake drum. It needs to be replaced.

PM

BRAKES - BASE

5 - 51

CAUTION: Do not machine the brake drum if it will
cause the drum to exceed maximum allowable
diameter.

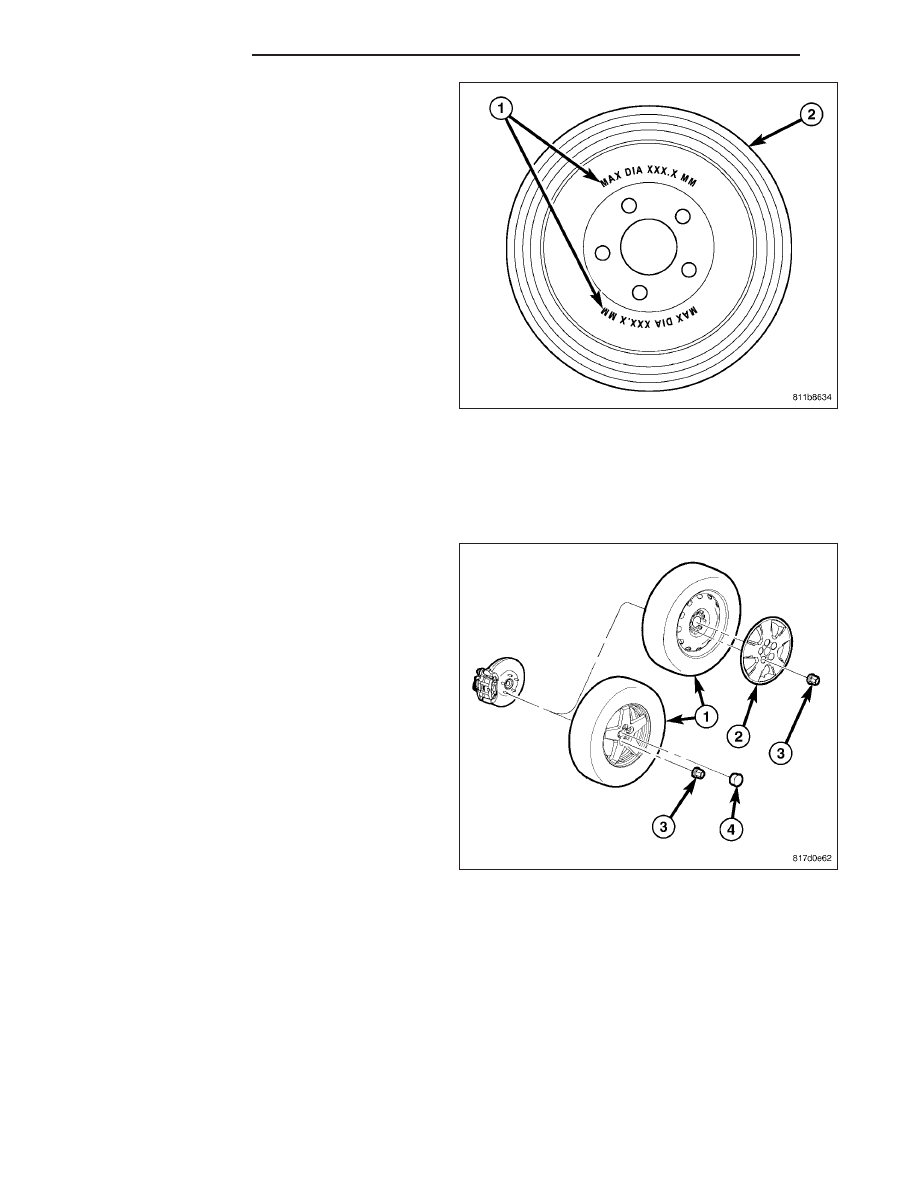

All brake drums (2) are marked with the maximum
allowable brake drum diameter. All vehicles have it
marked on the inside of the drum (1).

When machining, make sure the feed rate for the final
cut is set to deliver a fine finish. A fine finish helps to
avoid a screw effect on the brake shoes when the
brakes are applied. This final feed cut specification
varies from lathe manufacturer to lathe manufacturer.

REMOVAL

NOTE: Before proceeding, (Refer to 5 - BRAKES - WARNING) (Refer to 5 - BRAKES - CAUTION).

1. Raise vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)

2. Remove the wheel mounting nuts (3), then the tire

and wheel assembly.

5 - 52
