INSPECTION

Visually inspect brake pads for uneven lining wear. Also inspect for excessive lining deterioration. Check the clear-
ance between the tips of the wear indicators (if equipped) on the pads and the brake rotors.

If a visual inspection does not adequately determine the condition of the lining, a physical check will be necessary.
To check the amount of lining wear, remove the disc brake pads from the vehicle.

Measure brake pad minimum thickness. Brake pads must be replaced when usable material on a brake pad lining
measured at its thinnest point measures one millimeter (0.04 inches) or less.

NOTE: It is important to inspect both front and rear brake pads during the same inspection. Typically, front
and rear brake pads wear out at the same time.

Replace both disc brake pads (inboard and outboard) at each caliper. It is also necessary to replace the pads on
the opposite side of the vehicle as well as the pads failing inspection to maintain proper braking characteristics.

If the brake pad assemblies do not require replacement, be sure to reinstall the brake pads in the original position
they were removed from.

INSTALLATION

NOTE: Perform Step 1 through Step 6 on each side of the vehicle to complete pad set installation, then
proceed to Step 7.

1. Completely retract the caliper piston back into the piston bore of the caliper. This is required to gain the neces-

sary pad-to-rotor clearance for the caliper installation onto the steering knuckle.

NOTE: Place the brake pad with the audible wear
indicator attached on the inboard side. The audi-
ble wear indicator should be positioned at the bot-
tom when installed.

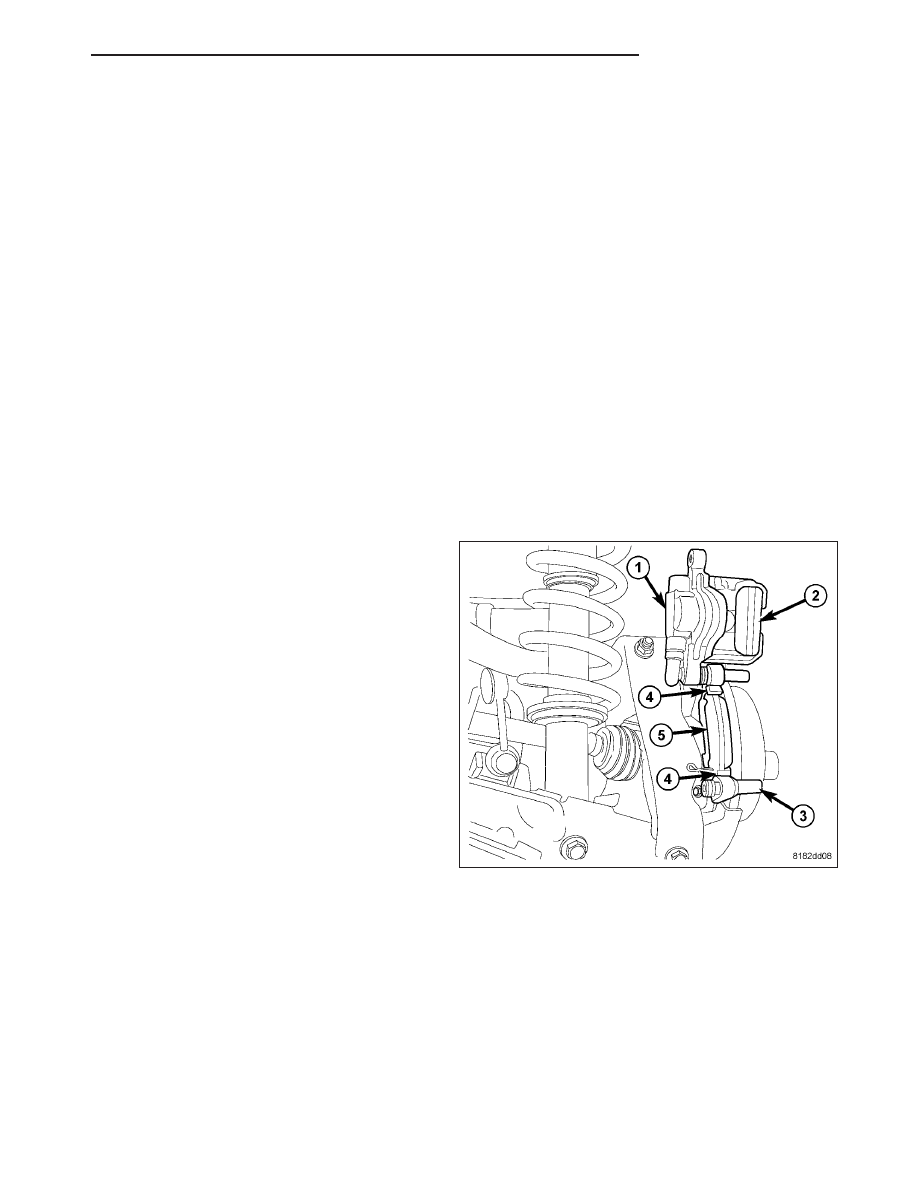

2. Slide the outboard brake pad (2) onto the caliper

(1). Be sure the retaining clip is squarely seated in
the depressed areas on the caliper beyond the
raised retaining bead.

3. Place the inboard brake pad (5) in the abutment

shims (4) clipped into the disc brake caliper
adapter bracket (3) as shown (see preceding note).

CAUTION: Use care when installing the caliper onto the adapter bracket to avoid damaging the guide pin
boot.

PM

BRAKES - BASE

5 - 25

NOTE: The lubricant used on the guide pin portion
of the guide pin bolt is Niglube RM. Use the appro-
priate lubricant when necessary.

4. Rotate the disc brake caliper downward over the

brake rotor and lower part of caliper adapter.

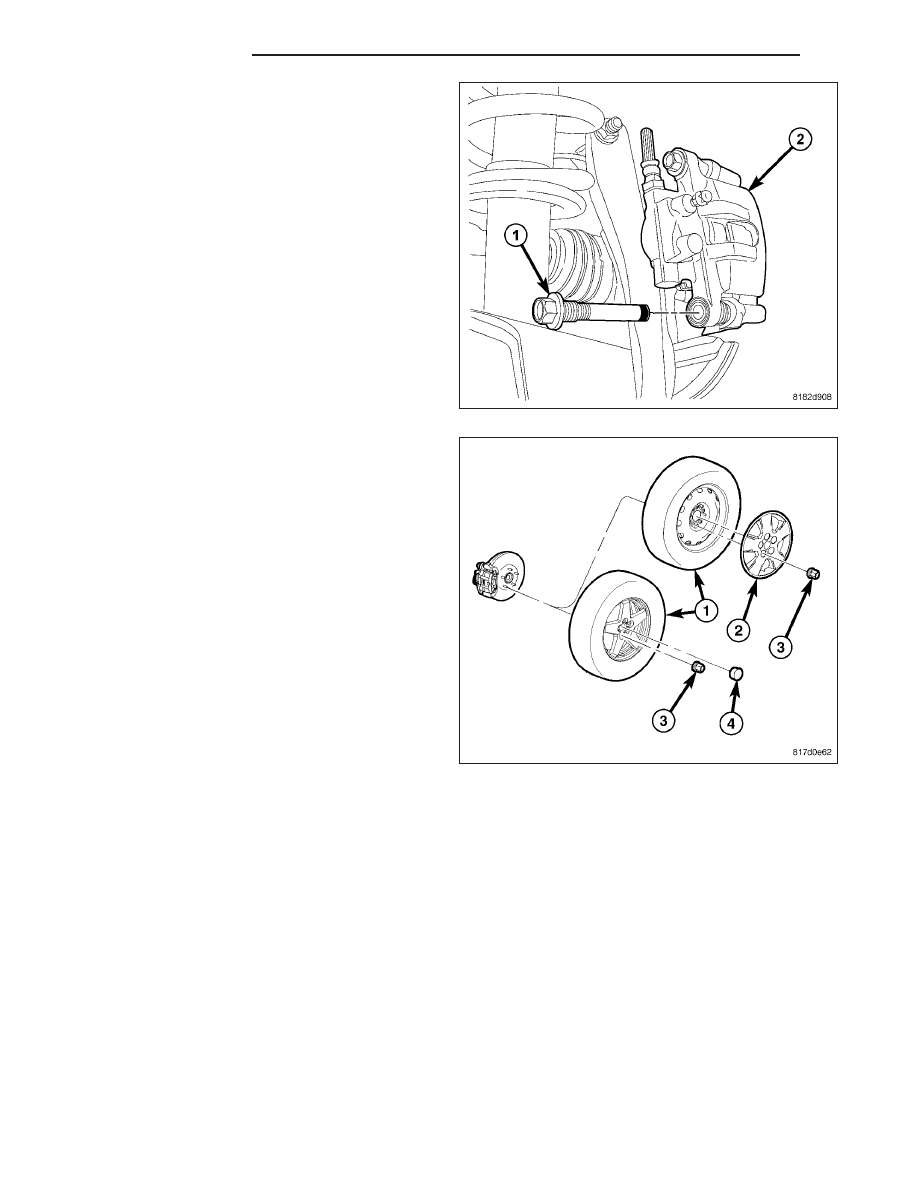

5. Install the disc brake caliper (2) lower guide pin

bolt (1). Tighten the guide pin bolt to 43 N·m (32 ft.
lbs.).

6. Install tire and wheel assembly (1) (Refer to 22 -

TIRES/WHEELS - INSTALLATION). Install and
tighten the wheel mounting nuts (3) to 135 N·m
(100 ft. lbs.).

7. Lower the vehicle.

8. Pump the brake pedal several times to ensure the

vehicle has a firm brake pedal before moving the
vehicle.

9. Road test the vehicle and make several stops to

wear off any foreign material on the brakes and to
seat the brake pads.

5 - 26

BRAKES - BASE

PM

SHOE AND LININGS-REAR DRUM BRAKE

REMOVAL

NOTE: Before proceeding, (Refer to 5 - BRAKES - WARNING) (Refer to 5 - BRAKES - CAUTION).

NOTE: Make sure parking brake is in “released” position before raising vehicle.

1. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCE-

DURE)

NOTE: Perform Step 2 through Step 16 on each side of the vehicle to complete shoe set removal. It may be
easier to install the new components on the first side of the vehicle before disassembling the opposite side
so it may be used as a reference guide for proper installation.

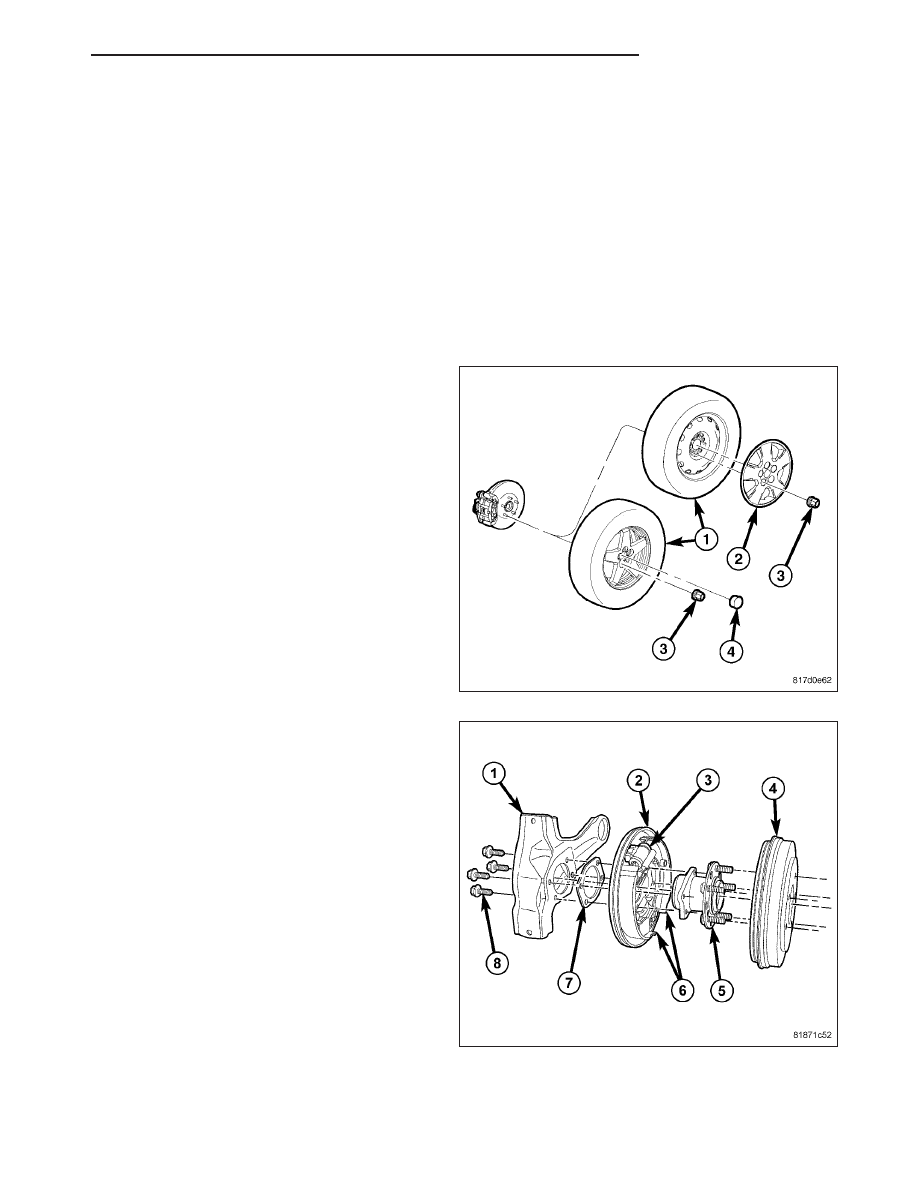

2. Remove the wheel mounting nuts (3), then the rear

tire and wheel assembly.

3. Remove the brake drum (4). (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/DRUM

-

REMOVAL)

PM

BRAKES - BASE

5 - 27

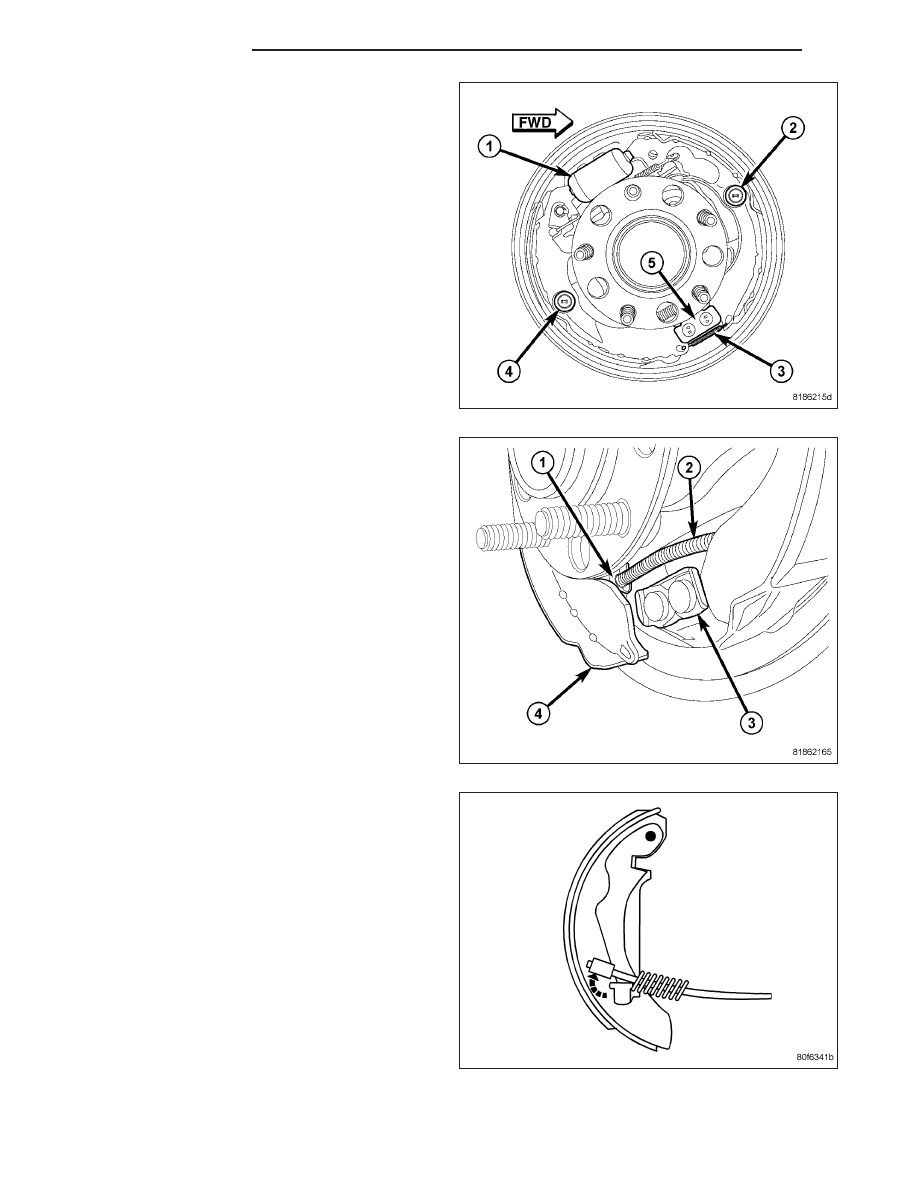

4. Remove the lower shoe spring (3).

5. Compress and remove the hold-down spring (4)

retaining the rear shoe to the support plate.

6. Pull the rear shoe (4) away from the anchor (3)

allowing better access to the parking brake cable
(2) connection at the lever (1).

7. Compress the cable return spring, then remove the

parking brake cable from the parking brake lever.

5 - 28

BRAKES - BASE

PM
