Dodge Caliber. Manual - part 80





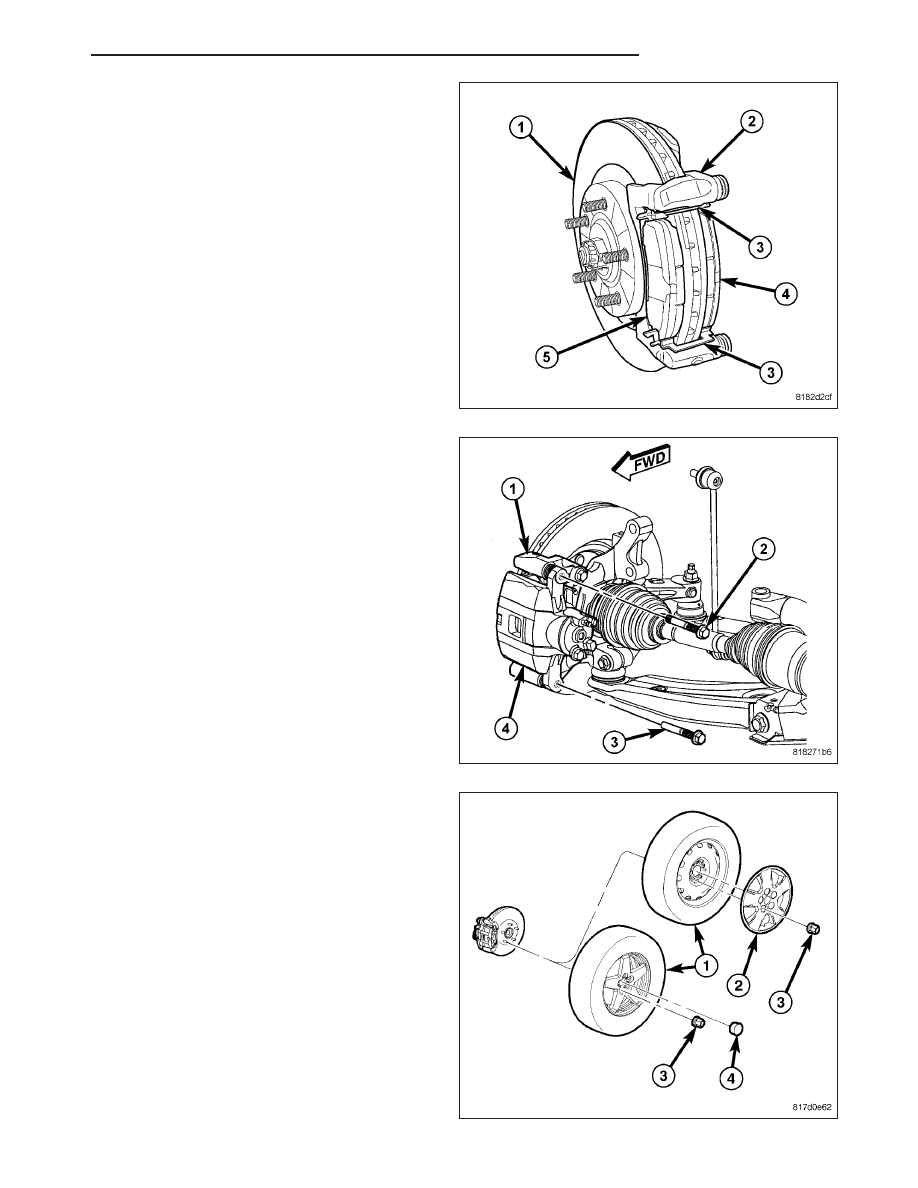

1. Place the brake pads (4, 5) in the abutment shims

(3) clipped into the disc brake caliper adapter
bracket (2) as shown. Place the pad with the wear
indicator attached on the inboard side (2).

2. Completely retract the caliper piston back into the

bore of the caliper.

CAUTION: Use care when installing the caliper (4)
onto the adapter bracket (1) to avoid damaging the
boots.

3. Install the disc brake caliper over the brake pads

on the brake caliper adapter bracket.

CAUTION: When installing the caliper guide pin
bolts (2, 3) make sure that the one that has a spe-
cial sleeve on the end is installed in the upper
mounting hole.

4. Align the caliper guide pin bolt holes with the

adapter bracket. Install the upper (with special
sleeve) (2) and lower (3) caliper guide pin bolts.
Tighten the guide pin bolts to 43 N·m (32 ft. lbs.).

5. Install tire and wheel assembly (1) (Refer to 22 -

TIRES/WHEELS - INSTALLATION). Install and
tighten wheel mounting nuts (3) to 135 N·m (100 ft.
lbs.).

6. Lower the vehicle.

PM

BRAKES - BASE

5 - 21

7. Pump the brake pedal several times before moving

the vehicle to set the pads to the brake rotor.

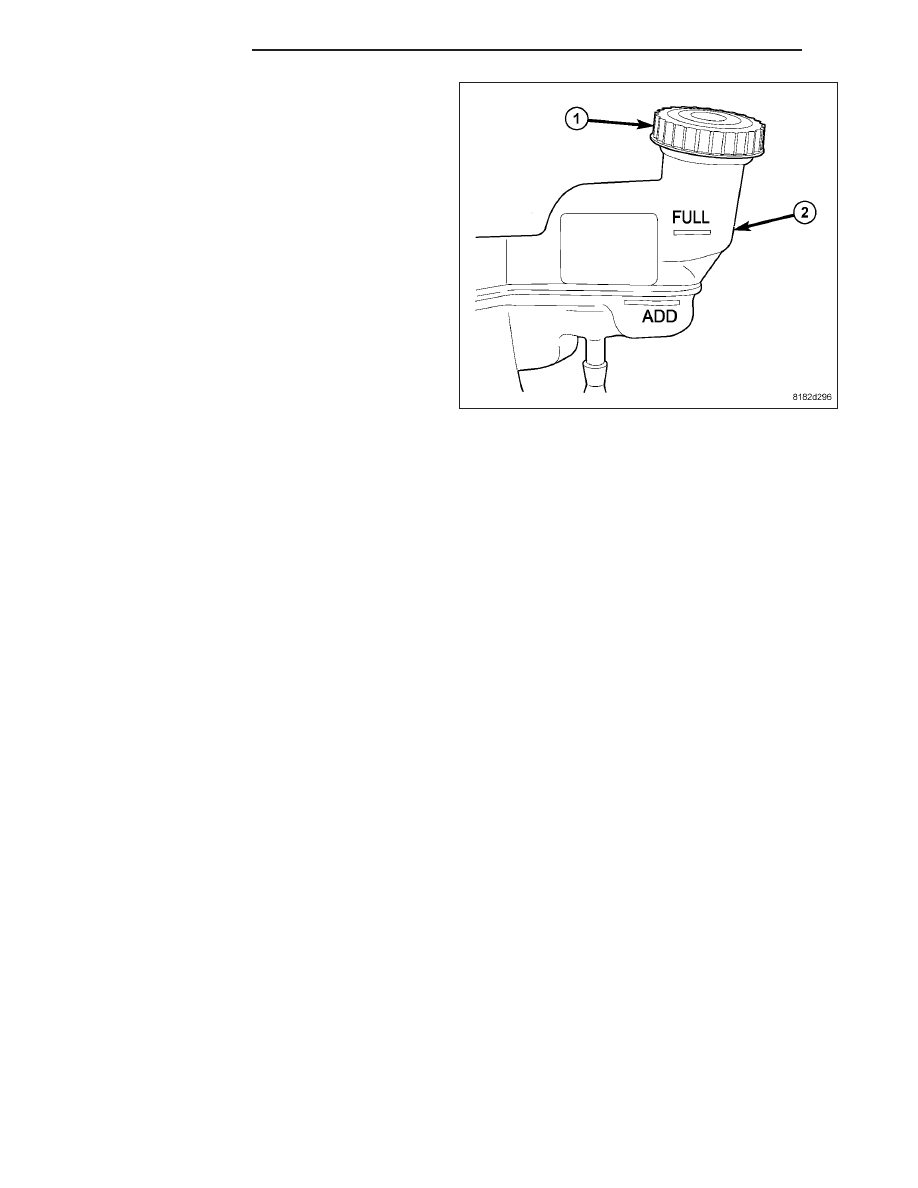

8. Check and adjust the brake fluid level in the reser-

voir (2) as necessary.

9. Road test the vehicle and make several stops to

wear off any foreign material on the brakes and to
seat the brake pads.

5 - 22

BRAKES - BASE

PM

PADS-REAR BRAKE

REMOVAL

NOTE: Before proceeding, (Refer to 5 - BRAKES - WARNING) (Refer to 5 - BRAKES - CAUTION).

1. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCE-

DURE)

NOTE: Perform Step 2 through Step 6 on each side of the vehicle to complete pad set removal.

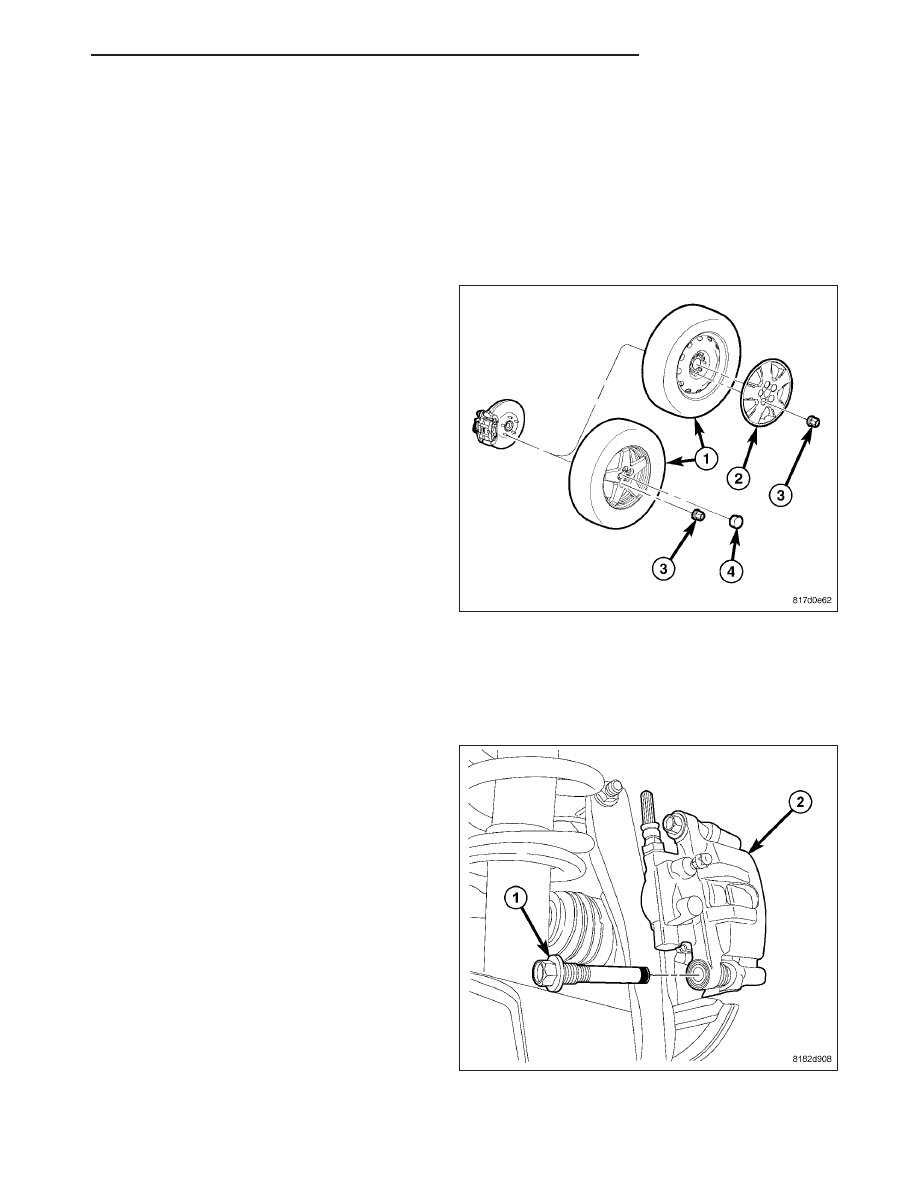

2. Remove the wheel mounting nuts (3), then the tire

and wheel assembly (1).

NOTE: In some cases, it may be necessary to retract the caliper piston in its bore a small amount in order
to provide sufficient clearance between the pads and the rotor to easily remove the caliper from the
knuckle. This can usually be accomplished before the guide pin bolts are removed, by grasping the rear of
the caliper and pulling outward working with the guide pins, thus retracting the piston. Never push on the
piston directly as it may get damaged.

3. Remove the disc brake caliper (2) lower guide pin

bolt (1).

PM

BRAKES - BASE

5 - 23

CAUTION:

When

moving

rear

brake

caliper

upward, use extreme care not to damage or over-
extend the flex hose. Damage may occur.

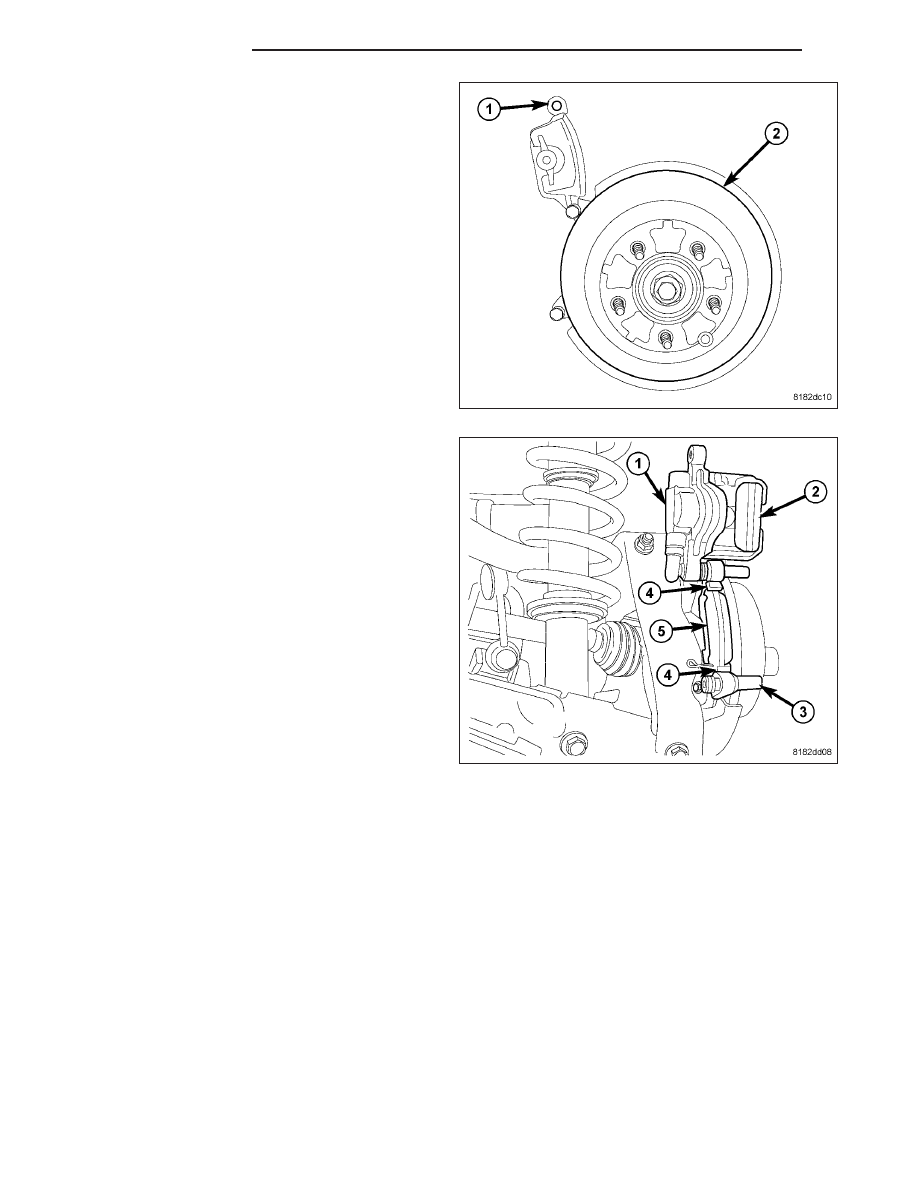

4. Rotate the caliper (1) upward hinging off the upper

guide pin bolt. Rotate the caliper upward just
enough to allow brake pad removal. Hang the cal-
iper assembly in this position using wire or a bun-
gee cord.

5. Remove the inboard brake pad (5) from the caliper

adapter bracket (3).

6. Remove the outboard brake pad (2) from the cali-

per (1) by prying the brake pad retaining clip over
the raised area on the caliper. Slide the brake pad
off of the brake caliper.

CLEANING

WARNING: Dust and dirt accumulating on brake parts during normal use may contain asbestos fibers from
production or aftermarket brake linings. Breathing excessive concentrations of asbestos fibers can cause
serious bodily harm. Exercise care when servicing brake parts. Do not sand or grind brake lining unless
equipment used is designed to contain the dust residue. Do not clean brake parts with compressed air or
by dry brushing. Cleaning should be done by dampening the brake components with a fine mist of water,
then wiping the brake components clean with a dampened cloth. Dispose of cloth and all residue containing
asbestos fibers in an impermeable container with the appropriate label. Follow practices prescribed by the
Occupational Safety And Health Administration (OSHA) and the Environmental Protection Agency (EPA) for
the handling, processing, and disposing of dust or debris that may contain asbestos fibers.

5 - 24

BRAKES - BASE

PM
