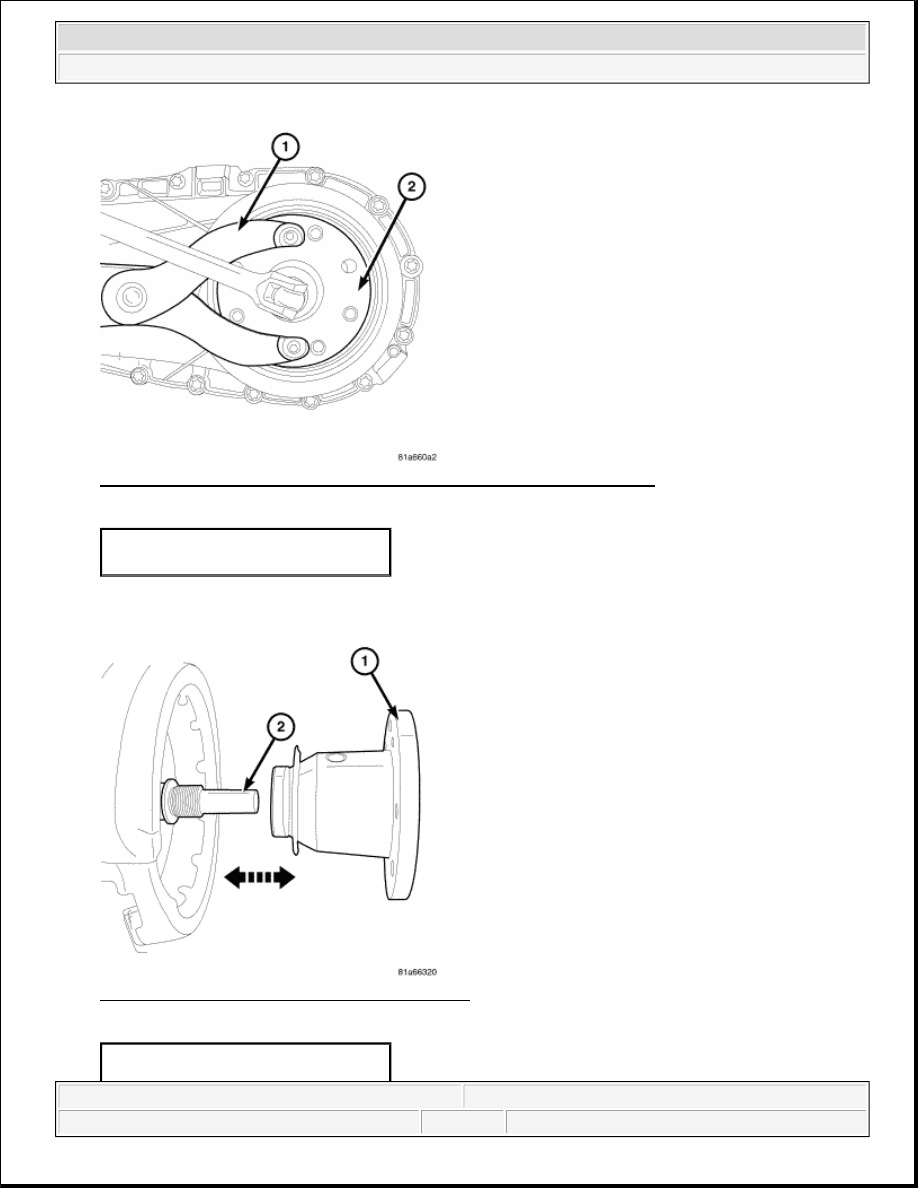

Fig. 6: Using Holder C-3281 To Remove/Install Rear Output Flange Nut
Courtesy of CHRYSLER LLC

2. Using Holder C-3281 (1), remove the rear output flange (2) nut.

Fig. 7: Removing/Installing Rear Output Flange
Courtesy of CHRYSLER LLC

1 - HOLDER C-3281
2 - REAR OUTPUT SHAFT FLANGE

1 - REAR OUTPUT SHAFT FLANGE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



3. Remove the rear output shaft flange (1) from the main shaft. If flange is difficult to remove by hand,

remove it with bearing splitter, or with standard two jaw puller. Be sure puller tool is positioned securely
on flange.

Fig. 8: Removing/Installing Dampener Bolts
Courtesy of CHRYSLER LLC

4. Remove the dampener bolts from the transfer case.

Fig. 9: Removing/Installing Dampener
Courtesy of CHRYSLER LLC

2 - MAINSHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



5. Remove the dampener from the transfer case.

Fig. 10: Removing/Installing Shift Motor Bolts
Courtesy of CHRYSLER LLC

6. Remove the shift motor bolts from the transfer case.

Fig. 11: Removing/Installing Shift Motor
Courtesy of CHRYSLER LLC

1 - SHIFT MOTOR



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



7. Remove the shift motor (1) from the transfer case.

Fig. 12: Removing/Installing Transfer Case Bolts
Courtesy of CHRYSLER LLC

8. Support transfer case so rear case is facing upward and the input gear is not contacting the work surface.

9. Remove bolts holding front case to rear case.

Fig. 13: Removing/Installing Rear Case From Front Case
Courtesy of CHRYSLER LLC

1 - REAR HOUSING
