Fig. 60: Remove/Install Rear Output Shaft Flange
Courtesy of CHRYSLER LLC

3. Remove the rear output flange (1) from the main shaft (2). If necessary, use a suitable 2 or 3 jaw puller to

remove the output shaft flange. See Fig. 60.

4. Remove the rear output seal with a suitable pry tool or a screw mounted in a slide hammer.

INSTALLATION

TRANSFER CASE -MP140

1 - REAR OUTPUT SHAFT FLANGE
2 - REAR OUTPUT SHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



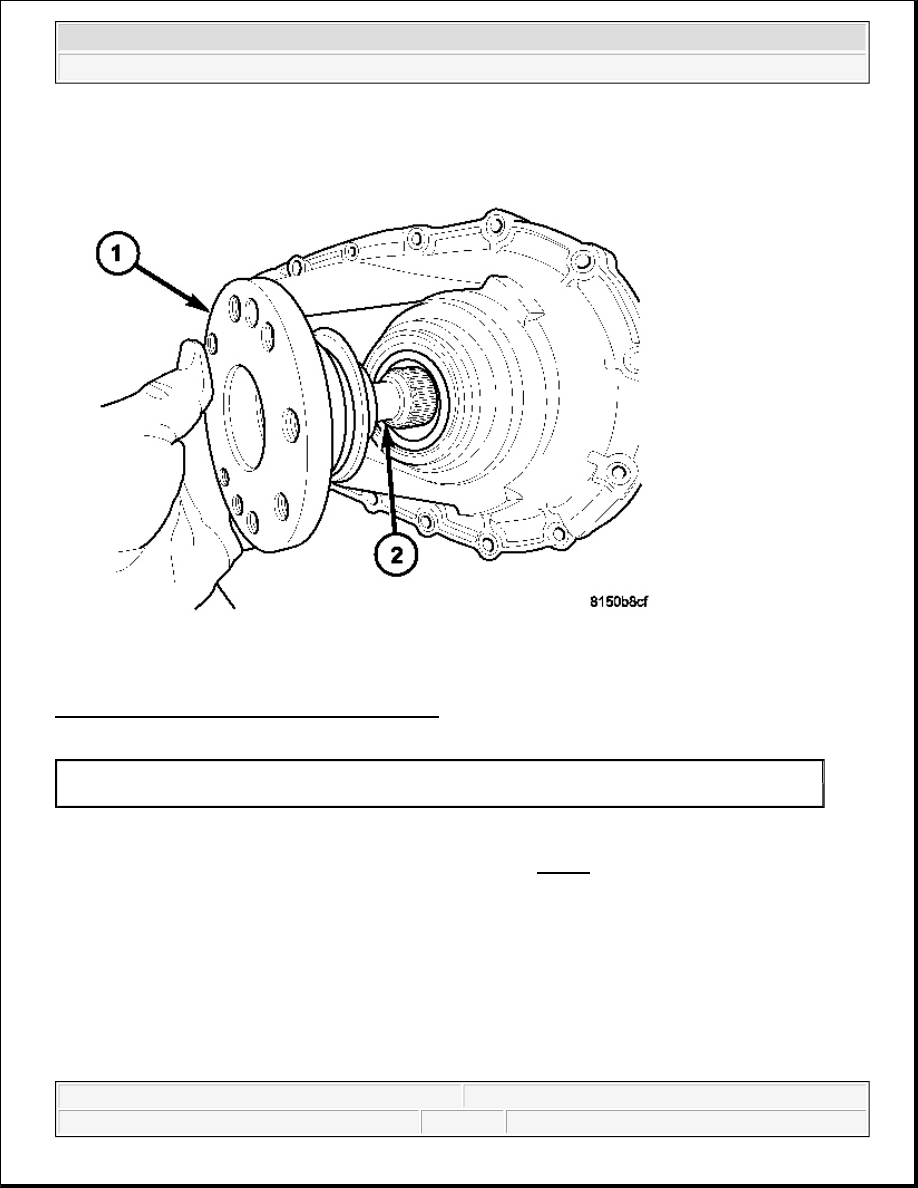

Fig. 61: Remove/Install Rear Output Shaft Flange
Courtesy of CHRYSLER LLC

1. Install a new rear output seal into the rear cover with Installer C-3972A.

2. Install the rear output flange (1) onto the main shaft (2). See Fig. 61.

1 - REAR OUTPUT SHAFT FLANGE
2 - REAR OUTPUT SHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



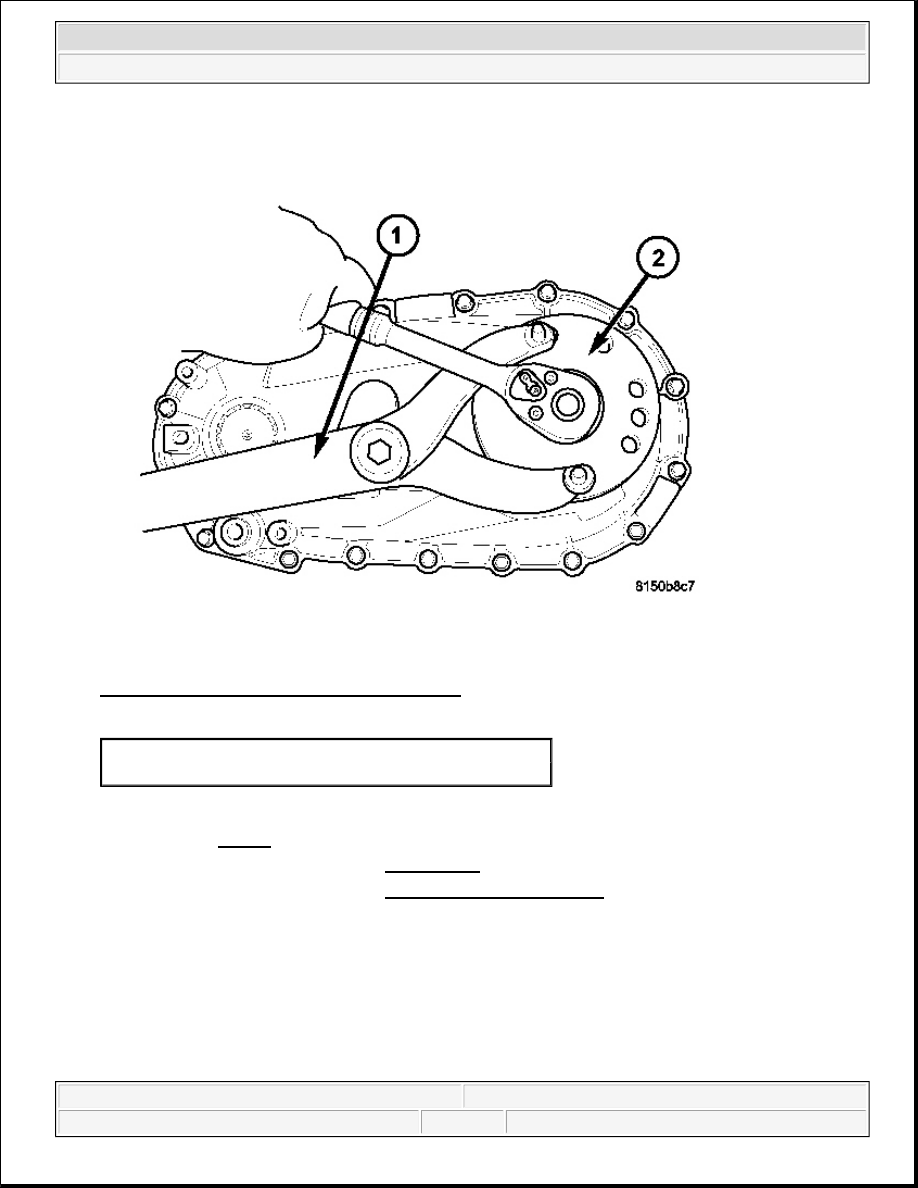

Fig. 62: Remove/Install Rear Output Shaft Nut
Courtesy of CHRYSLER LLC

3. Using Holder C-3281 (1), install the rear companion flange (2) nut. Tighten the nut to 122-176 N.m (90-

130 ft.lbs.). See Fig. 62.

4. Install the rear propeller shaft. Refer to REMOVAL .

5. Check the transfer case fluid level. See STANDARD PROCEDURE. Correct as necessary.

1 - HOLDER C-3281
2 - REAR OUTPUT SHAFT FLANGE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



2007 TRANSFER CASE

MP143 - Service Information - Nitro

MP143 - SERVICE INFORMATION

DESCRIPTION

DESCRIPTION-TRANSFER CASE MP143

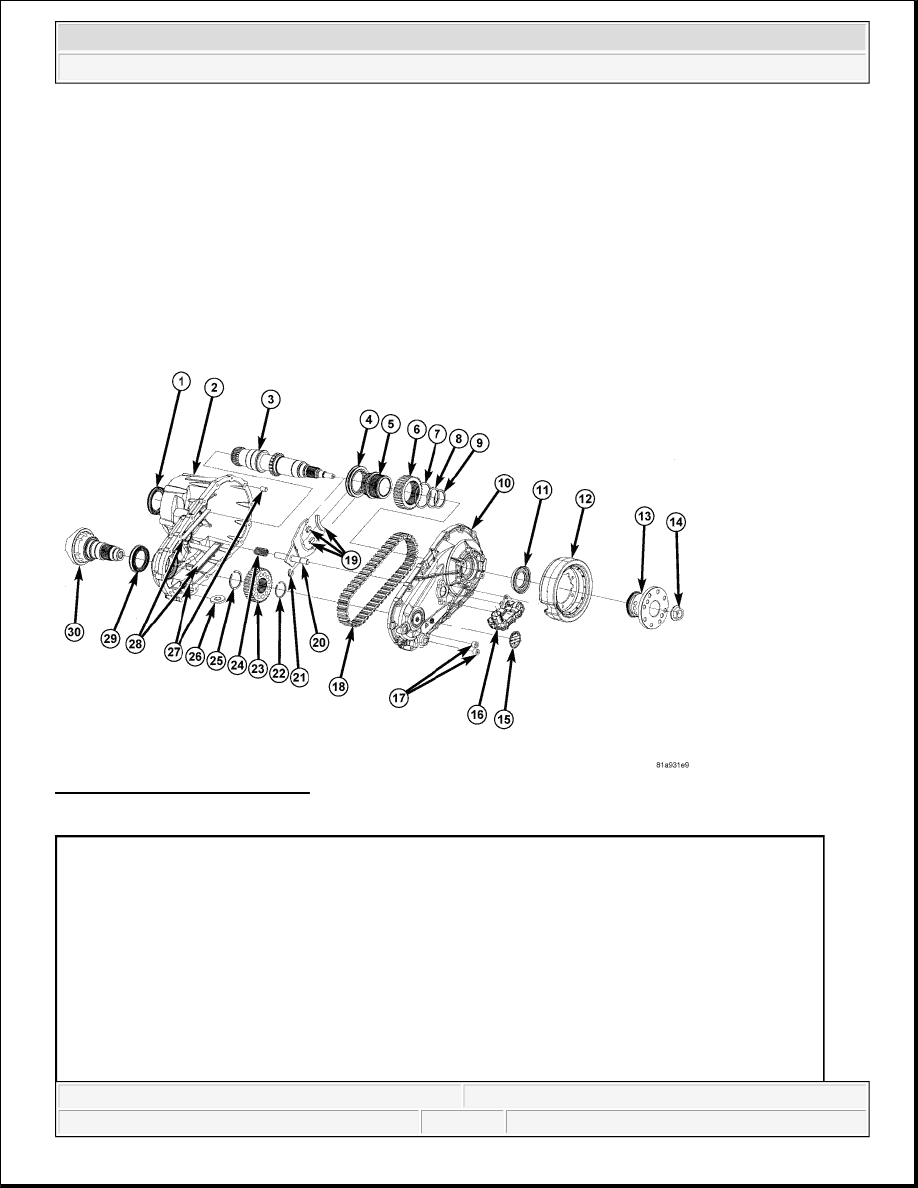

Fig. 1: Exploded View Of MP143
Courtesy of CHRYSLER LLC

1 - INPUT SHAFT SEAL

16 - SHIFT MOTOR

2 - FRONT CASE

17 - DRAIN/FILL PLUGS

3 - MAINSHAFT

18- DRIVE CHAIN

4 - MODE SLEEVE

19 - SHIFT LEVER PAD

5 - MODE HUB

20 - MODE FORK ASSEMBLY

6 - DRIVE SPROCKET

21- RETAINING CLIP

7 - RETAINING RING

22 - RETAINING RING

8 - THRUST WASHER

23 - DRIVE GEAR

9 - RETAINING RING

24 - SHIFT LEVER RETURN SPRING

10 - REAR CASE

25 - RETAINING RING

11 - OUTPUT SHAFT SEAL

26 - POCKET MAGNET
