Dodge Nitro. Manual - part 951

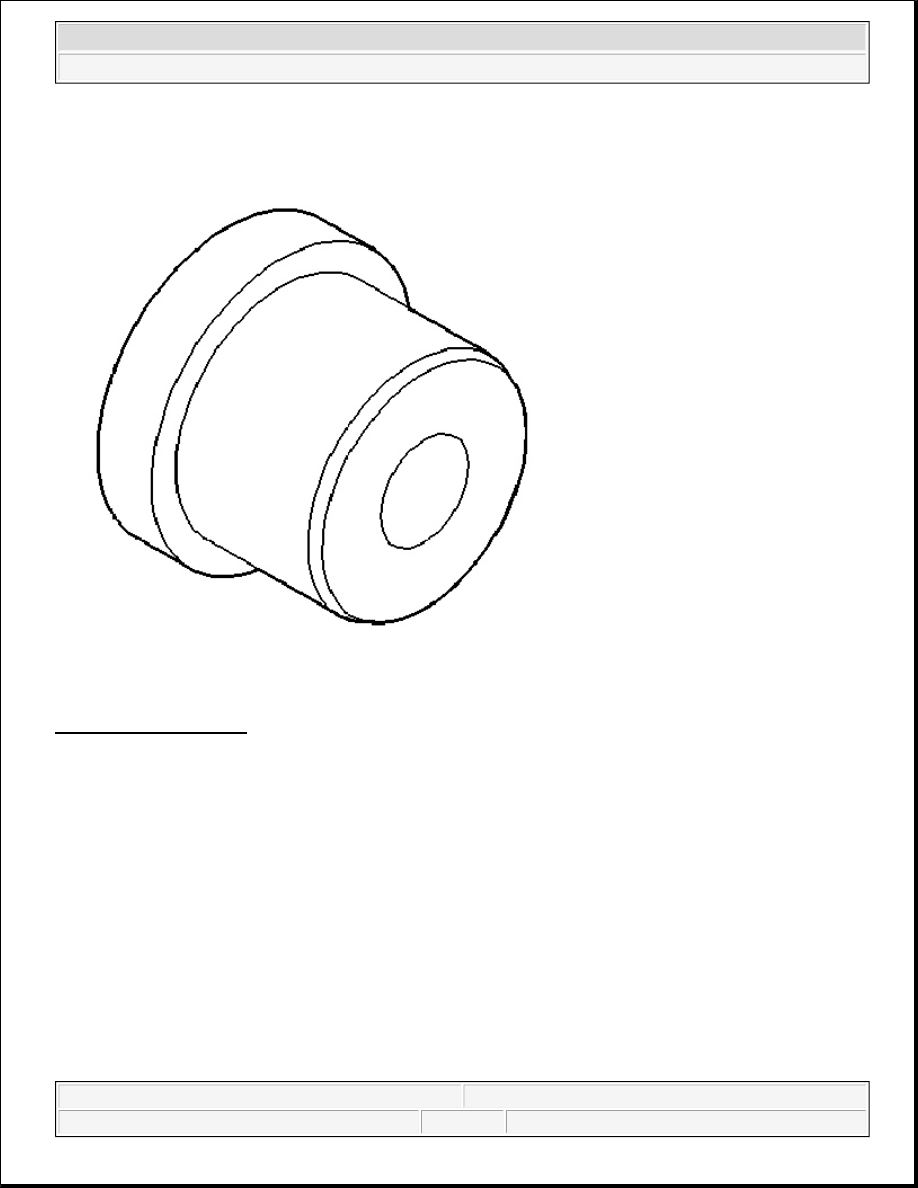

Fig. 56: Installer - 8693A
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro

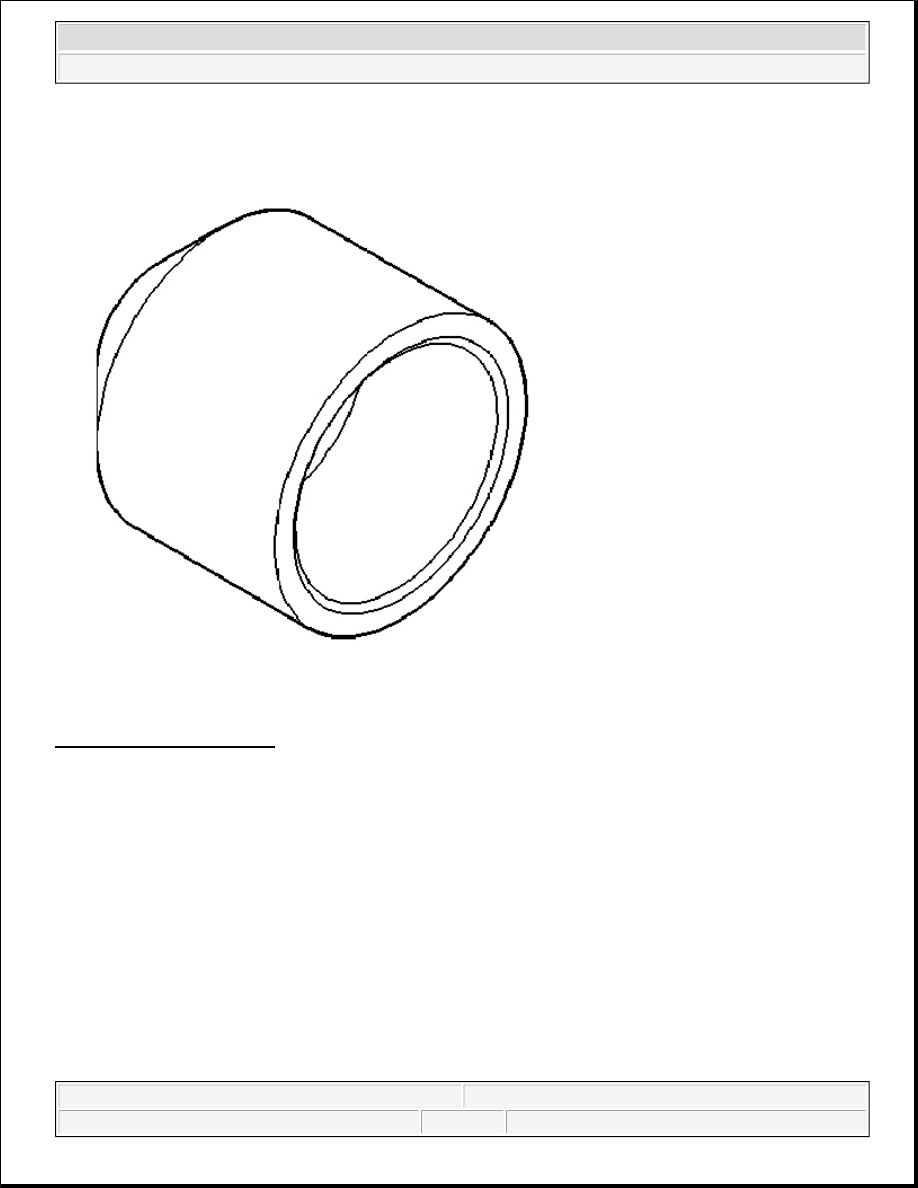

Fig. 57: Installer, Seal - 9672
Courtesy of CHRYSLER LLC

FLUID

STANDARD PROCEDURE

FLUID DRAIN/REFILL



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



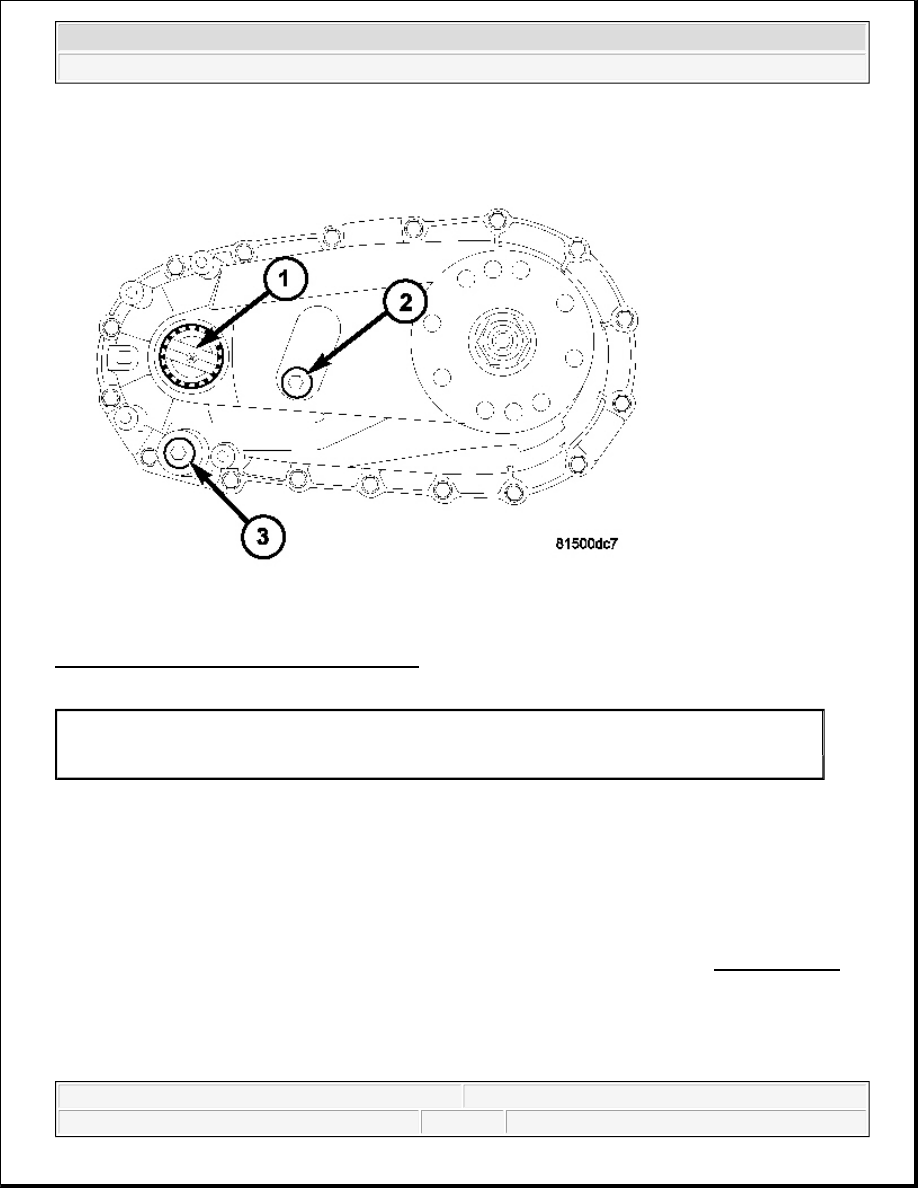

Fig. 58: Fill/Drain Plug And I.D. Tag Locations
Courtesy of CHRYSLER LLC

1. Position drain pan under transfer case.

2. Remove drain and fill plugs and drain lubricant completely.

3. Install drain plug. Tighten plug to 12 -15 N.m (9 -11ft. lbs.).

4. Remove drain pan.

5. Fill transfer case to bottom edge of fill plug opening with the required fluid. Refer to DESCRIPTION .

6. Install and tighten fill plug to 12-15 N.m (9-1 1ft. lbs.).

SEAL-FRONT OUTPUT SHAFT

REMOVAL

1 - I.D. TAG
2 - FILL PLUG
3 - DRAIN PLUG

NOTE:

The fill (2) and drain (3) plugs are both in the rear case.



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



FRONT OUTPUT SHAFT SEAL

The front output shaft seal and wear sleeve cannot be serviced in the vehicle. The transfer case must be
disassembled to remove the front output shaft assembly and seal.

SEAL-REAR OUTPUT SHAFT

REMOVAL

TRANSFER CASE - MP140

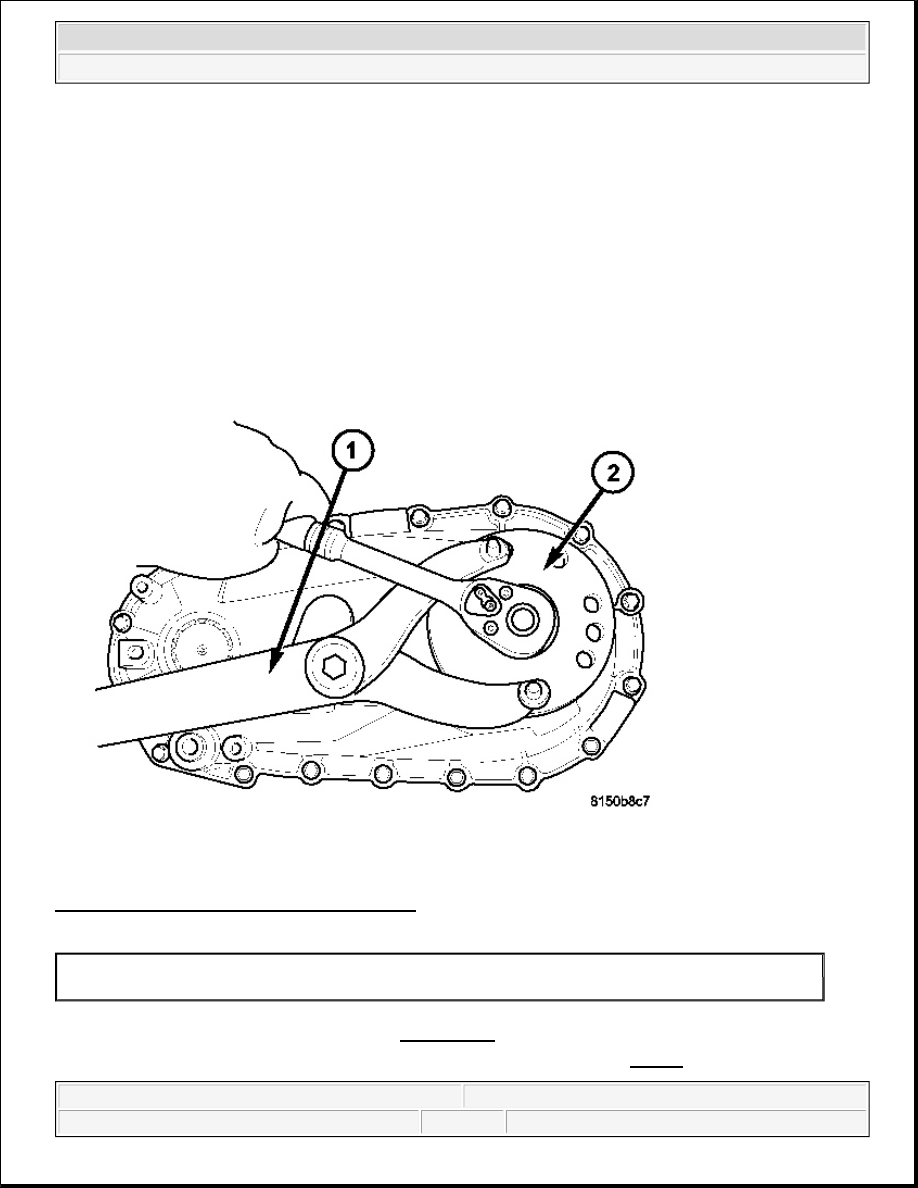

Fig. 59: Remove/Install Rear Output Shaft Nut
Courtesy of CHRYSLER LLC

1. Remove the rear propeller shaft. Refer to REMOVAL .

2. Using Holder C-3281 (1), remove the rear companion flange (2) nut. See Fig. 59.

1 - HOLDER C-3281
2 - REAR OUTPUT SHAFT FLANGE
