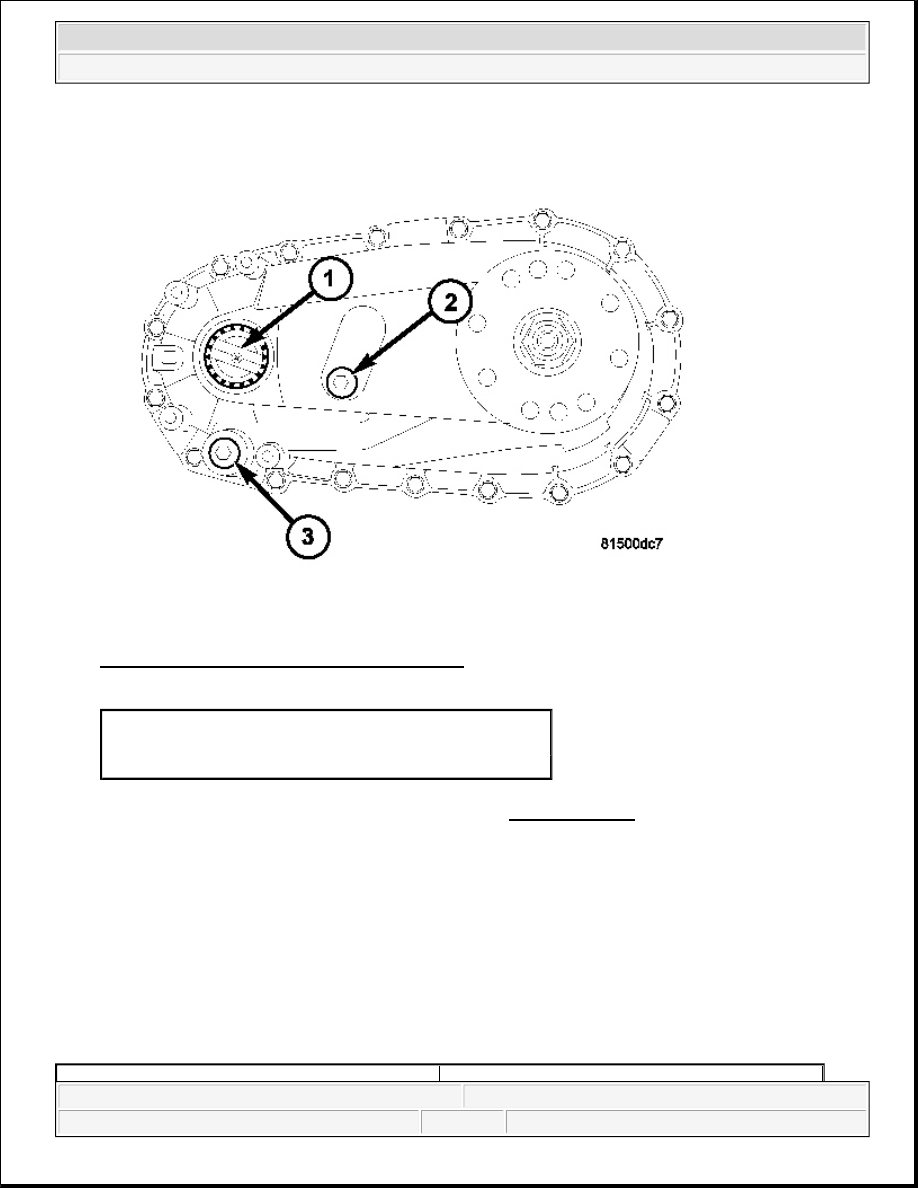

Fig. 48: Fill/Drain Plug And I.D. Tag Locations
Courtesy of CHRYSLER LLC

8. For NV140, fill transfer case with correct fluid. Refer to DESCRIPTION . Correct as necessary.

9. Install the transfer case fill plug (1). Tighten the plug to 12 - 15N.m (9-11 ft.lbs.).

10. Install rear crossmember and skid plate, if equipped. Tighten crossmember bolts to 41 N.m (30 ft. lbs.)

torque.

11. Remove transmission jack and support stand.

12. Lower vehicle and verify transfer case shift operation.

SPECIFICATIONS

TRANSFER CASE - MP140

SPECIFICATIONS

1 - I.D. TAG
2 - FILL PLUG
3 - DRAIN PLUG



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



TORQUE SPECIFICATIONS

SPECIAL TOOLS

SPECIAL TOOLS-MP140

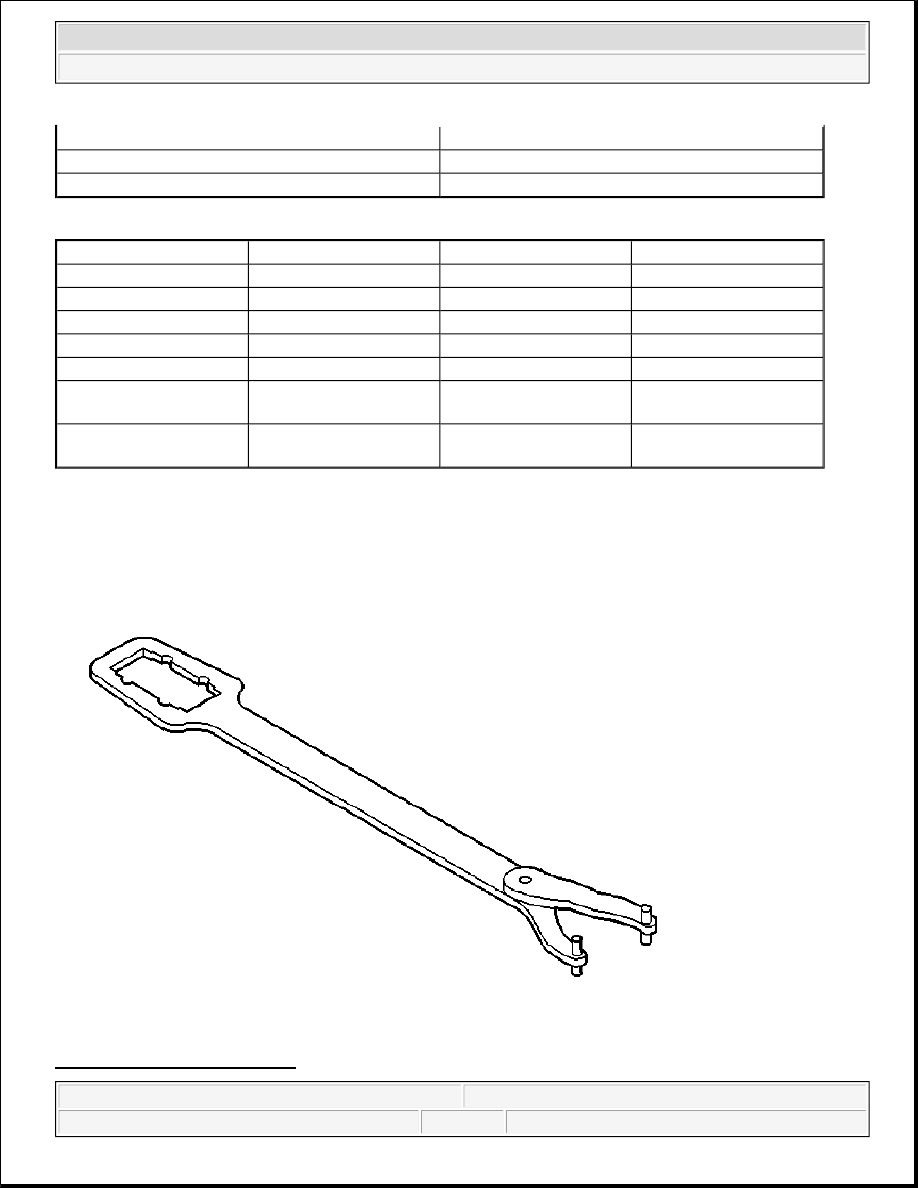

Fig. 49: Flange Wrench C-3281

DESCRIPTION

SPECIFICATION

FLUID TYPE

MOPAR® AFT+4

Capacity

.85L (180 pints)

DESCRIPTION

N.m

Ft. Lbs.

In. Lbs.

Bolt, crossmember

41

30

-

Plugs, drain/fill

12 - 15

9 - 11

-

Bolts, case half

27

20

-

Nut, companion flange

122-176

90-130

-

Screws, Chain Guide Rail

5-8

-

44-71

Nuts, Transfer Case to

Transmission

35

26

-

Bolt, Damper to Transfer

Case

27

20

-



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Courtesy of CHRYSLER LLC

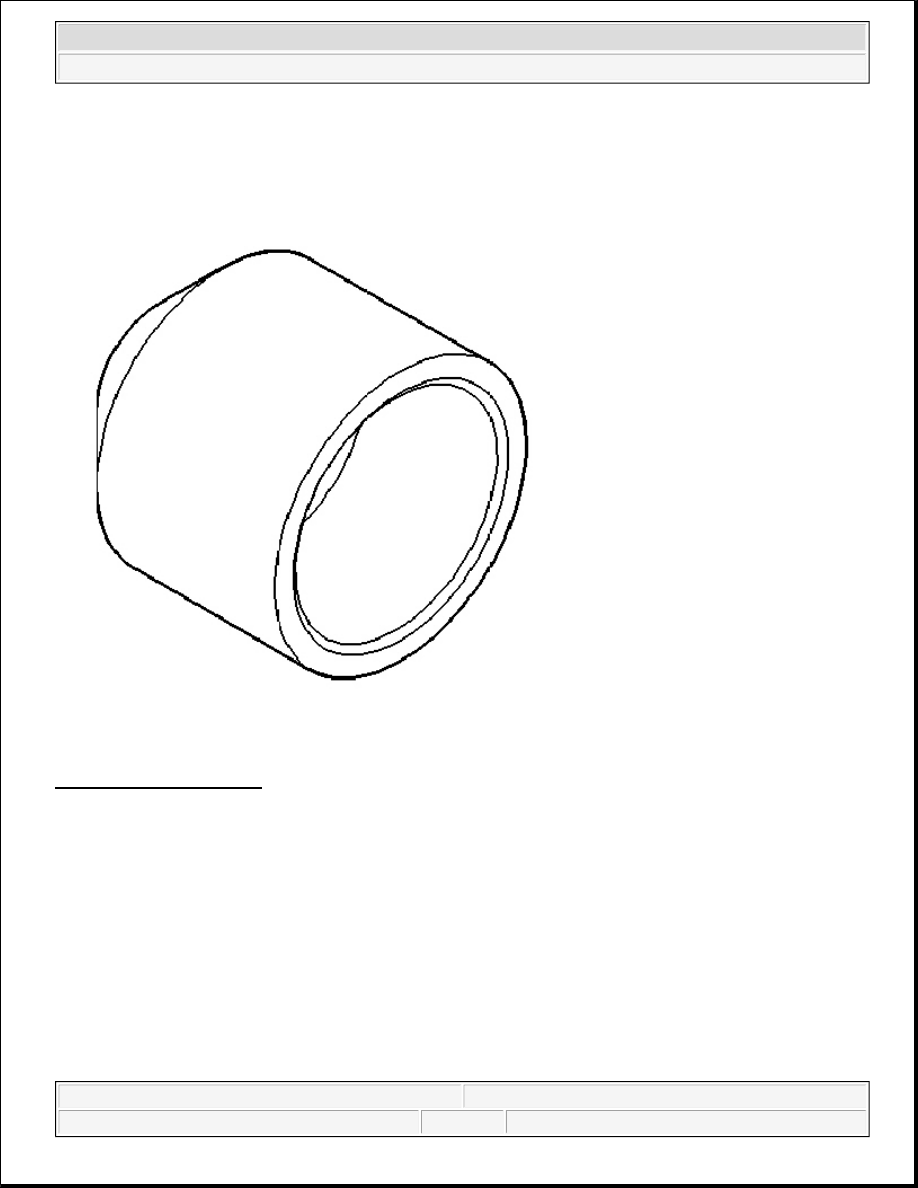

Fig. 50: Installer C-3972-A
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Fig. 51: Universal Driver Handle - C4171
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro
