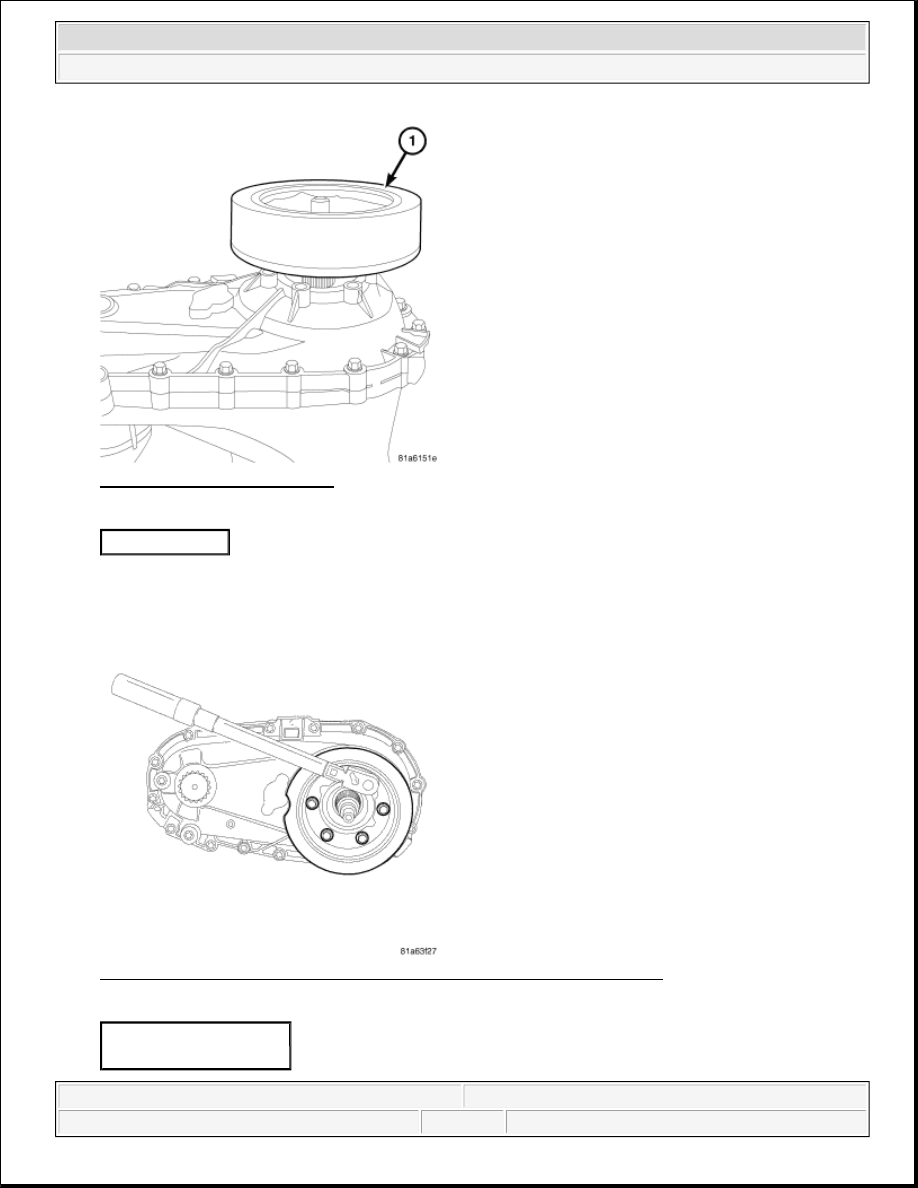

Fig. 42: Identifying Dampener
Courtesy of CHRYSLER LLC

28. Install the dampener (1) onto the rear case.

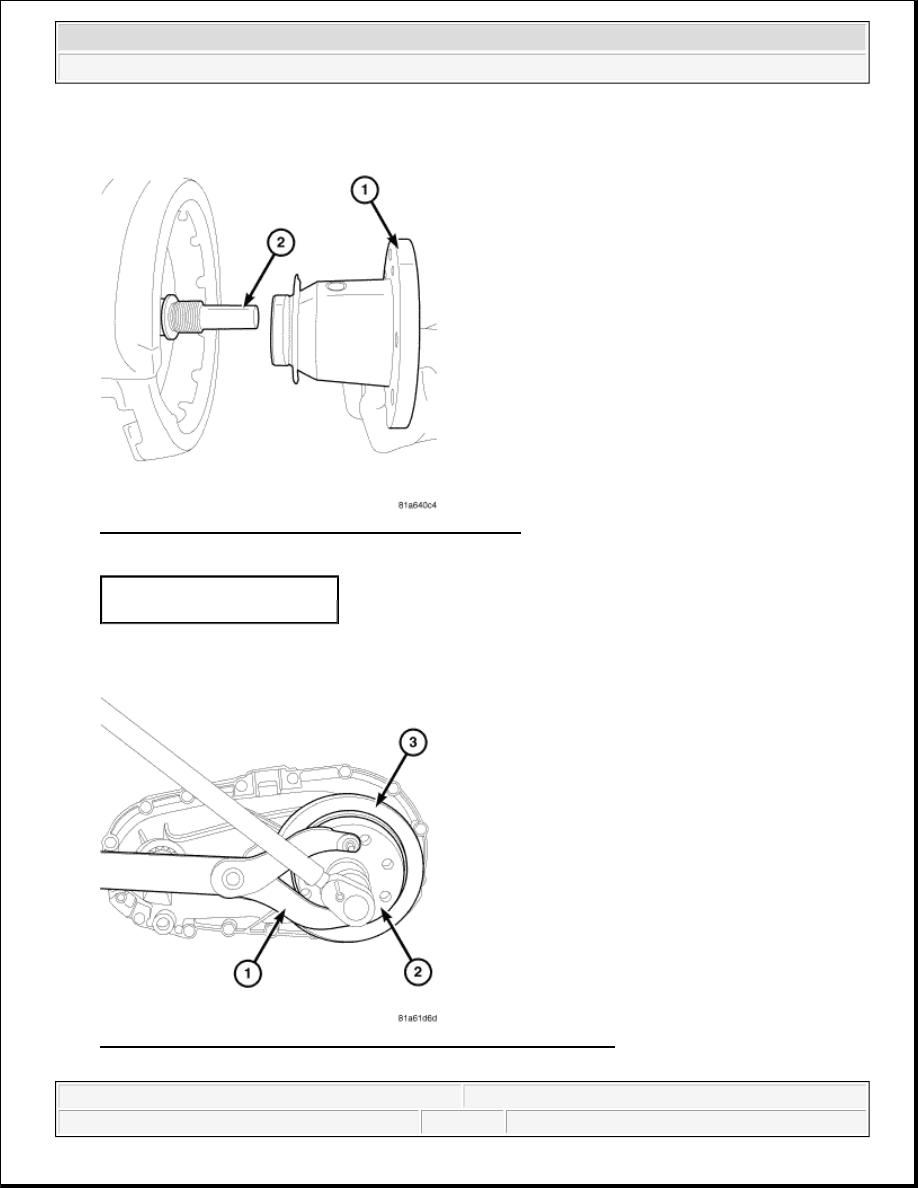

Fig. 43: Removing/Installing Rear Output Shaft Flange From Main Shaft
Courtesy of CHRYSLER LLC

1 - DAMPENER

1 - DAMPENER BOLTS
2 - REAR CASE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



29. Install the bolts (1) to hold the damper (2) to the rear case (3). Tighten the bolts to 27 N.m (20 ft.lbs.).

Fig. 44: Identifying Output Shaft Flange & Main Shaft
Courtesy of CHRYSLER LLC

30. Install the rear output flange (1) onto the output shaft (2).

Fig. 45: Identifying Holder Tool, Output shaft Flange & Dampener
Courtesy of CHRYSLER LLC

1 - OUTPUT SHAFT FLANGE
2 - MAIN SHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



31. Using Holder C-3281 (1), install the rear companion flange nut. Tighten the nut to 122-176 N.m (90-130

ft.lbs.).

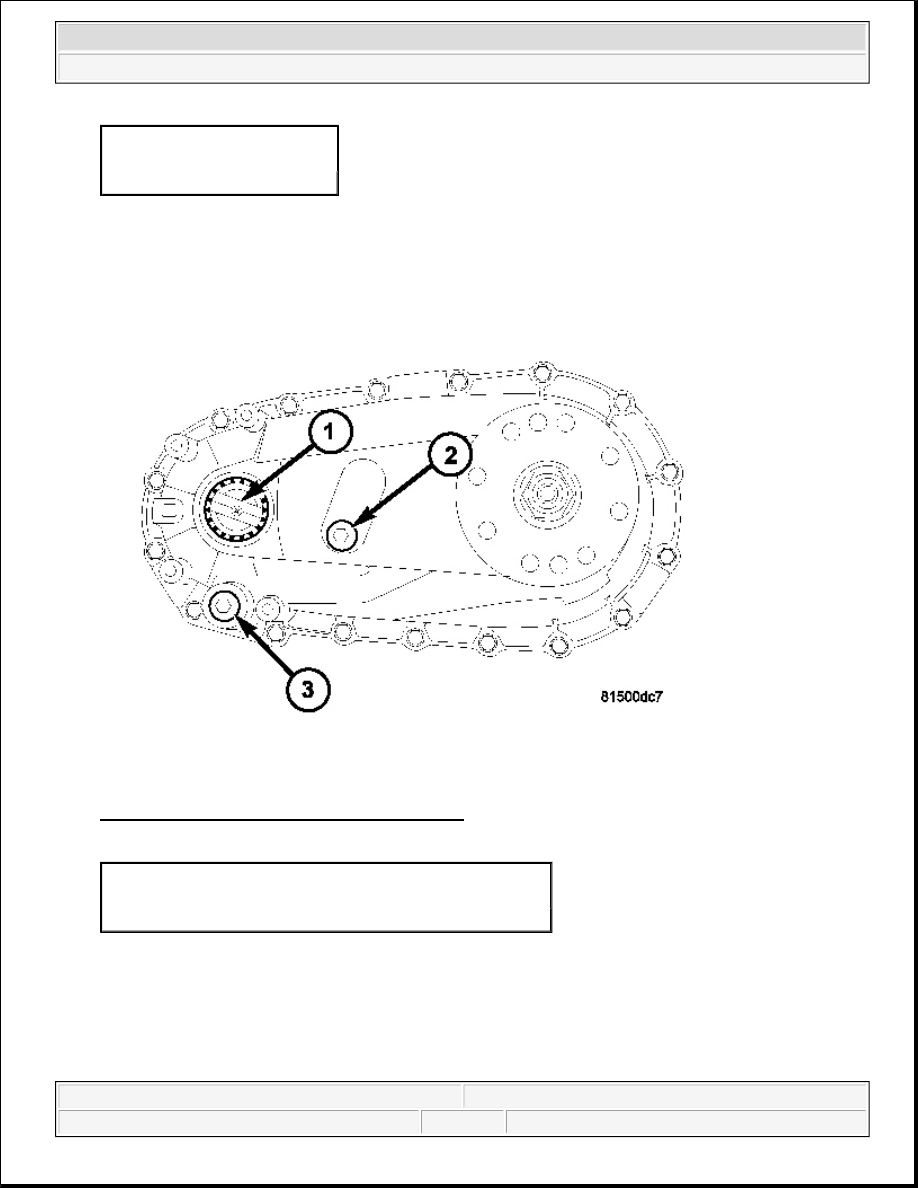

Fig. 46: Fill/Drain Plug And I.D. Tag Locations
Courtesy of CHRYSLER LLC

32. Install and tighten drain plug (3) to 20-34 N.m (15-25 ft. lbs.)

INSTALLATION

TRANSFER CASE - MP140

1 - HOLDER TOOL C-3281
2 - OUTPUT SHAFT FLANGE
3 - DAMPENER

1 - I.D. TAG
2 - FILL PLUG
3 - DRAIN PLUG



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



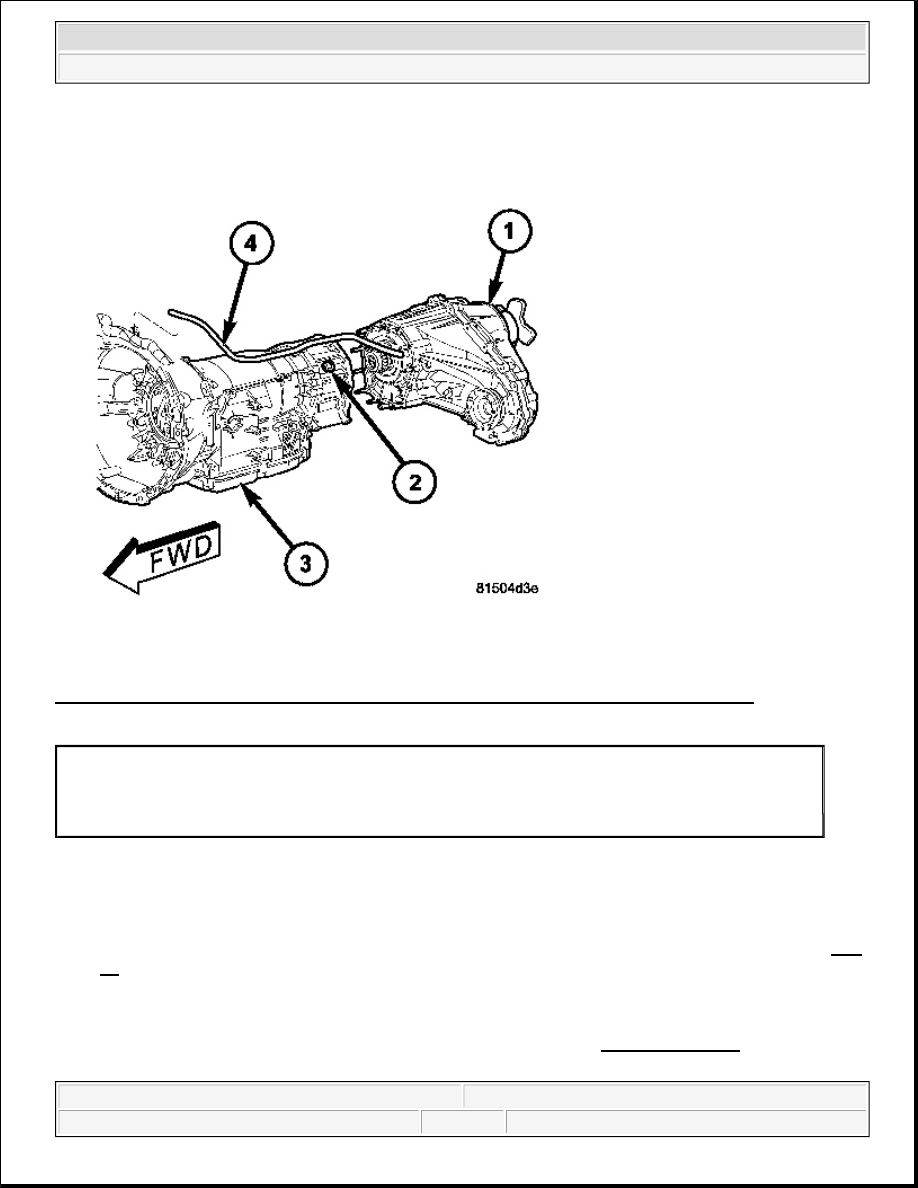

Fig. 47: Identifying MP140 Transfer Case, Nuts, Transmission & Transfer Case Vent Tube
Courtesy of CHRYSLER LLC

1. Mount transfer case on a transmission jack.

2. Secure transfer case to jack with chains.

3. Position transfer case under vehicle.

4. Align transfer case (1) and transmission (3) shafts and install transfer case onto the transmission. See Fig.

47.

5. Install and tighten transfer case attaching nuts (2) to 35 N.m (26 ft. lbs.) torque.

6. Connect the transfer case vent hose (4).

7. Connect front propeller shaft and install rear propeller shaft. Refer to INSTALLATION .

1 - MP140 TRANSFER CASE
2 - NUTS
3 - TRANSMISSION
4 - TRANSFER CASE VENT TUBE
