10. Loosen rear case with a case splitter or suitable tool to break sealer bead. Insert case splitter or suitable

tool only into notches provided at each end of case.

11. Remove rear case (1) from front case (2).

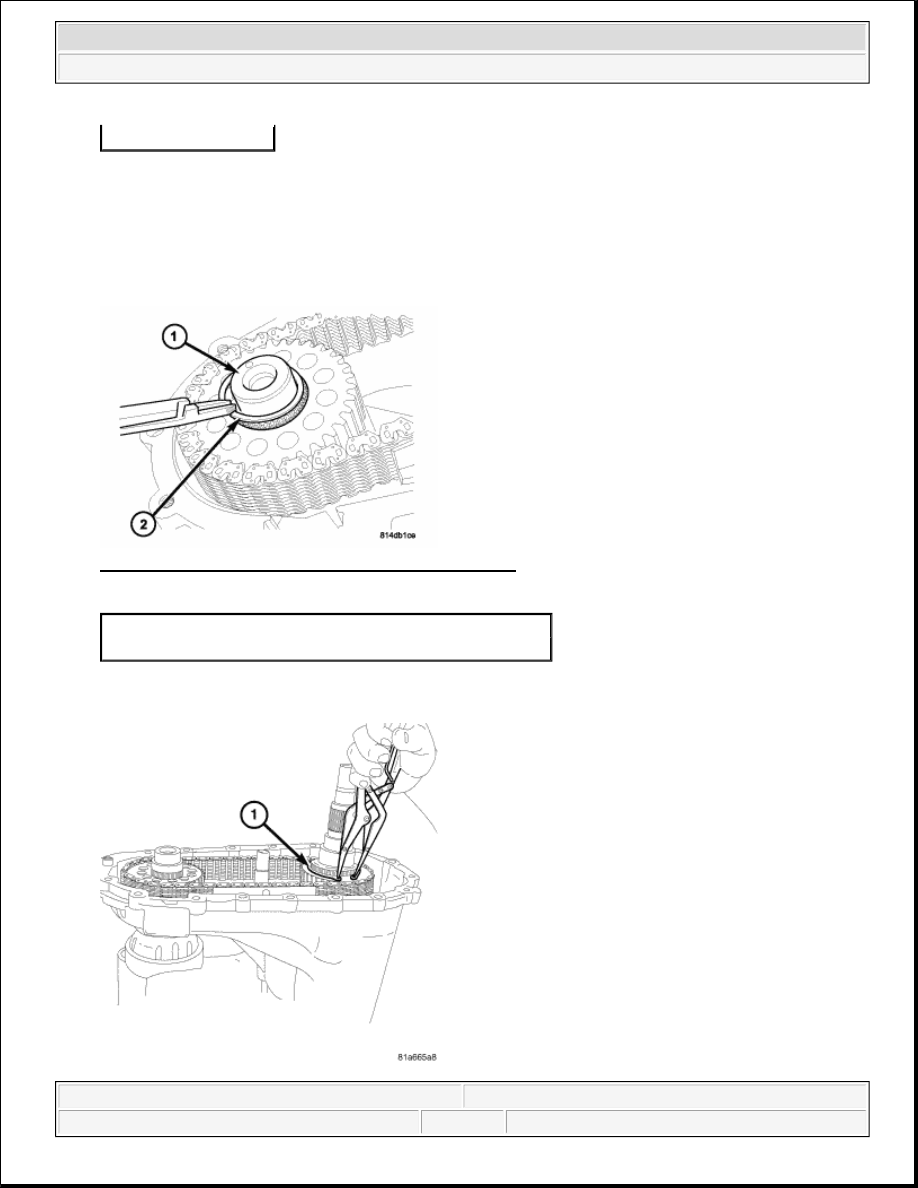

Fig. 14: Remove Front Drive Sprocket Retaining Ring
Courtesy of CHRYSLER LLC

12. Remove front output shaft drive sprocket retaining ring (2) from the front output shaft (1).

2 - FRONT HOUSING

NOTE:

Be careful not to damage the front and rear case sealing surfaces.

1 - FRONT OUTPUT SHAFT
2 - RETAINING RING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



Fig. 15: Removing/Installing Retaining Ring
Courtesy of CHRYSLER LLC

13. Remove mainshaft drive sprocket retaining ring (1).

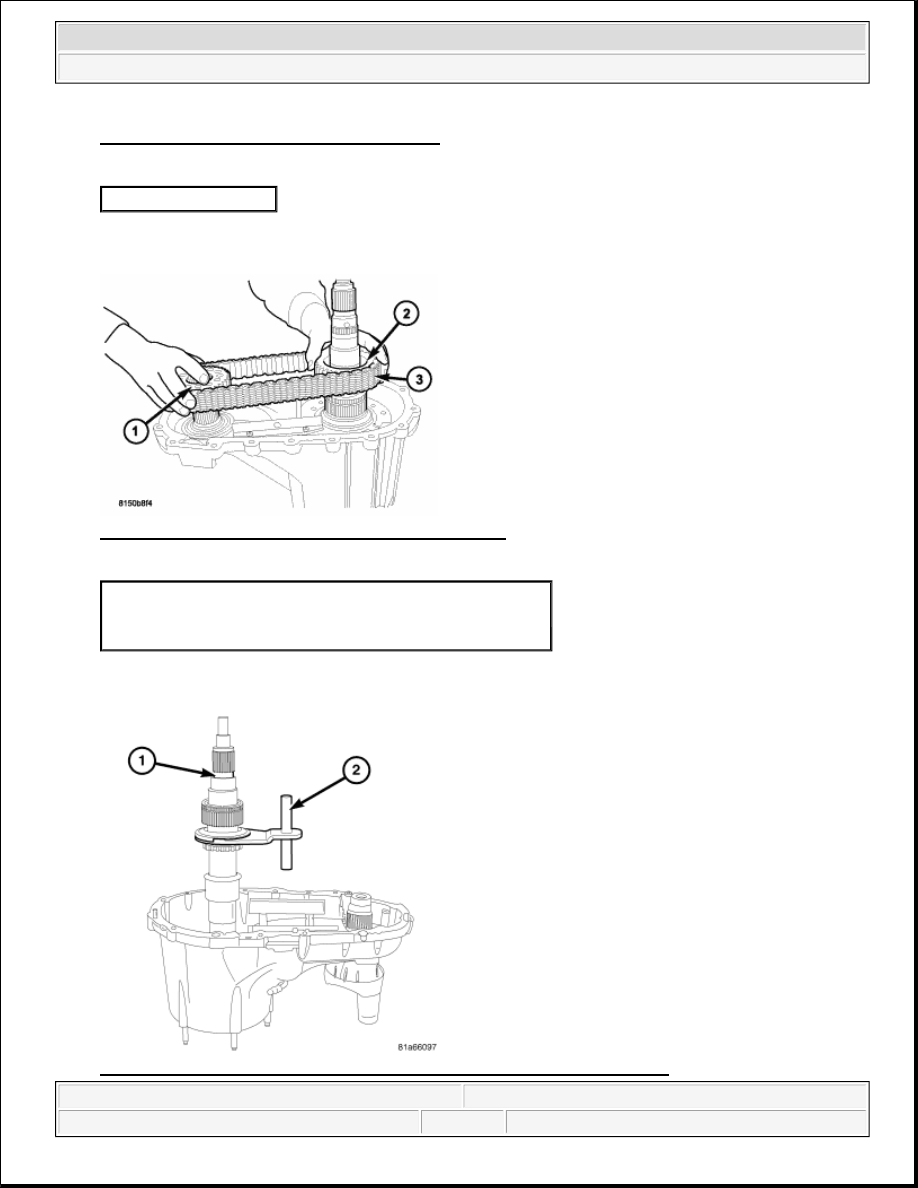

Fig. 16: Removing Drive Sprockets And Drive Chain
Courtesy of CHRYSLER LLC

14. Remove the drive sprockets (1, 2) and the drive chain (3) as one.

Fig. 17: Removing Mainshaft And Mode Fork Assembly From Front Case

1 - RETAINING RING

1 - FRONT DRIVE SPROCKET
2 - MAINSHAFT DRIVE SPROCKET
3 - DRIVE CHAIN



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



Courtesy of CHRYSLER LLC

15. Remove the mainshaft (1) and mode fork assembly (2) from the front case.

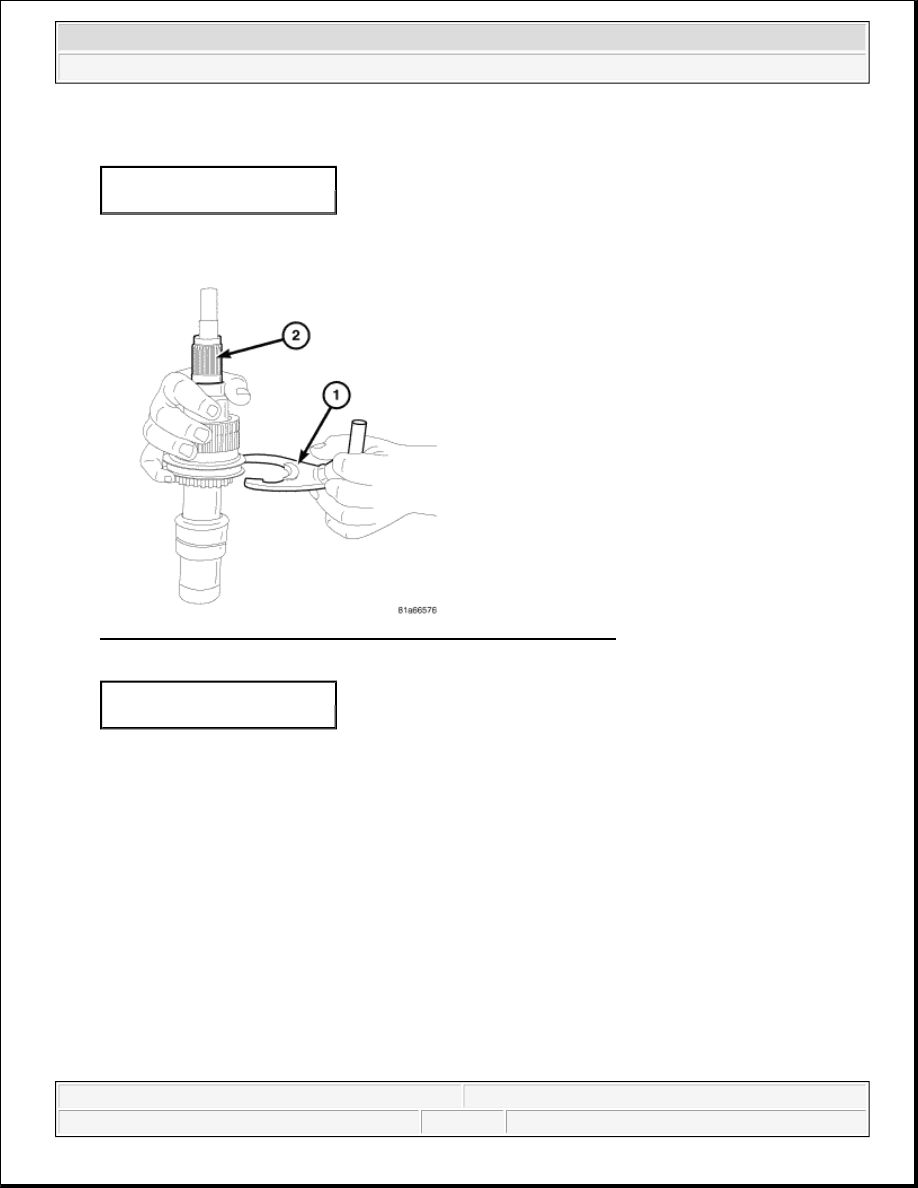

Fig. 18: Removing/Installing Mode Fork Assembly Onto Mainshaft
Courtesy of CHRYSLER LLC

16. Remove the mode fork assembly (1) from the mainshaft (2).

1 - MAINSHAFT
2 - MODE FORK ASSEMBLY

1 - MODE FORK ASSEMBLY
2 - MAINSHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



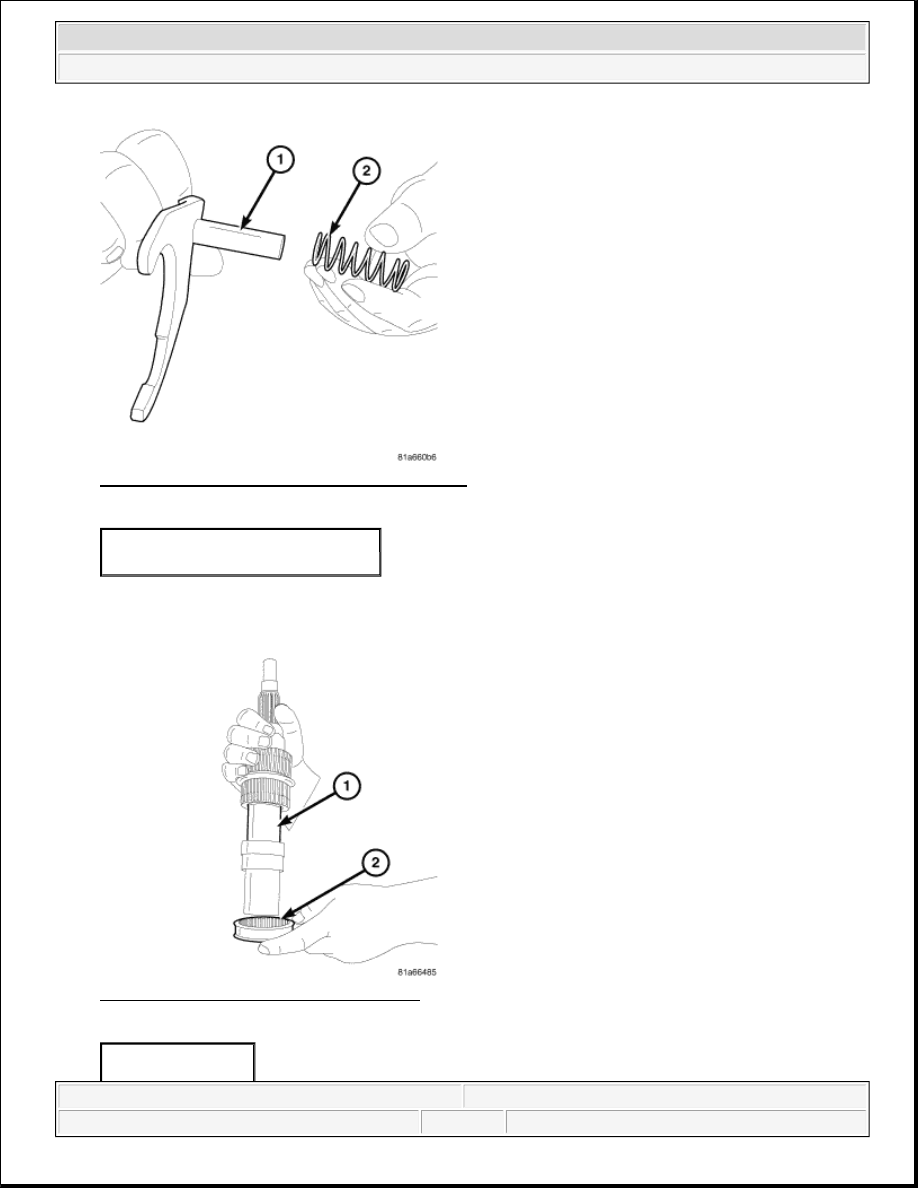

Fig. 19: Removing/Installing Mode Fork Spring
Courtesy of CHRYSLER LLC

17. Remove the mode fork spring (2) from the mode fork rod (1).

Fig. 20: Removing/Installing Mode Sleeve
Courtesy of CHRYSLER LLC

1 - MODE FORK
2 - MODE FORK RETURN SPRING

1 - MAINSHAFT
