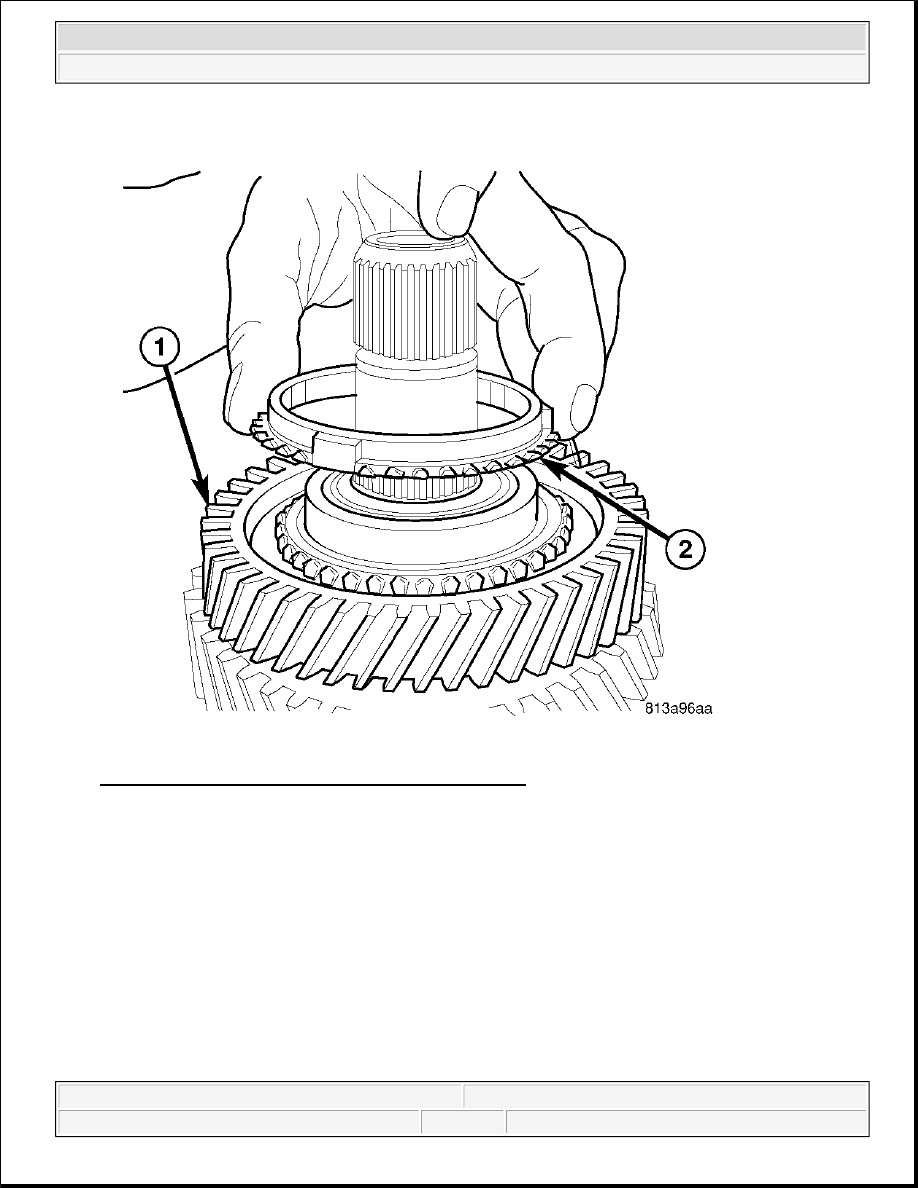

Fig. 81: Identifying Reverse Gear & Synchronizer Ring
Courtesy of CHRYSLER LLC

18. Install reverse gear (1) synchronizer friction ring (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

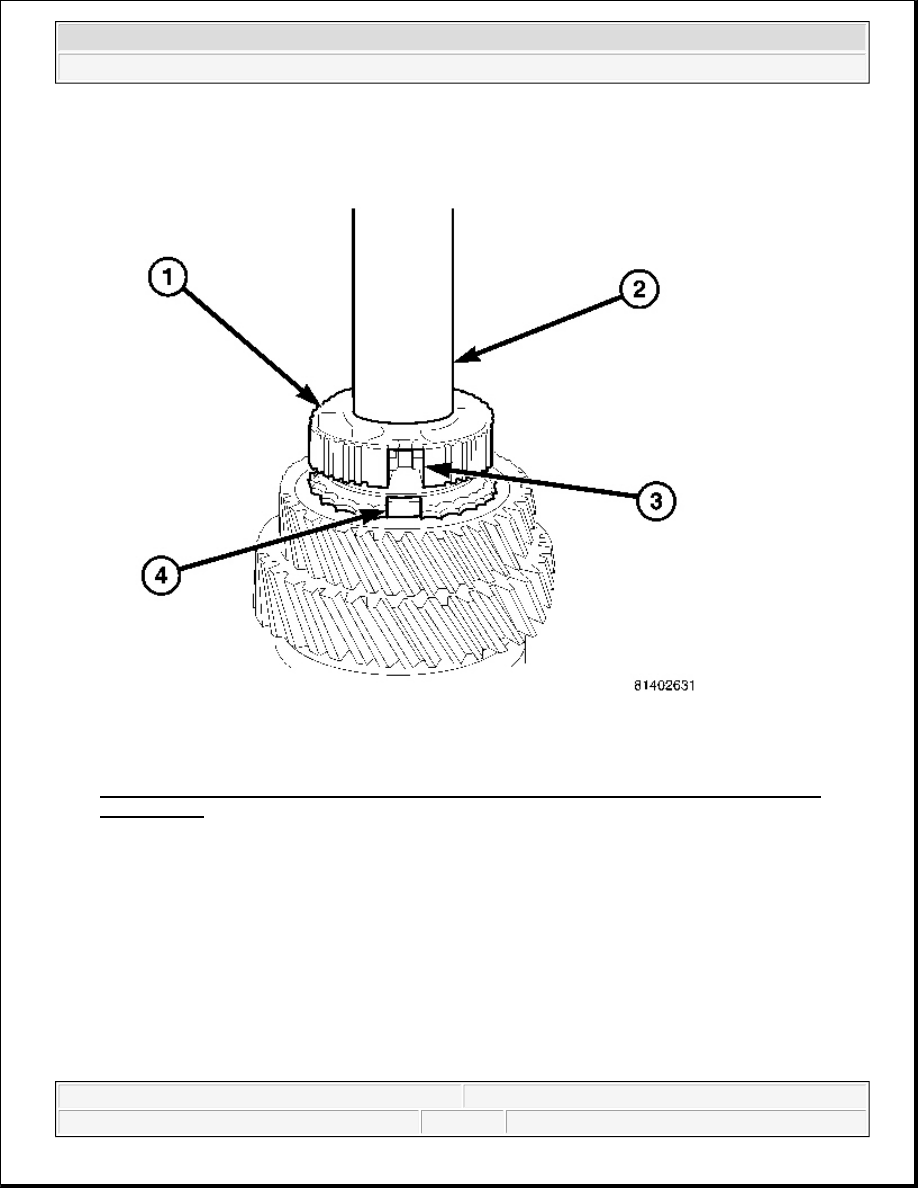

Fig. 82: Identifying Reverse Gear Synchronizer Hub, Installer W-262, Hub Detent Opening &
Friction Ring
Courtesy of CHRYSLER LLC

19. Install reverse gear synchronizer hub (1) on mainshaft with Installer W-262 (2) and a press. Align hub

detent opening (3) with friction ring (4) lugs.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

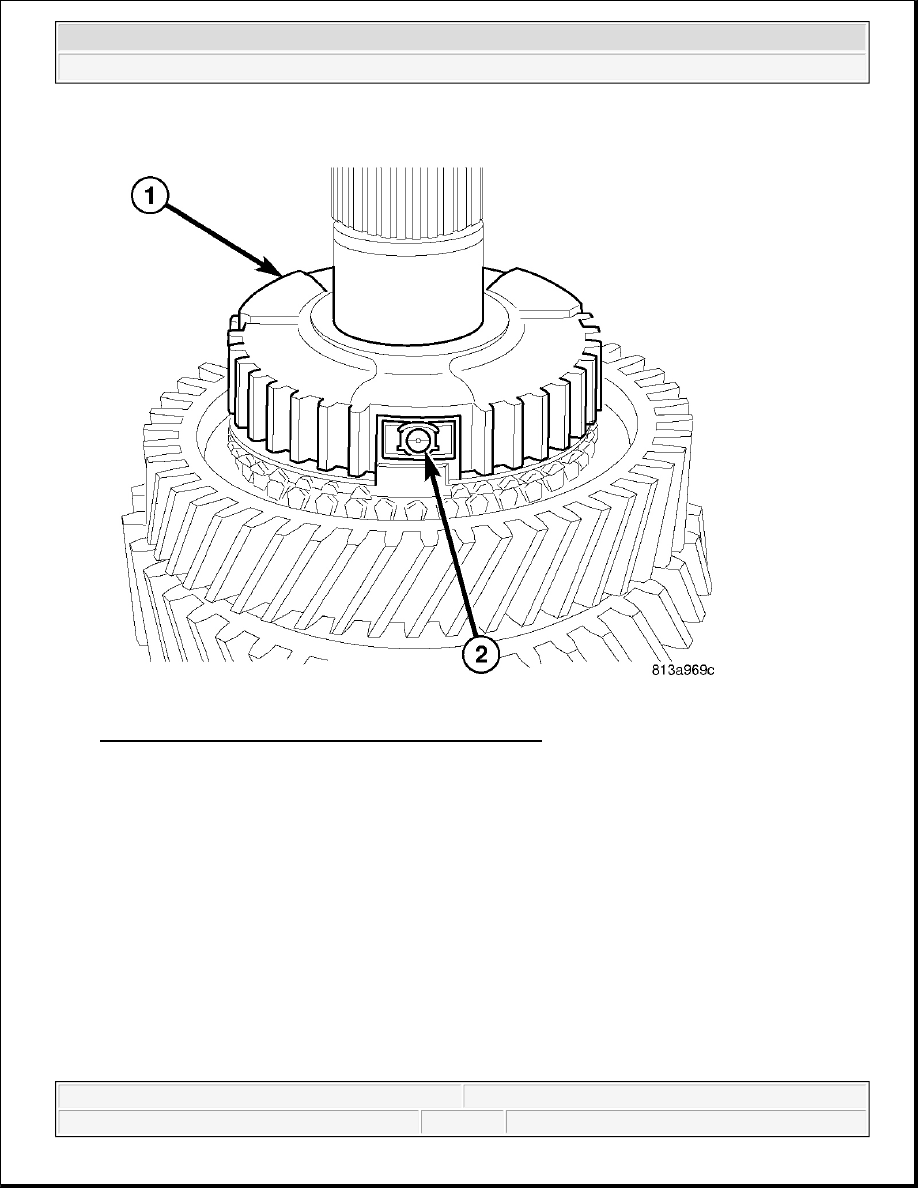

Fig. 83: Identifying Reverse Synchronizer Hub & Detents
Courtesy of CHRYSLER LLC

20. Install reverse gear synchronizer hub (1) detents (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

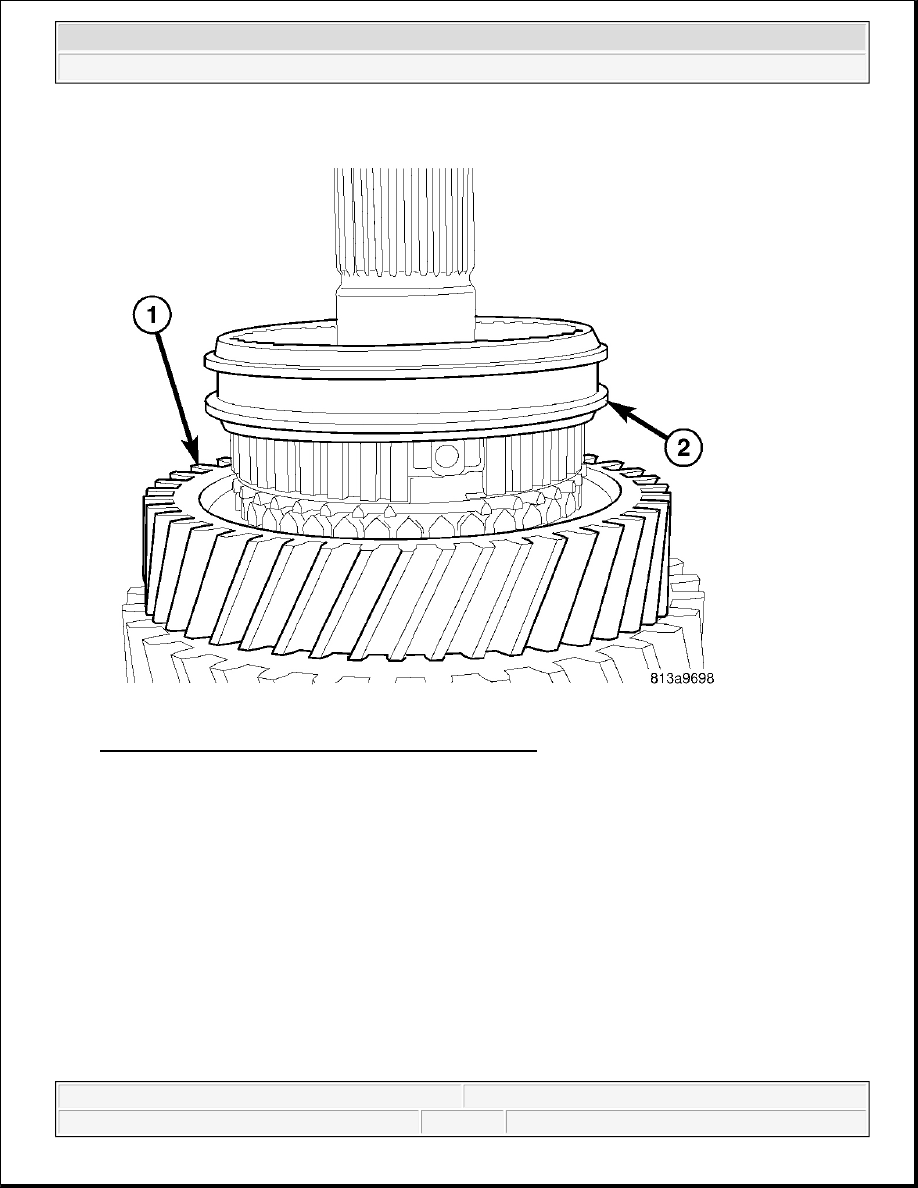

Fig. 84: Identifying Reverse Gear & Synchronizer Sleeve
Courtesy of CHRYSLER LLC

21. Install reverse gear (1) synchronizer sleeve (2) with tooth points pointing down and center sleeve on

synchronizer hub.

22. Remove mainshaft from Fixture 9648. Turn fixture over in the vise, then install opposite end of mainshaft

in the fixture.
