Fig. 85: Sixth Gear & Bearing
Courtesy of CHRYSLER LLC

23. Install sixth gear (1) and bearing (2) on mainshaft.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

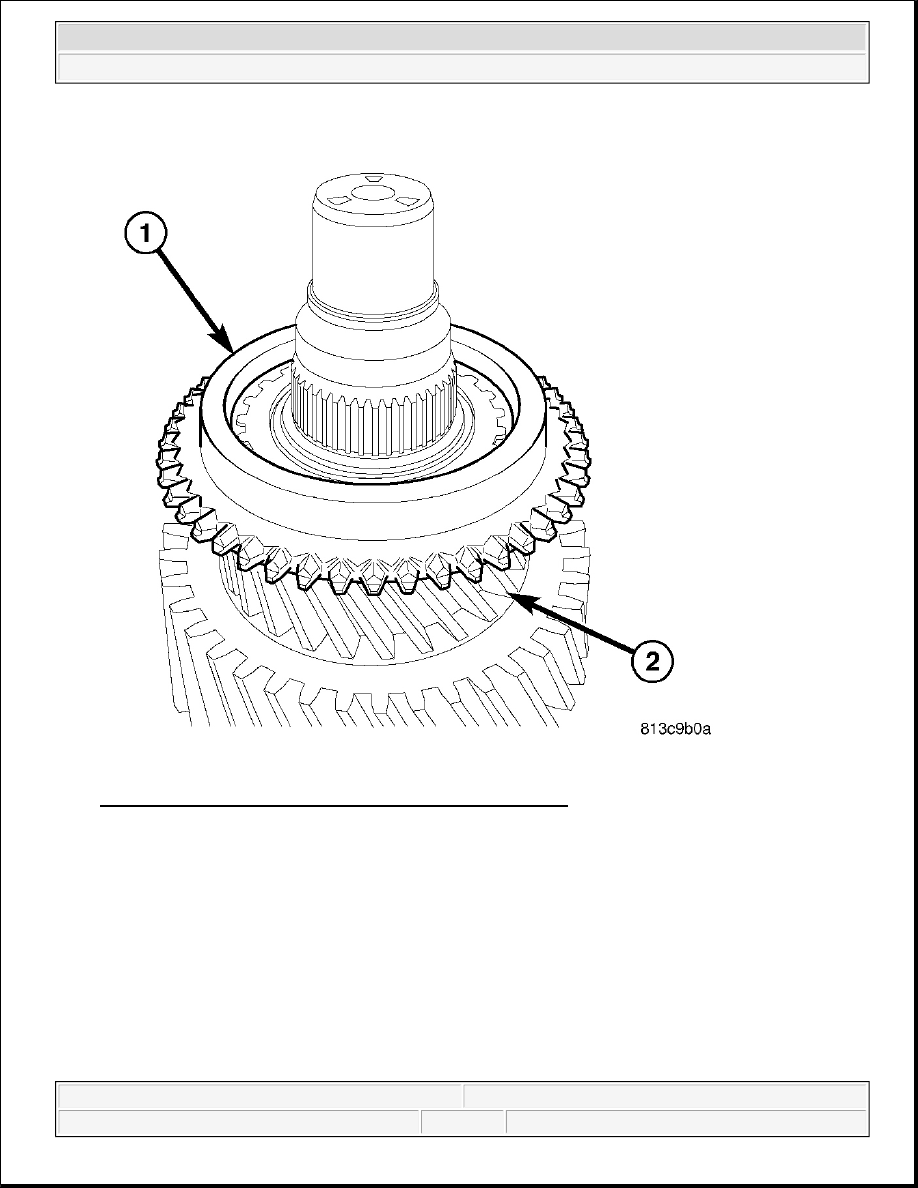

Fig. 86: Sixth Gear Synchronizer Blocker Ring & Sixth Gear
Courtesy of CHRYSLER LLC

24. Install sixth gear synchronizer blocker ring (1) on sixth gear (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

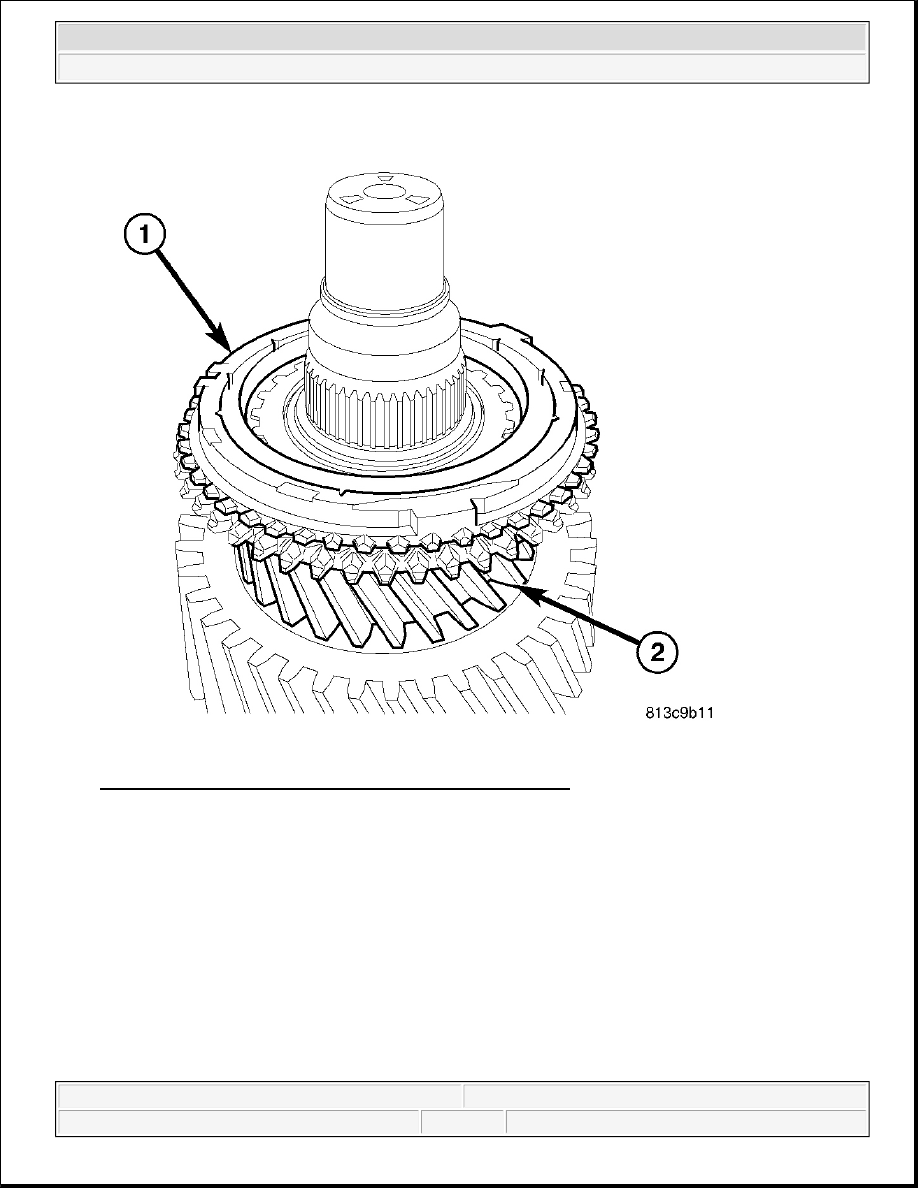

Fig. 87: Sixth Gear Synchronizer Friction Ring & Sixth Gear
Courtesy of CHRYSLER LLC

25. Install sixth gear synchronizer friction ring (1) on sixth gear (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

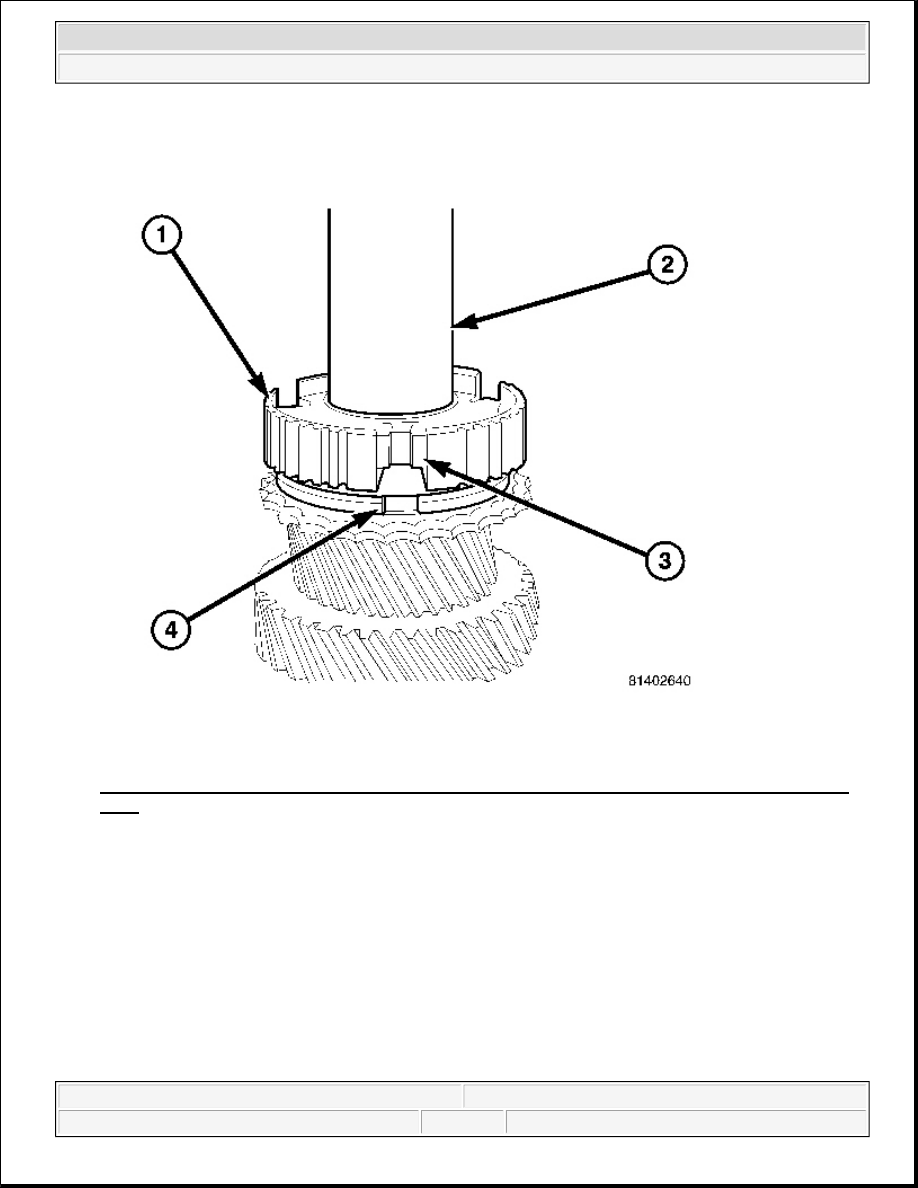

Fig. 88: Identifying 5-6 Synchronizer Hub, Installer W-262, Hub Detent Opening & Friction Ring
Lugs
Courtesy of CHRYSLER LLC

26. Install 5-6 synchronizer hub (1) with Installer W-262 (2) and a press. Align hub detent opening (3) with

friction ring lugs (4).

NOTE:

5-6 synchronizer hub center, is offset and must be install with larger offset
down.
