Dodge Nitro. Manual - part 607





5. Install pinion depth shim (1) on pinion shaft (2).

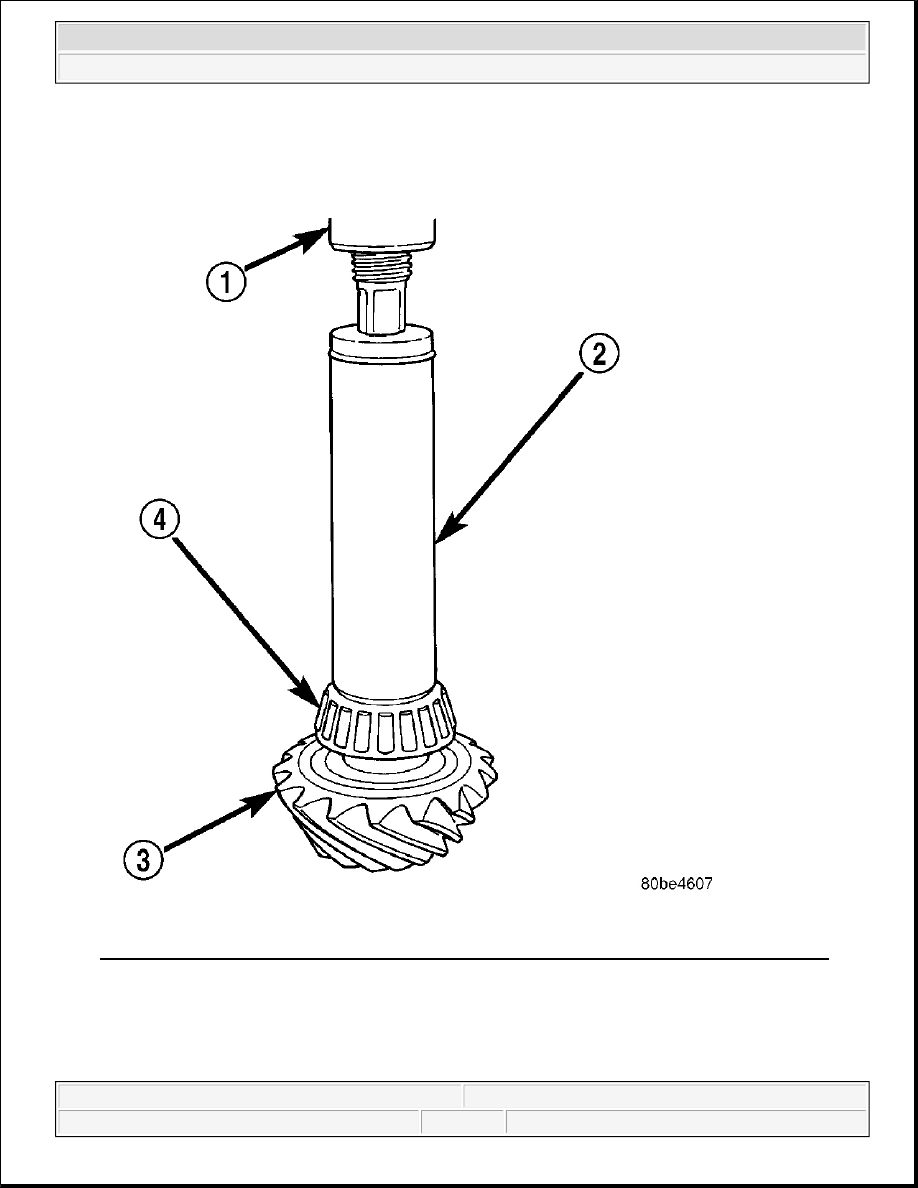

Fig. 328: Removing/Installing Rear Pinion Bearing On Pinion With Installer C-4040 And Press
Courtesy of CHRYSLER LLC

6. Install rear bearing (4) on pinion gear (3) and slinger if equipped, with Installer 6448A (2) and a press (1).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

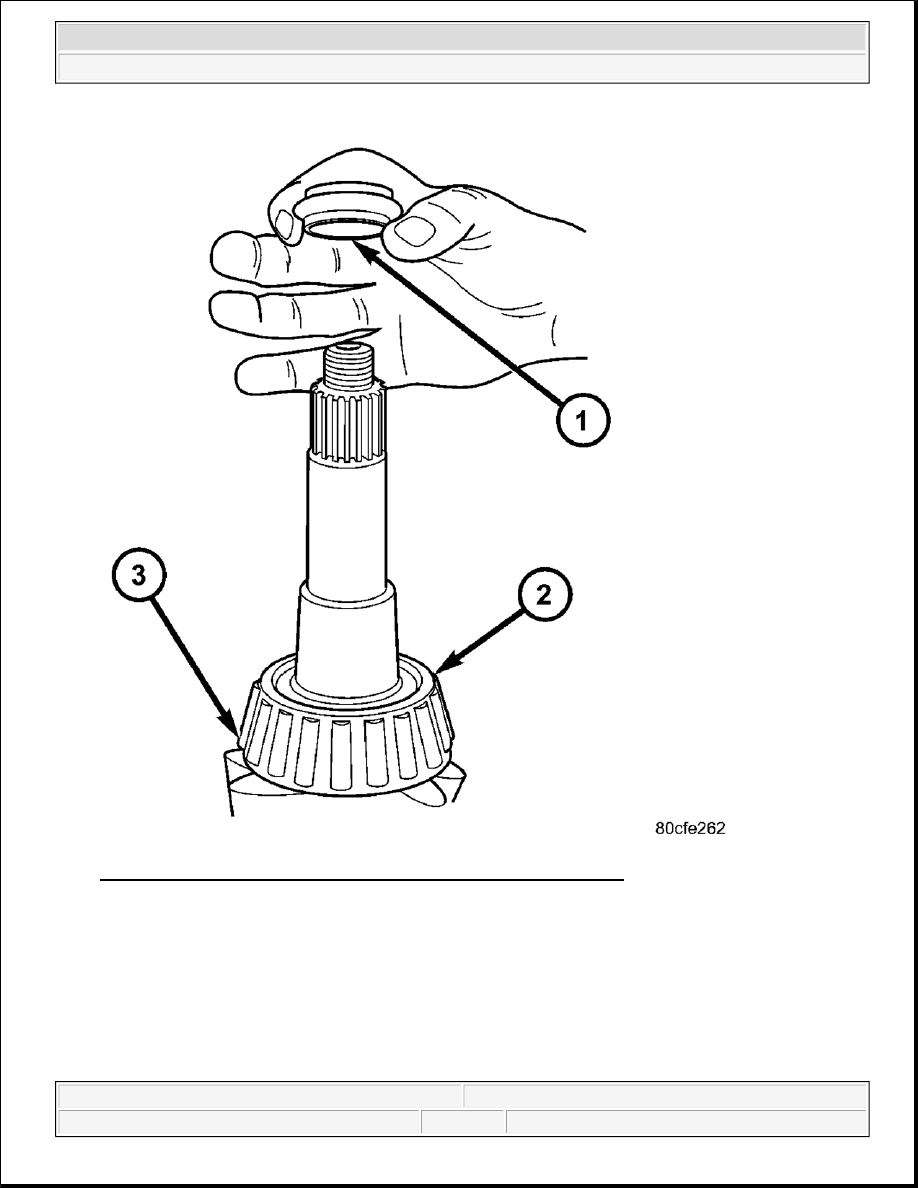

Fig. 329: Removing/Installing Collapsible Spacer From Pinion Shaft
Courtesy of CHRYSLER LLC

7. Install a new collapsible spacer (1) on pinion shaft (3) and install pinion in housing.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

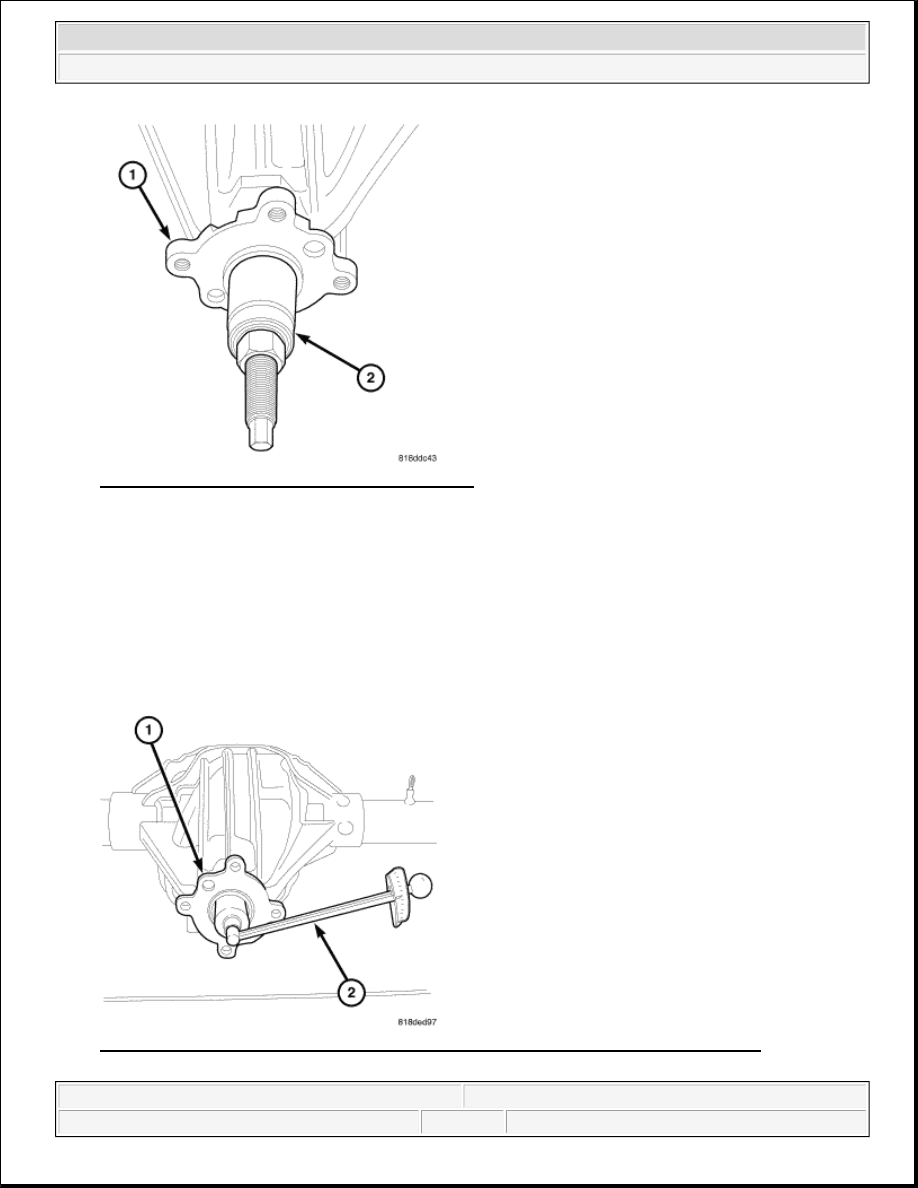

Fig. 330: Installing Flange With Installer C-3718
Courtesy of CHRYSLER LLC

8. Install pinion flange (1) with Installer C-3718 (2).

9. Install a new nut on the pinion.

10. Holding flange (1) with Holder C-3281 and tighten nut with torque wrench to 285 N.m (210 ft. lbs.).

Fig. 331: Measuring Pinion Torque To Rotating With An Inch Pound Torque Wrench
Courtesy of CHRYSLER LLC

NOTE:

Do not exceed the minimum torque 285 N.m (210 ft. lbs.) when installing
the pinion nut at this point.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



11. Measure pinion torque to rotating (1) with an inch pound torque wrench (2). Measure pinion torque to

rotating frequently to avoid over over-crushing the collapsible spacer.

Pinion Torque To Rotate is:

Original Bearings 1 - 2.2 N.m (10 - 20 in. lbs.)

New Bearings 1- 5 N.m (10 - 30 in. lbs.)

If pinion torque to rotate is low, tighten pinion nut in 6.8 N.m (5 ft. lbs.) increments until pinion
torque to rotate is achieved.

RING GEAR INSTALLATION - GAS ENGINES

CAUTION: Never loosen pinion nut to decrease pinion bearing rotating torque. If

pinion torque to rotating is exceeded a new collapsible spacer must be
installed. Failure to follow these instructions will damage the axle.
