1. Remove differential from axle housing.

2. Place differential case in a vise with soft metal jaw.

3. Remove bolts (1) holding ring gear (2) to differential case.

4. Drive ring gear from differential case with a dead-blow hammer.

RING GEAR REMOVAL - DIESEL ENGINE

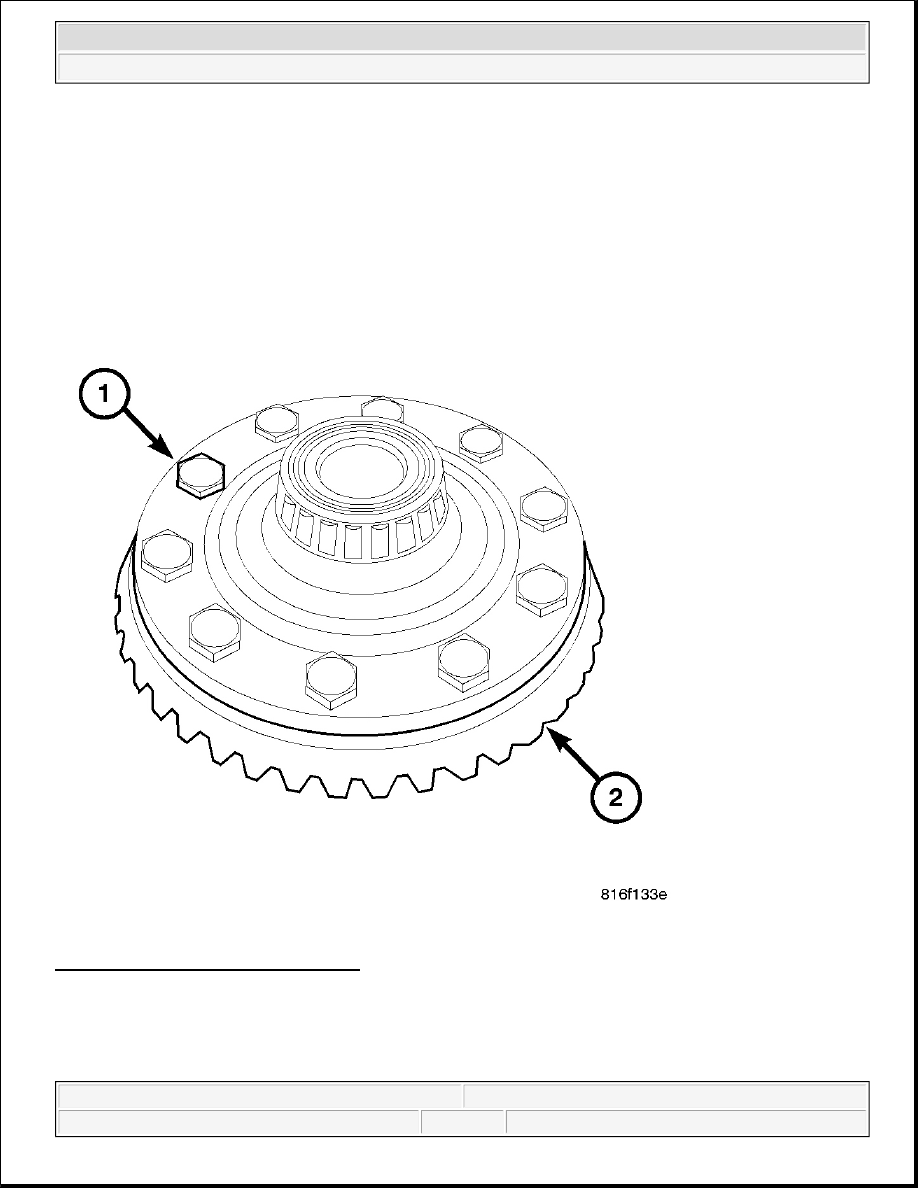

Fig. 314: Identifying Ring Gear & Bolts
Courtesy of CHRYSLER LLC

1. Remove differential from axle housing.

2. Place differential case in a vise with soft metal jaw.

3. Remove left hand threaded bolts (1) holding ring gear (2) to differential case.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

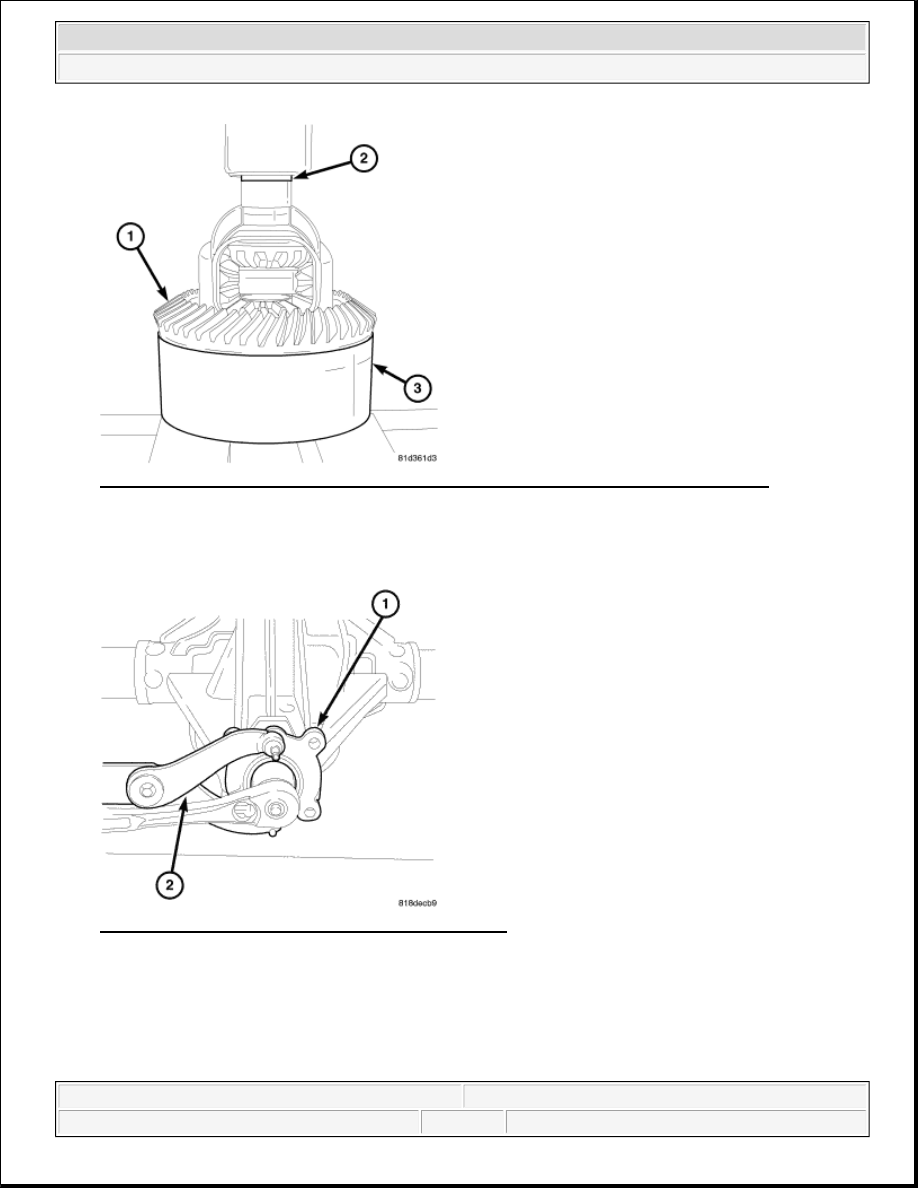

Fig. 315: Pressing Ring Gear Off Differential With Plug 8926-2 And Removing 10126-1
Courtesy of CHRYSLER LLC

4. Press ring gear (1) off differential with Plug 8926-2 (2) and Remove 10126-1 (3).

Fig. 316: Holding Pinion Flange With Holder C-3281
Courtesy of CHRYSLER LLC

5. Hold pinion flange (1) with Holder C-3281 (2) and remove flange nut.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

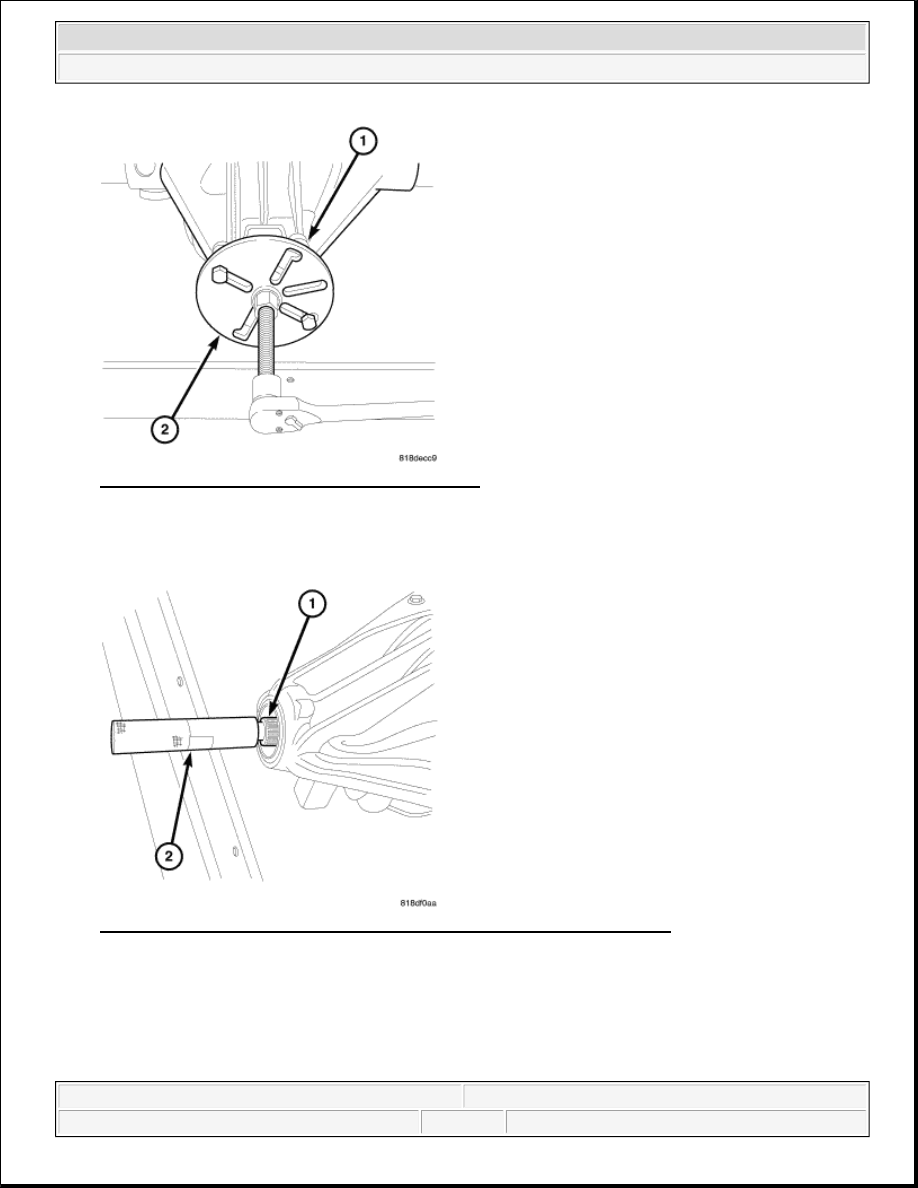

Fig. 317: Identifying Pinion Flange & Puller 8992
Courtesy of CHRYSLER LLC

6. Remove pinion flange (1) from pinion shaft with Puller 8992 (2).

Fig. 318: Removing Pinion From Housing With Driver 8976 And Hammer
Courtesy of CHRYSLER LLC

7. Remove pinion (1) from the housing with Driver 8976 (2) and hammer.

8. Remove pinion shaft seal with a seal puller.

9. Remove front pinion bearing.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

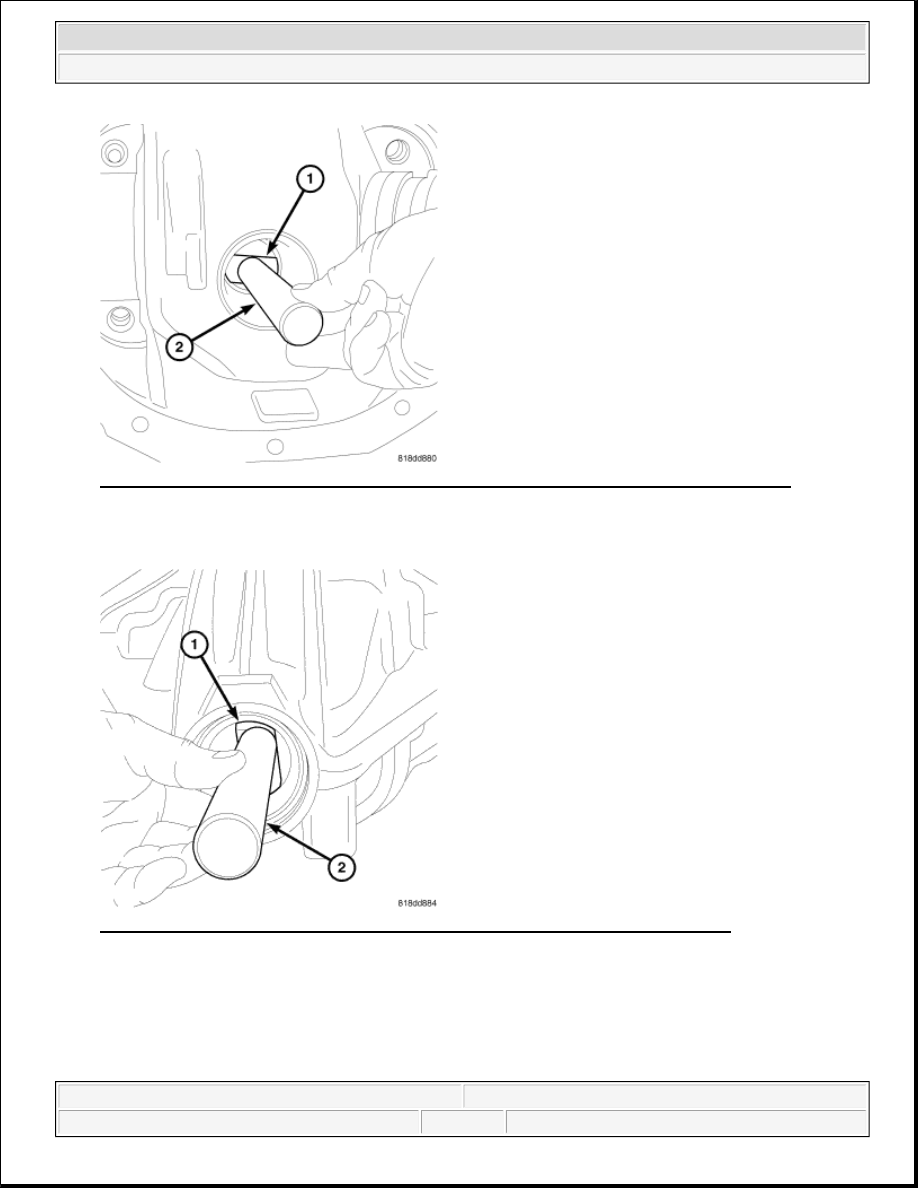

Fig. 319: Removing Front Pinion Bearing Cup With Remover C-4345 And Handle C-4171
Courtesy of CHRYSLER LLC

10. Remove front pinion bearing cup with Remover C-4345 (1) and Handle C-4171 (2).

Fig. 320: Removing Rear Bearing Cup With Remover C-4307 And Handle C-4171
Courtesy of CHRYSLER LLC

11. Remove rear bearing cup with Remover C-4307 (1) and Handle C-4171 (2).
