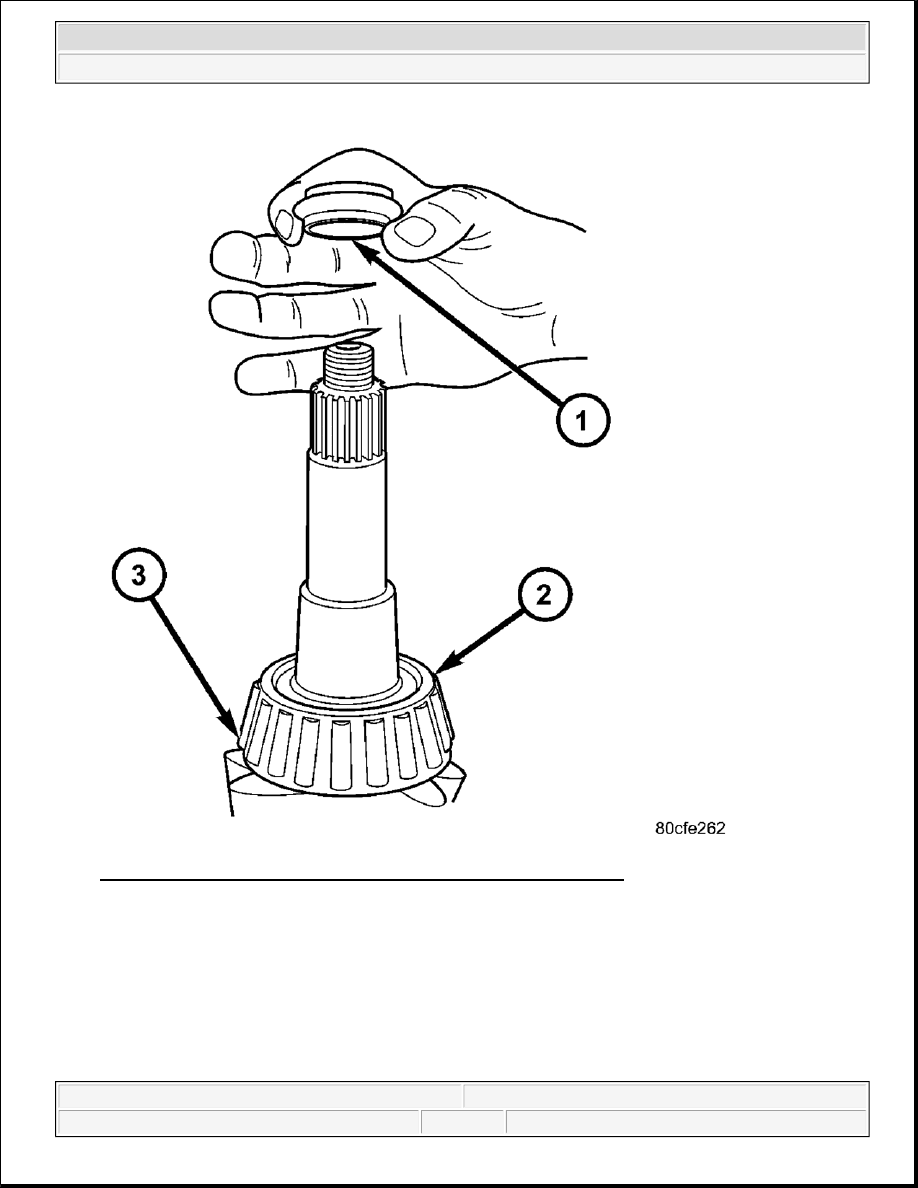

Fig. 321: Removing/Installing Collapsible Spacer From Pinion Shaft
Courtesy of CHRYSLER LLC

12. Remove collapsible spacer (1) from pinion shaft (3).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

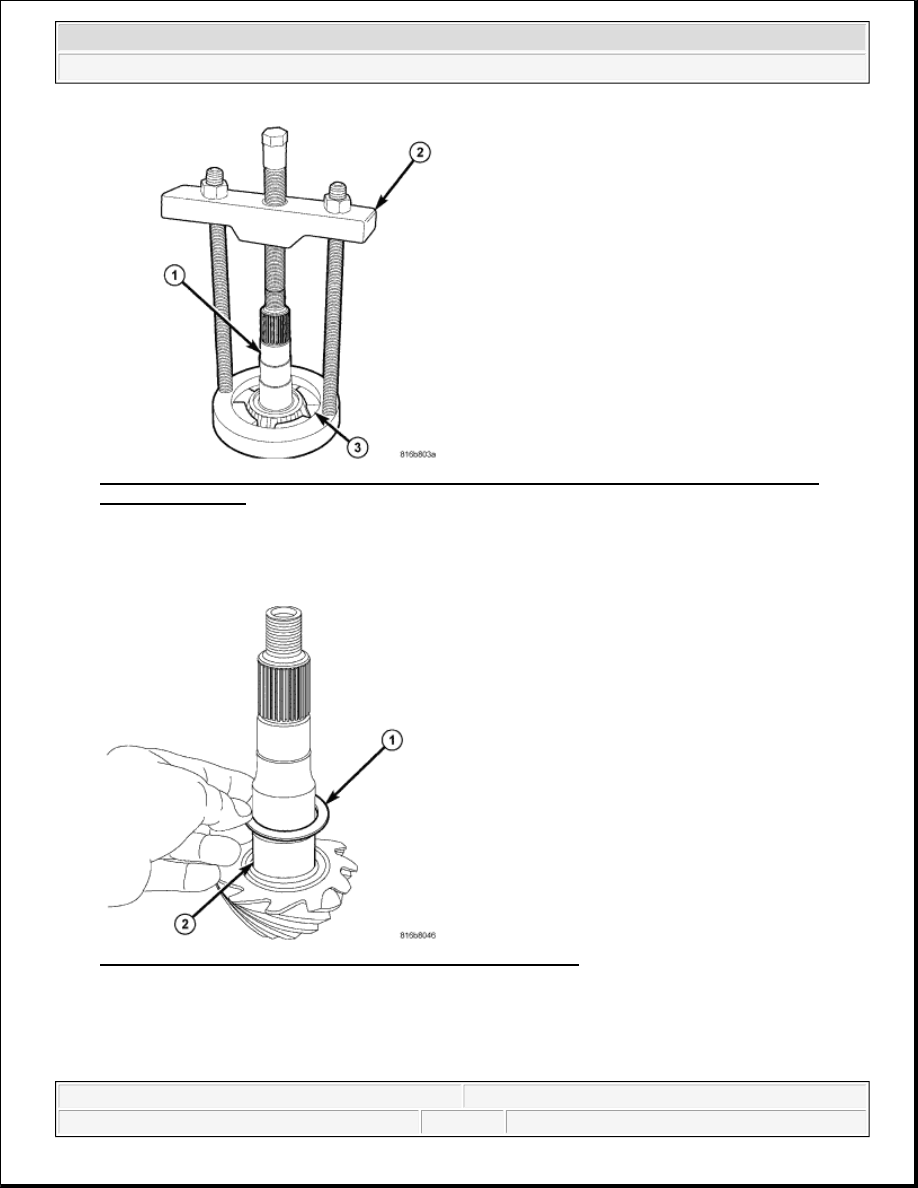

Fig. 322: Removing Rear Pinion Bearing From Pinion Shaft With Puller/Press C-293-PA And
Adapters C-293-47
Courtesy of CHRYSLER LLC

13. Remove rear pinion bearing from pinion shaft (1) with Puller/Press C-293-PA (2) and Adapters C-293-47

(3).

Fig. 323: Removing/Installing Depth Shims From Pinion Shaft
Courtesy of CHRYSLER LLC

14. Remove depth shims (1) from the pinion shaft (2) and record the shims thickness.

INSTALLATION



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



GEAR-PINION/RING

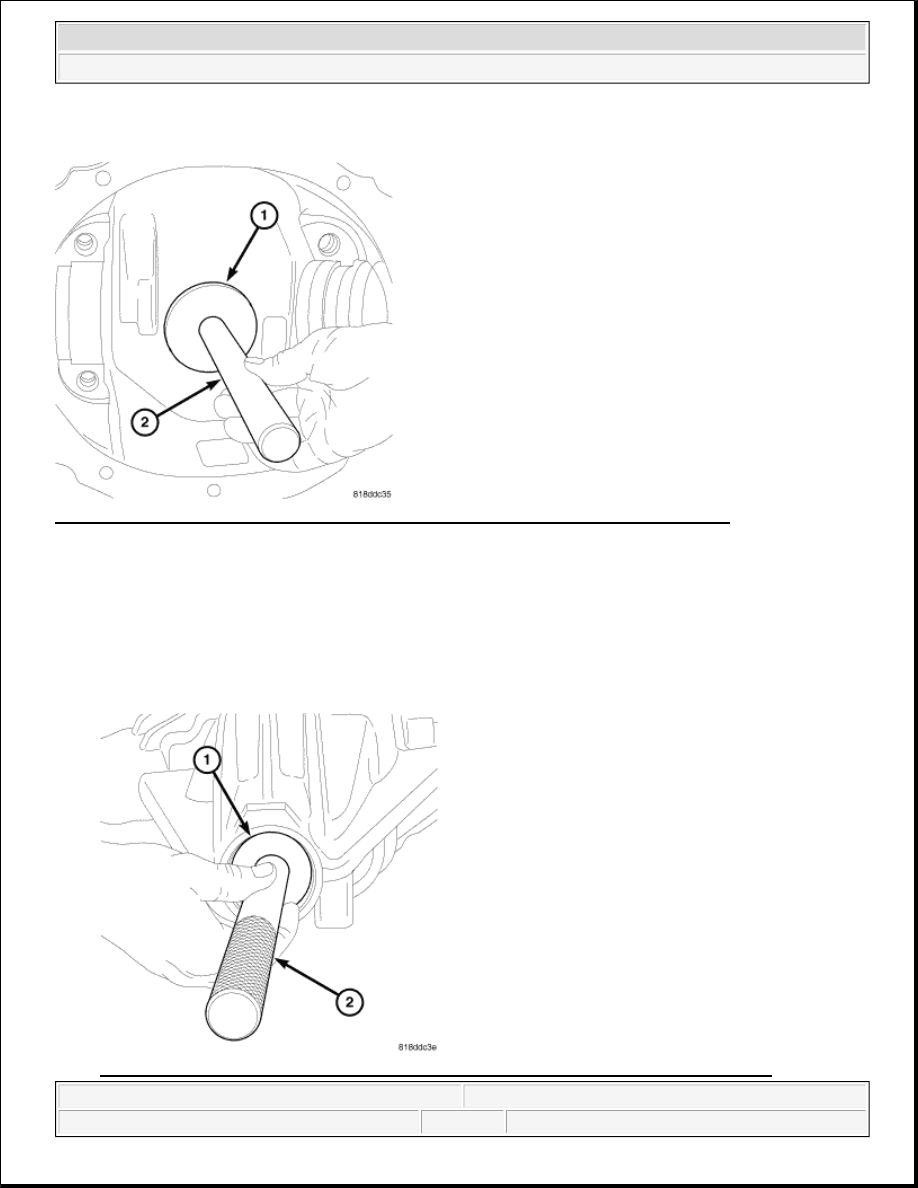

Fig. 324: Installing Rear Pinion Bearing Cup With Installer C-4308 And Handle C-4171
Courtesy of CHRYSLER LLC

1. Install rear pinion bearing cup with Installer C-4308 (1) and Handle C-4171 (2).

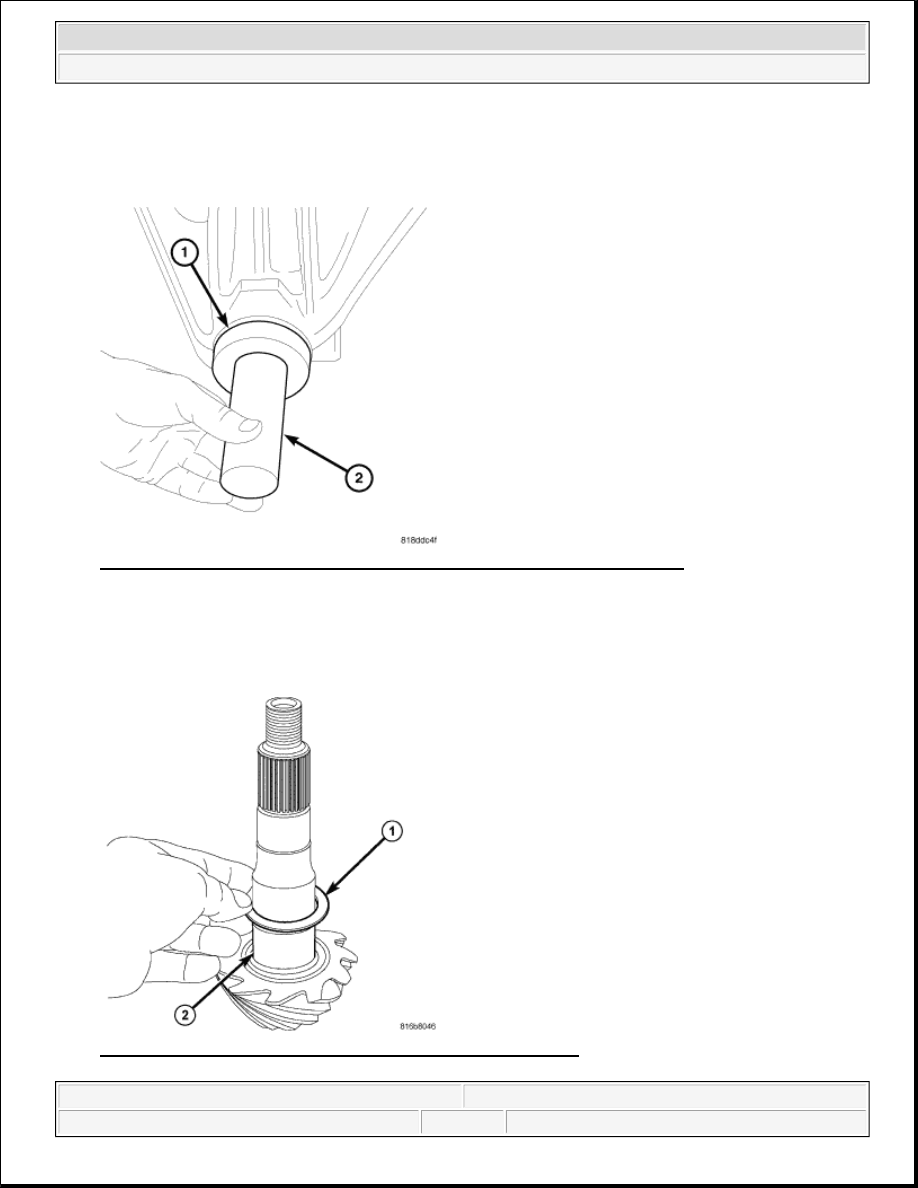

Fig. 325: Installing Front Pinion Bearing Cup With Installer D-130 And Handle C-4171

NOTE:

A pinion depth shim is located under the rear pinion bearing. If ring and pinion
gears are reused, the original pinion depth shim/oil baffle can be used. Refer to
Adjustments (Pinion Gear Depth) to select the proper shim thickness if ring and
pinion gear are replaced.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Courtesy of CHRYSLER LLC

2. Install front pinion bearing cup with Installer D-130 (1) and Handle C-4171 (2).

Fig. 326: Installing Pinion Seal With Installer C-4076-B And Handle C-4735
Courtesy of CHRYSLER LLC

3. Install pinion front bearing in housing.

4. Apply a light coating of gear lubricant on the lip of pinion seal and install seal with Installer C-4076-B (1)

and Handle C-4735 (2).

Fig. 327: Removing/Installing Depth Shims From Pinion Shaft
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro
