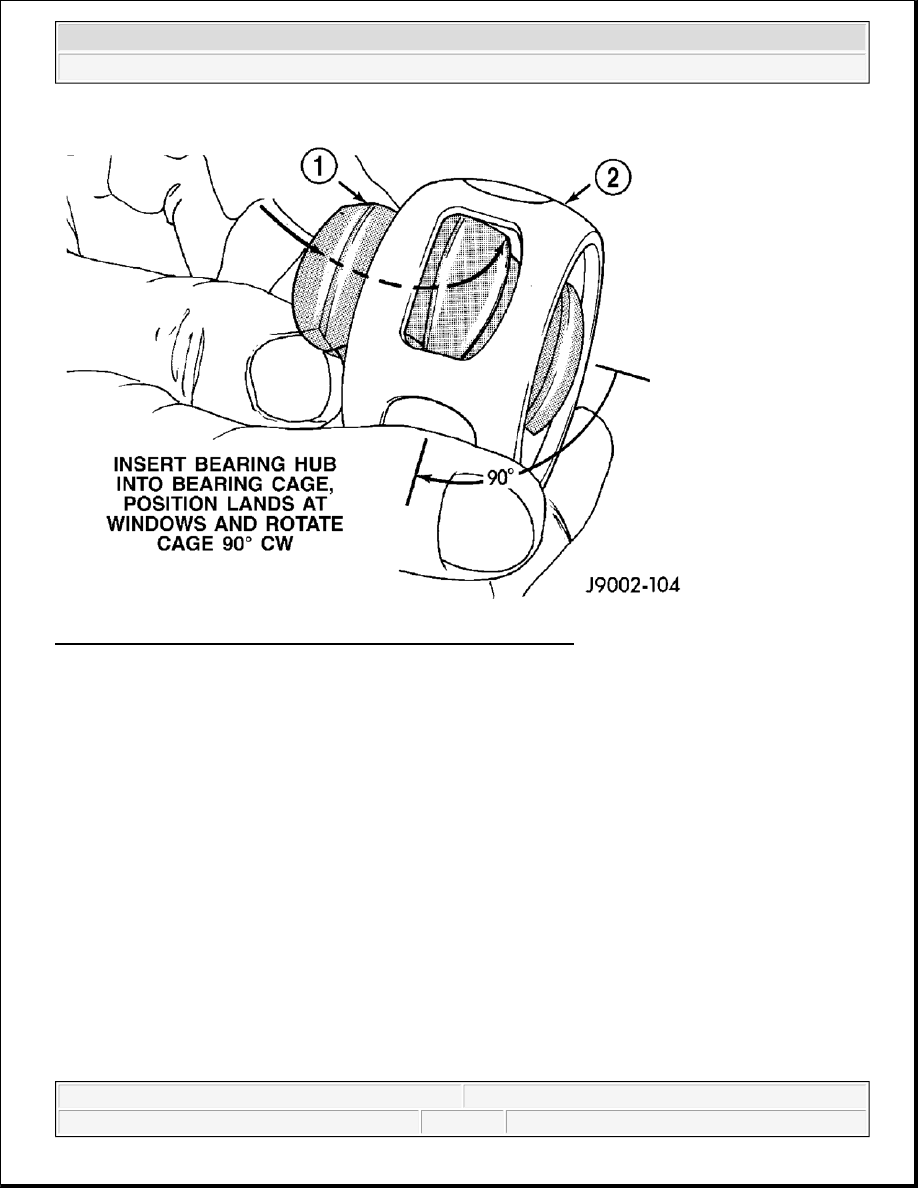

Fig. 41: Inserting Inner Race Into Cage And Rotate Race Into Cage
Courtesy of CHRYSLER LLC

1. Apply a light coat of grease to the C/V joint components before assembling them.

2. Align inner race, cage and housing according to the alignment reference marks.

3. Insert inner race (1) into the cage (2) and rotate race into the cage.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

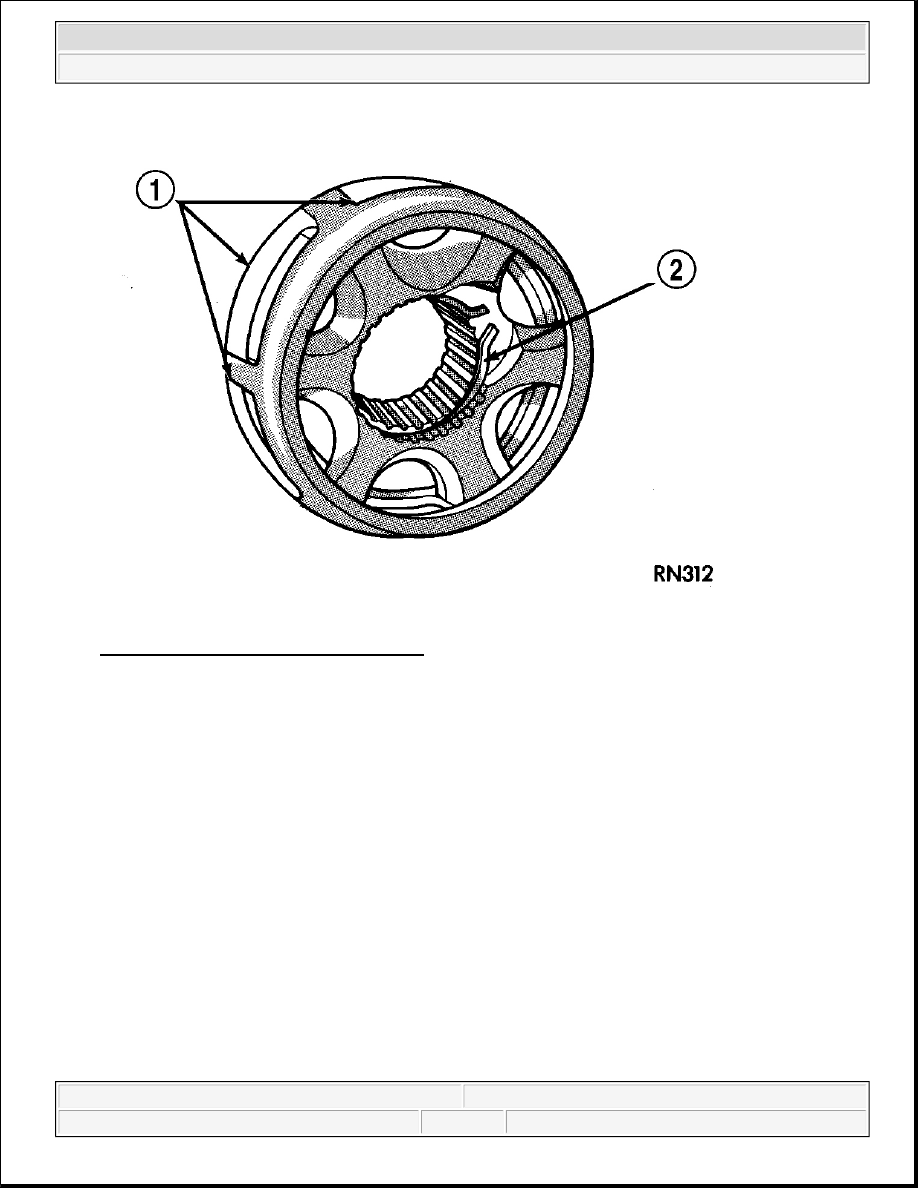

Fig. 42: Rotating Inner Race/Hub In Cage
Courtesy of CHRYSLER LLC

4. Rotate inner race/hub in the cage (1).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

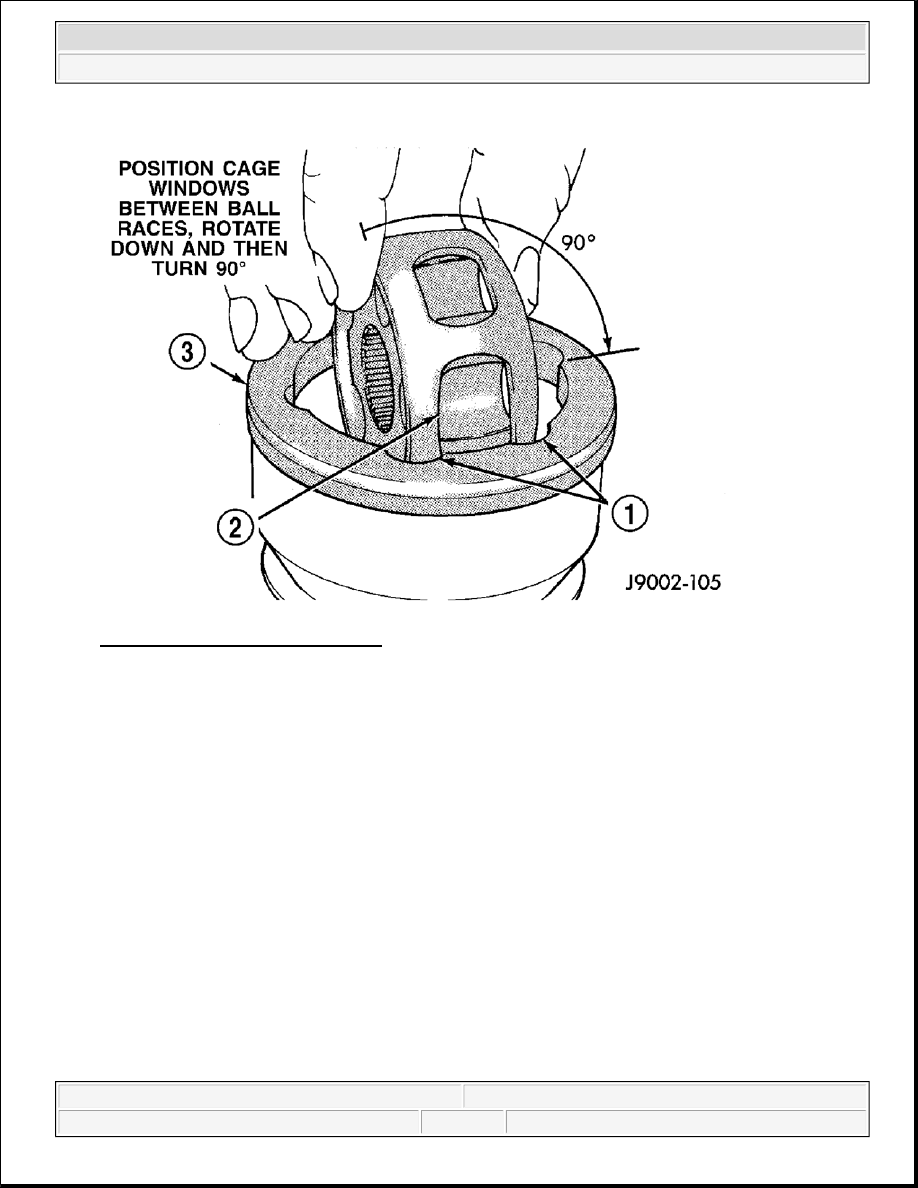

Fig. 43: Inserting Cage Into Housing
Courtesy of CHRYSLER LLC

5. Insert cage into the housing (3).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



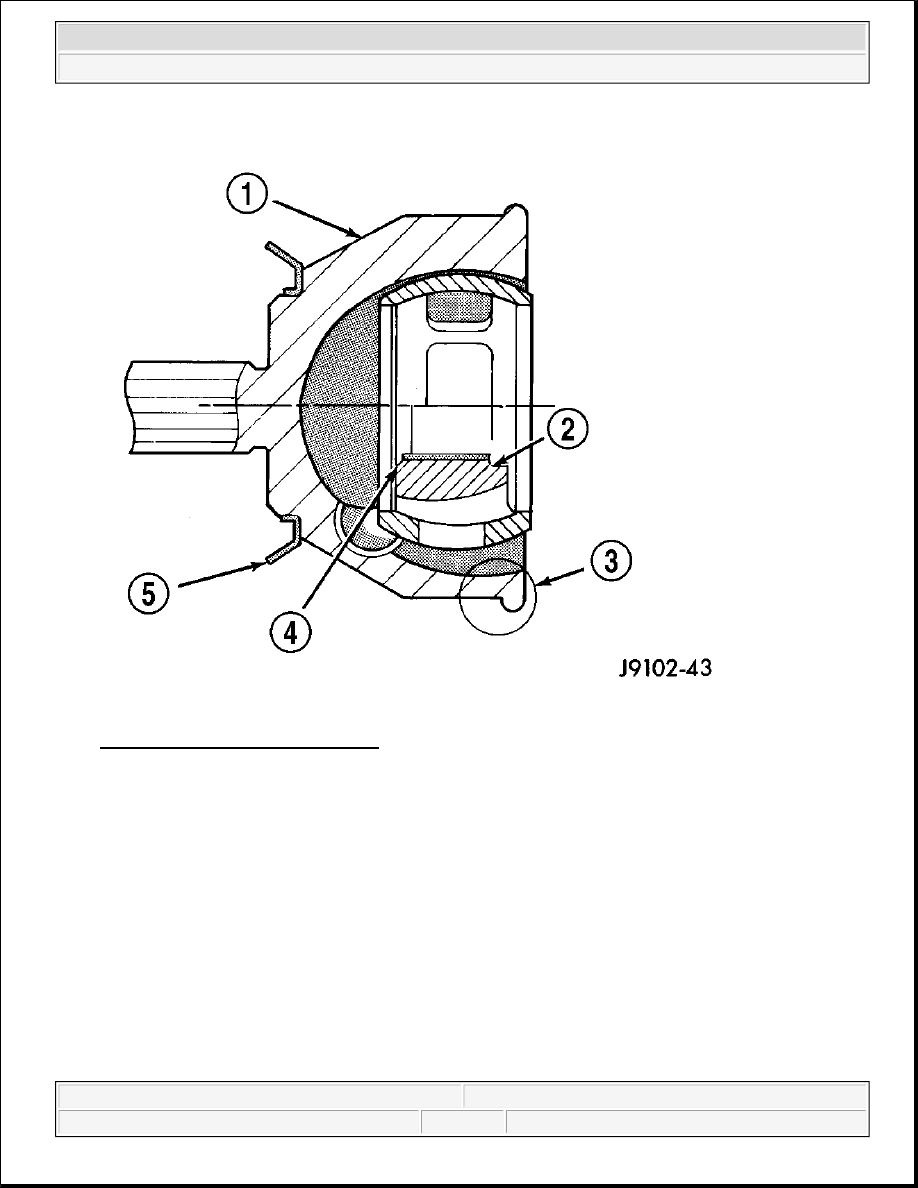

Fig. 44: Rotating Cage Into Housing
Courtesy of CHRYSLER LLC

6. Rotate cage 90° into the housing (1).
