Dodge Nitro. Manual - part 548

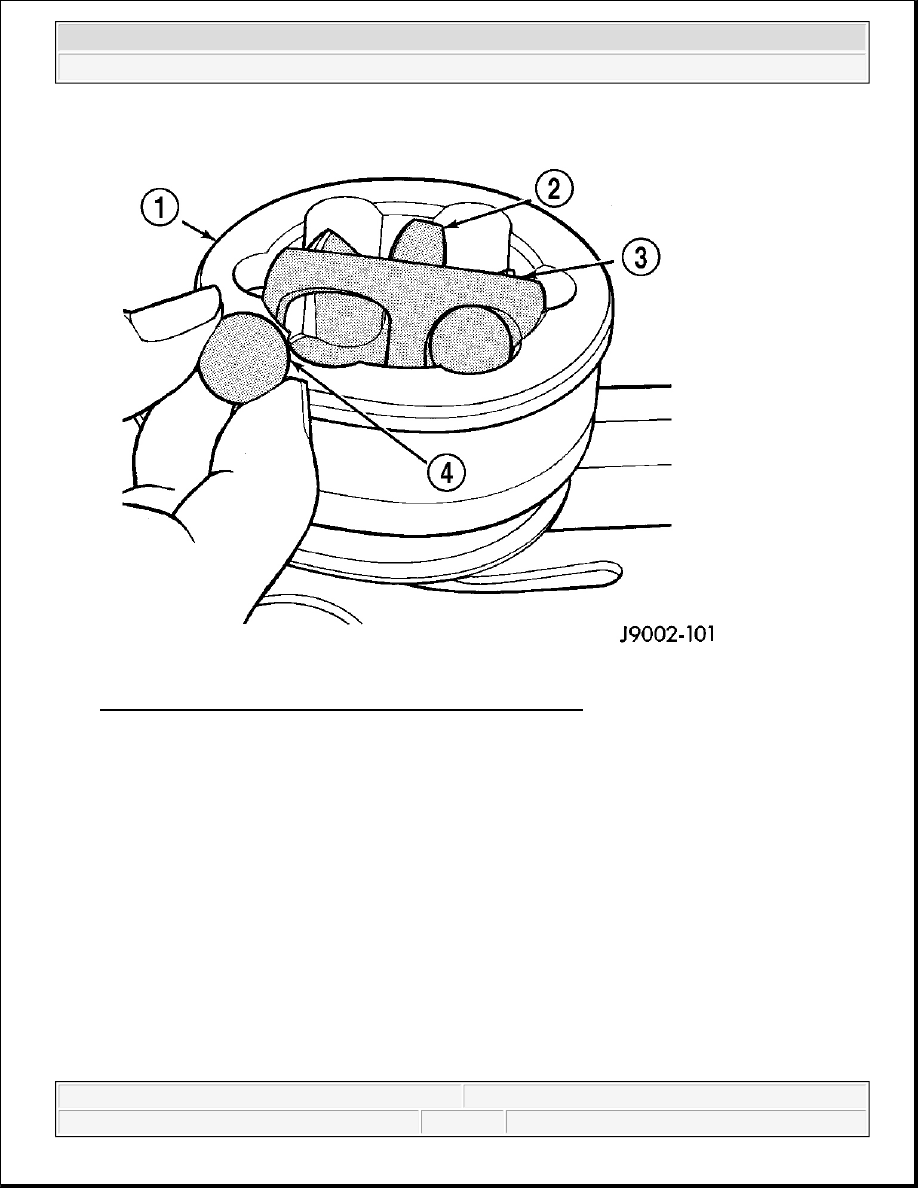

Fig. 45: Tilting Inner Race/Hub And Cage And Installing Balls
Courtesy of CHRYSLER LLC

7. Apply lubricant included with replacement boot/joint to the ball races. Spread lubricant equally between

all the races.

8. Tilt inner race/hub (2) and cage (3) and install the balls (4).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



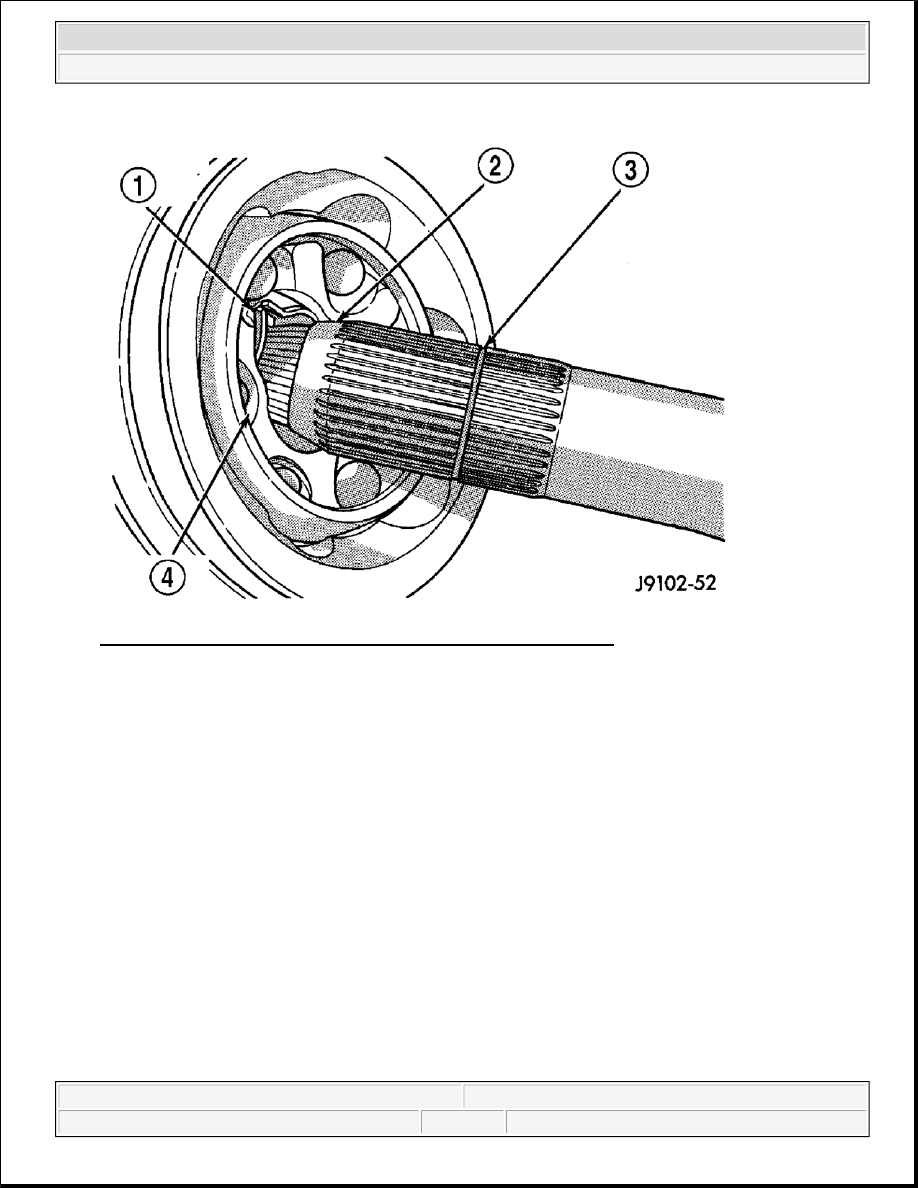

Fig. 46: Pushing Joint Onto Shaft Until Snap Ring Seats In Groove
Courtesy of CHRYSLER LLC

9. Place new clamps onto new boot and slide boot onto the shaft to its original position.

10. Apply the rest of lubricant to the C/V joint and boot.

11. Push the joint onto the shaft until the snap ring (1) seats in the groove (3). Pull on the joint to verify the

span ring has engaged.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



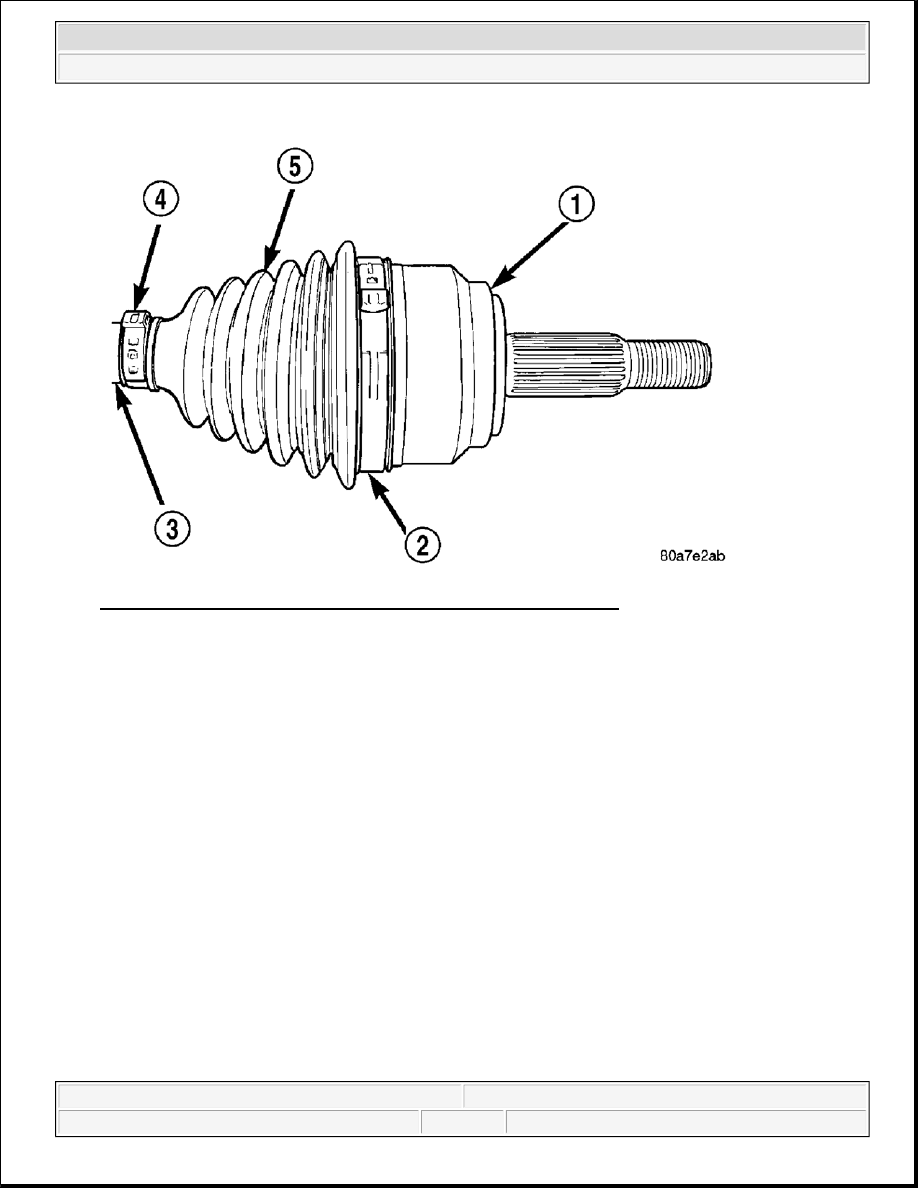

Fig. 47: Securing Both Boot Clamps With Clamp Installer C-4975A
Courtesy of CHRYSLER LLC

12. Position boot on the joint in its original position. Ensure boot is not twisted and remove any excess air.

13. Secure both boot clamps (2) (4) with Clamp Installer C-4975A. Place tool on clamp bridge and tighten

tool until the jaws of the tool are closed.

JOINT/BOOT-C/V INNER

REMOVAL

C/V JOINT-INNER



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



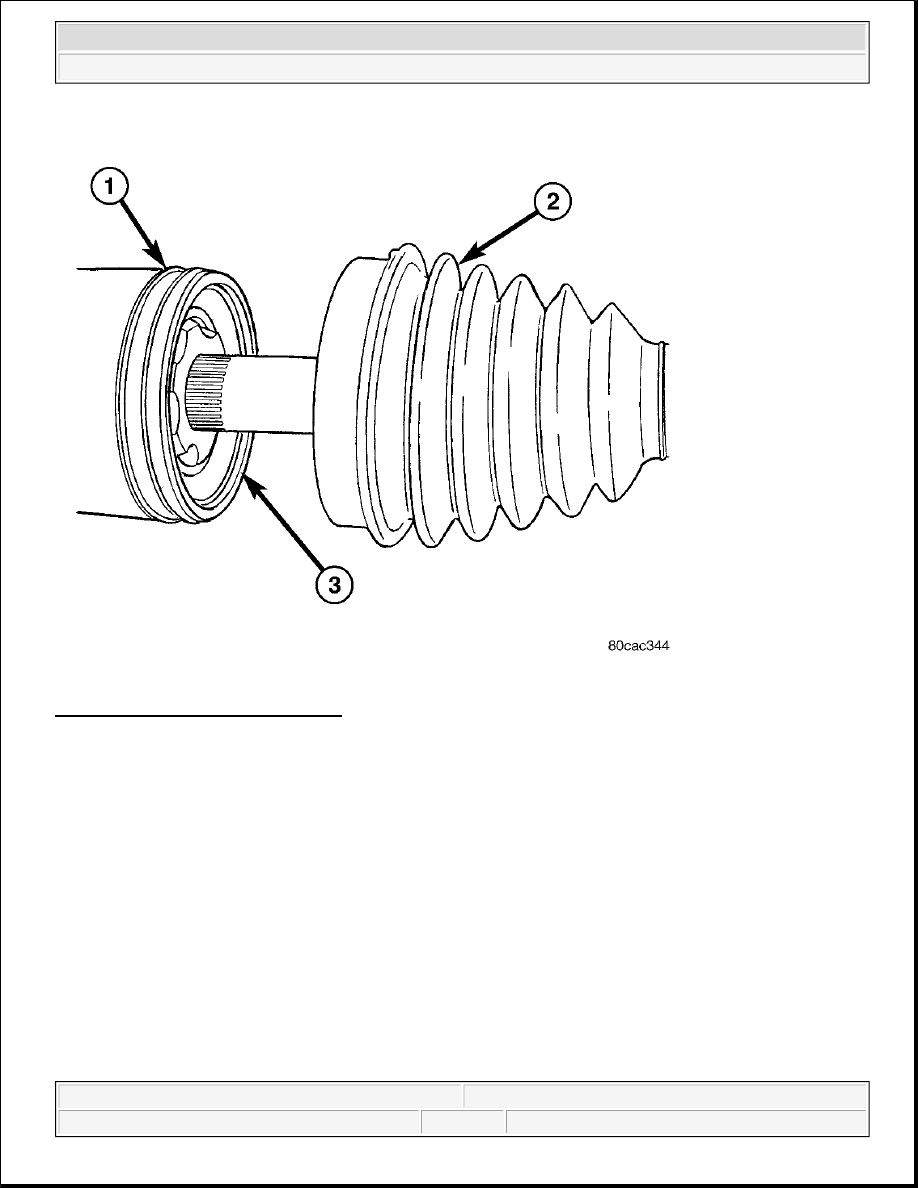

Fig. 48: Identifying C/V Joint & Boot
Courtesy of CHRYSLER LLC

1. Clamp shaft in a vise (with soft jaws) and support C/V joint (1).

2. Remove clamps with a cut-off wheel or grinder.

3. Slide boot down (2) the shaft.
