7. Install tie rod end (1) in steering knuckle (2) and tighten nut to specifications.

8. Install stabilizer bar link and tie rod end.

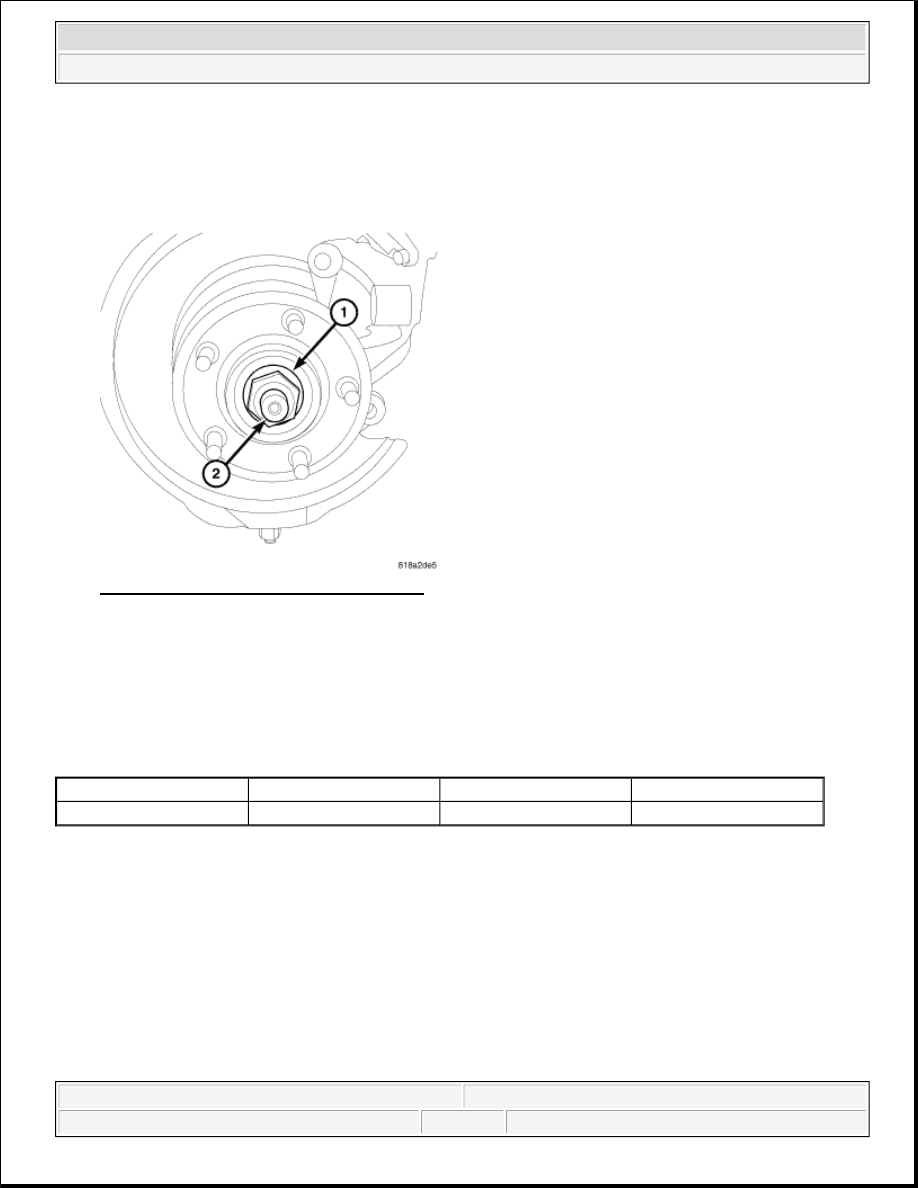

Fig. 33: Identifying Hub Nut & Half Shaft
Courtesy of CHRYSLER LLC

9. Install half shaft (2) hub nut (1) and tighten to specifications.

SPECIFICATIONS

HALF SHAFT

TORQUE SPECIFICATIONS

SPECIAL TOOLS

HALF SHAFT

DESCRIPTION

N.m

Ft. Lbs.

In. Lbs.

Half Shaft Nut

136

100

-



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



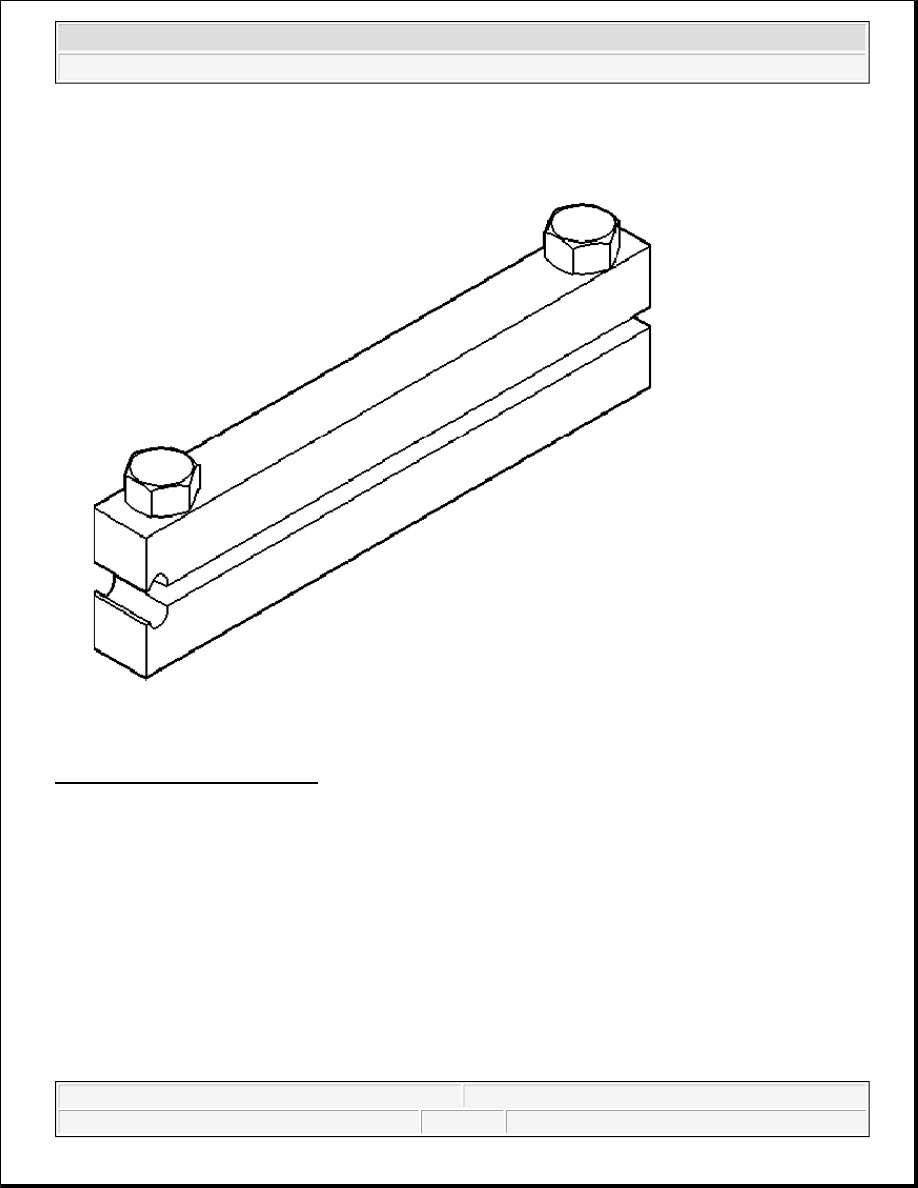

Fig. 34: Clamp Installer C-4975-A
Courtesy of CHRYSLER LLC

JOINT/BOOT-C/V OUTER

REMOVAL

C/V JOINT-OUTER



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



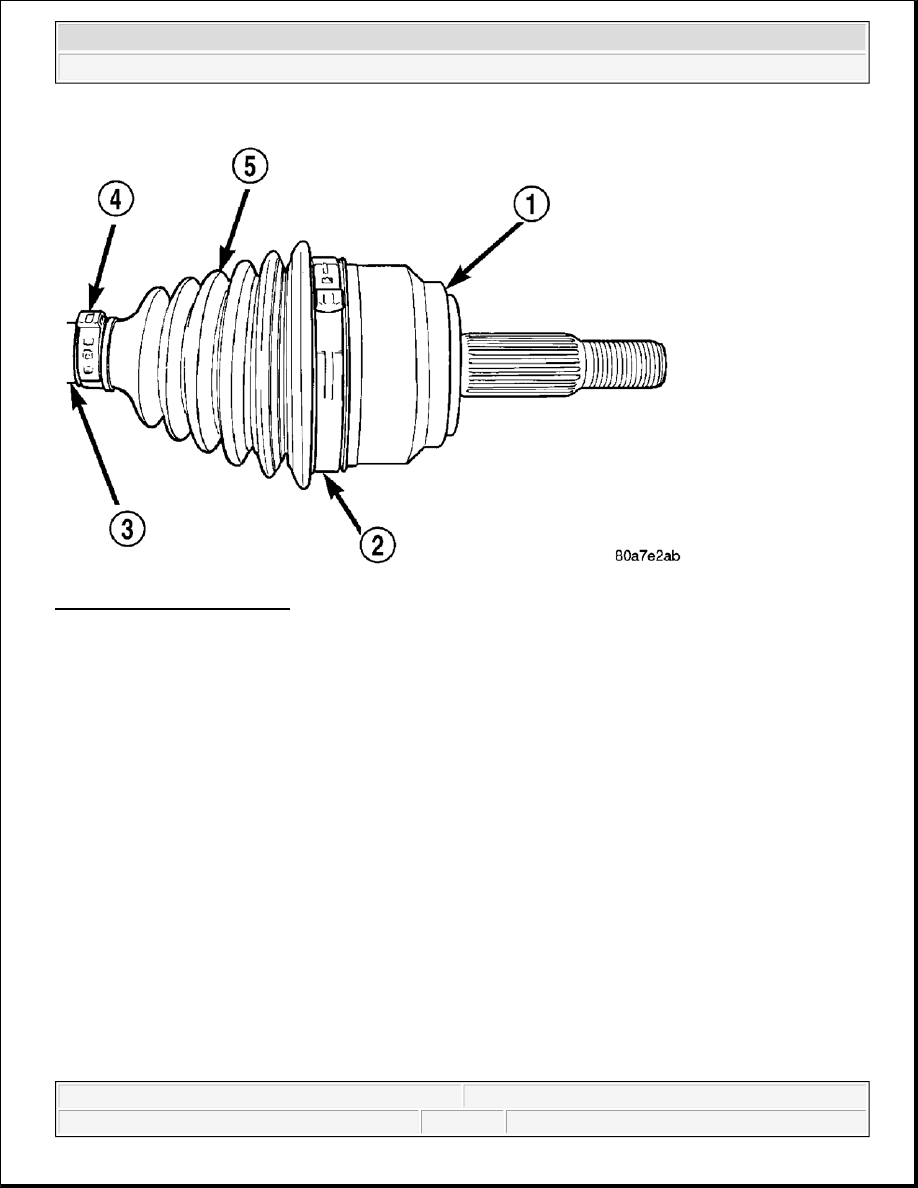

Fig. 35: Boot Clamp Locations
Courtesy of CHRYSLER LLC

1. Place shaft in vise with soft jaws and support C/V joint.

2. Remove clamps (2) (4) with a cut-off wheel or grinder.

CAUTION: Do not damage C/V housing or half shaft.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



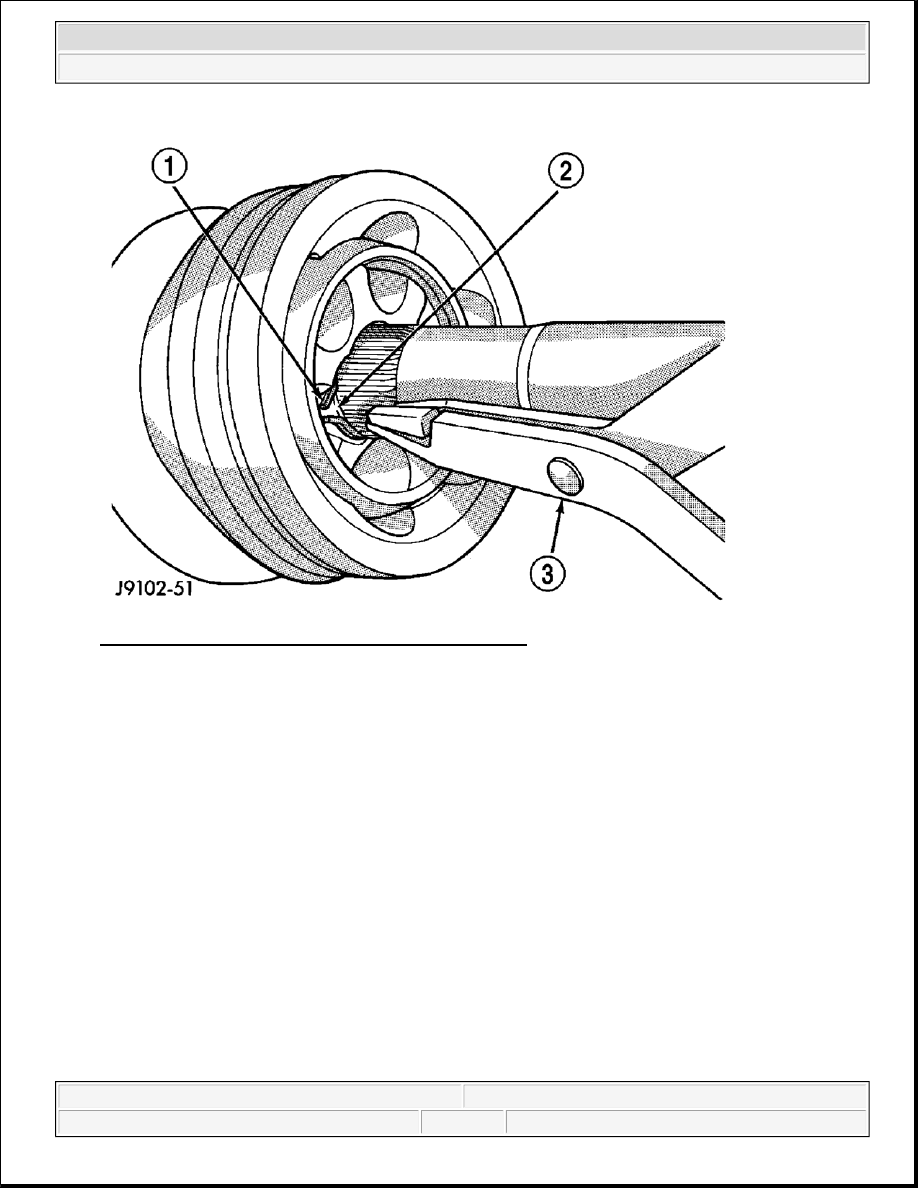

Fig. 36: Spreading Snap Ring And Slide Joint Off Shaft
Courtesy of CHRYSLER LLC

3. Slide the boot down the shaft.

4. Remove lubricant to expose the C/V joint snap ring.

5. Spread snap ring (1) and slide the joint off the shaft.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro
