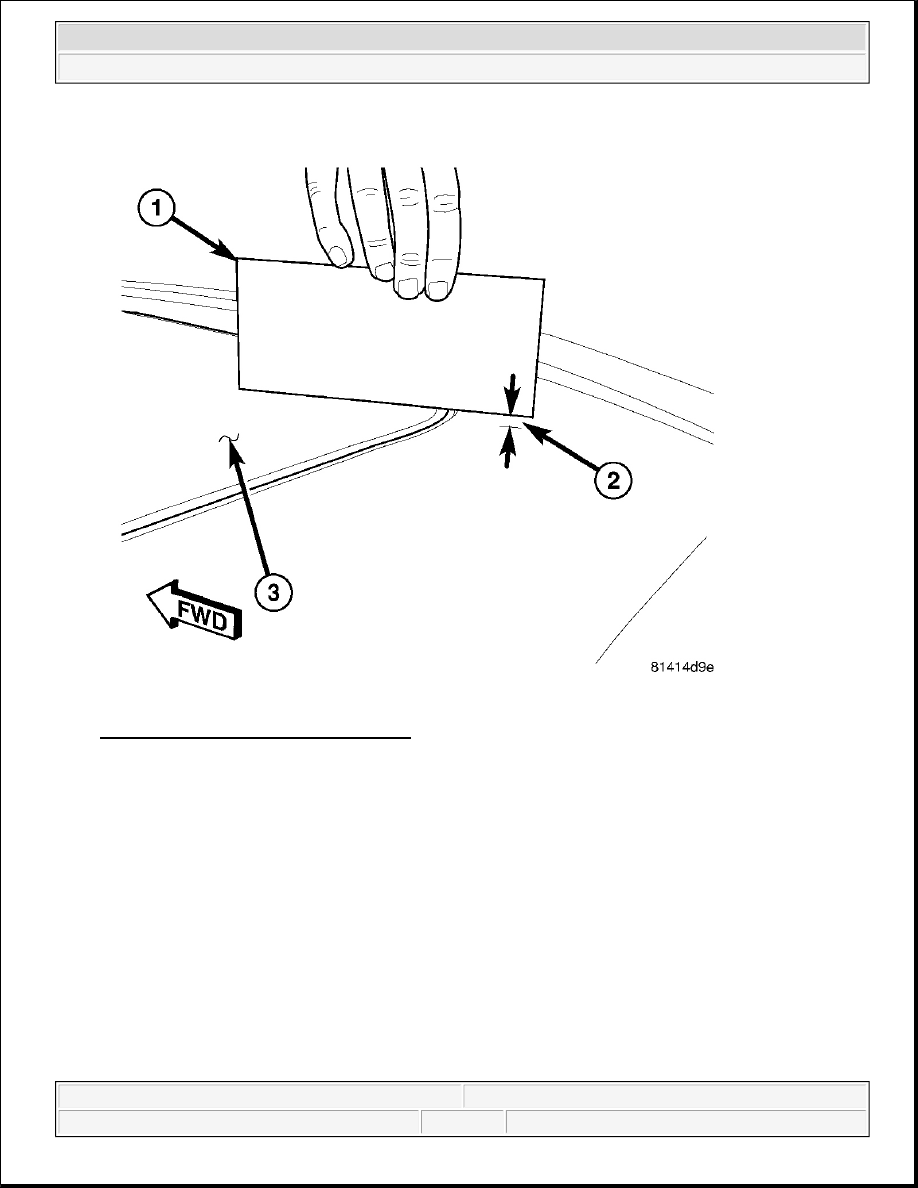

Fig. 571: Checking Sunroof Rear Height
Courtesy of CHRYSLER LLC

4. Verify sunroof operation and alignment. Check fit and re-adjust as necessary.

HOSE - SUNROOF DRAIN

REMOVAL

HOSE - SUNROOF DRAIN

NOTE:

When properly adjusted, the rear edge of the glass panel (3) is flush to 2
mm (0.78 in.) higher than the roof surface (2).

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

Fig. 572: Sunroof Assembly, Front Hose & Support Clips
Courtesy of CHRYSLER LLC

1. Drop down the headliner as necessary to gain access to the drain hoses, see REMOVAL.

2. Disconnect the front hose (2) from the sunroof assembly (1).

3. Release the support clips (3) and disconnect the lower grommet and remove the hose.

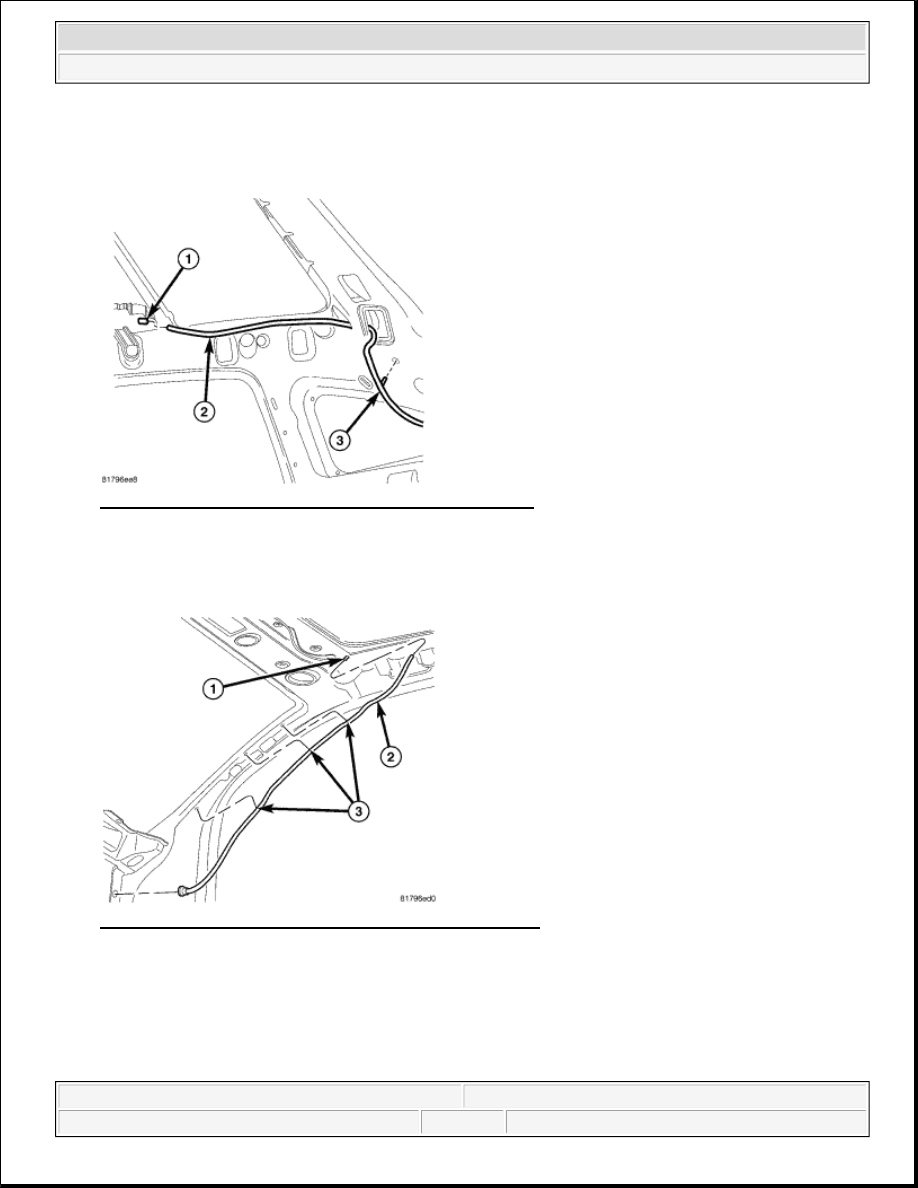

Fig. 573: Sunroof Assembly, Rear Hose & Support Clips
Courtesy of CHRYSLER LLC

4. Disconnect the rear hose (2) from the sunroof assembly (1) and release the support clips (3).

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

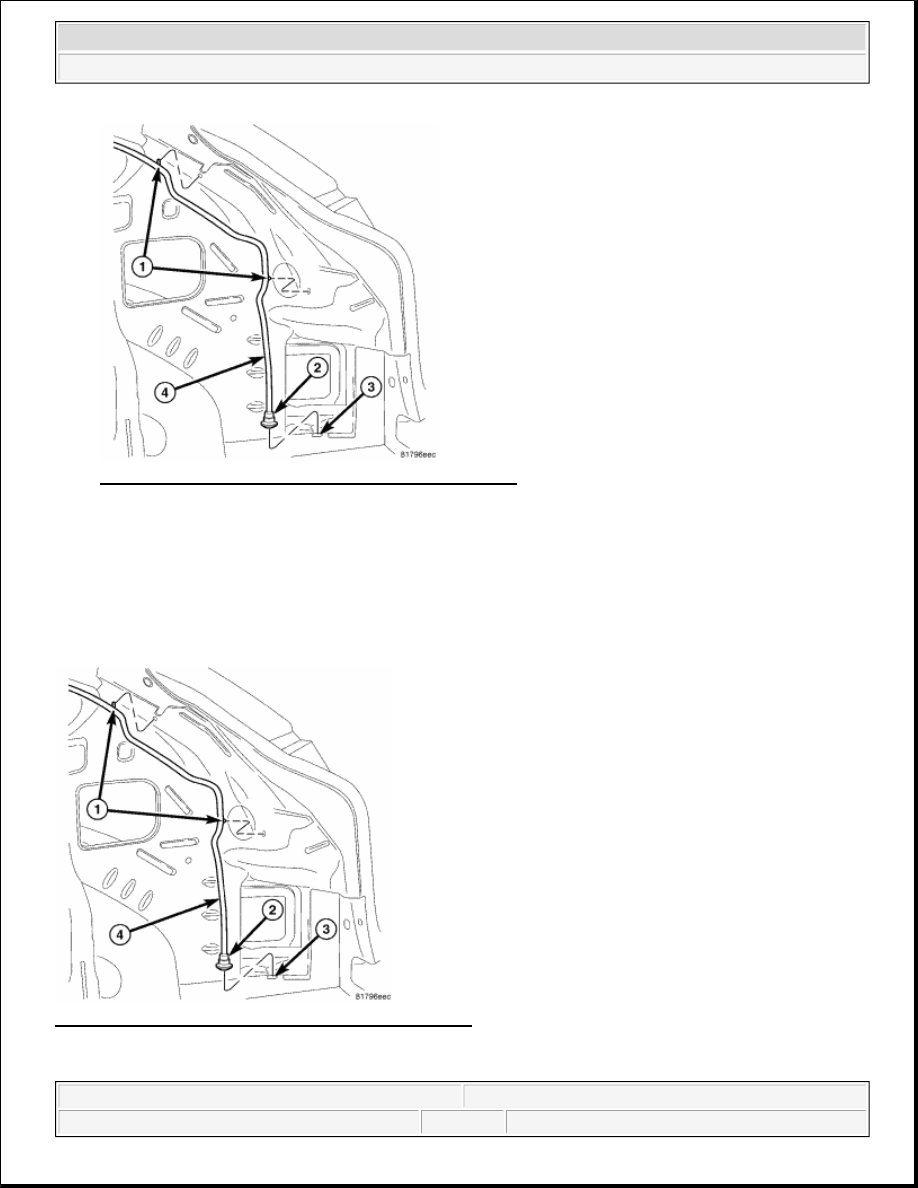

Fig. 574: Support Clips, Grommet, Body & Rear Hose
Courtesy of CHRYSLER LLC

5. Separate the remaining support clips (1).

6. Disconnect the grommet (2) from the body (3) and remove the rear hose as necessary.

INSTALLATION

HOSE - SUNROOF DRAIN

Fig. 575: Support Clips, Grommet, Body & Rear Hose
Courtesy of CHRYSLER LLC

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

1. Install the rear hose (4) and connect the grommet (2) to the body (3).

2. Connect the support clips (1).

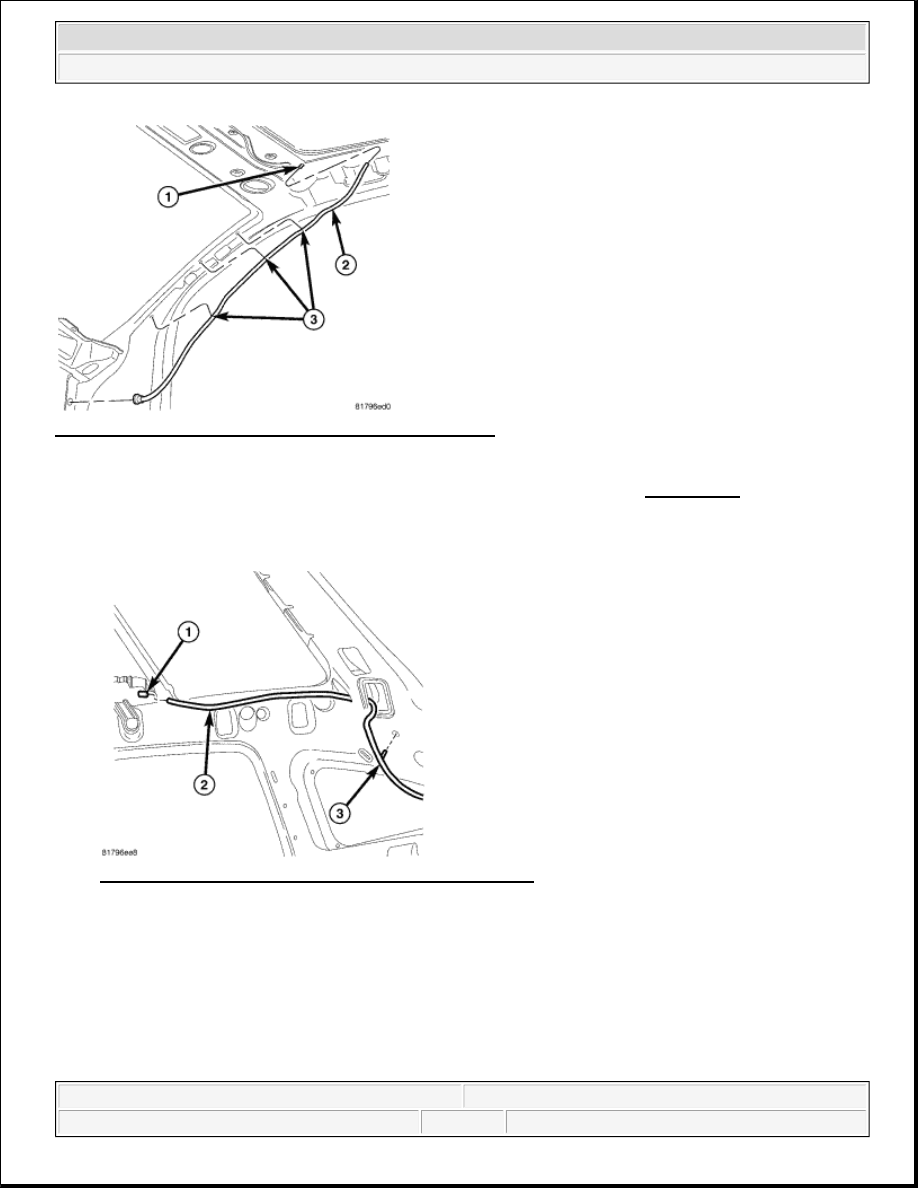

Fig. 576: Sunroof Assembly, Rear Hose & Support Clips
Courtesy of CHRYSLER LLC

3. Route the hose as required and connect the remaining support clips (3).

4. Connect the hose (2) to the sunroof assembly (1).

Fig. 577: Sunroof Assembly, Front Hose & Support Clips
Courtesy of CHRYSLER LLC

5. Connect the front hose lower grommet to the body.

6. Connect the front hose (2) to the sunroof assembly (1) and connect the support clips (3).

MOTOR - SUNROOF WITH CONTROL UNT
