SUNROOF OPERATION INSTRUCTIONS

DIAGNOSIS AND TESTING

SUNROOF

Before beginning sunroof diagnostics verify that all other power accessories are in proper operating condition.
For electrical diagnostic information follow the chart "Sunroof Diagnosis Chart". Refer to DIAGNOSIS AND
TESTING . Also refer to Wiring Diagrams, in this publication for circuit, splice and component descriptions.

Before beginning diagnosis for wind noise or water leaks, verify that the sunroof is in a fully closed position. A
common problem is the sunroof is left in an open position, this can be caused by releasing the control switch
before the sunroof was fully closed. The sunroof module is equipped with a water-management system. If
however, the sunroof glass is in a partial closed position, high pressure water may be forced beyond the water
management system boundaries and onto the headlining.

MECHANICAL SUNROOF DIAGNOSIS

SWITCH INPUTS

-

OPEN

CLOSE

VENT

FULL

VENT

Push and hold switch until
glass stops in flush closed
position, the glass will then
express open

Push and hold switch until
glass stops in flush closed
position.

No action

Press the switch for less
than 0.65 seconds for
express to full open

Press the switch for less
than 0.65 seconds for
express to full closed

VENT

RANGE

Push and hold switch until
glass passes through flush
closed position. Glass will
then open

Push and hold switch until
glass stops in flush closed
position.

Push and hold switch until glass
stops in full vent position.

FLUSH

Press switch for less than
0.65 seconds for express to
full open.

No action

Press and hold switch. Glass will
travel through flush closed to full
vent. Glass will stop when switch is
released or when fully vented.

Press switch for more than
0.65 seconds and glass will
stop when switch is released

Press switch for less than 0.65
seconds for express to full vent

FULL

OPEN

No action

Press and hold switch until
glass stops in flush closed
position or anywhere in
between.

Press and hold switch. Glass will
travel through flush closed to full
vent. Glass will stop when switch is
released.

Press switch for less than
0.65 seconds for express to
flush closed

Press switch for less than 0.65
seconds for express to full vent



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



WATER DRAINAGE AND WIND NOISE DIAGNOSIS

Adequate drainage is provided by a drain trough in the sunroof housing which encircles the sliding glass panel
and leads to drain hoses. If a wet headliner or other water leak complaints are encountered, before performing
any adjustments, first ensure that the drainage system is not plugged or disconnected. Use a pint container to
pour water into the sunroof housing drain trough. If water flow is restricted, use compressed air to blow out any
material plugging the drain system. Retest system again.

To further check for a disconnected drain hose:

1. Lower headliner as necessary to gain access to sunroof housing drain tubes. See REMOVAL.

2. Repair as necessary.

3. Install headliner. See INSTALLATION.

The sliding glass panel is designed to seal water entry with a snug fit between the roof and the seal. The fit can
be checked by inserting a piece of paper between the roof and the seal. The piece of paper should have some
resistance when pulled out when the glass panel is in the closed position. The sunroof housing will drain off a
minimum amount of water. Excessive wind noise could result if the gap clearances are exceeded. The sunroof
glass panel may need to be adjusted. See ADJUSTMENTS for proper procedures.

DEFLECTOR - SUNROOF WIND

REMOVAL

DEFLECTOR - SUNROOF WIND

SYMPTOM

POSSIBLE CAUSE

Sunroof water leak.

Drain tubes clogged or kinked or disconnected from the
sunroof.
Glass panel improperly adjusted.
Faulty glass panel seal.

Gurgling sound from sunroof.

Low spot in drain hose routing, allowing water to stand.

Wind noise from sunroof.

Front of glass panel too high or rear too low.
Wind deflector not deploying.
Glass not centered in opening.
Faulty glass panel seal.

Rattles from open sunroof while driving.

Loose or broken attaching hardware.
Worn or broken mechanism.

Sunroof does not stop in the fully closed
position.

Drive motor has lost position of glass, teach procedure
required to reprogram drive motor. Refer to sunroof drive
motor teach procedure.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



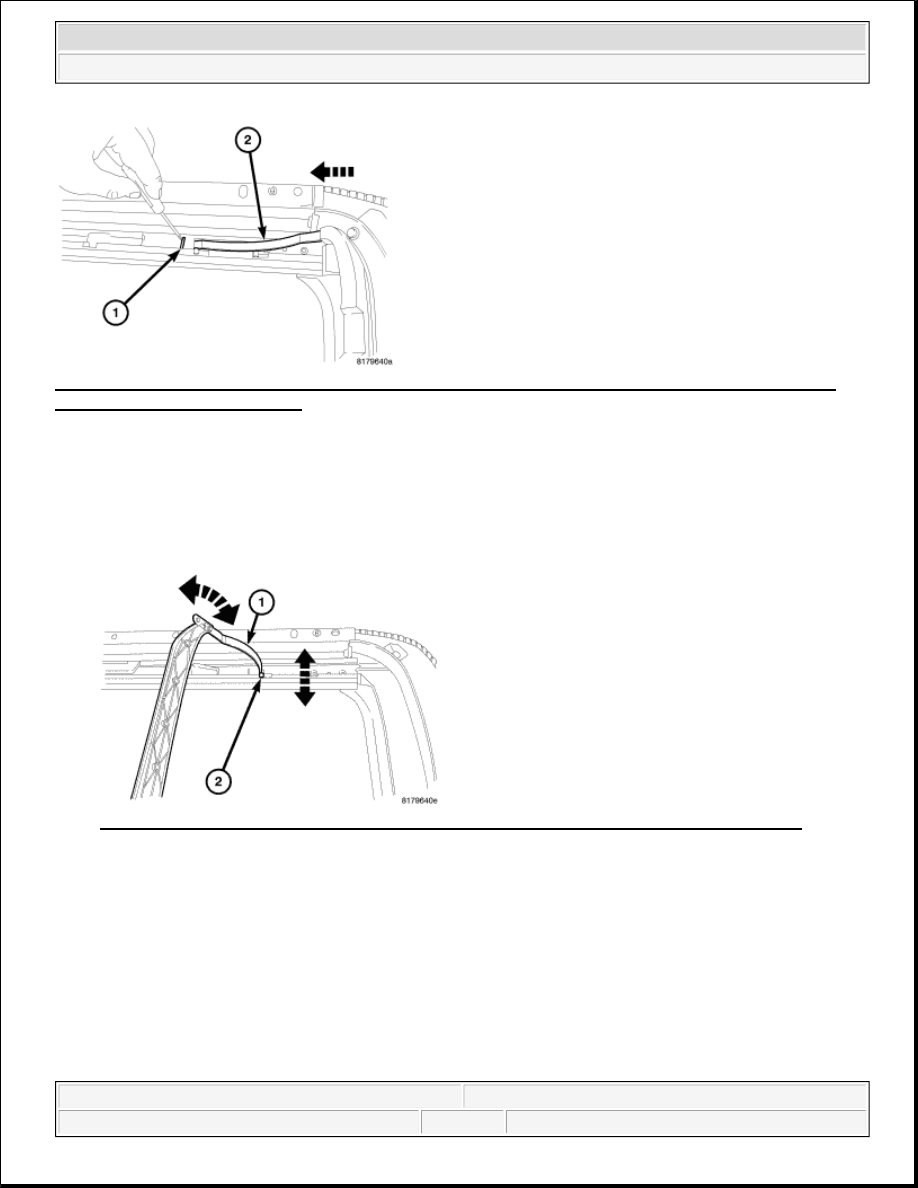

Fig. 563: Pressing Spring Lock With Small Flat Bladed Tool And Pushing Wind Deflector Reward To
Release From Car Top Opening
Courtesy of CHRYSLER LLC

1. Open the sunroof glass to the full open position.

2. Press the spring lock (1) with a small flat bladed tool and push the wind deflector (2) reward to release

from the car top opening.

3. Repeat the previous step on the opposite side.

Fig. 564: Rotating Wind Deflector Up And Release From Mounting Hole In Sunroof Frame
Courtesy of CHRYSLER LLC

4. Rotate the wind deflector (1) up and release from the mounting hole (2) in the sunroof frame.

INSTALLATION

DEFLECTOR - SUNROOF WIND



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



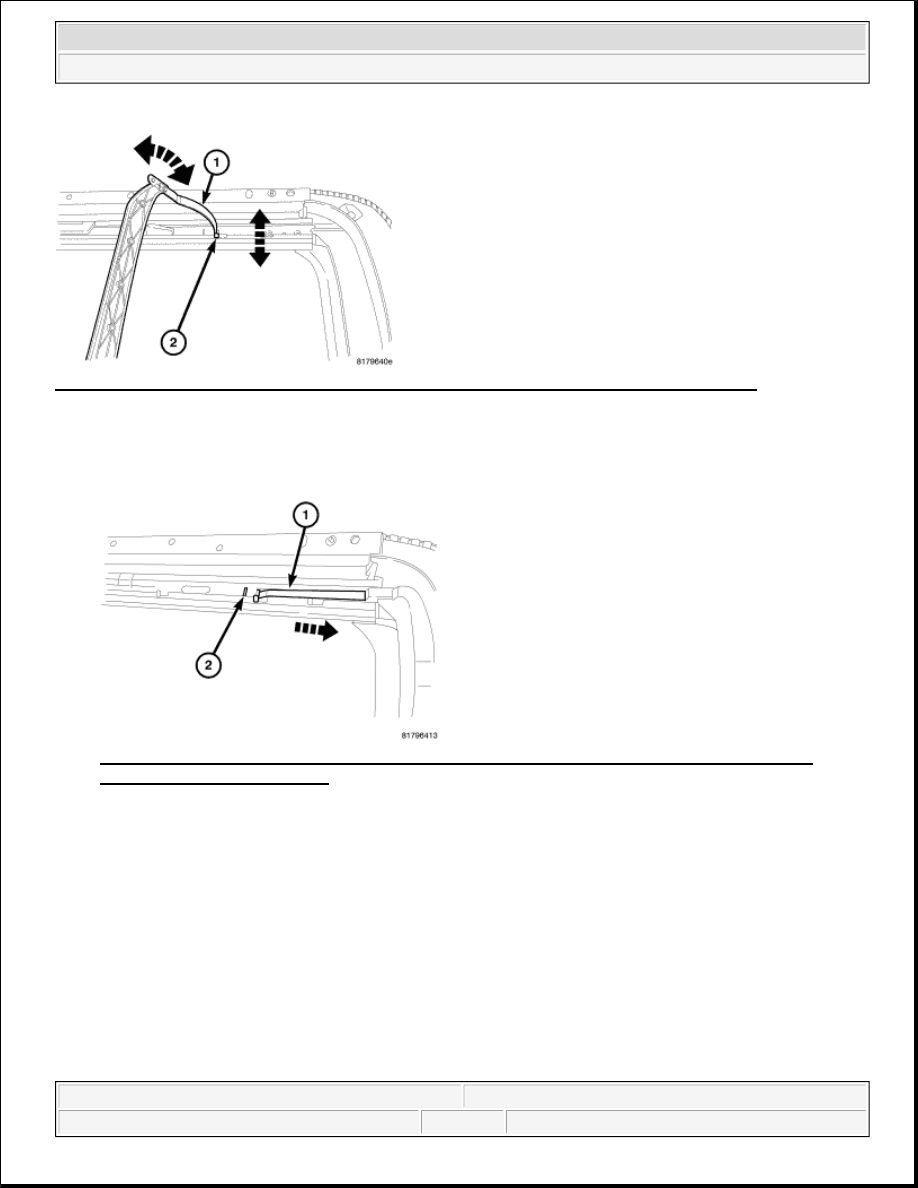

Fig. 565: Rotating Wind Deflector Up And Release From Mounting Hole In Sunroof Frame
Courtesy of CHRYSLER LLC

1. Position the wind deflector springs (1) into the mounting holes (2) in the sunroof frame.

2. Rotate forward and down into position.

Fig. 566: Sliding Wind Deflector And Spring Forward Under Car Top Lip And Making Sure
Spring Lock Snaps Into Place
Courtesy of CHRYSLER LLC

3. Slide the wind deflector and spring (1) forward under the car top lip and make sure the spring lock snaps

into place (2) fully.

GLASS - SUNROOF

REMOVAL

GLASS - SUNROOF



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
