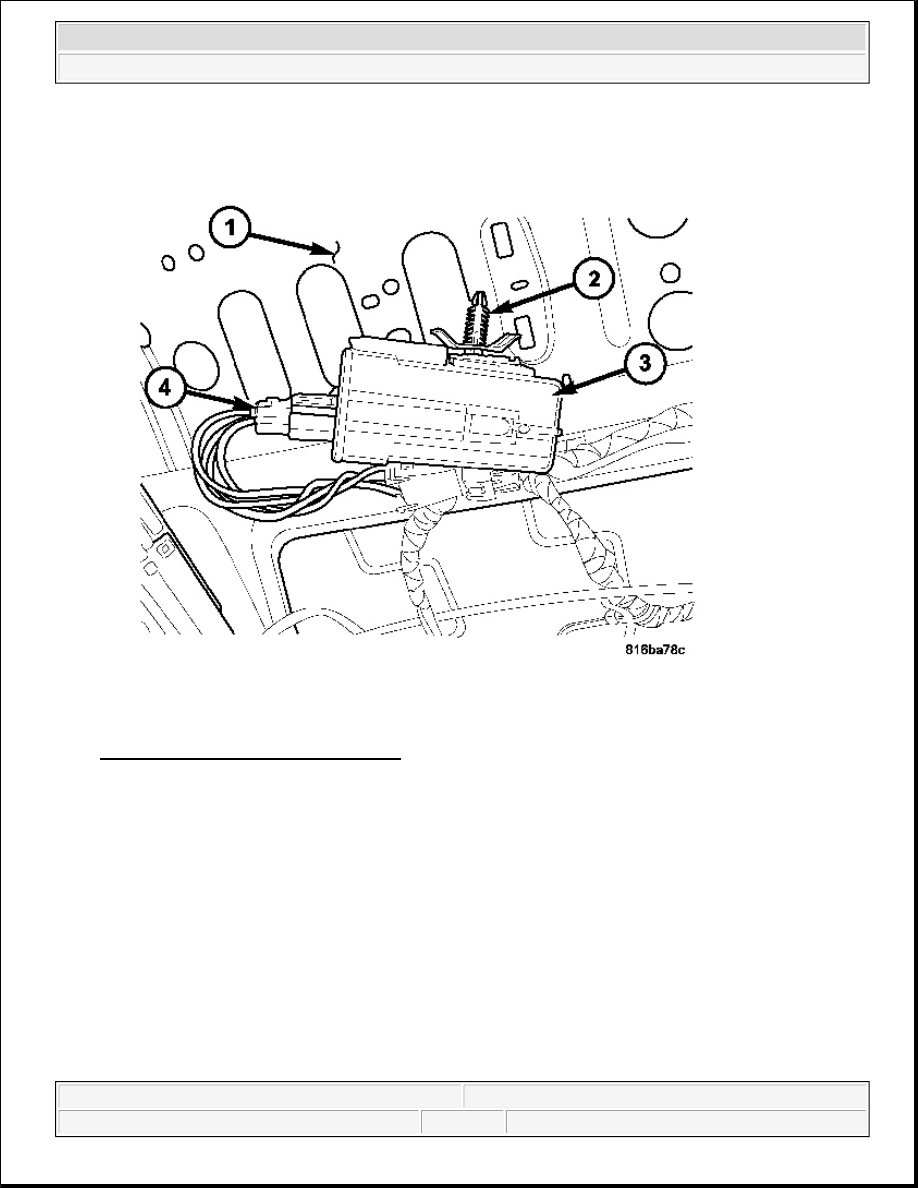

Fig. 466: Locating Heated Seat Module
Courtesy of CHRYSLER LLC

6. Install the heated seat module (3) into the vehicle.

7. Position the retaining tab (2) with the mounting hole in the seat pan (1). Firmly apply even pressure to the

module (3) until the mounting tab is fully seated.

8. Connect the wire harness connector (4) to the heated seat module (3).

CAUTION: The Heated Seat Module mounting tab can be damaged during

module removal and installation. Use care to properly align tab to
prevent binding that could result in tab breakage.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



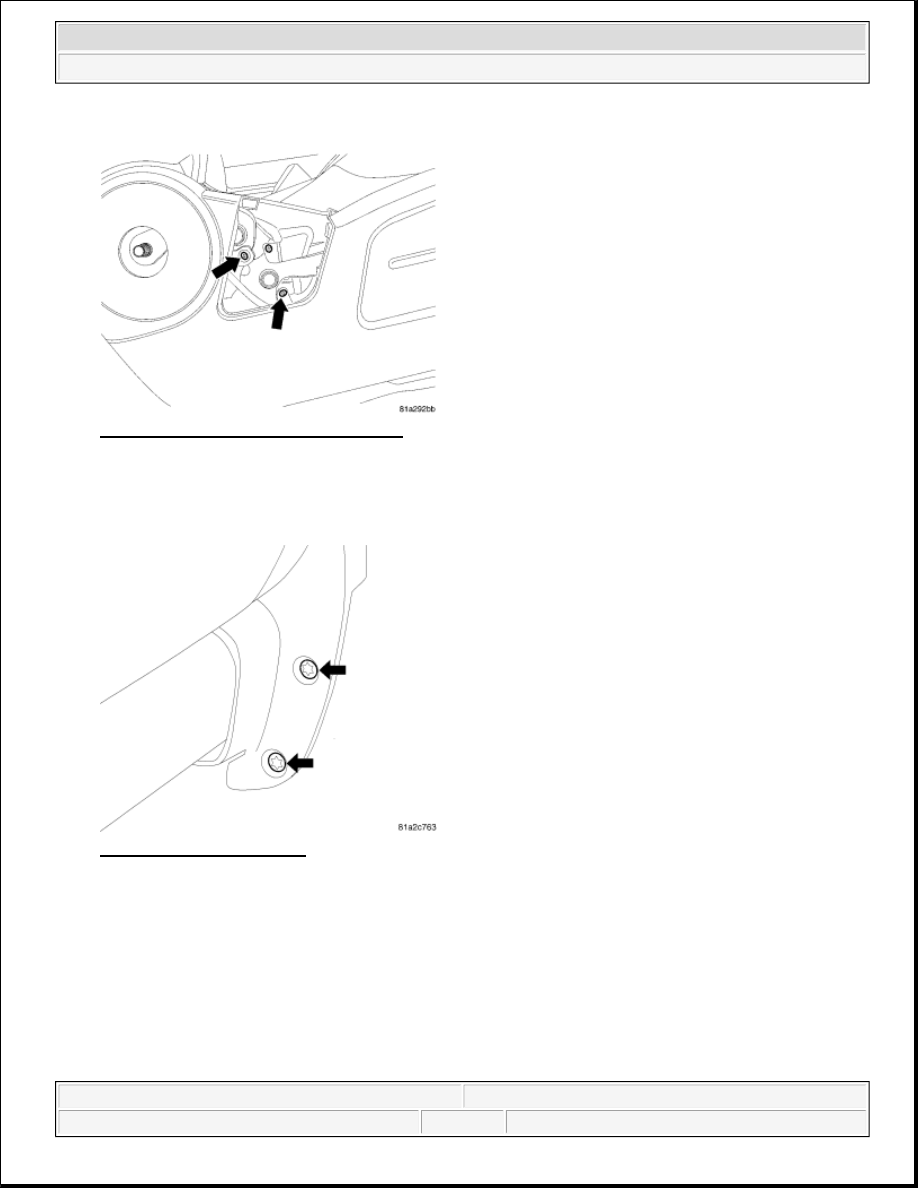

Fig. 467: Passenger Outer Trim Screws
Courtesy of CHRYSLER LLC

9. Install the seat position sensor.

10. Install the two screws to the side of the outer seat trim.

Fig. 468: Rear Seat Screws
Courtesy of CHRYSLER LLC

11. Install the two screws to the rear of the outer seat trim.

12. Install the recliner handle.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



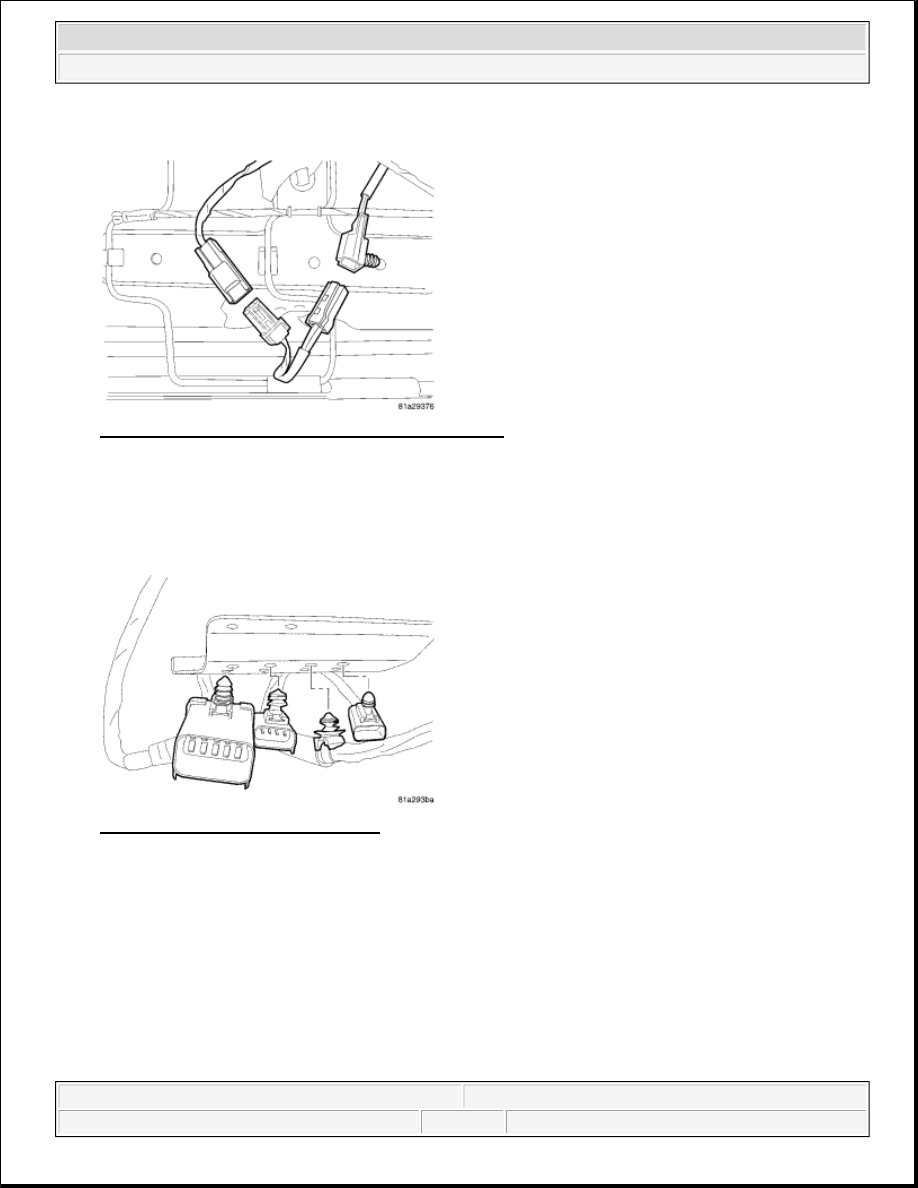

Fig. 469: Heated Seat Element Electrical Connectors
Courtesy of CHRYSLER LLC

13. Install the electrical connectors for both the heated seat back and seat elements.

Fig. 470: OCS Electrical Connectors
Courtesy of CHRYSLER LLC

14. Install the electrical harness connectors to the OCS mounting plate.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



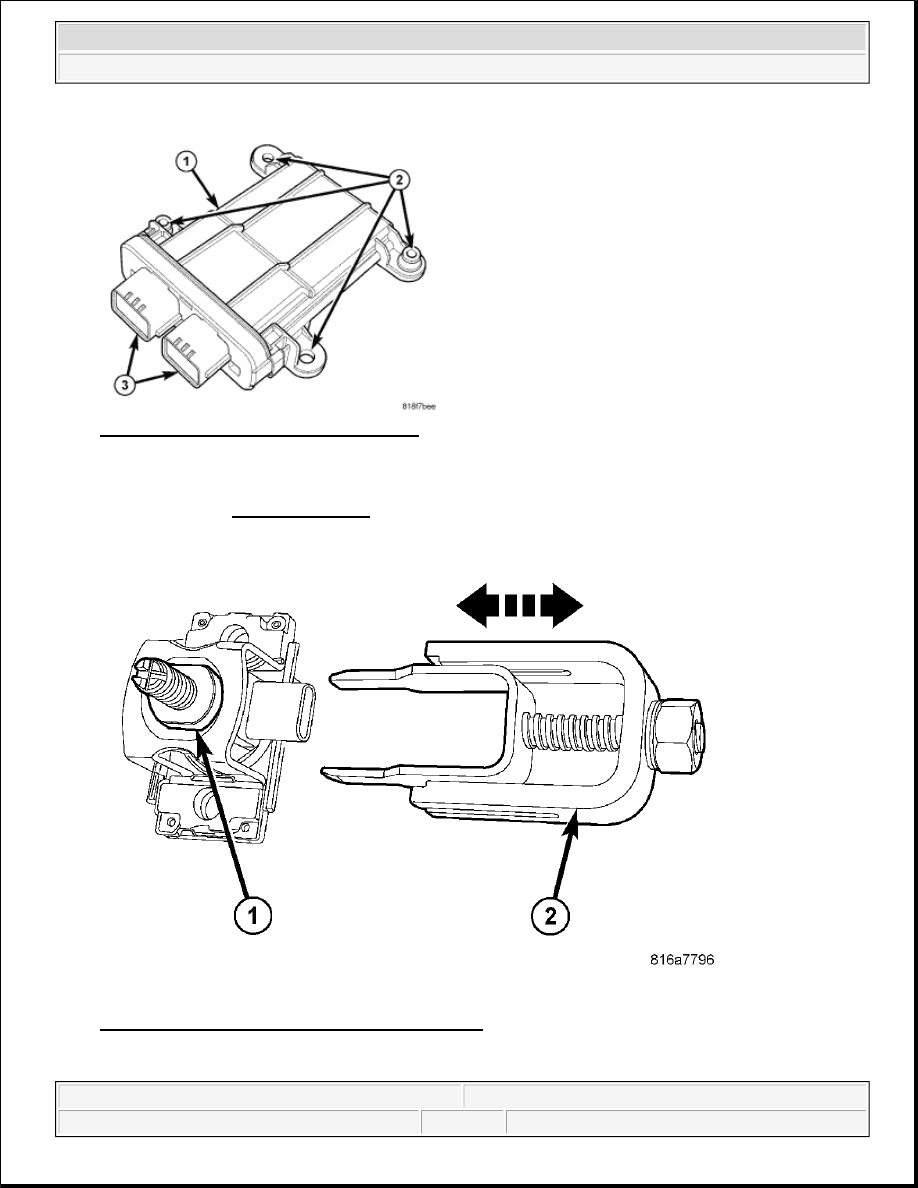

Fig. 471: Occupant Classification Module
Courtesy of CHRYSLER LLC

15. Install the occupant classification module and connect the electrical connectors if equipped, passenger

side only, refer to INSTALLATION .

Fig. 472: Removing/Installing Seat Weight Sensor
Courtesy of CHRYSLER LLC
