Dodge Nitro. Manual - part 432

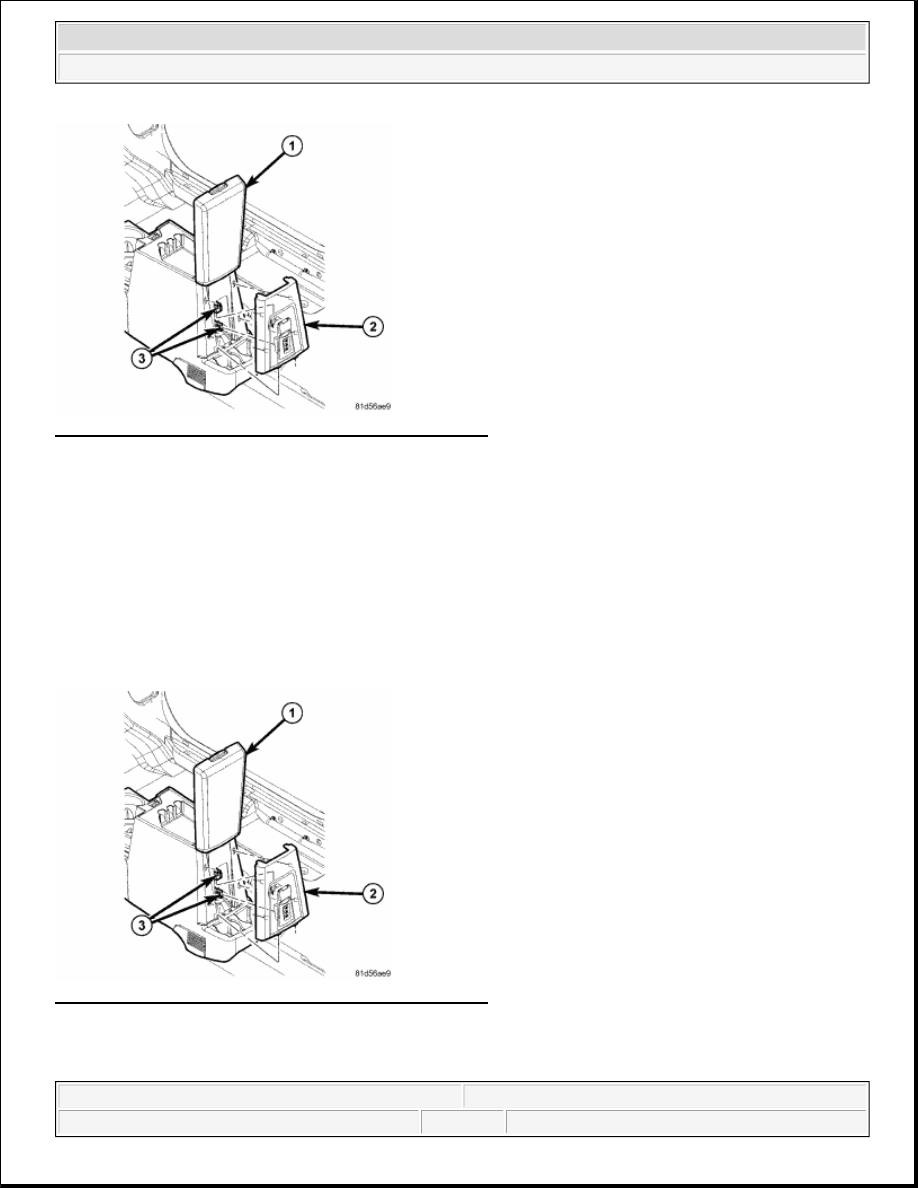

Fig. 357: Console Lid, End Cap & Electrical Connectors
Courtesy of CHRYSLER LLC

1. Open console lid (1).

2. Using a trim stick C-4755 or equivalent, release the fasteners at the four locations around the floor

console end cap (2).

3. Disconnect electrical connectors (3) from end cap (2).

4. Remove end cap (2).

INSTALLATION

CAP - FLOOR CONSOLE END

Fig. 358: Console Lid, End Cap & Electrical Connectors
Courtesy of CHRYSLER LLC

1. Connect the electrical connectors (3) to the end cap (2).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



2. Align the end cap (2) to the console, use hand pressure to seat the clips.

FLOOR - LOAD

REMOVAL

FLOOR - LOAD

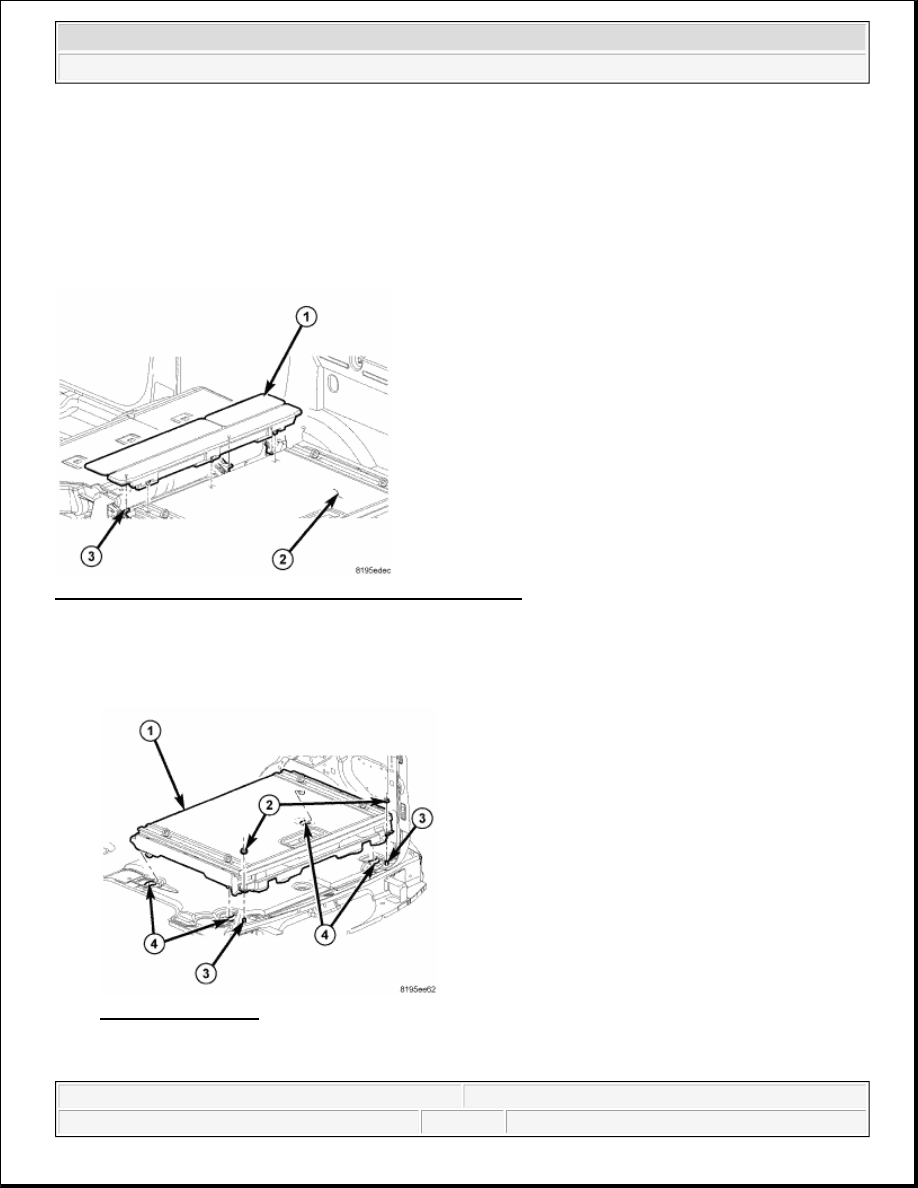

Fig. 359: Load Floor Panel, Load Floor & Rear Seat Bracket
Courtesy of CHRYSLER LLC

1. Position the rear seats in the forward position.

2. Remove the load floor panel (1) from the load floor (2) and the rear seat bracket (3).

Fig. 360: Load Floor
Courtesy of CHRYSLER LLC

3. Remove the nuts (2) from the load floor (1).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



4. Lift the rear of the floor panel (1) up and rearward to release from the body hooks (4).

5. Remove the load floor (1) from the vehicle.

INSTALLATION

FLOOR - LOAD

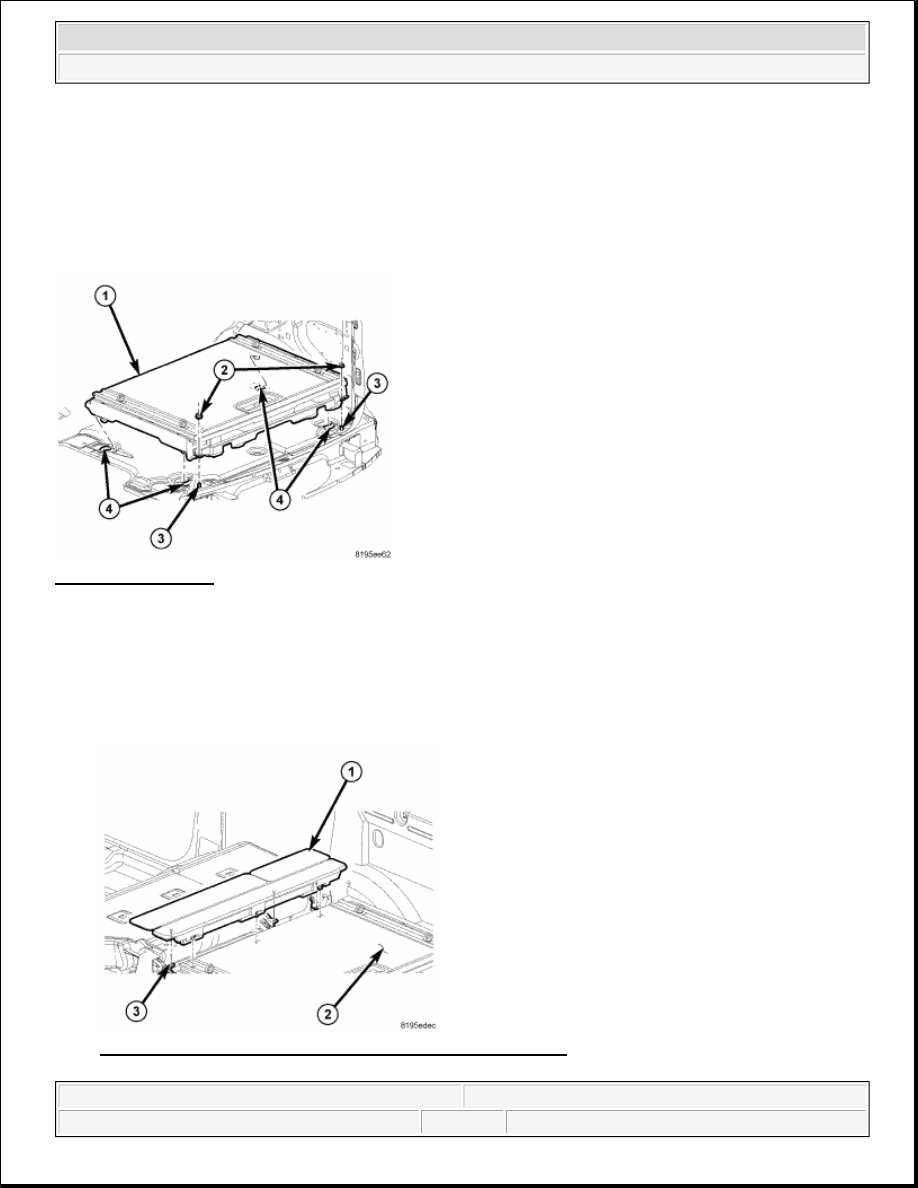

Fig. 361: Load Floor
Courtesy of CHRYSLER LLC

1. Install the load floor (1) to the vehicle.

2. Lift the rear of the floor panel (1) up and forward to catch the hooks (4).

3. Lower the load floor (1) onto the studs (3).

4. Install the nuts (2) to the load floor (1) and tighten the nuts to 28 N.m (20.5 ft. lbs.).

Fig. 362: Load Floor Panel, Load Floor & Rear Seat Bracket
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



5. Install the load floor panel (1) to the load floor (2) and the rear seat bracket (3). Use hand pressure to seat

the clips.

6. Return the rear seats in the upright position.

HANDLE - ASSIST

REMOVAL

HANDLE - ASSIST

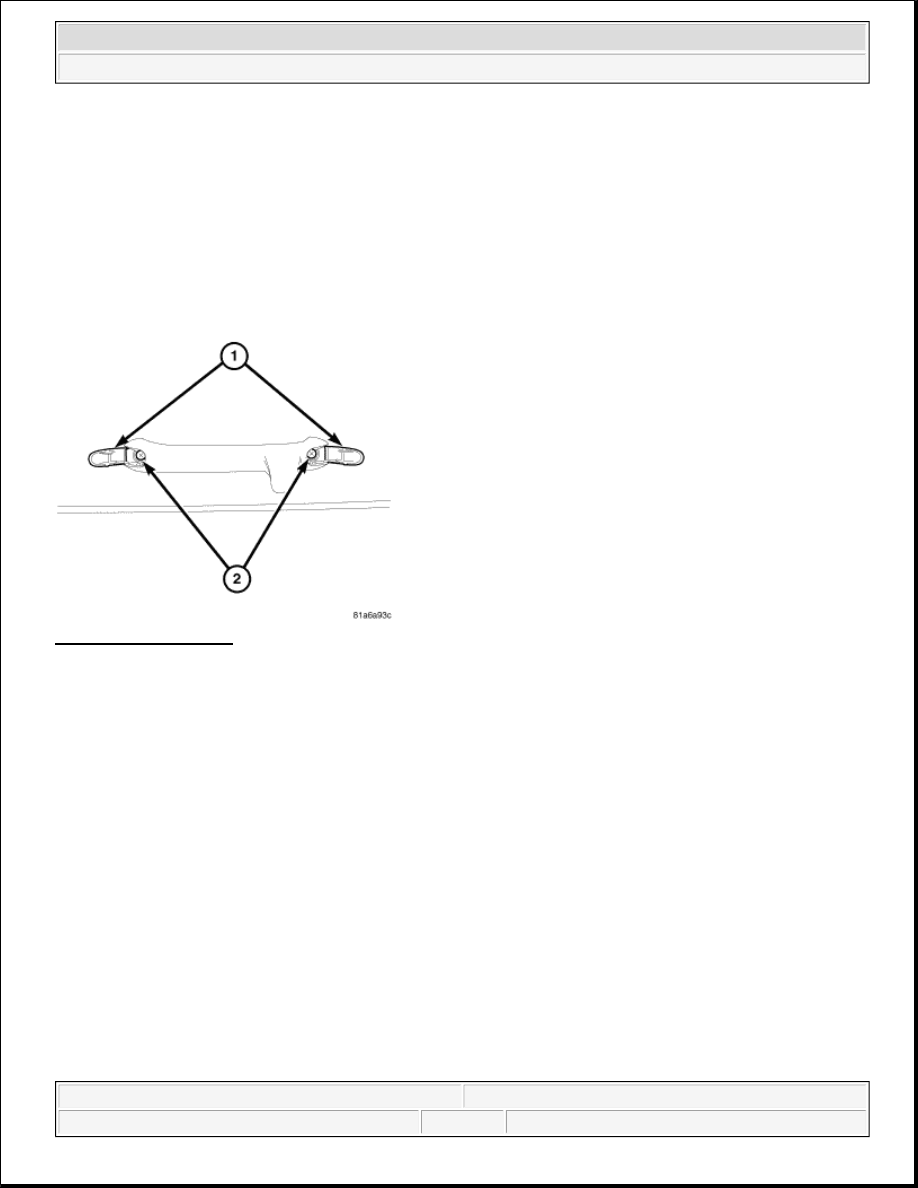

Fig. 363: Handle Assist
Courtesy of CHRYSLER LLC

1. Using a small pry tool or equivalent, release the assist handle by prying open the covers (1) at either end.

2. Remove the screws (2) from the assist handle.

INSTALLATION
