1. Install the console (1) into the vehicle.

2. Install the two screws (5) to the rear of the console (1), located inside the console bin.

3. Install the two screws (2) in the front of console (1).

4. Install the bin (4) to the console (1).

5. Install the ash cup (3) to the console (1).

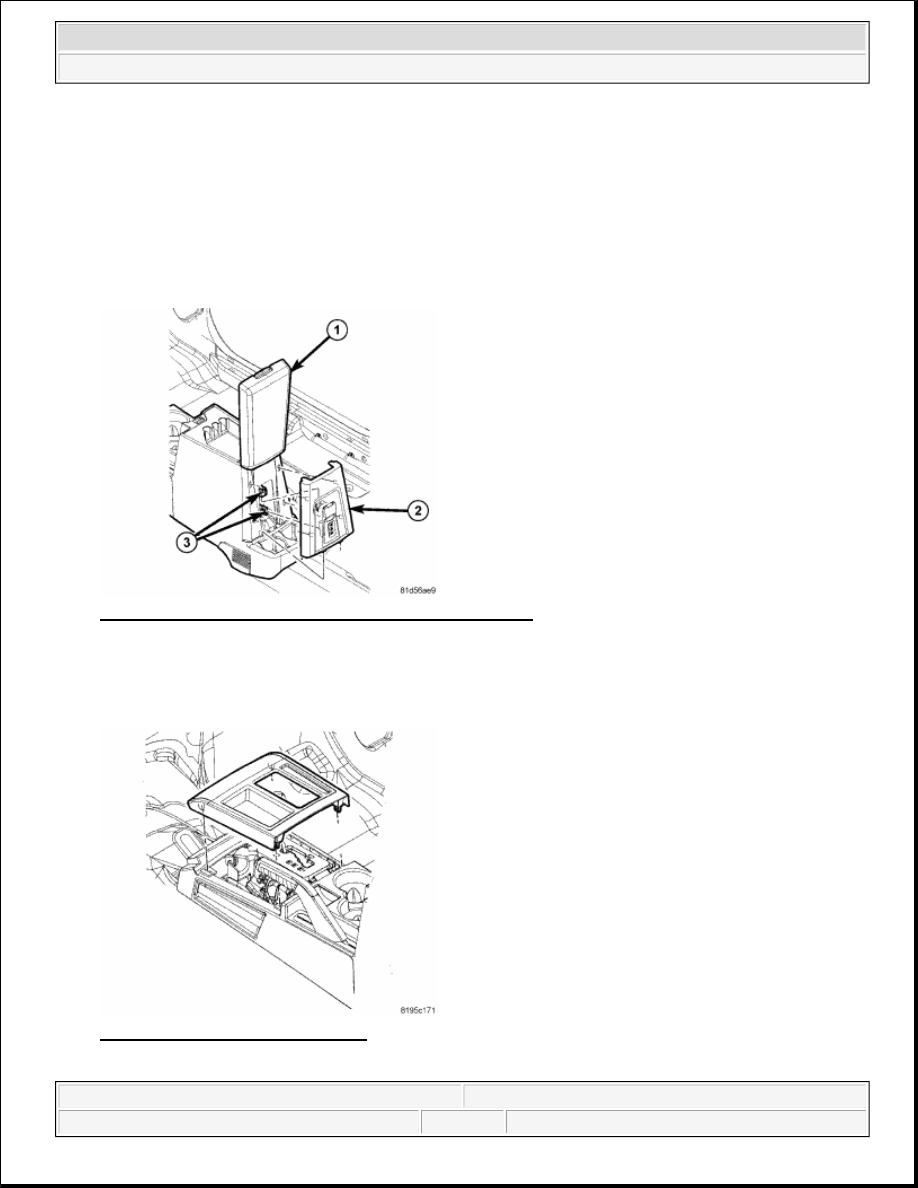

Fig. 345: Console Lid, End Cap & Electrical Connectors
Courtesy of CHRYSLER LLC

6. Connect the electrical connectors (3) to the end cap (2).

7. Align the end cap (2) to the console, use hand pressure to seat the clips.

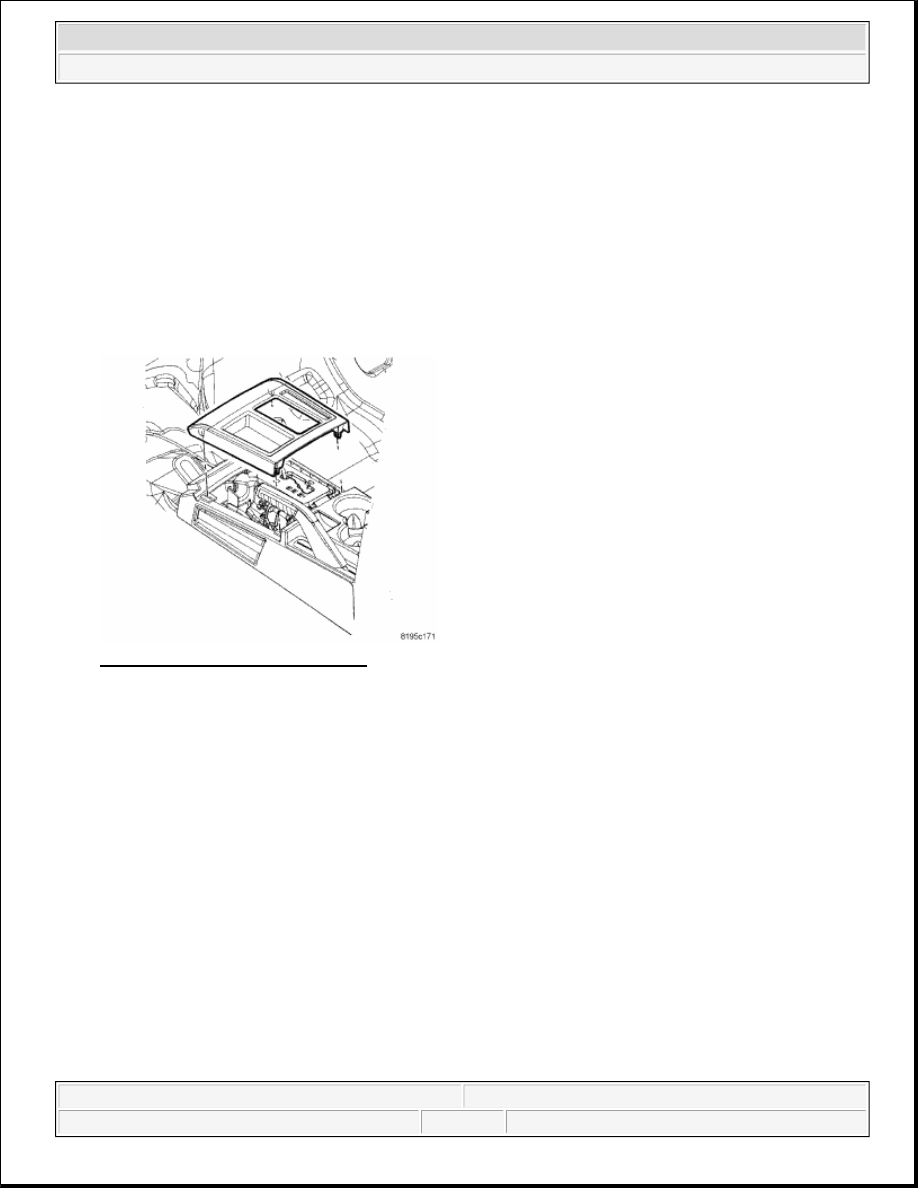

Fig. 346: Floor Console Shift Bezel
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



8. If equipped, connect electrical connectors attached to shift bezel.

9. Align and use hand pressure to install the shift bezel into the floor console.

BEZEL - CONSOLE SHIFT

REMOVAL

BEZEL - CONSOLE SHIFT

1. If equipped with a manual transmission, using a slide-hammer, snap out the shift knob from the lever.

Fig. 347: Floor Console Shift Bezel
Courtesy of CHRYSLER LLC

2. Using a trim stick C-4755 or equivalent, pry the shift bezel out of the floor console. If equipped with a

manual transmission, the lever boot will come off with the bezel.

3. If equipped, remove electrical connectors attached to shift bezel.

INSTALLATION

BEZEL - CONSOLE SHIFT



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



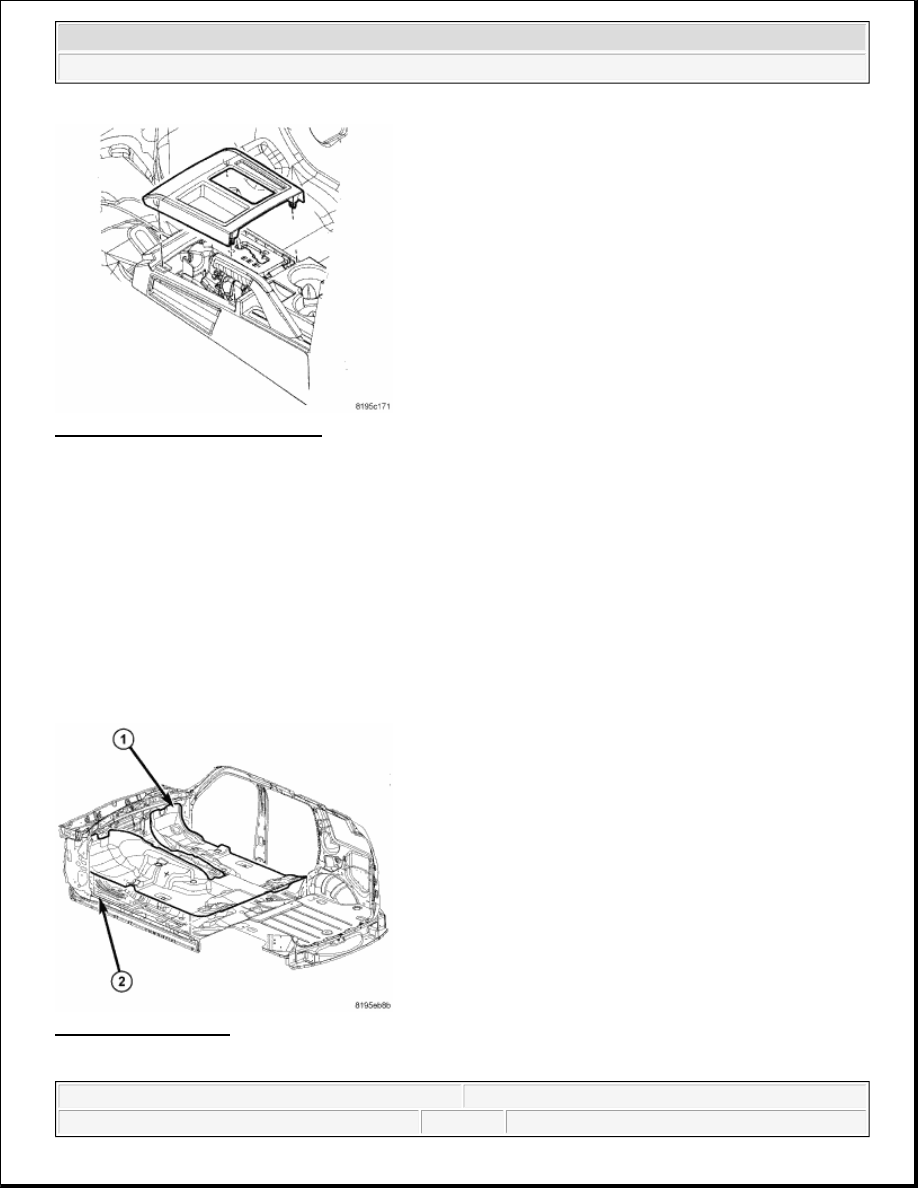

Fig. 348: Floor Console Shift Bezel
Courtesy of CHRYSLER LLC

1. If equipped, connect electrical connectors attached to shift bezel.

2. Align and use hand pressure to install the shift bezel into the floor console.

3. If equipped with a manual transmission, snap in the shift knob on the shift lever.

CARPET - FLOOR

REMOVAL

CARPET - FLOOR

Front Carpet

Fig. 349: Front Carpet
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



1. Remove front seats, see REMOVAL.

2. Remove the floor console, see REMOVAL.

3. Remove the rear seats, see REMOVAL.

4. Remove the cowl trim panels, see REMOVAL.

5. Remove the B-pillar lower trim, see REMOVAL.

6. Remove all electrical harnesses from the carpet.

7. Remove the carpet from the vehicle.

INSTALLATION

CARPET - FLOOR

Fig. 350: Front Carpet
Courtesy of CHRYSLER LLC

1. Install the carpet to the vehicle.

2. Route all the electrical harness pigtails into the carpet at the varies locations.

3. Install the B-pillar lower trim, see INSTALLATION.

4. Install the cowl trim panels, see INSTALLATION.

5. Install the rear seats, see INSTALLATION.

6. Install the floor console, see INSTALLATION.

7. Install the front seats, see INSTALLATION.
