Dodge Nitro. Manual - part 428

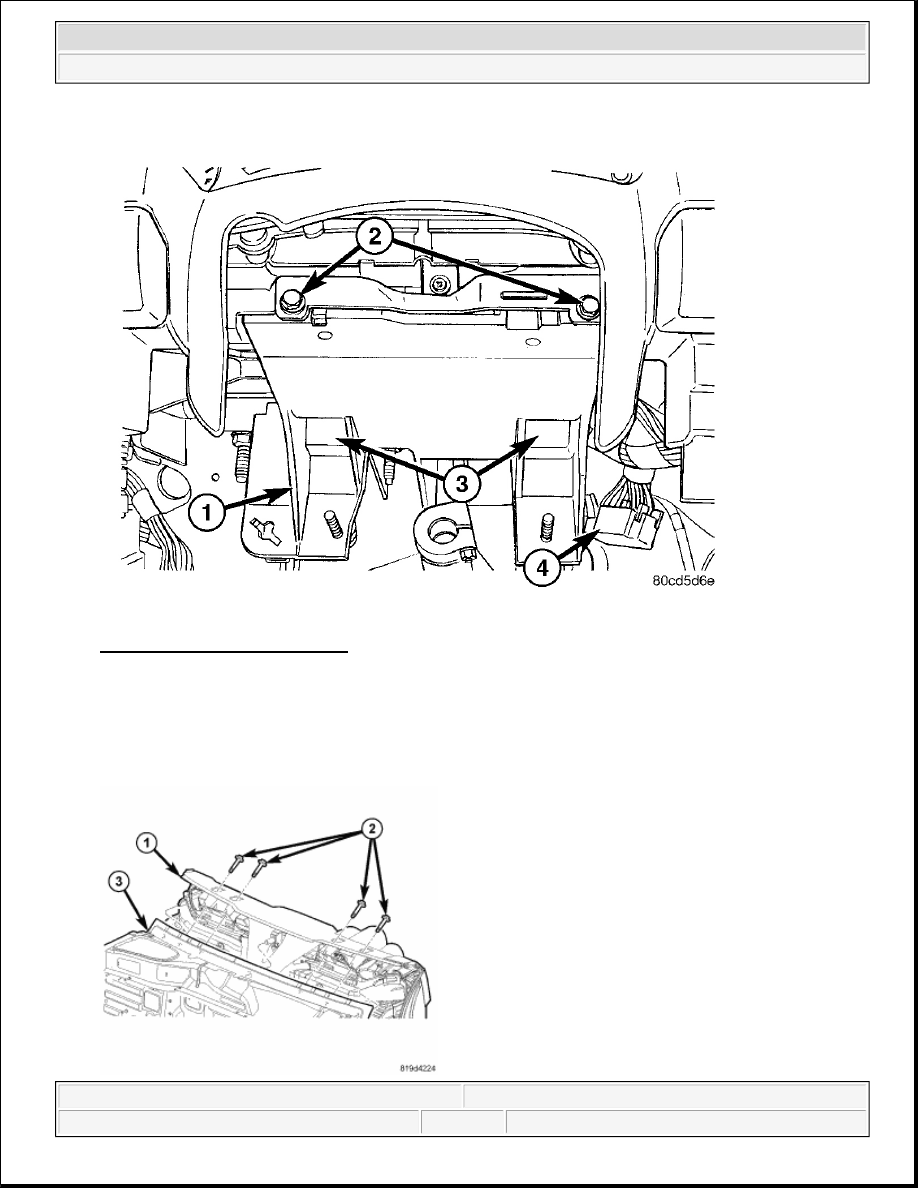

Fig. 331: Pedal Support Bracket
Courtesy of CHRYSLER LLC

9. Install the two bolts to the bottom side of the pedal support bracket.

10. Install the two bolts at the front of the pedal support bracket.

11. Connect the electrical connector at the inner side of the pedal support bracket.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



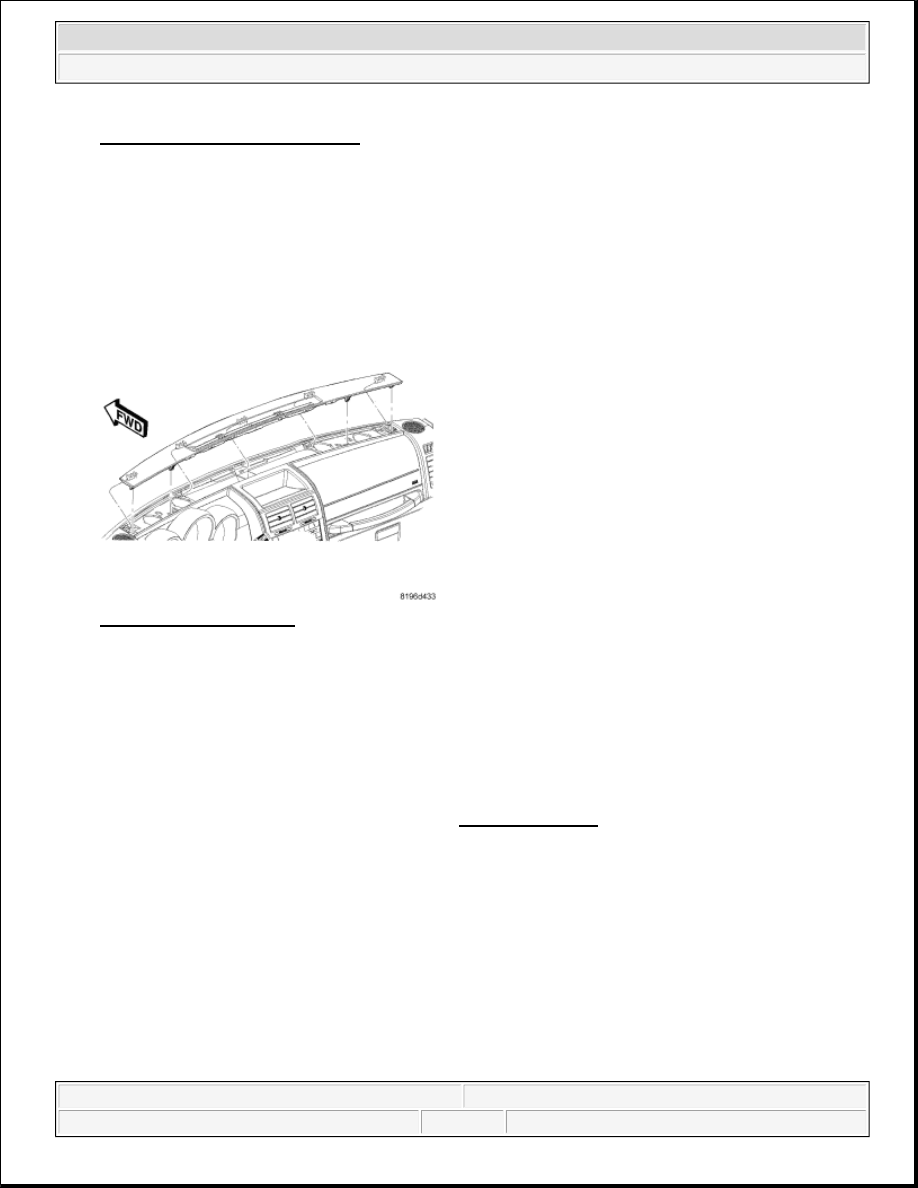

Fig. 332: Upper Instrument Panel
Courtesy of CHRYSLER LLC

12. Install the bolts (2) attaching the instrument panel (1) to the body (3) and tighten to 28 N.m (20.5 ft. lbs.).

Fig. 333: Defroster Grille
Courtesy of CHRYSLER LLC

13. Align and install the defroster grille to the instrument panel.

14. Use hand pressure to engage the defroster grille clips to the instrument panel slots.

15. Install the steering column to the vehicle, refer to INSTALLATION .

CAUTION: Make sure the clips located at the center stack and between the

HVAC duct and instrument panel are engaged before tightening the
upper instrument panel bolts.

CAUTION: Carefully align the defroster grille clips to the instrument panel slots.

Make sure the panel is properly positioned to avoid breaking the clip
tabs from the defroster grille.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



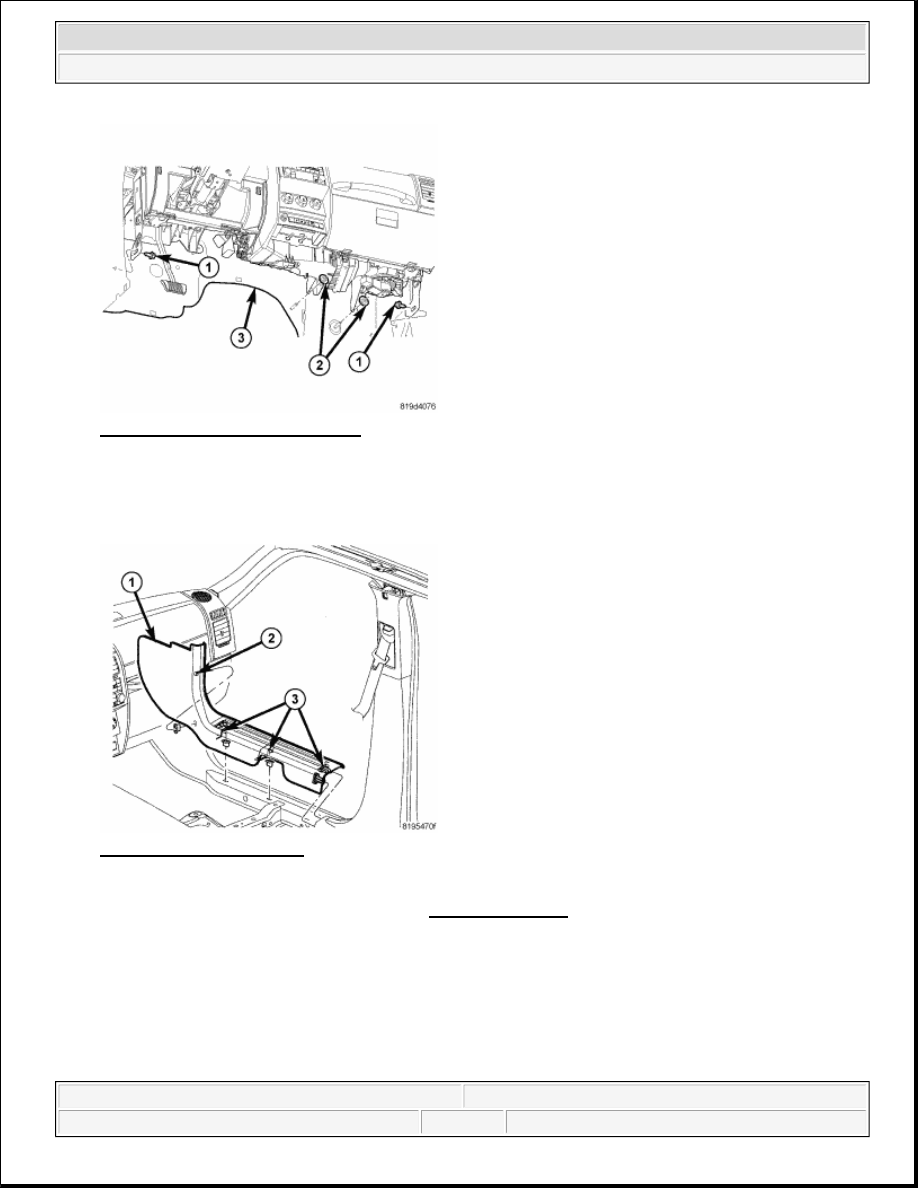

Fig. 334: Lower Instrument Panel
Courtesy of CHRYSLER LLC

16. Install the bolts (1) and tighten to 6 N.m (55 in. lbs.).

17. Install the nuts (2) to the lower instrument panel mounts and tighten to 30.5 N.m (22.5 ft. lbs.).

Fig. 335: Cowl Trim Panel
Courtesy of CHRYSLER LLC

18. Install the right and left cowl side panels, see INSTALLATION.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



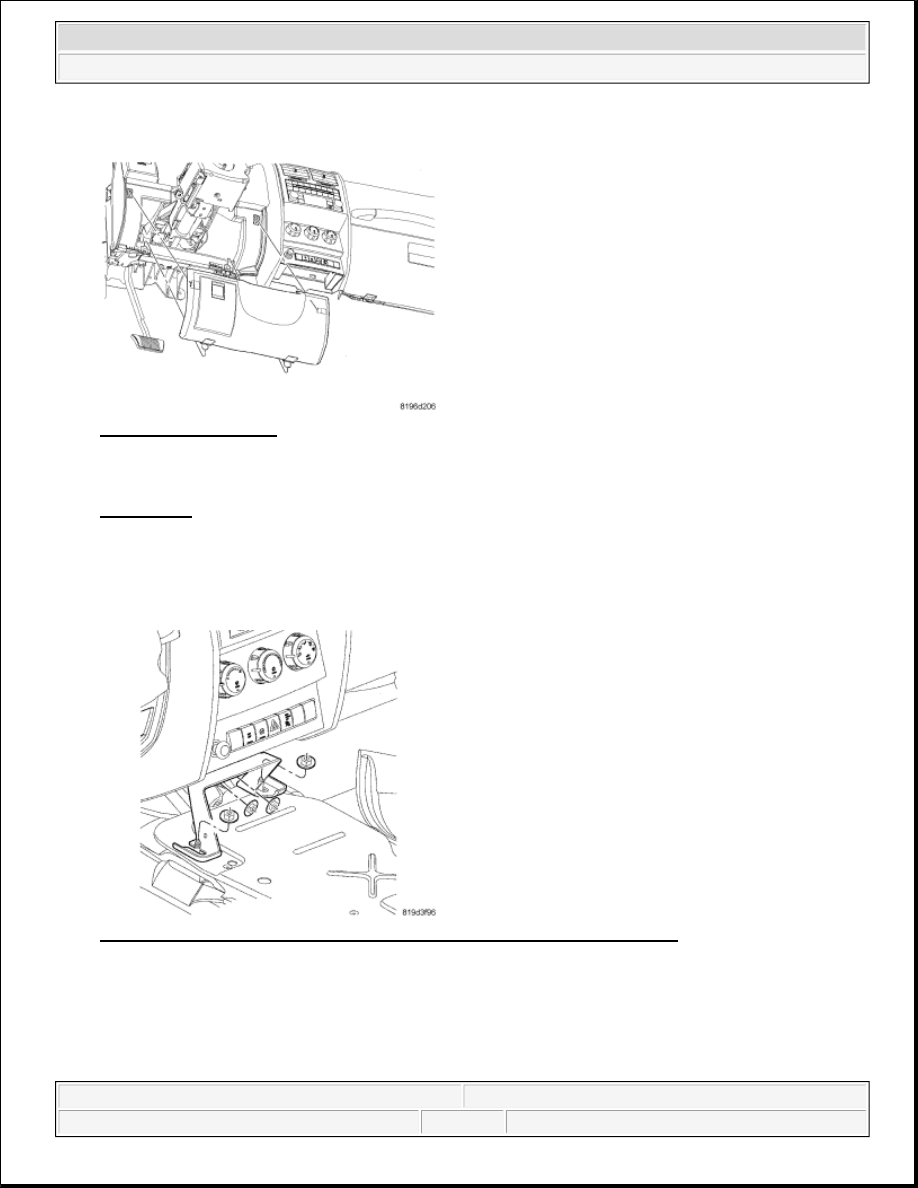

Fig. 336: Knee Blocker
Courtesy of CHRYSLER LLC

19. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

20. Align steering column cover's claws to instrument panel tabs. When claws are aligned with tabs, slide the

cover to the right or inboard of the driver side to engage the claws over the instrument panels hinges.

21. Gently swing the steering column cover upward until the clips touch the corresponding slots in the

instrument panel and use hand pressure to engage the clips.

Fig. 337: Removing/Installing Nuts And Instrument Panel Support Bracket
Courtesy of CHRYSLER LLC

22. Install the instrument panel support bracket and nuts and tighten to 28 N.m (20.5 ft. lbs.).
