Fig. 317: Knee Blocker
Courtesy of CHRYSLER LLC

7. Reach into the steering column opening at the top of the knee blocker and pull the top rearward to

disengage upper knee blocker clips.

8. Gently swing the knee blocker open.

9. While the cover is in a full down position, slide the cover to the left or outboard of the driver side, this

will allow the claws of the cover to disengage from the trim panel hinges, and then pull the cover
rearward to remove the steering column cover.

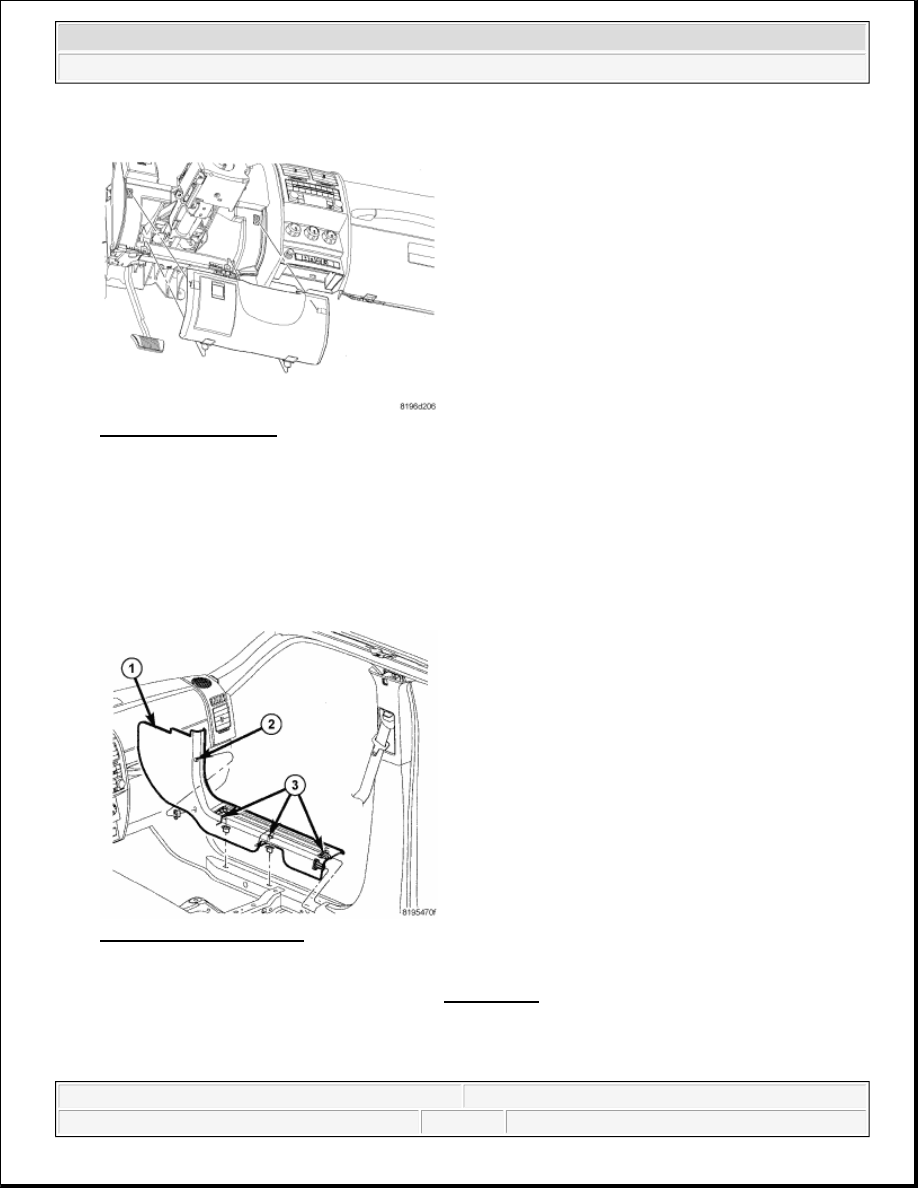

Fig. 318: Cowl Trim Panel
Courtesy of CHRYSLER LLC

10. Remove the right and left cowl side panels, see REMOVAL



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



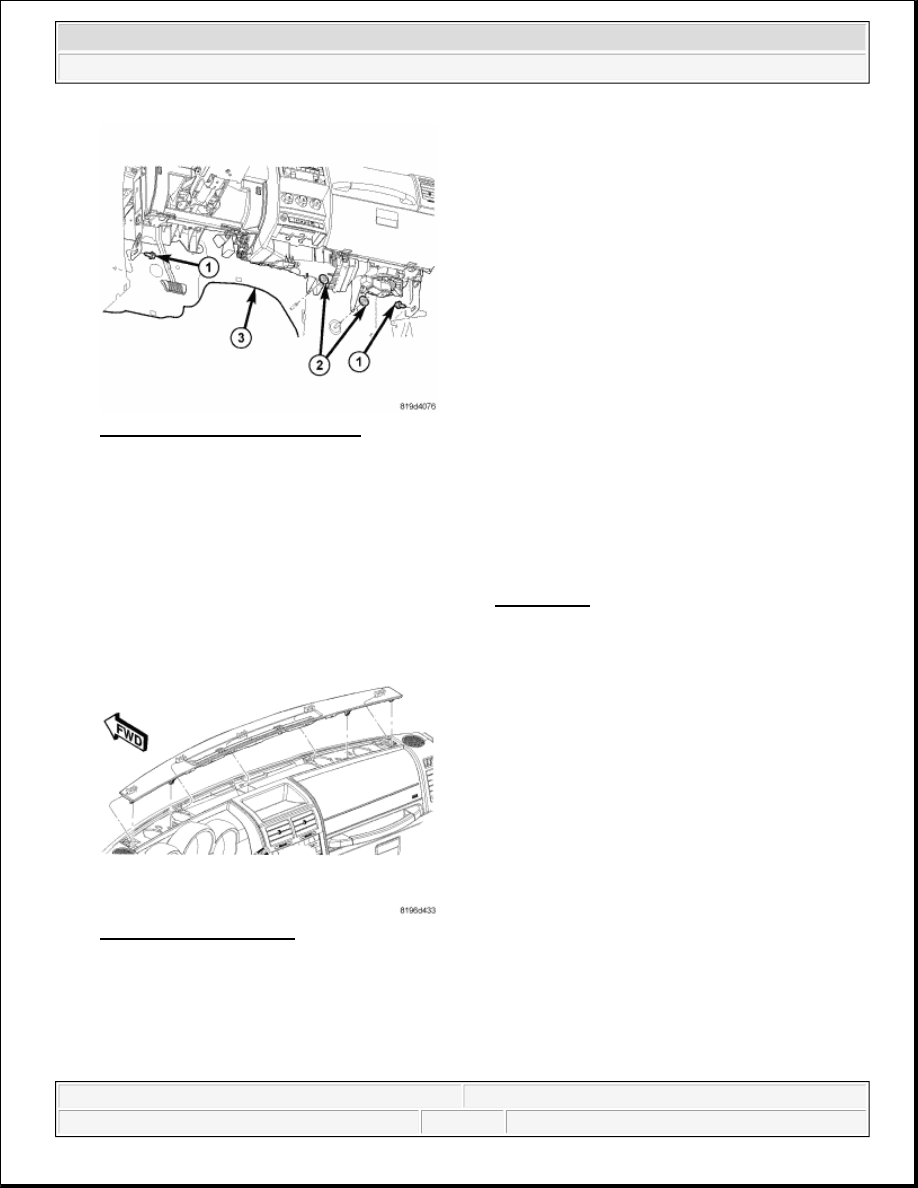

Fig. 319: Lower Instrument Panel
Courtesy of CHRYSLER LLC

11. Remove bolts (1) and the nuts (2) from the lower instrument panel mounts.

12. Remove the steering column from the vehicle, refer to REMOVAL .

Fig. 320: Defroster Grille
Courtesy of CHRYSLER LLC

NOTE:

Using a grease pencil or equivalent, mark the position of the steering
wheel.

CAUTION: Carefully disengage the retaining clips on the defroster grille. Make

sure the tool does not scratch the instrument panel assembly while
removing.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



13. Using a trim stick C-4755 or equivalent, release the rearward edge clips, and secondly once the rearward

edge clips are released. Move in an upward and rearward direction to release the front edge clips of the
instrument panel top cover.

14. Remove the defroster grille from the instrument panel.

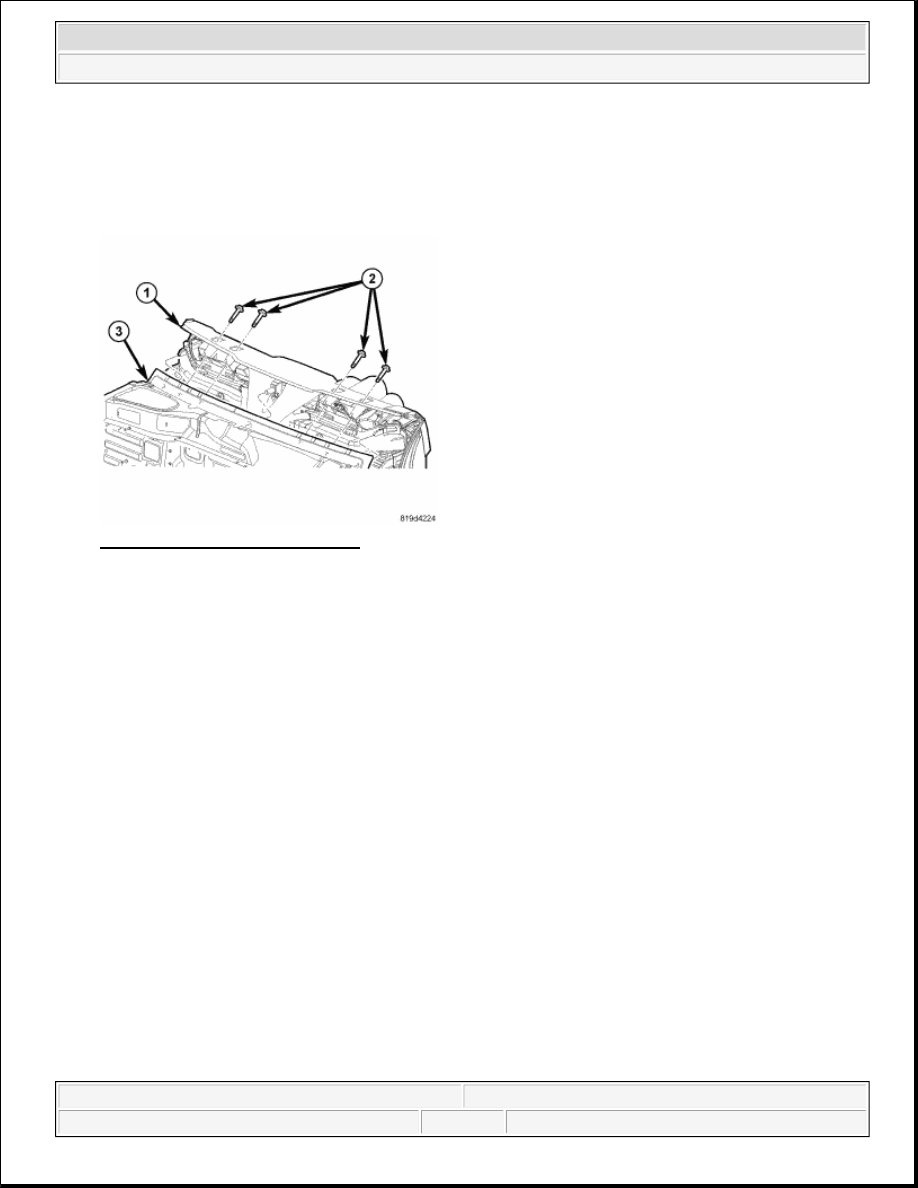

Fig. 321: Upper Instrument Panel
Courtesy of CHRYSLER LLC

15. Remove the bolts (2) attaching the instrument panel (1) to the body (3).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



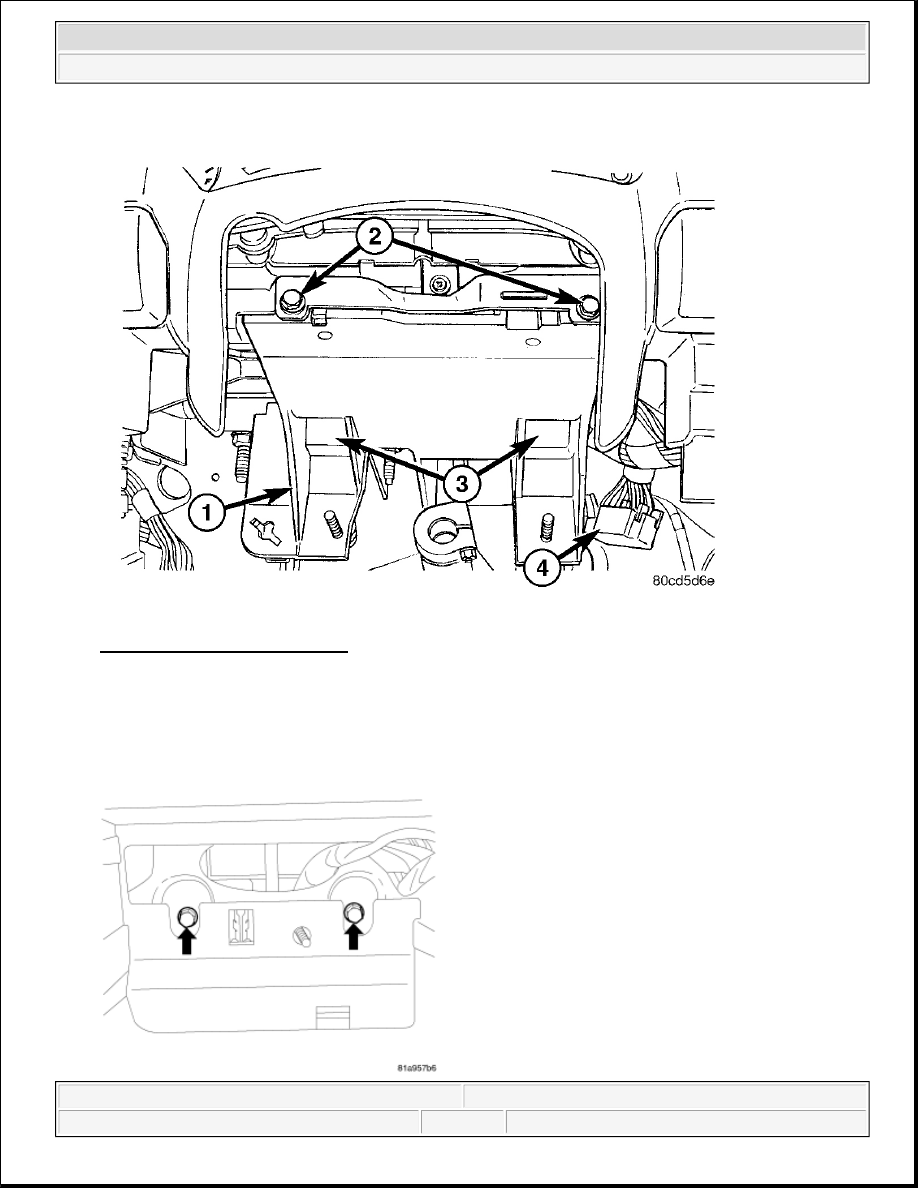

Fig. 322: Pedal Support Bracket
Courtesy of CHRYSLER LLC

16. Disconnect the electrical connector at the inner side of the pedal support bracket.

17. Remove the two bolts at the front of the pedal support bracket.

18. Remove the two bolts from the bottom side of the pedal support bracket.
