Dodge Nitro. Manual - part 425





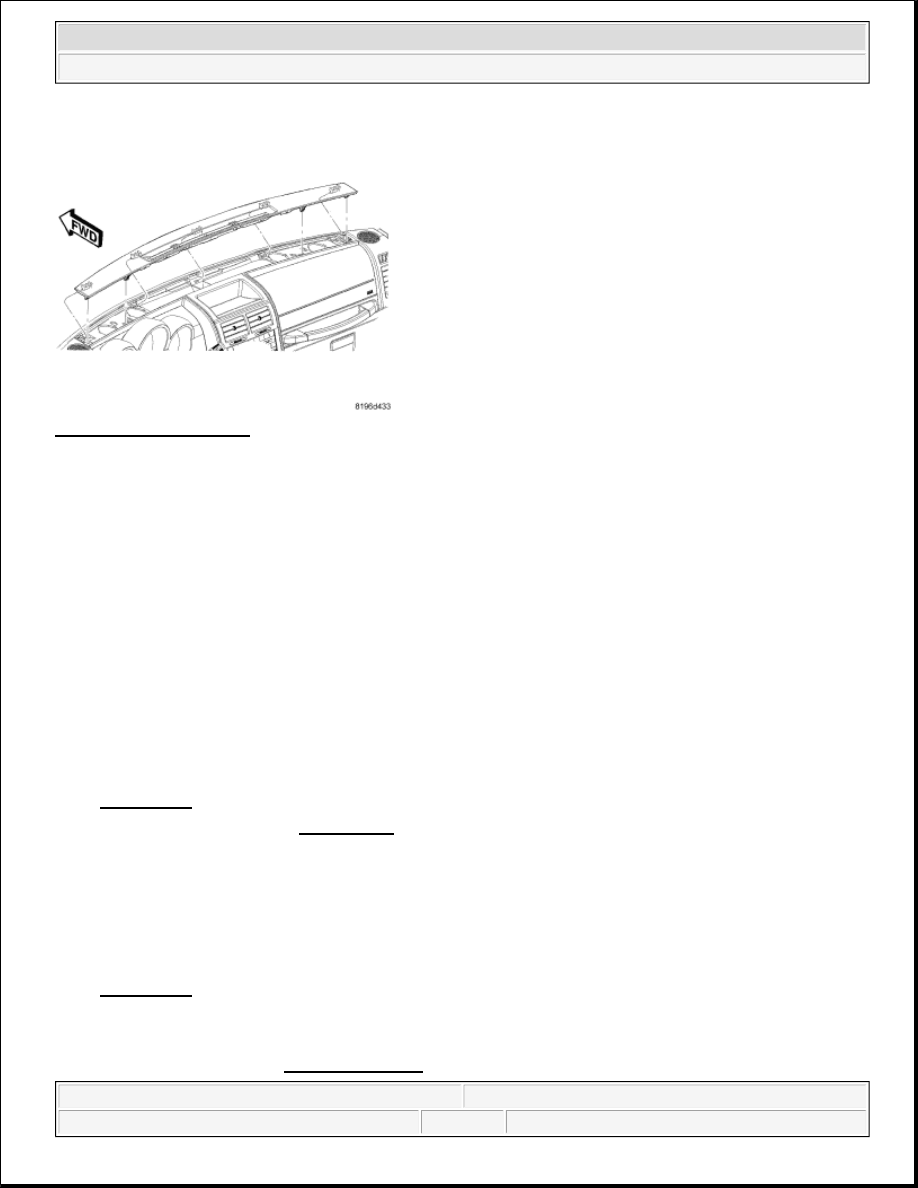

Fig. 311: Defroster Grille
Courtesy of CHRYSLER LLC

1. Position the defroster grille at a 45° angle and engage the forward clips first then engage the rear clips of

the defroster grille to the instrument panel.

2. Use hand pressure to engage the defroster grille clips to the instrument panel slots.

LATCH - GLOVE BOX DOOR

REMOVAL

LATCH - GLOVE BOX DOOR

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Remove the glove box, see REMOVAL.

3. Remove the three screws and remove the glove box latch.

INSTALLATION

LATCH - GLOVE BOX DOOR

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Position the latch to the glove box.

3. Install the three screws.

4. Install the glove box, see INSTALLATION

CAUTION: Carefully align the defroster grille clips to the instrument panel slots. Make

sure the panel is properly positioned to avoid breaking the clip tabs on the
defroster grille.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



PANEL - INSTRUMENT

REMOVAL

PANEL - INSTRUMENT

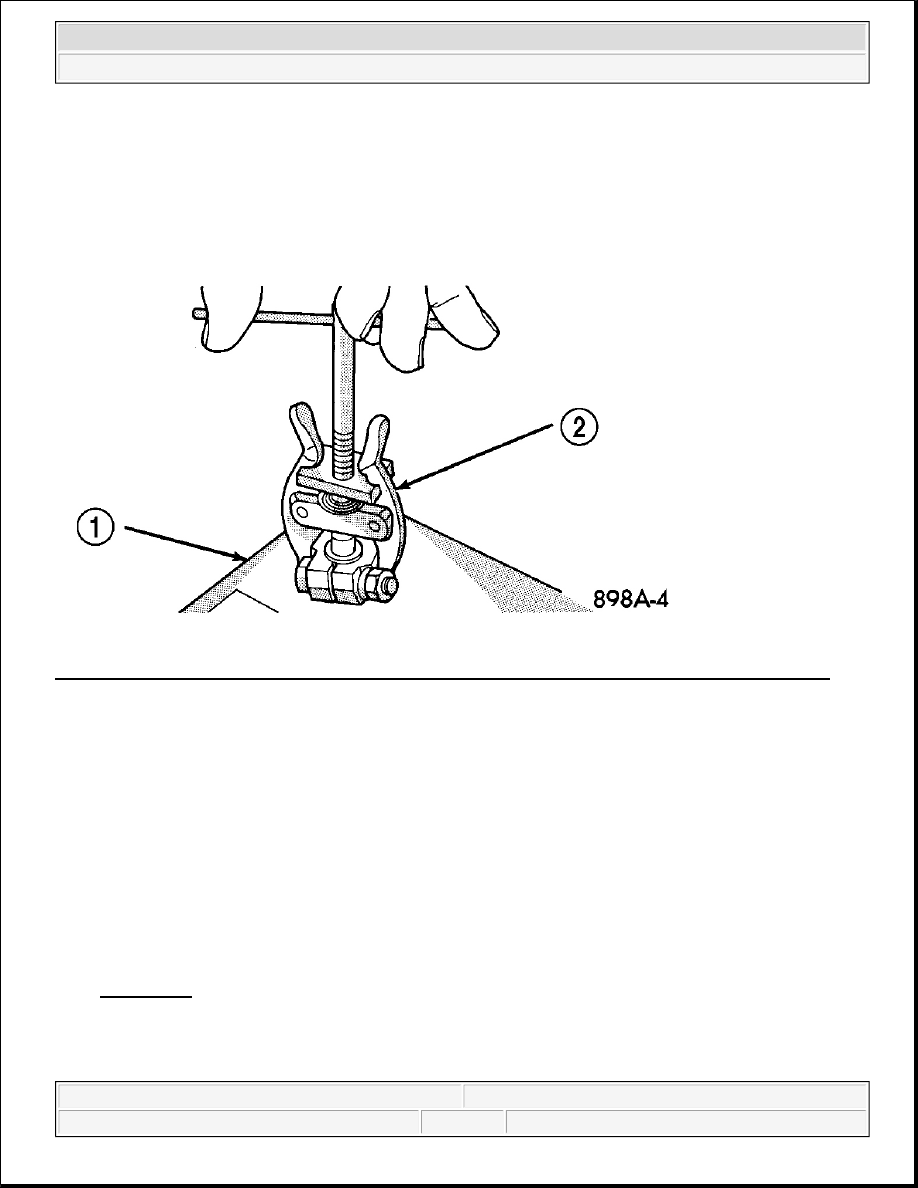

Fig. 312: Using Battery Terminal Removal Tool To Disconnect Negative Battery Cable From Battery
Courtesy of CHRYSLER LLC

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Loosen the battery terminal nut and use a battery terminal removal tool (2) to disconnect the negative

battery cable from the battery (1).

WARNING:

Disable the airbag system before attempting any steering wheel, steering
column, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for
the airbag system capacitor to discharge before performing further
diagnosis or service. This is the only sure way to disable the airbag
system. Failure to take the proper precautions could result in an
accidental airbag deployment and possible personal injury or death.

NOTE:

Before starting this procedure, be certain to turn the steering wheel until the
front wheels are in the straight-ahead position.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



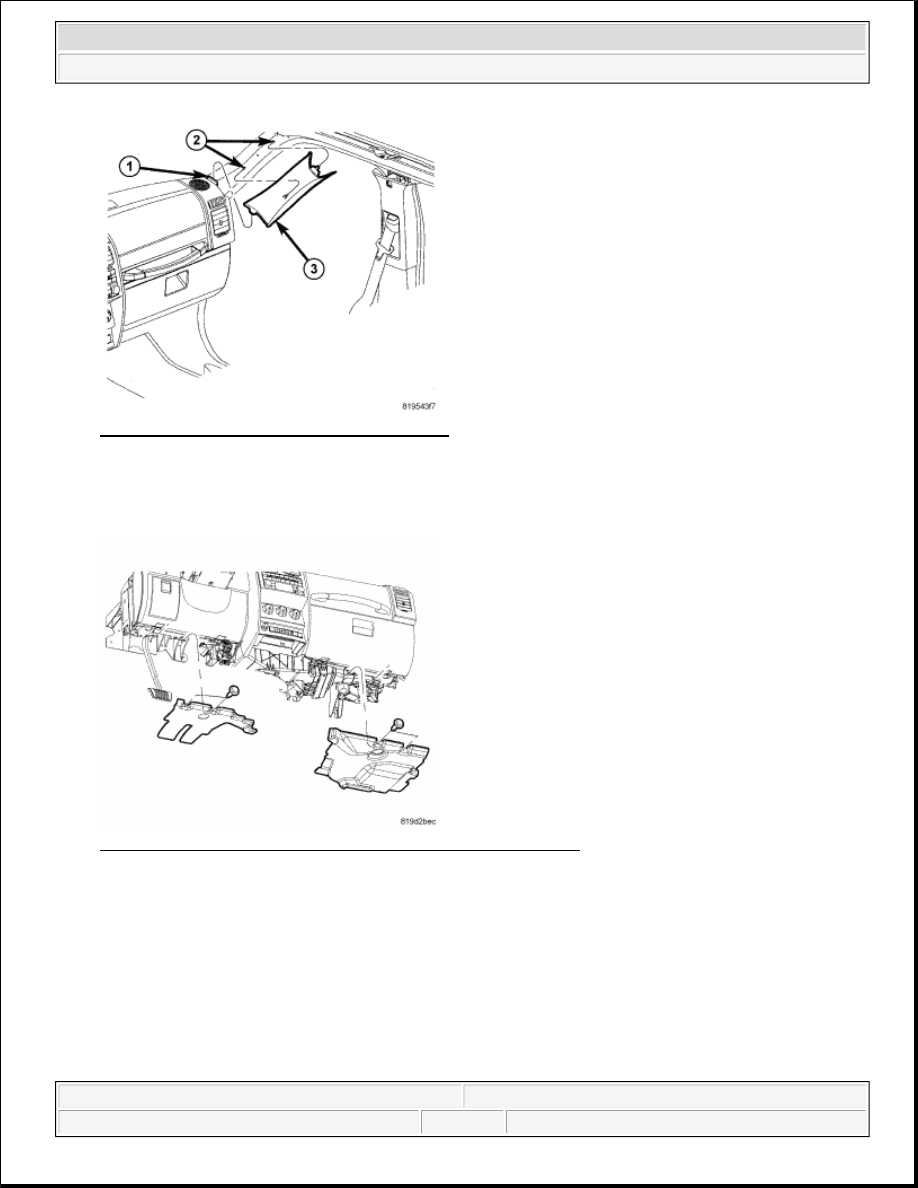

Fig. 313: Instrument Panel, Slots & Moldings
Courtesy of CHRYSLER LLC

3. Remove the right and left A-pillar trim moldings using a small pry tool or equivalent, lift the A-pillar trim

molding (3) from the A-pillar slots (2) releasing the clips on the molding.

Fig. 314: Removing/Installing Fasteners And Close Out Panels
Courtesy of CHRYSLER LLC

4. Remove the fasteners and close out panels from the lower I/P.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



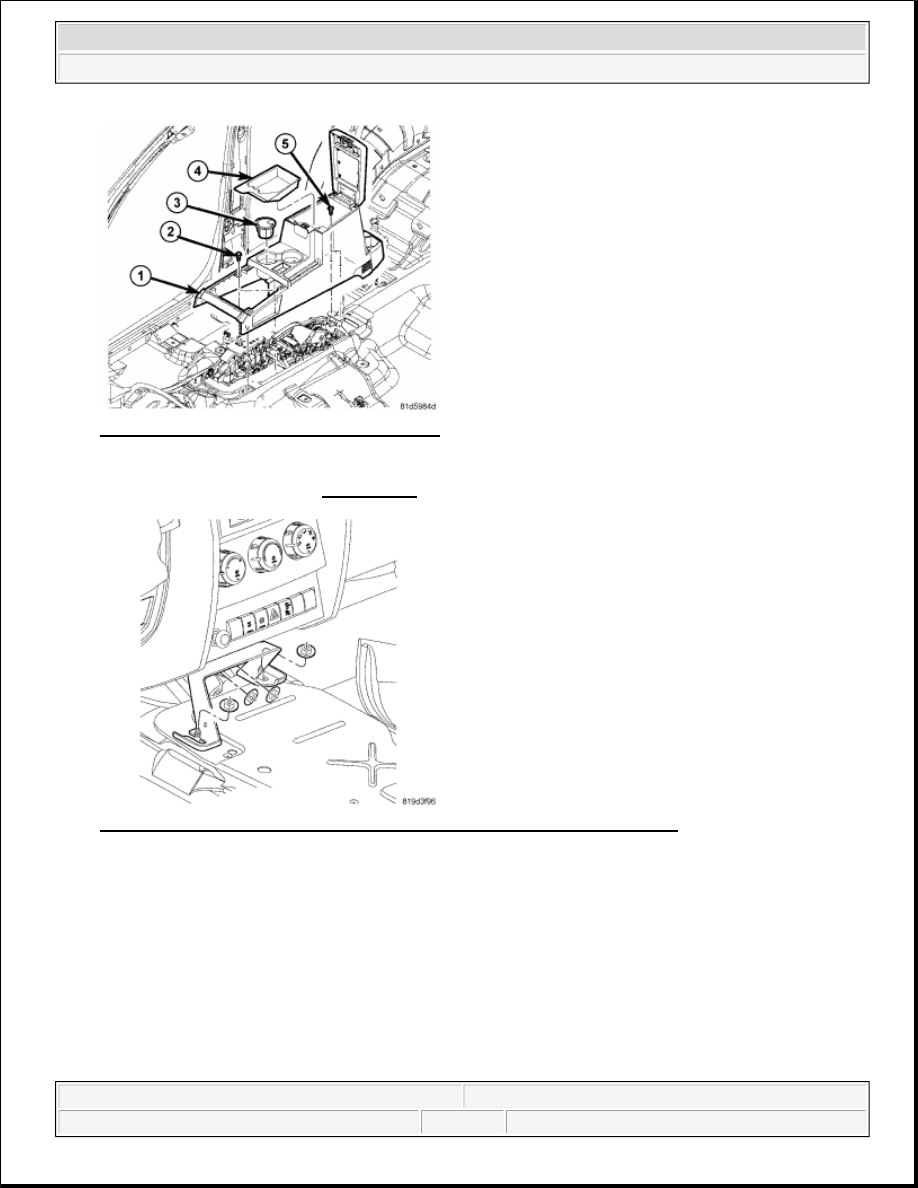

Fig. 315: Removing/Installing Floor Console
Courtesy of CHRYSLER LLC

5. Remove the floor console, see REMOVAL

Fig. 316: Removing/Installing Nuts And Instrument Panel Support Bracket
Courtesy of CHRYSLER LLC

6. Remove the nuts and the instrument panel support bracket.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
